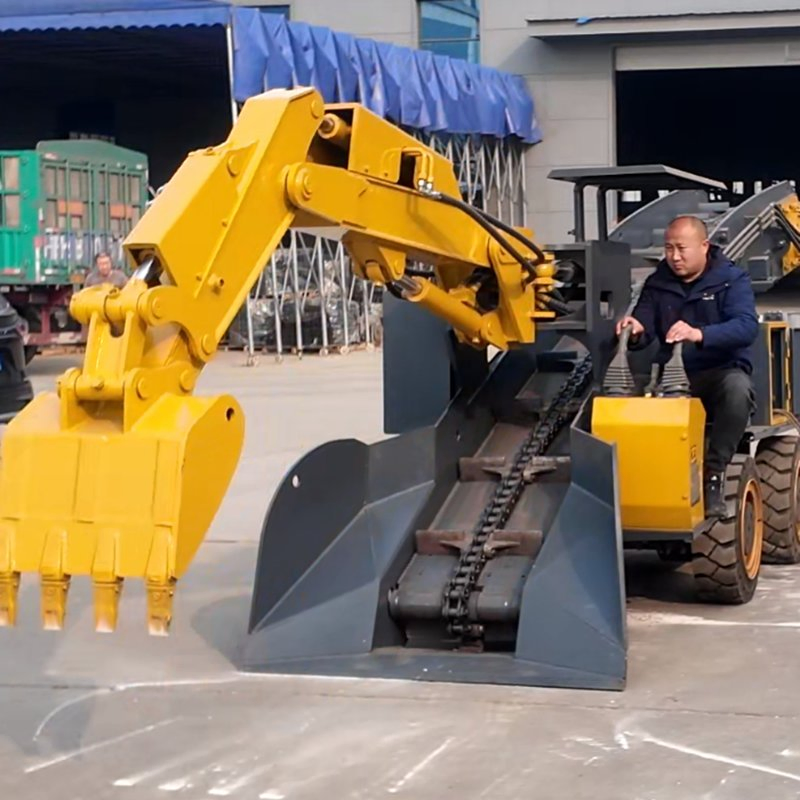

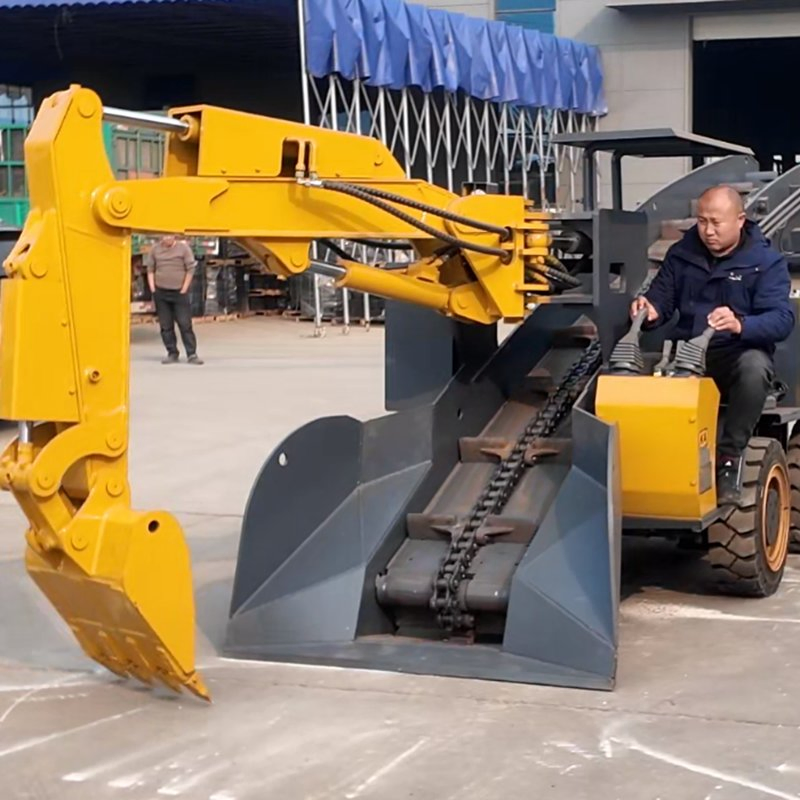

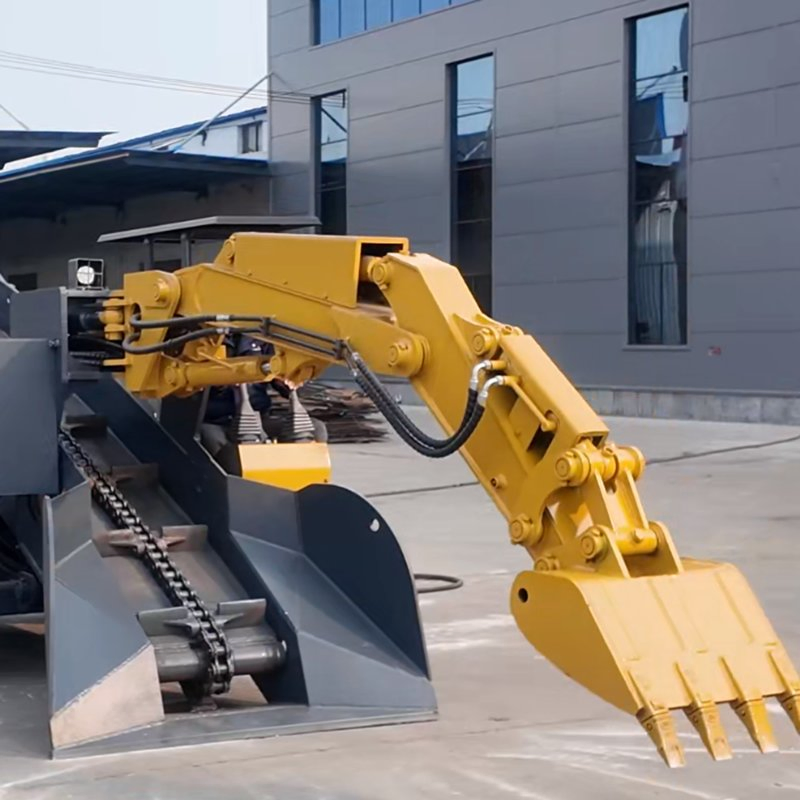

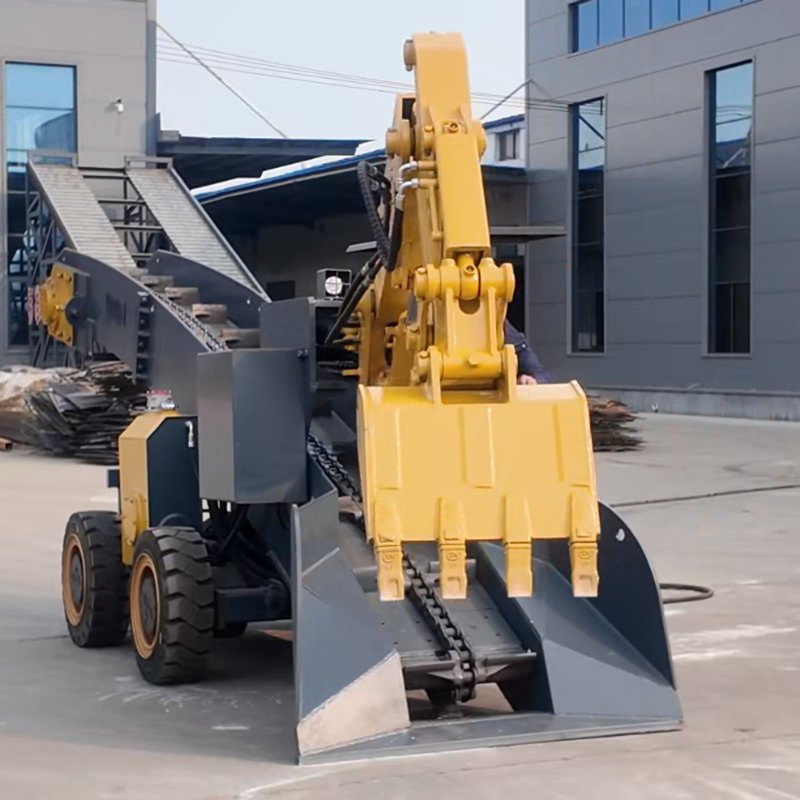

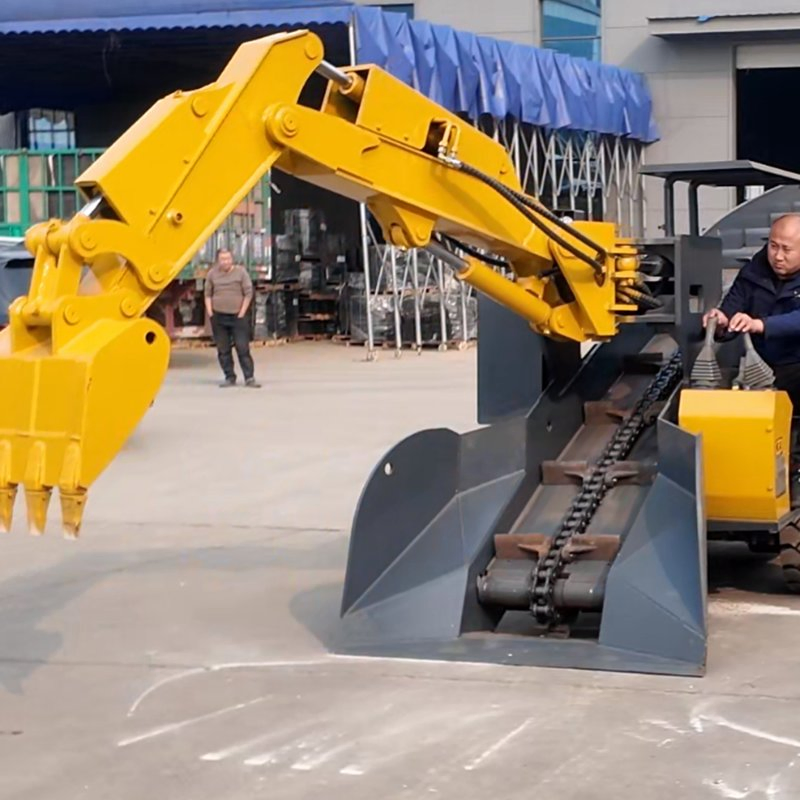

Crawler Mucking Loader is a specially designed equipment, usually equipped with a bucket, scraper or chain transport system, which can efficiently clean and transfer the excavated soil in an underground environment. This equipment is widely used in coal mines, metal mines, and tunnel construction.
1. Cutting and excavation: The equipment's cutting tools break the underground rock formation to form mucking.

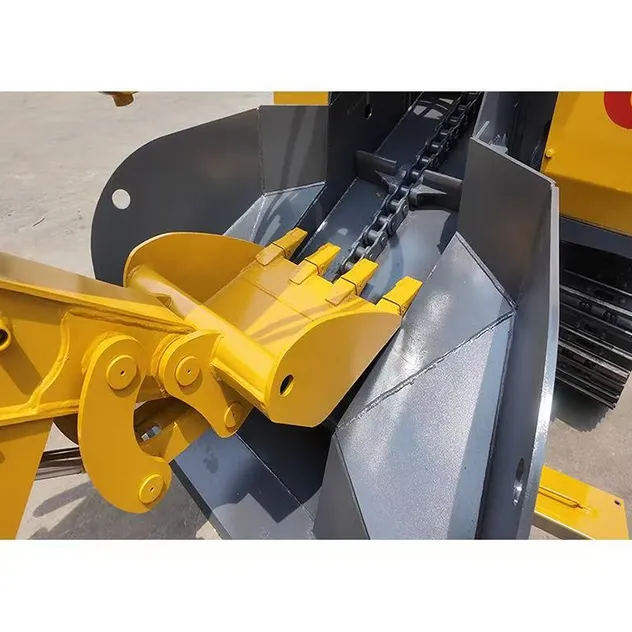

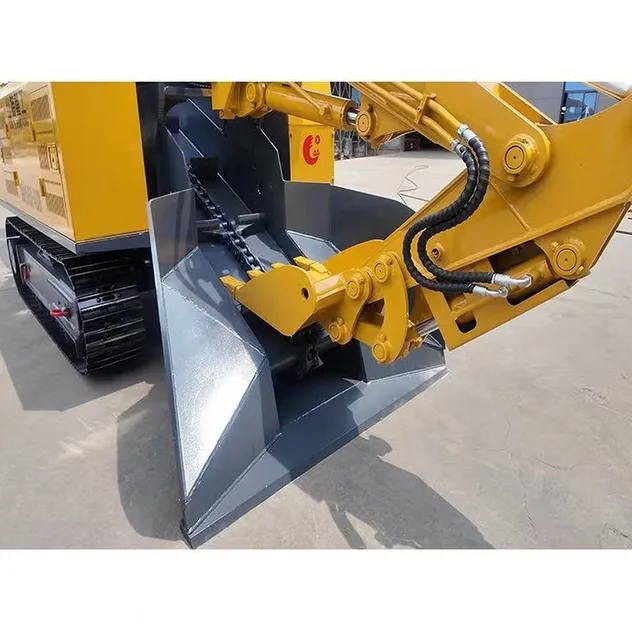

2. Collection and transportation: The bucket or scraper system quickly collects the broken mucking and transports it to the machine.
3. Unloading: The unit unloads the mucking by flipping or tilting into a carriage or conveyor belt.
4. Cyclic operation: Continuous operation ensures the smooth flow of the working surface.
Addresses labor-intensive tasks by automating the loading process, significantly reducing operational costs and time.
Combines powerful digging capabilities with an efficient loading system for seamless transition from excavation to removal.
Excels in tight spaces and various environments, enhancing productivity and safety for mining and tunneling.
| Parameter Item | Specifications (STB-60S / ZWY-60/22T) |
|---|---|
| Overall Dimension (L*W*H) | 5800 × 1650 × 1700 mm |
| Loading Capacity | ≈ 60 m³/h |
| Min Turning Radius | 3600 mm |
| Ground Clearance | 200 mm |
| Nominal Working Pressure | 16/25 MPa |
| Traveling Speed | High: 4.5 / Low: 2 km/h |
| Climbing Ability | ≤18° (Adapt to ground) |
| Max Size Materials | 810 * 580 * 500 mm |
| Applicable Section (W*H) | ≥ 2.2 × 2.2 m |
| Motor Power | 18.5 / 22 kW |
