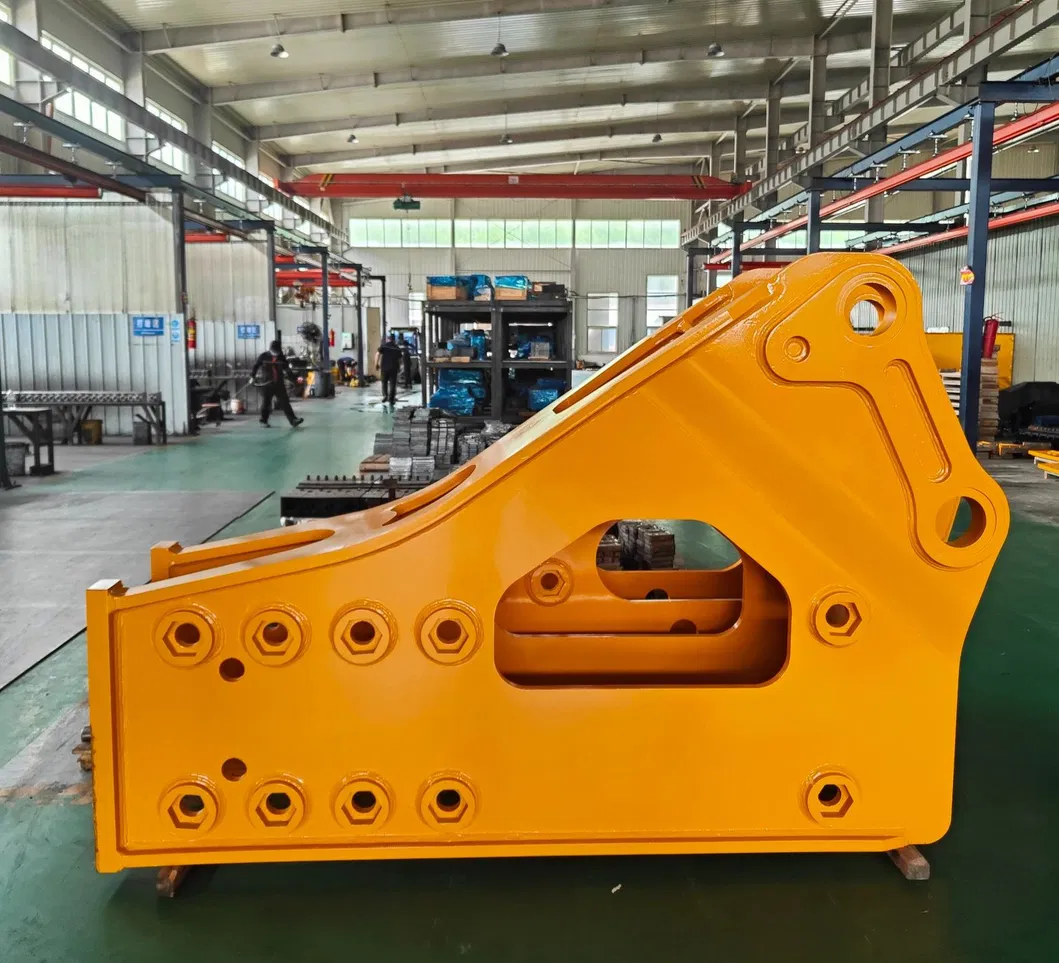

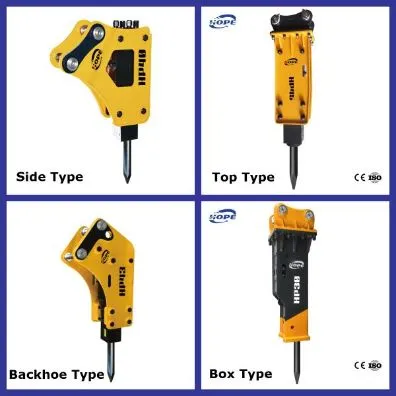

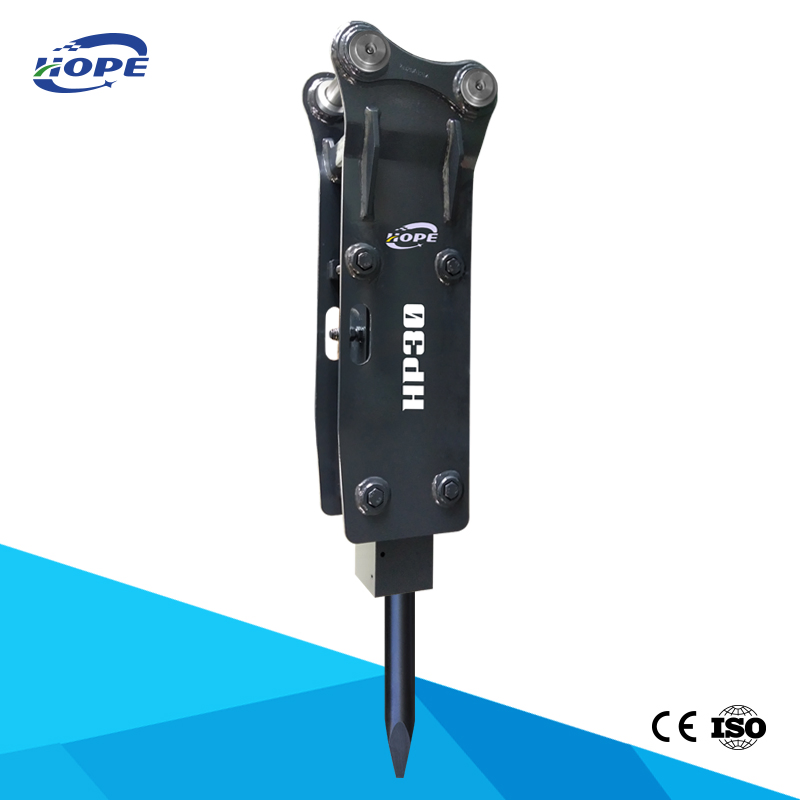

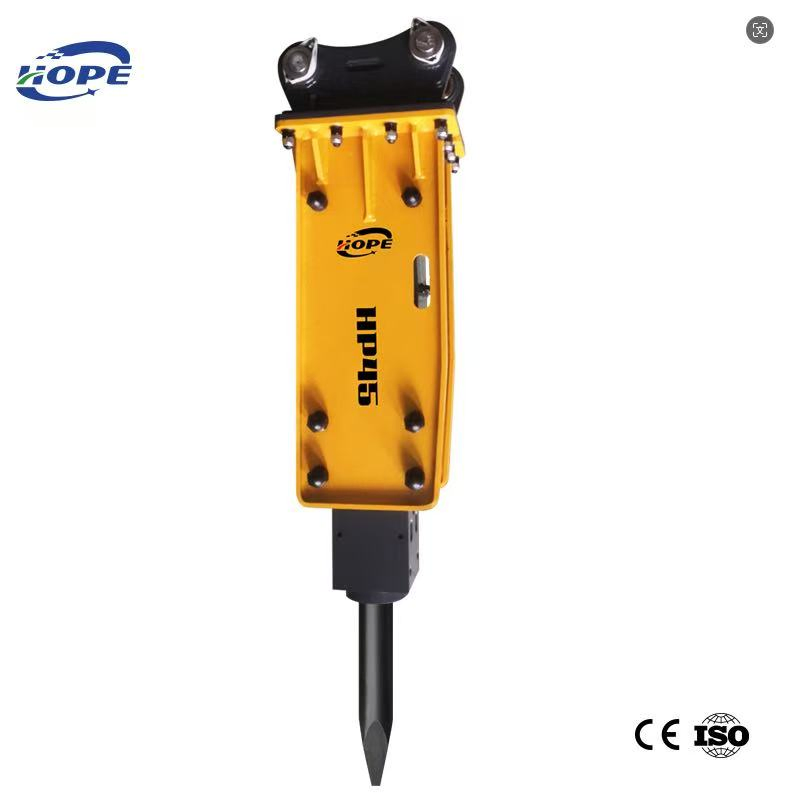

Introducing the powerful Hydraulic Breaker Hammer, expertly designed for SB40, SB43, and SB50 Hydraulic Excavators. As a preeminent manufacturer, we deliver superior rock breaker attachments that set a new standard for efficiency and performance.

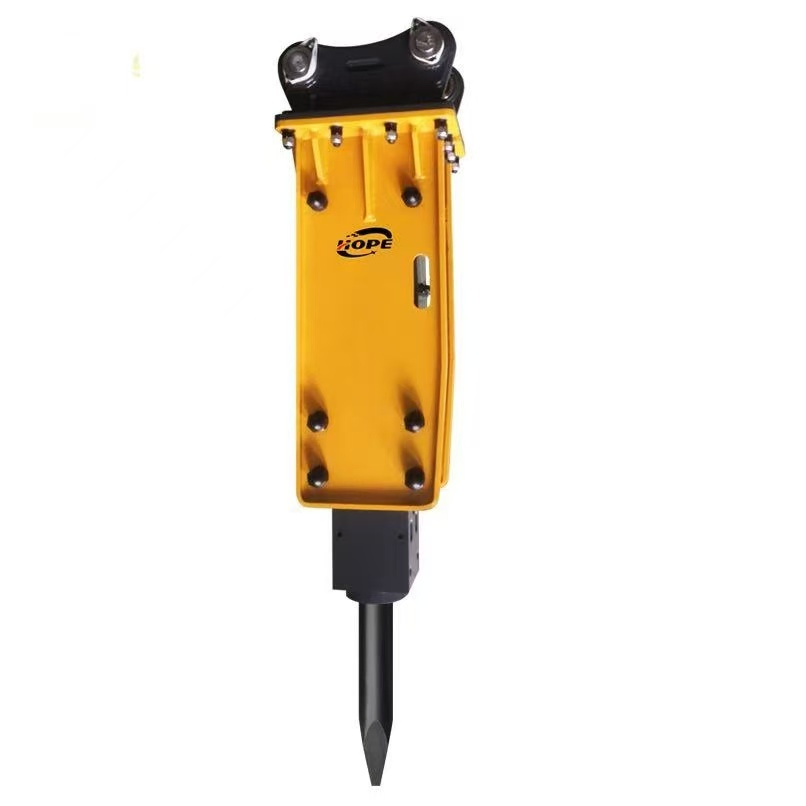

This hydraulic breaker is an essential companion for excavators, meticulously engineered to obliterate stones and rocks with unparalleled precision, thus elevating operational productivity to new heights. It proves indispensable across a multitude of applications, including mountain mining, tunnel excavation, infrastructure demolition, and ice or frozen soil breaking.

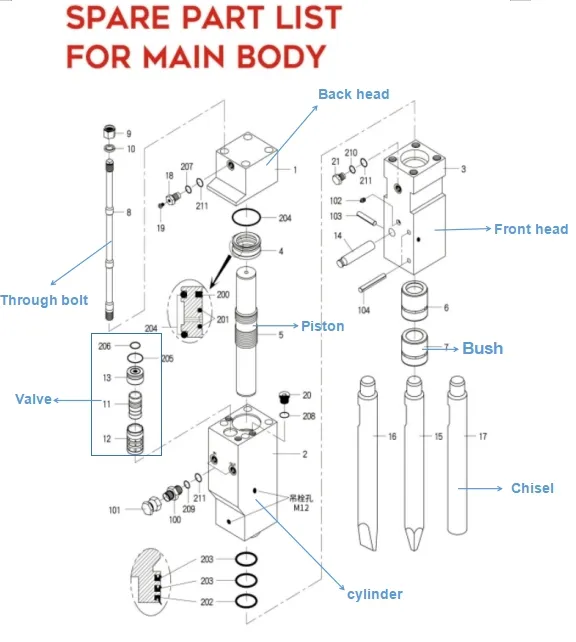

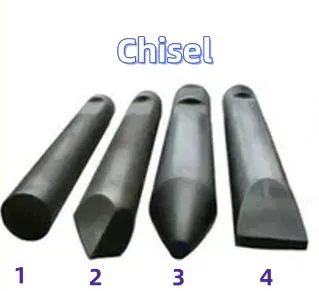

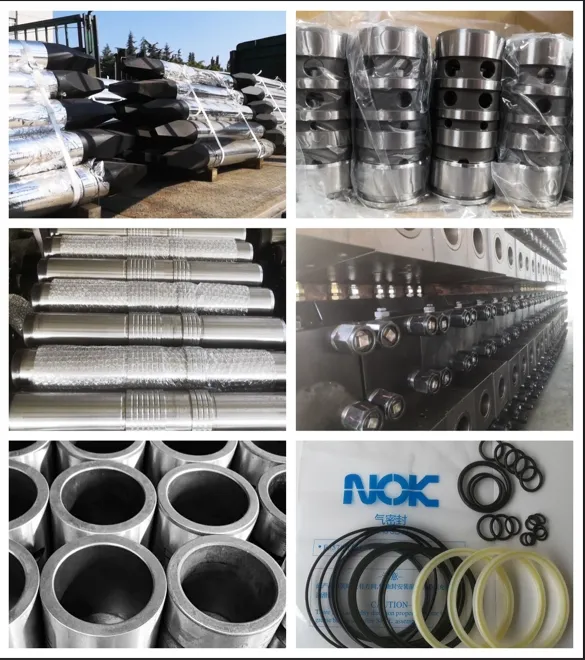

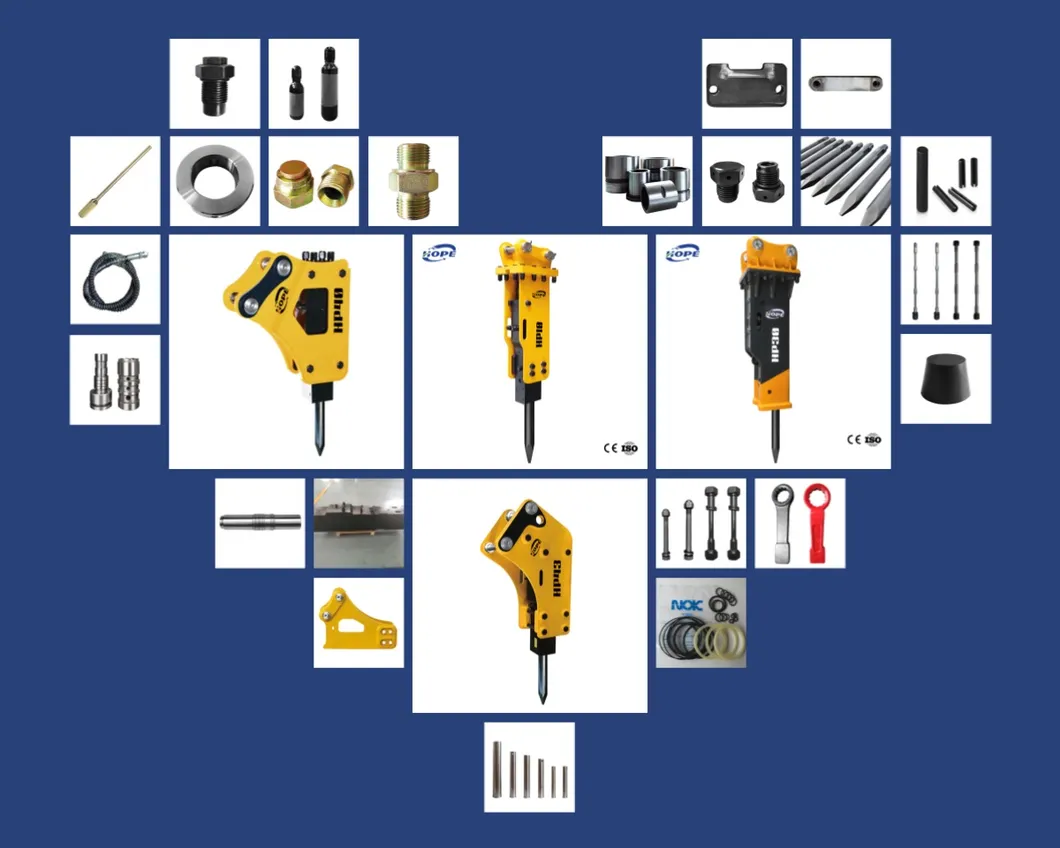

Discover our comprehensive range of spare parts meticulously crafted for hydraulic breakers. We supply everything you need for smooth and efficient operations.
| Model | Drive Flow (L/min) | Working Pressure (kg/cm²) | Impact Frequency (bpm) | Pipe Diameter (inch) | Chisel Diameter (mm) | Vehicle Weight (ton) |
|---|---|---|---|---|---|---|
| HP05 | 15-25 | 90-120 | 800-1400 | 1/2 | 35 | 0.8-2.5 |
| HP10 | 15-25 | 90-120 | 800-1400 | 1/2 | 40 | 0.8-2.5 |

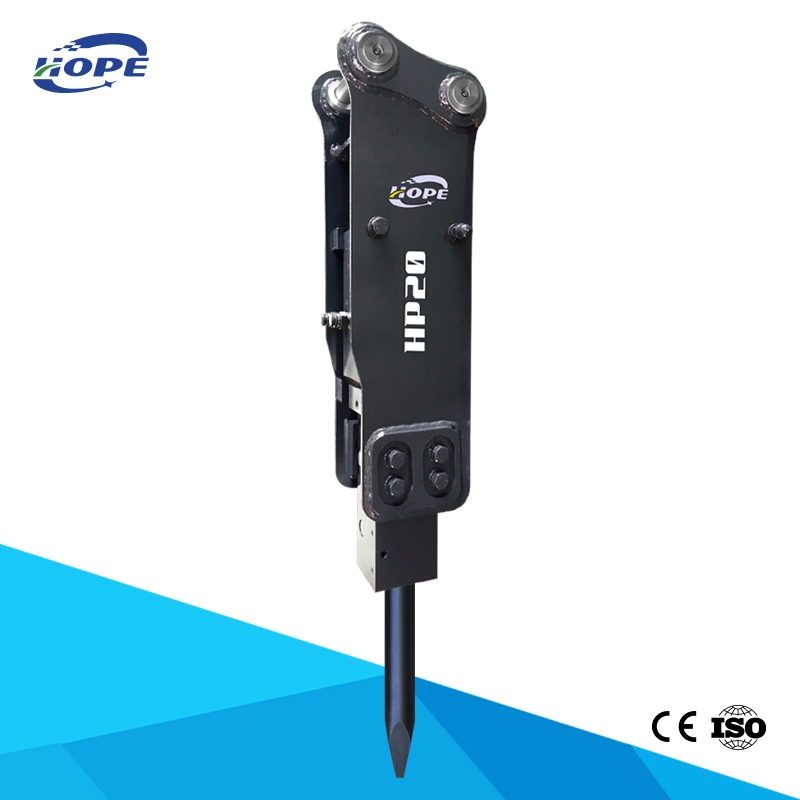

| HP20 | 20-30 | 90-120 | 700-1200 | 1/2 | 45 | 1.2-3 |
| HP30 | 25-50 | 90-120 | 600-1100 | 1/2 | 53 | 2-3.5 |
| HP40 | 40-70 | 95-130 | 500-900 | 1/2 | 68 | 4-6 |
| HP43 | 50-90 | 120-150 | 400-800 | 1/2 | 75 | 4.5-7 |
| HP45 | 60-100 | 130-160 | 400-800 | 3/4 | 85 | 7-14 |
| HP50 | 80-110 | 150-170 | 350-700 | 3/4 | 100 | 10-15 |
| HP81 | 120-180 | 160-180 | 350-500 | 1 | 140 | 18-26 |
| HP121 | 180-240 | 160-180 | 350-450 | 5/4 | 155 | 28-35 |
| HP131 | 200-260 | 160-180 | 250-400 | 5/4 | 165 | 30-40 |

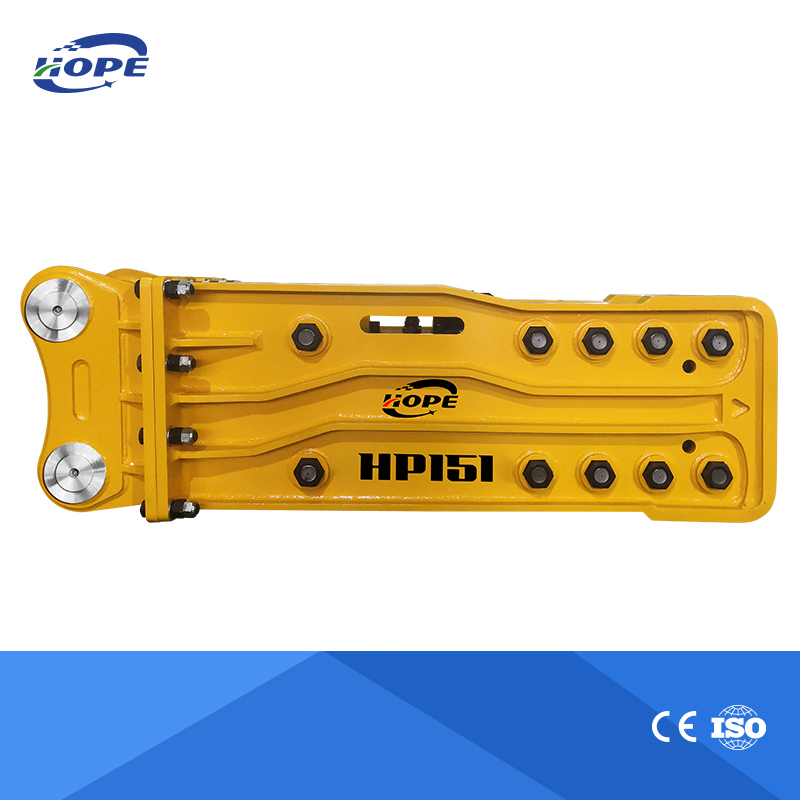

| HP151 | 210-290 | 160-180 | 200-350 | 5/4 | 175 | 35-50 |
| HP185 | 220-290 | 180-220 | 200-250 | 5/4 | 185 | 35-55 |
| HP195 | 220-290 | 180-220 | 180-200 | 5/4 | 195 | 40-55 |
Founded amidst picturesque vistas, we emerge as a beacon of innovation. Pioneering the realms of technical research and dynamic sales services, our company excels in hydraulic breakers, wood grabbers, vibration hammers, and an extensive range of excavator accessories.

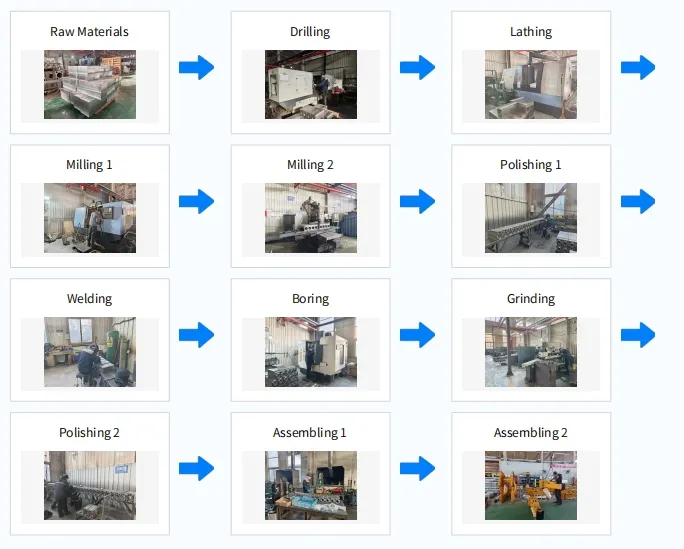

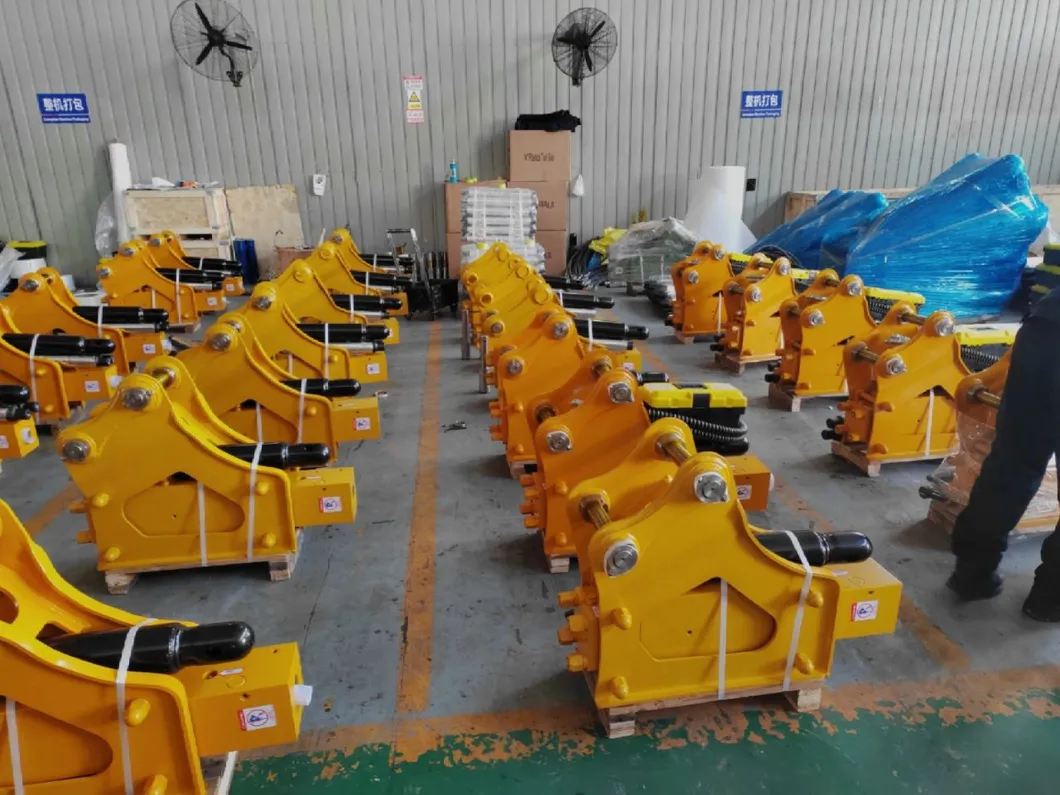

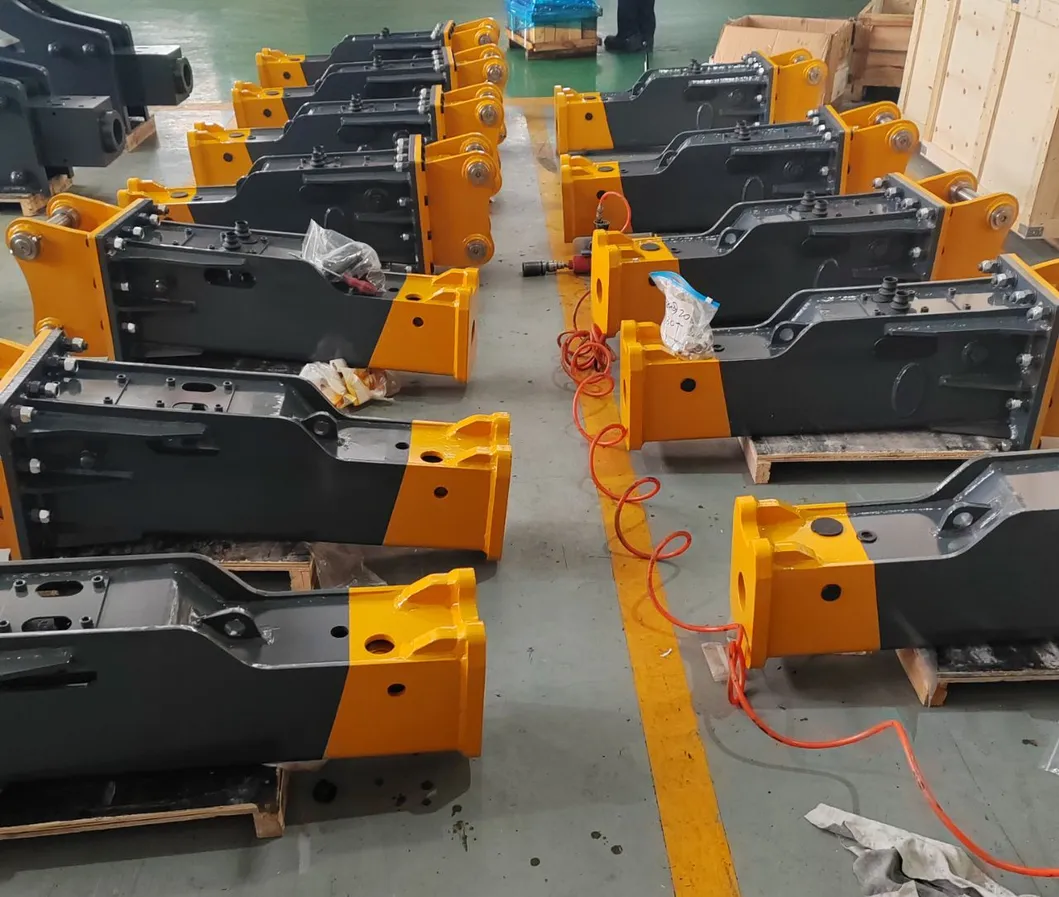

Harnessing the power of elite, world-class production lines, we stand as a paragon of modern manufacturing. By utilizing premium alloy steel and integrating advanced oil channel designs, we achieve groundbreaking results. Our hydraulic breaker is a masterpiece of engineering, designed to deliver exceptional striking power, unmatched stability, and remarkable durability. Our equipment proudly bears the prestigious ISO9001/2000 international quality management system certification and the esteemed EU-CE certification.
