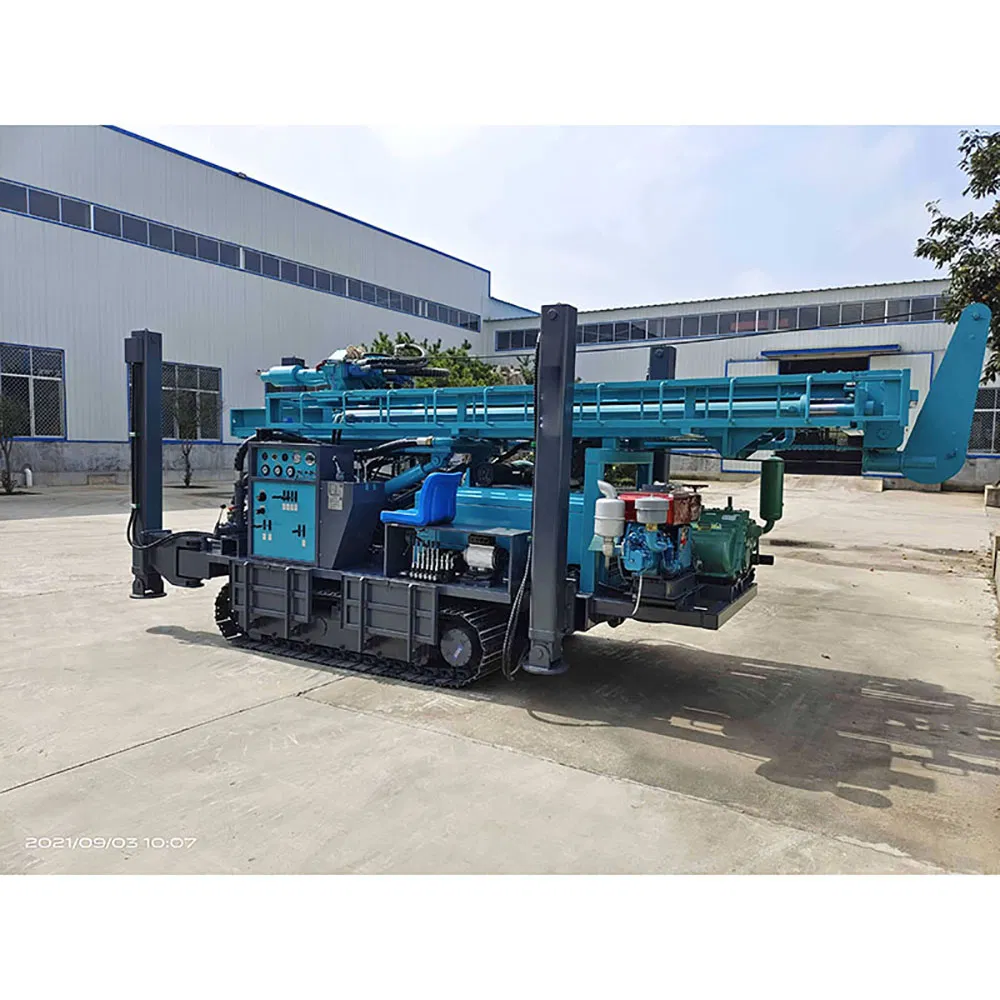

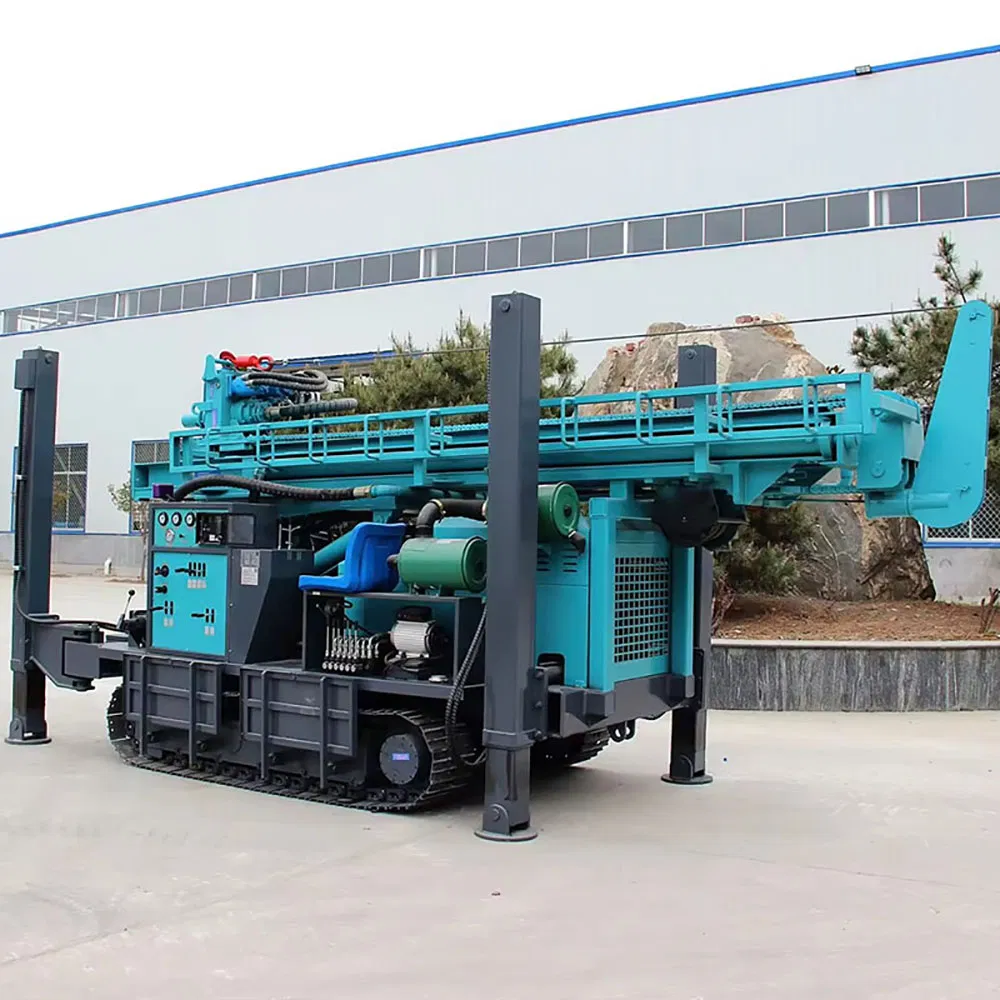

Heavy-Duty 450m Deep Water Well Drill Machine for Efficient Excavation

1 / 5

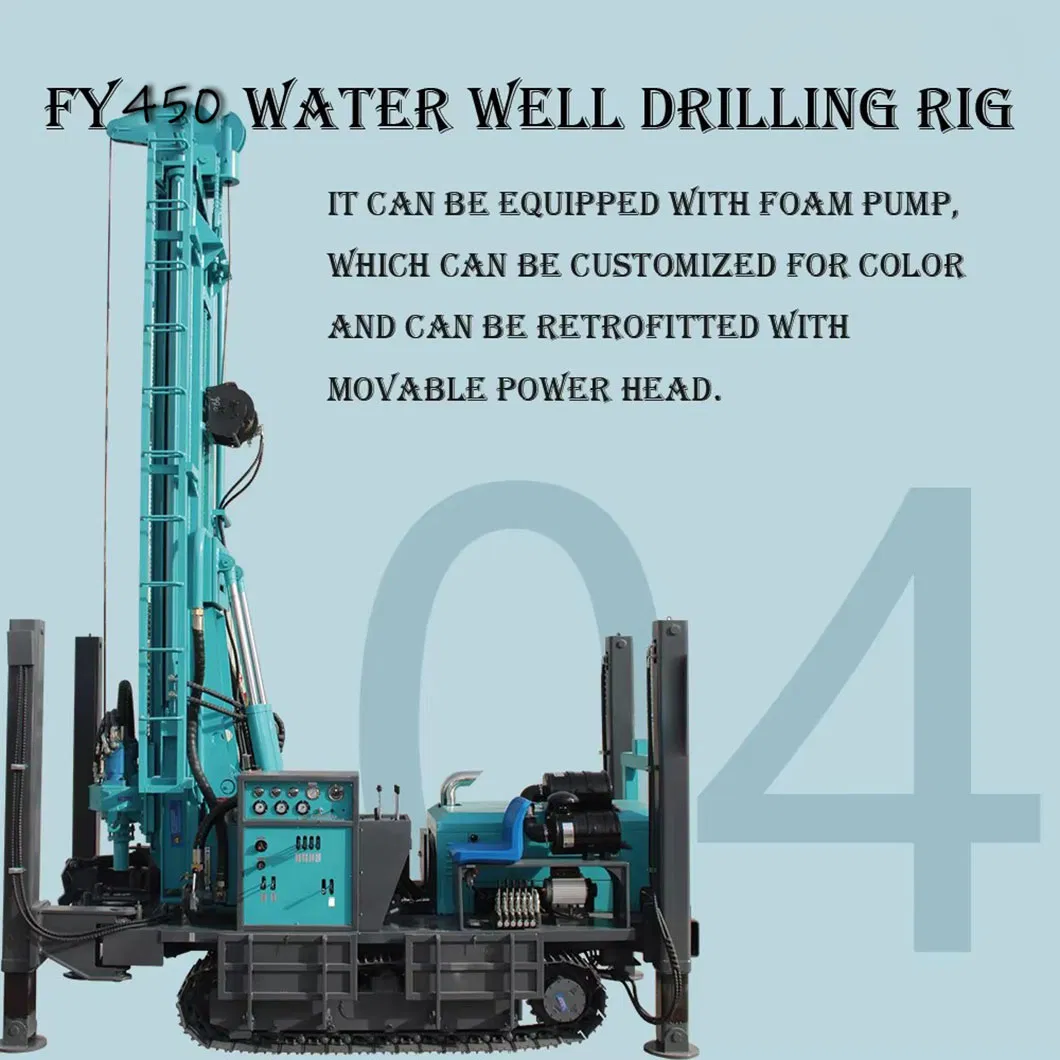

Heavy-Duty 450m Deep Water Well Drill Machine for Efficient Excavation

Customization:	Available
Certification:	ISO 9001:2000
Condition:	New

Send Inquiry

Product Description

Basic Information

Model NO.	XW450	Motor	AC Motor
Drill Hole Diameter	140-350 mm	Drill Hole Depth	>200m
Bit Type	Diamond Bit	Drilling Way	Compound
Type	Crawler	Rig Lifting Force(T)	25
The Weight(T)	9.4	Engine Power(Kw)	103
Engine Brand	Weichai	HS Code	843041

Technical Specifications

Drill Pipe Diameter	Φ89 Φ102 mm	Drill Pipe Length	1.5m / 2.0m / 3.0m / 6.0m

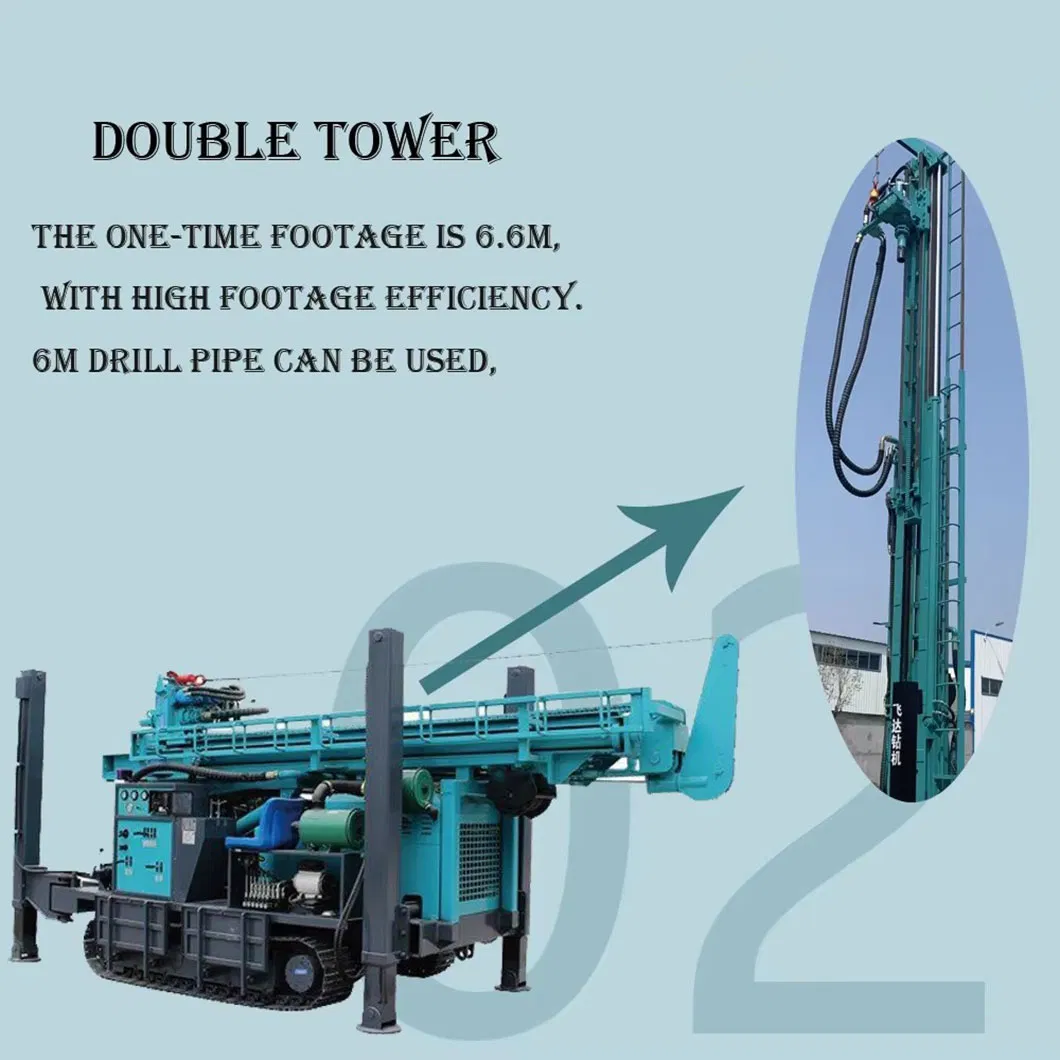

Drilling Depth	450 m	One-time Advance Length	6.6 m
Rapid Rise Speed	20 m/min	Fast Feeding Speed	40 m/min
Swing Speed	30-135 rpm	Swing Torque	7000-9500 N.m
Air Consumption	17-36 m³/min	Penetration Efficiency	15-35 m/h
Climbing Angle	Max. 30°	Machine Size	595021002600 mm

Product Performance & Features

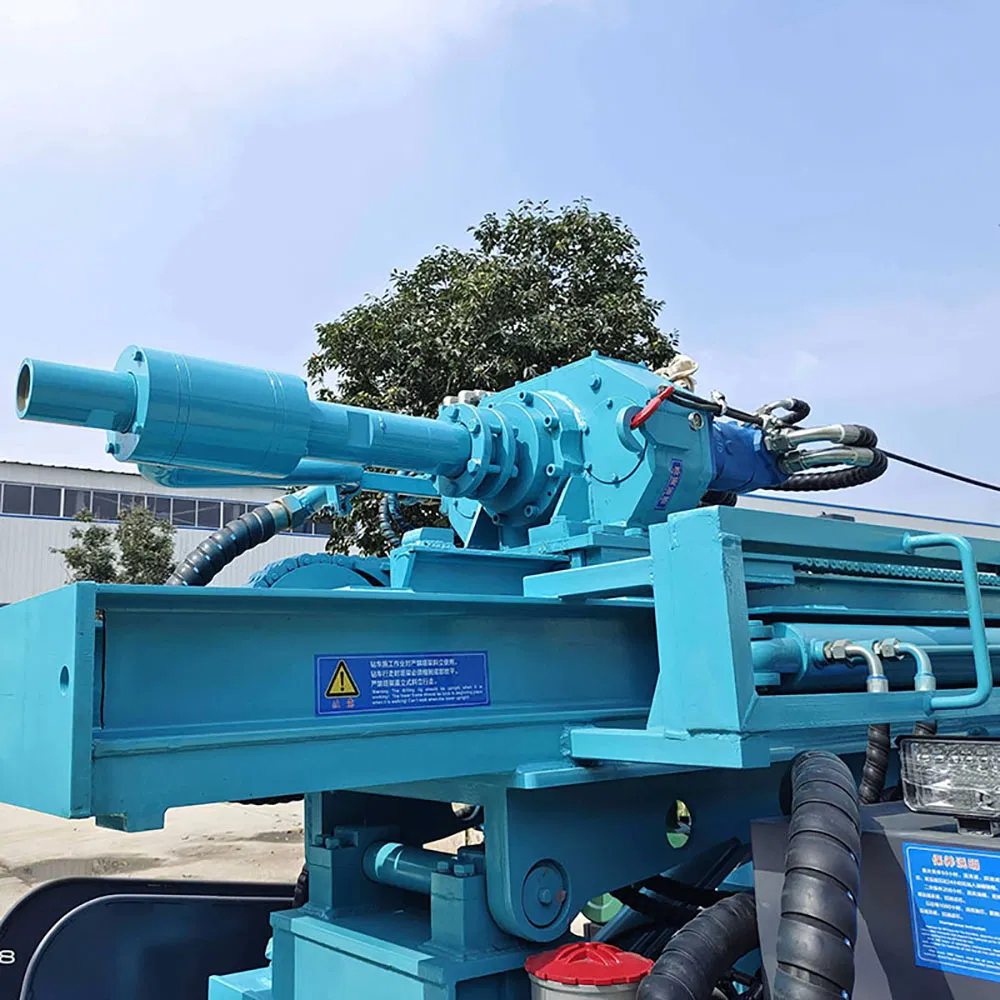

Advanced Efficiency: The drilling rig adopts a long travel speed doubling mechanism and a mechanical power head with a stroke of 6000MM. This design significantly improves drilling efficiency and reduces the occurrence of drilling block burning accidents.

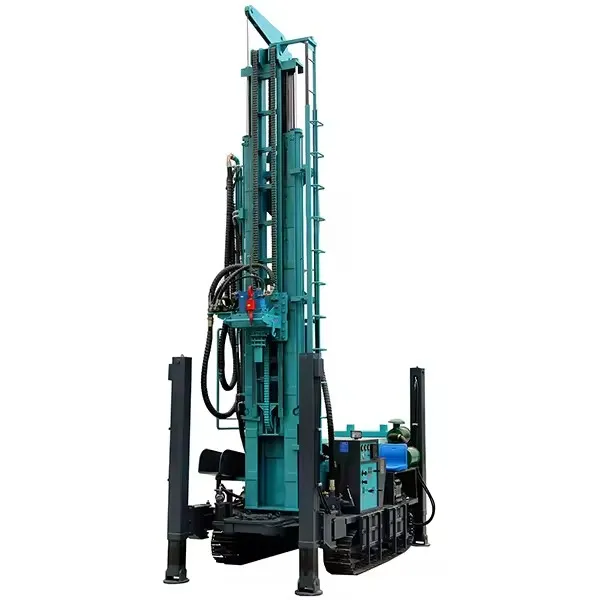

Hydraulic Power: Utilizing dual oil pumps for oil supply and drilling operations, the system allows for flexible lifting. This results in low power loss and minimal auxiliary time for core drilling tasks.

Adjustable Angles: The latest fully hydraulic rope core system allows users to customize the drilling angle from 45° to 90°. This flexibility ensures it is suitable for various complex work environments.

Durability: Constructed with a steel structure and thickened steel plates, the machine offers enhanced stability and long-term durability. The operating system is designed to be easy to learn and operate.

Balanced Pressure System: The unique balanced pressure drilling system effectively manages the weight of the drill string. It provides accurate control over drilling pressure, adapting seamlessly to complex geological layers.

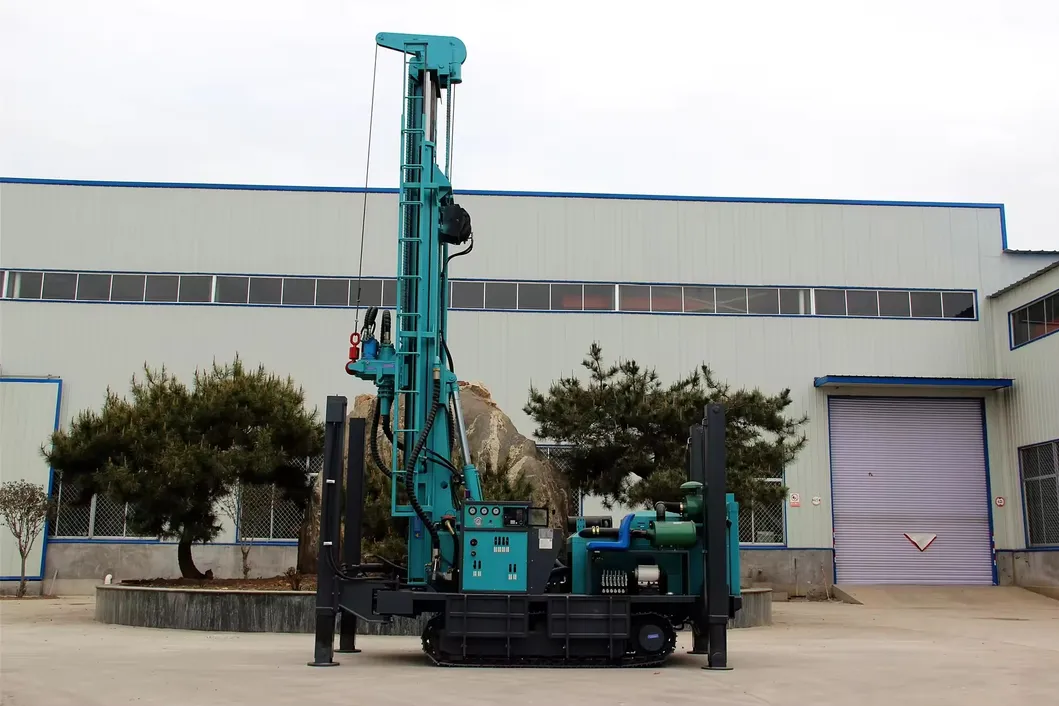

Centralized Control: An electro-hydraulic central control system allows the operator to monitor and manage all power and drilling operations from a single console, simplifying fault diagnosis and monitoring.

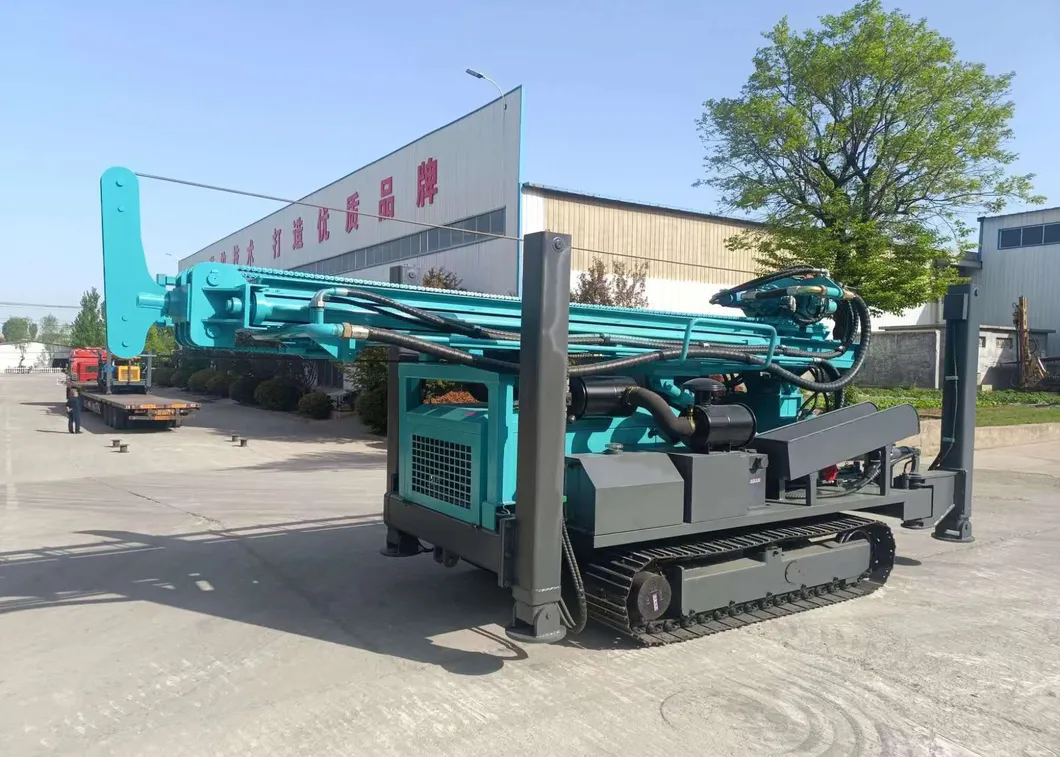

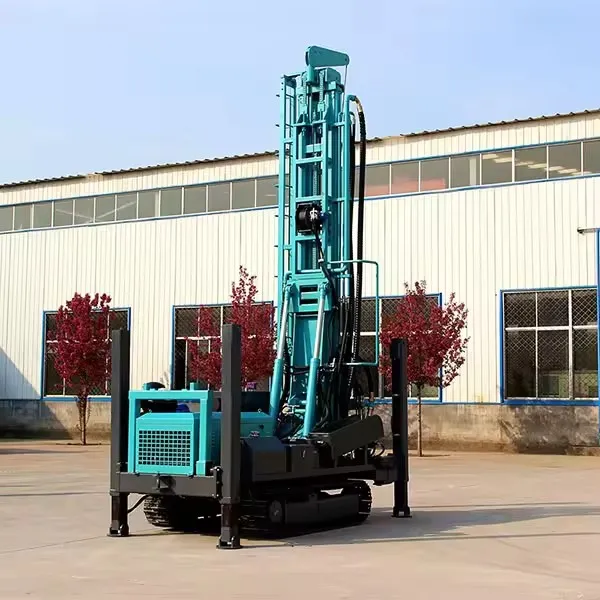

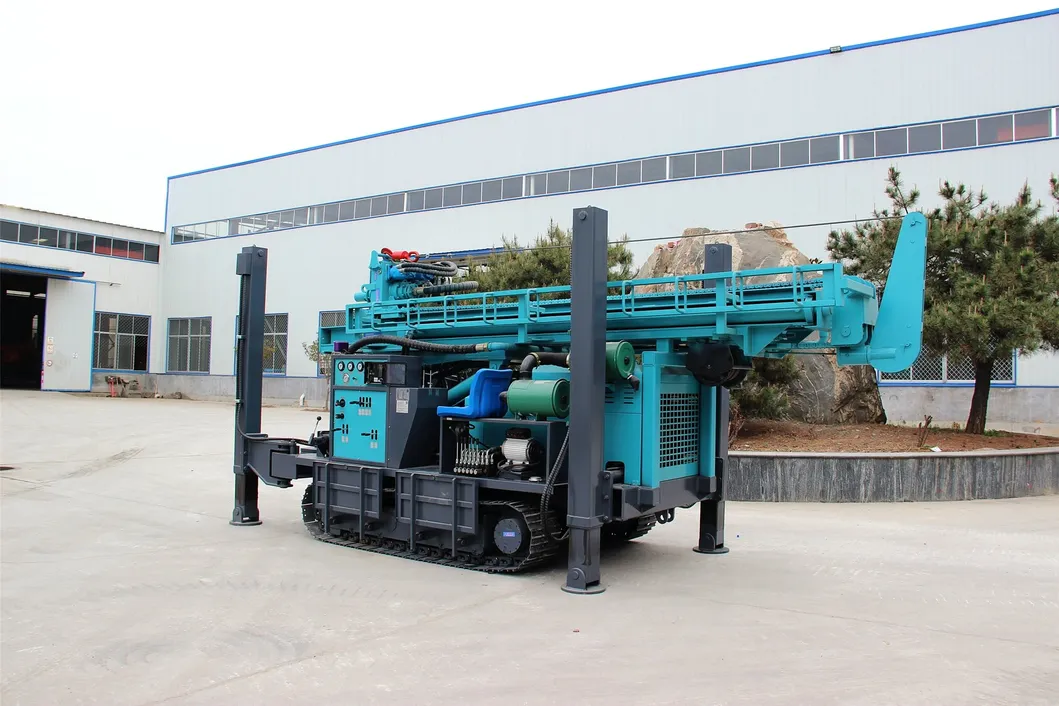

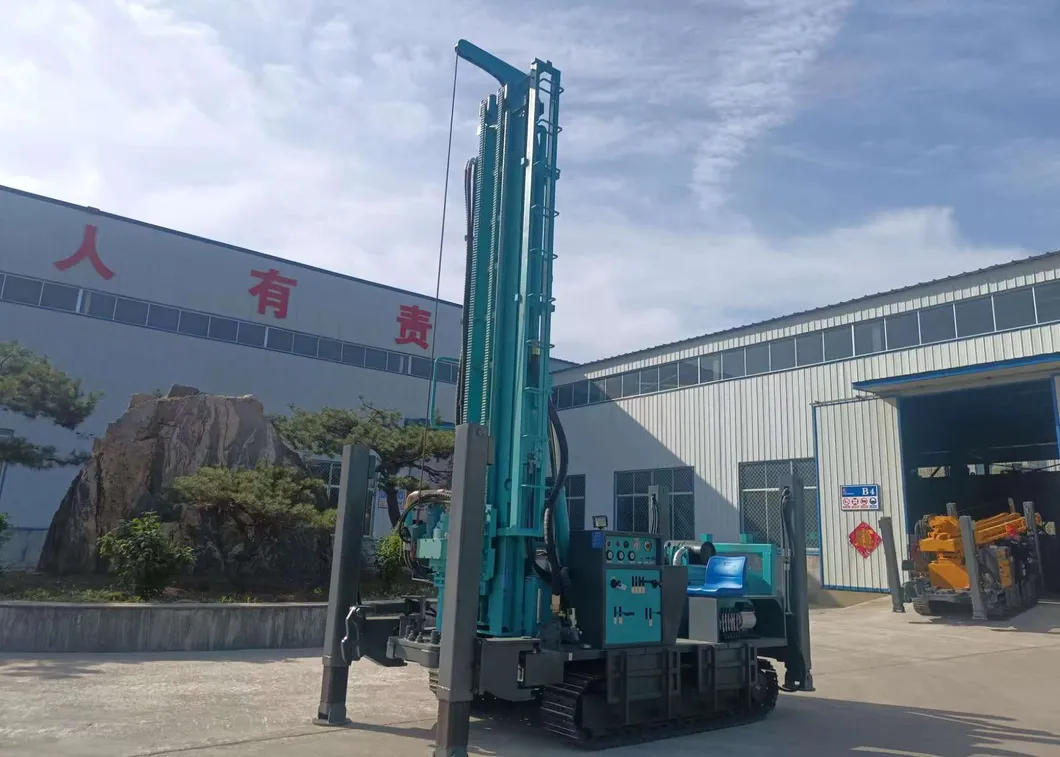

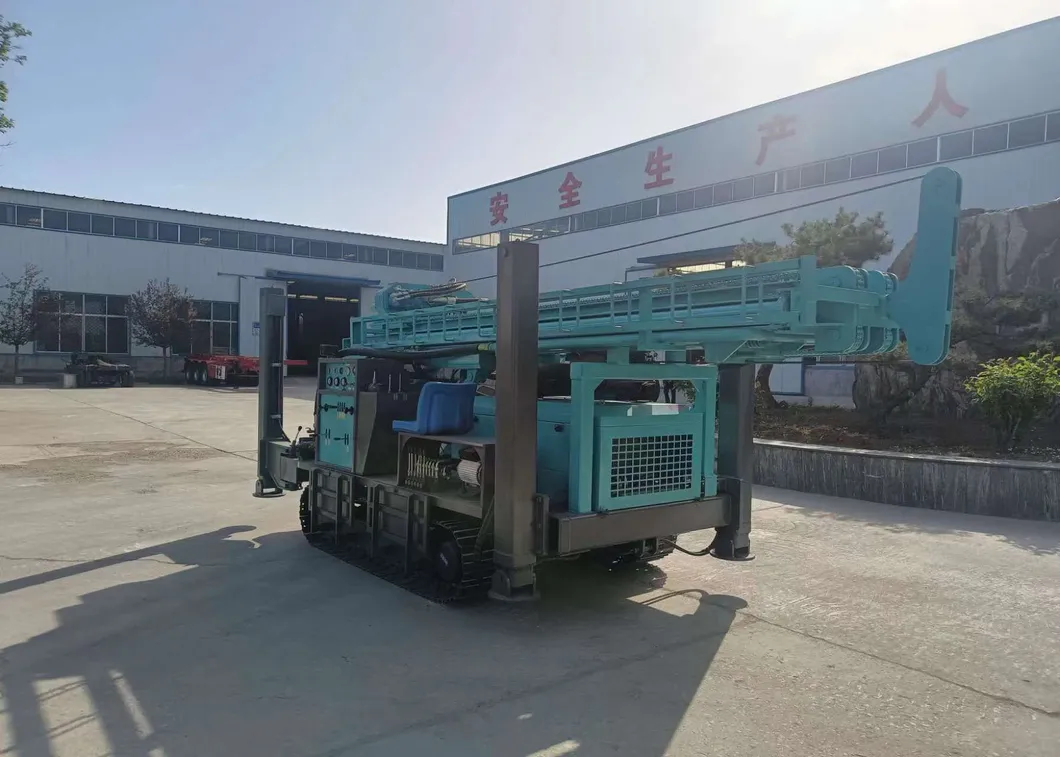

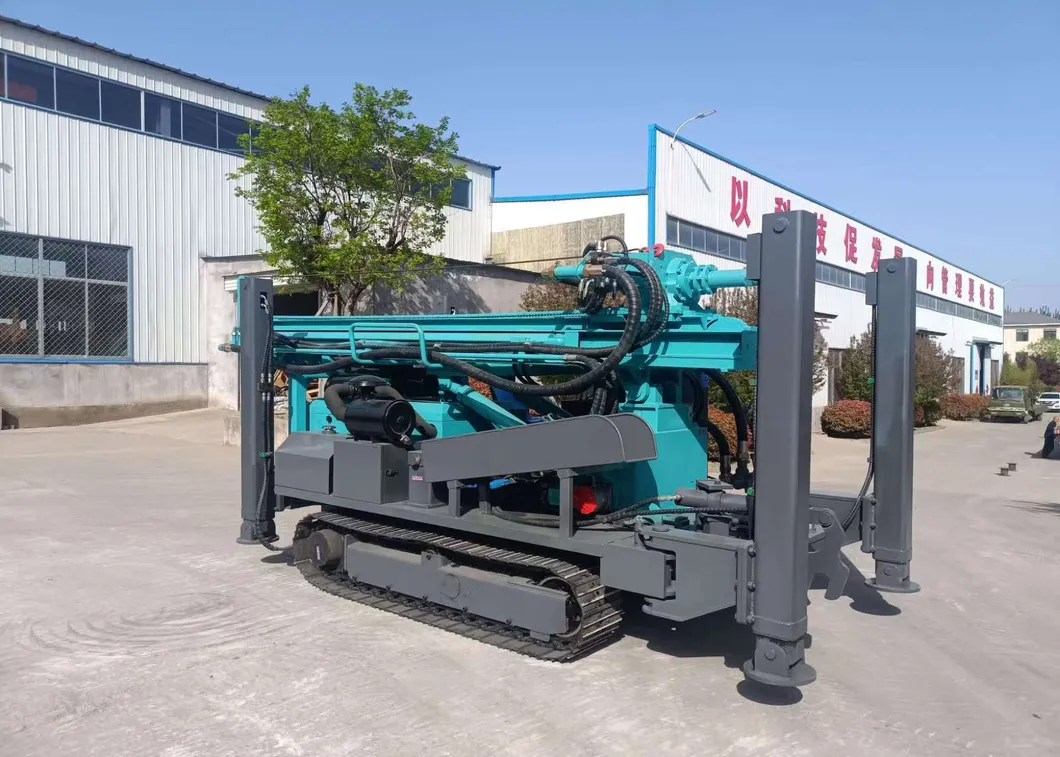

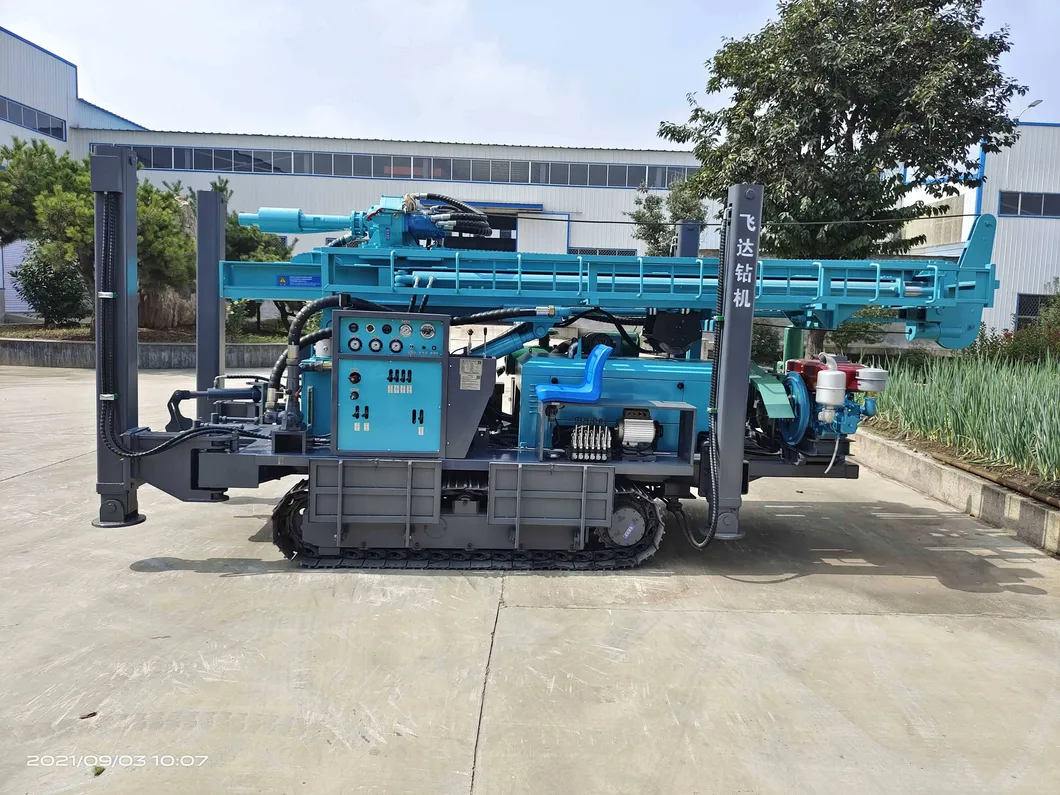

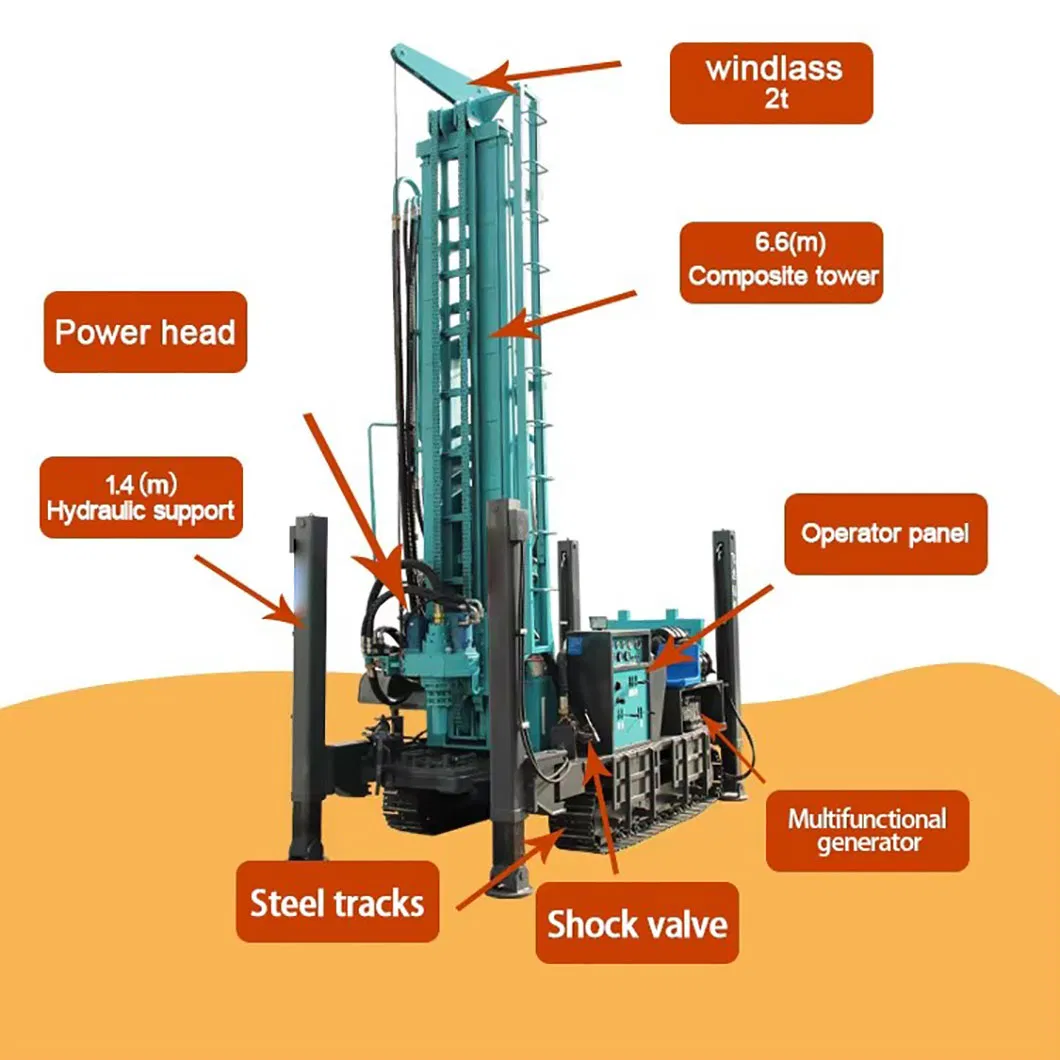

On-site Application & Parts

Frequently Asked Questions

Q1: What is the maximum drilling depth of the XW450 model?

The XW450 crawler water well drilling rig is capable of reaching a maximum drilling depth of 450 meters.

Q2: Which engine brand is used in this drilling rig?

This equipment is powered by a high-performance Weichai engine (National III standard) with 103kW of power.

Q3: Can the drilling angle be adjusted for different terrains?

Yes, the hydraulic system allows for the drilling angle to be adjusted from 45° up to 90°, making it highly adaptable to various work environments.

Q4: What are the benefits of the dual oil pump system?

The dual pump system optimizes oil supply for drilling and lifting, leading to lower power loss, faster response times, and reduced auxiliary operational time.

Q5: What range of hole diameters does this machine support?

The machine supports drill hole diameters ranging from 140mm to 350mm, depending on the bit and configuration used.

Q6: How does the balanced pressure drilling system help in operation?

It balances the weight of the drill string to accurately control drilling pressure, allowing the rig to perform effectively in complex and deep-hole geological conditions.
