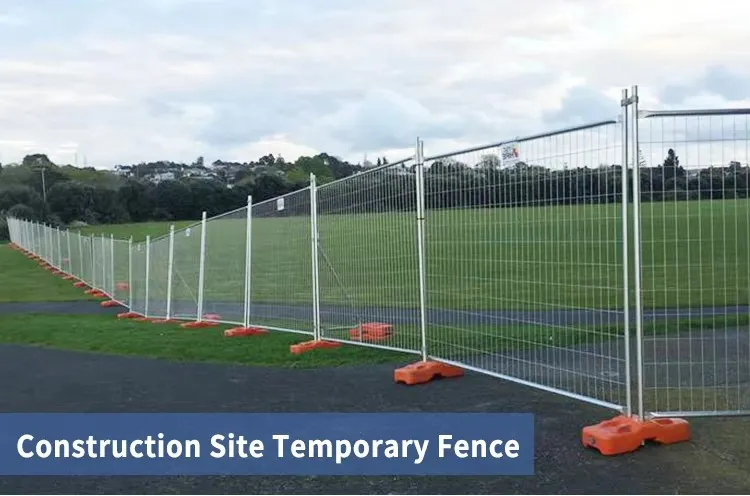

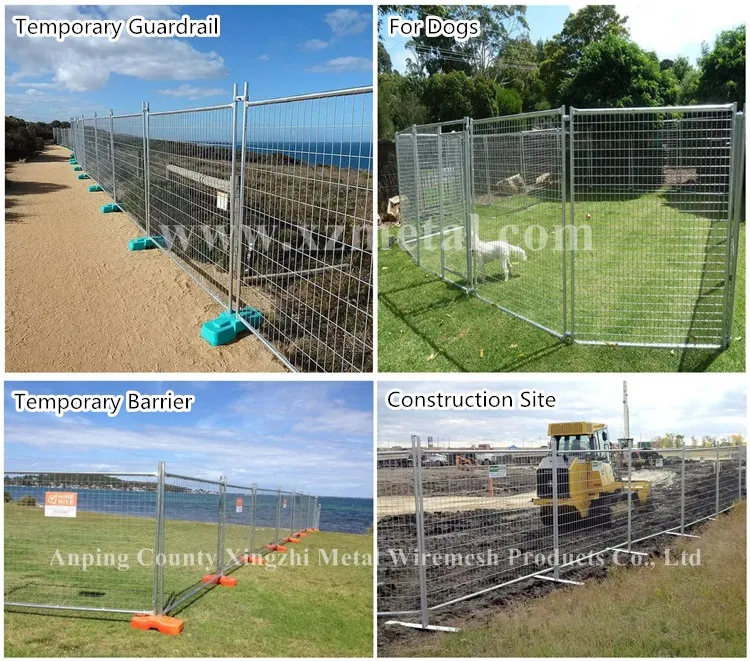

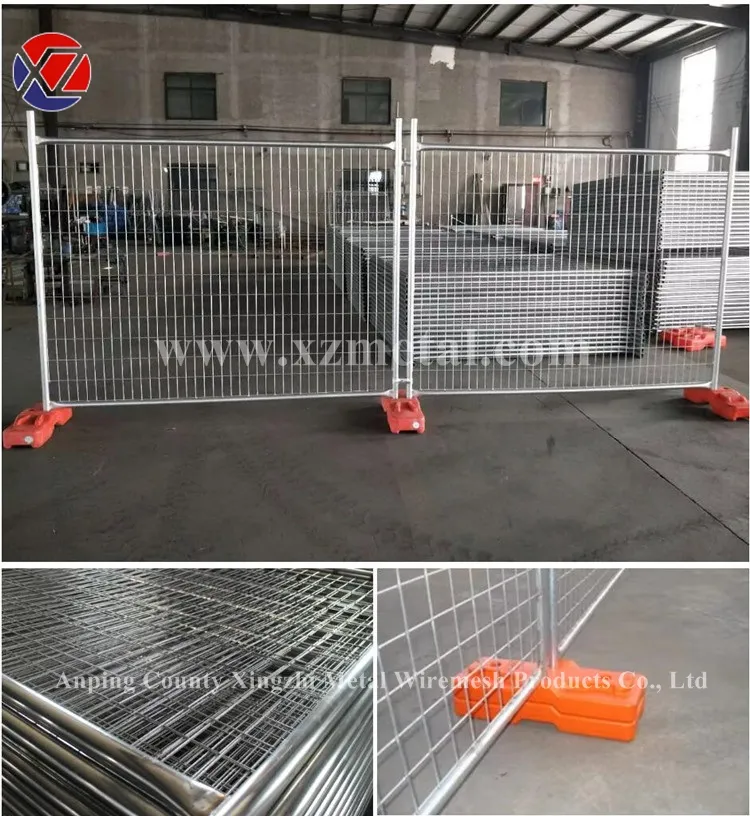

Welded Mesh Temporary Fence, also known as Australian Temporary Fence, Temporary Guardrail or Mobile Fence, is a safety protection facility temporarily set up for specific situations. The system is a combination of components including fence panels, support foot clamps, and other optional accessories.

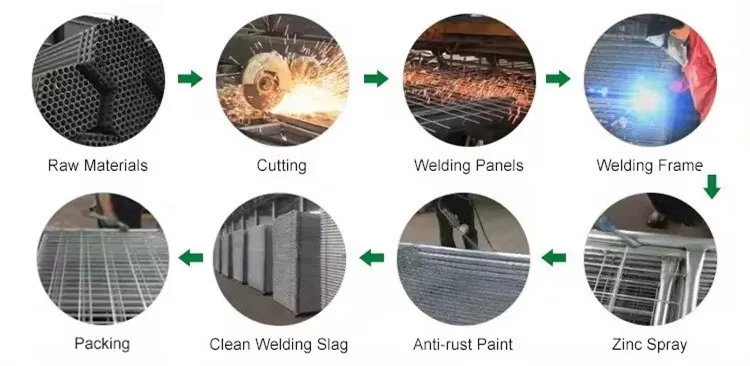

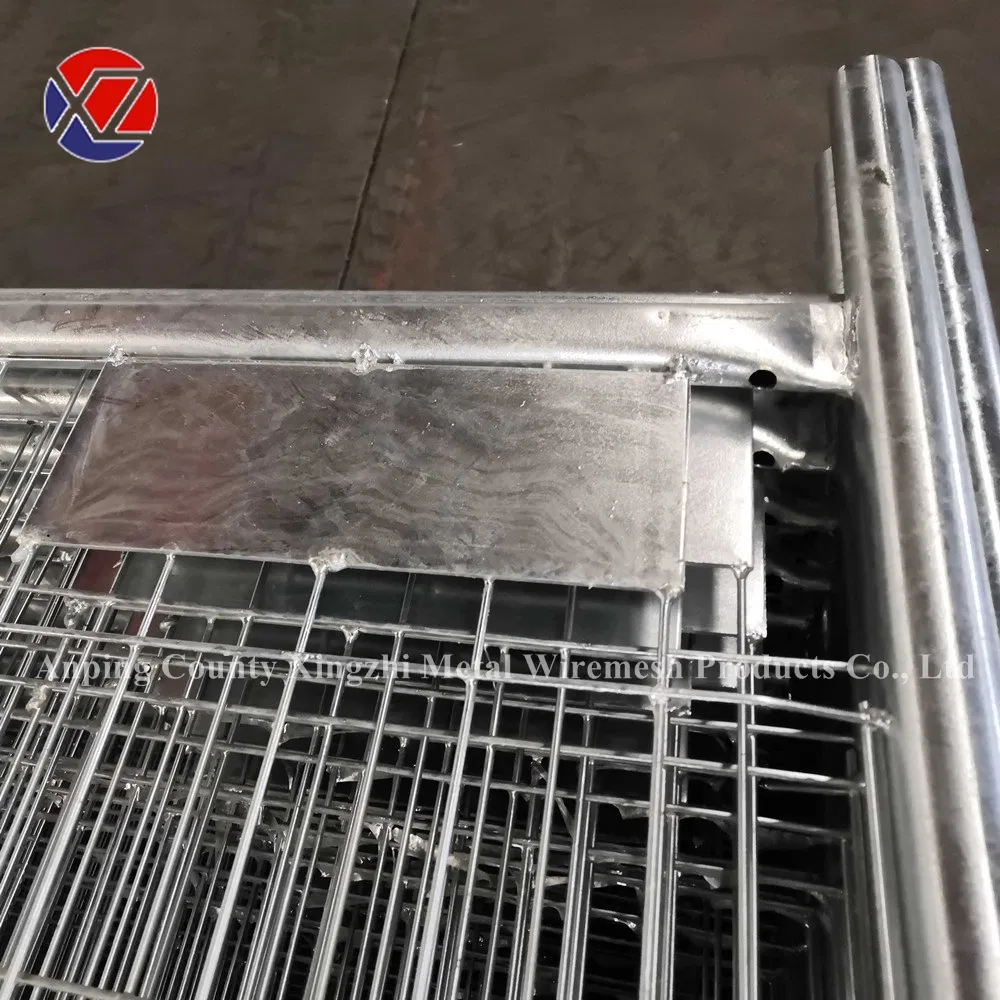

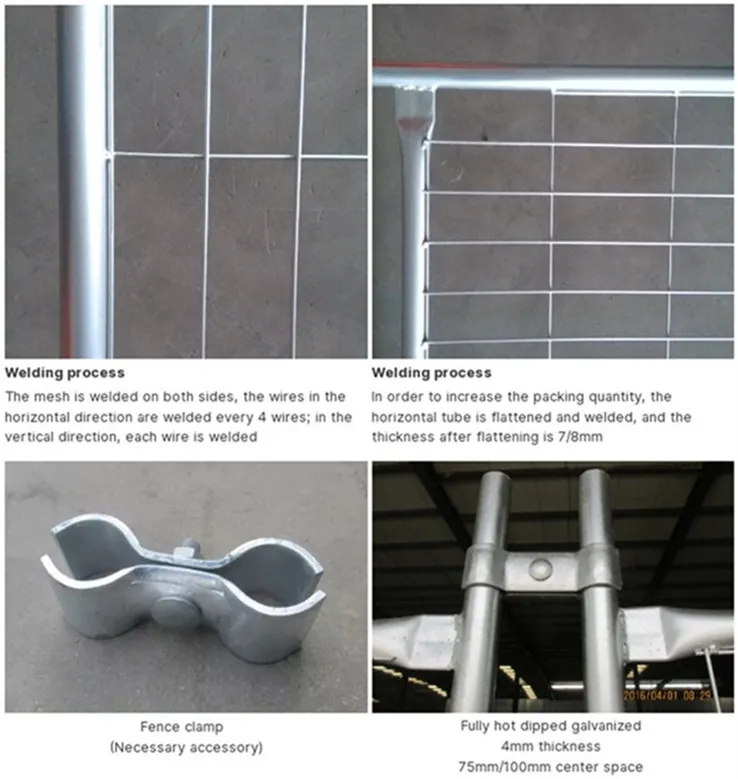

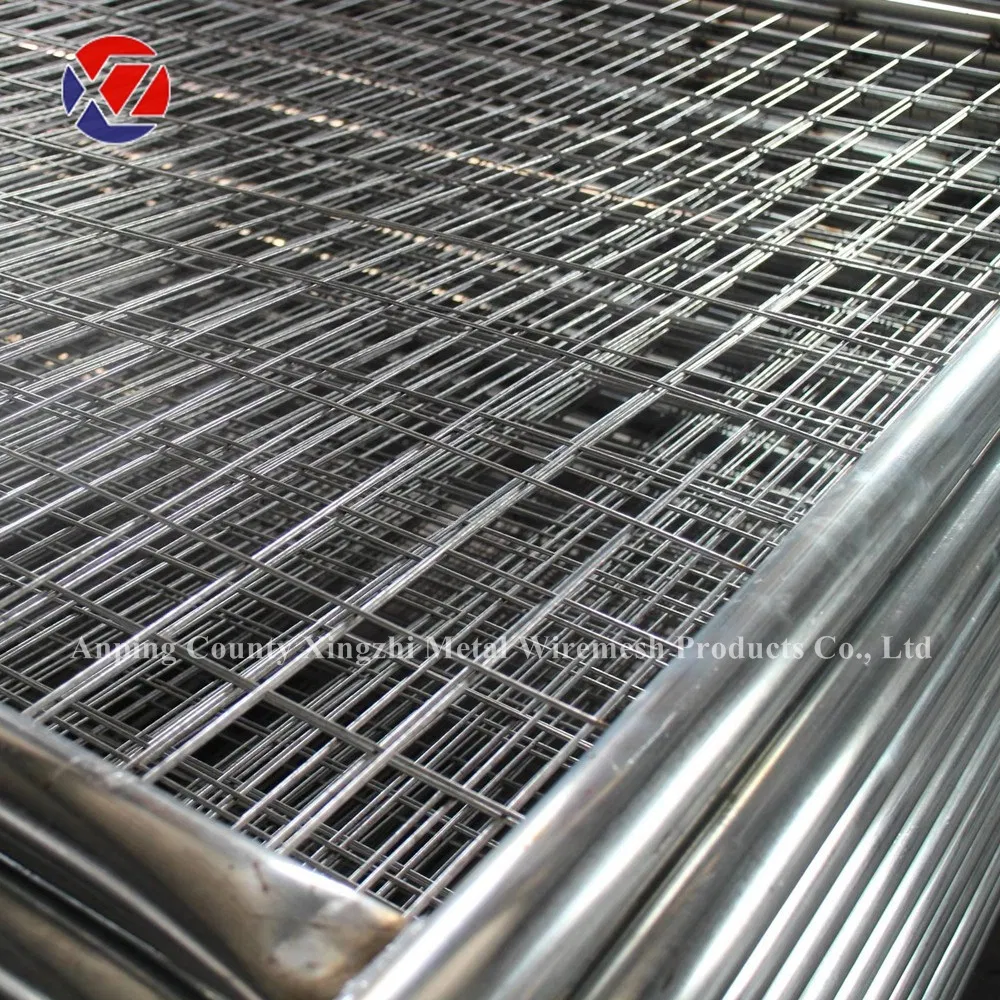

The Temporary Fencing Panel is welded mesh infilled. We use high-quality low carbon steel wire or galvanized wire for fabrication. The mesh fabric is welded into the pipe frame, followed by polyester powder spray or galvanizing. For the base plate, we typically use plastic types which can be filled with concrete or water at the site.
| Australia Temporary Fence (Popular Specifications) | |
|---|---|

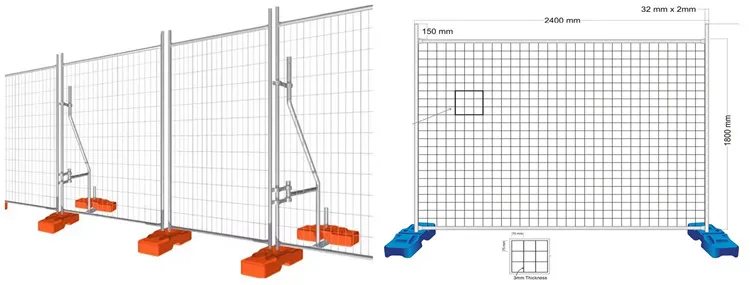

| Fence Panel H x W | 2.1x2.4m, 1.8x2.4m, 2.1x2.9m, 1.8x2.2m, 2.1x3.3m, etc. |
| Wire Material | High quality mild steel wire |
| Wire Diameter | 2.5mm, 3mm, 4mm, 5mm |
| Mesh Type | Mostly welded wire mesh (Chain link mesh available) |
| Mesh Size | 50x75mm, 50x100mm, 75x150mm, 100x200mm, etc. |

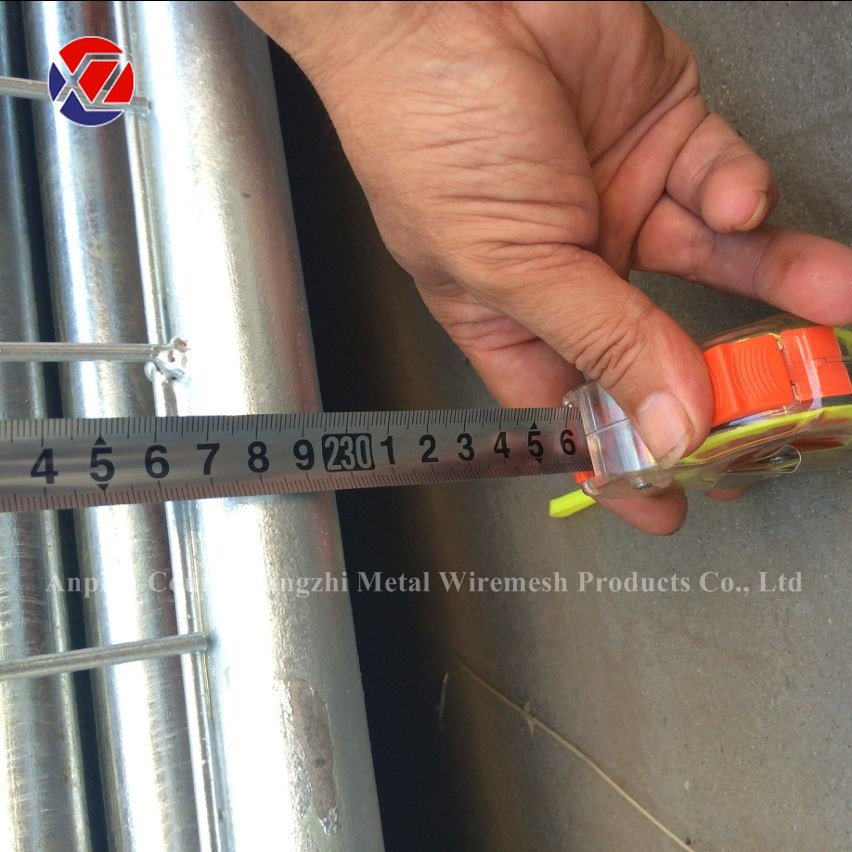

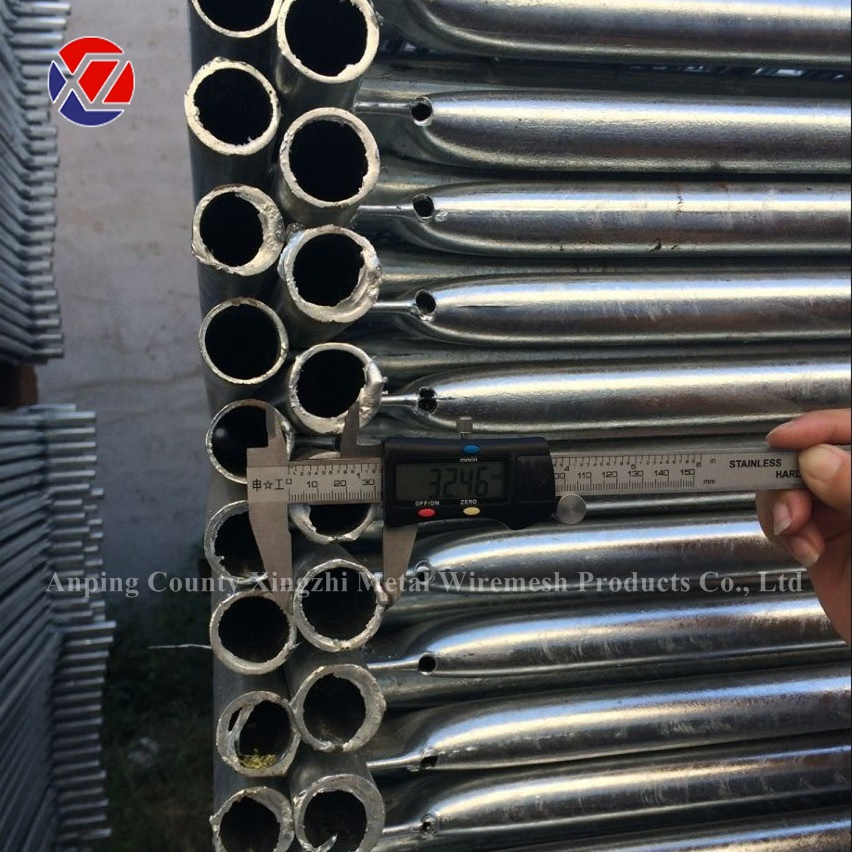

| Frame Tube O.D | Diameter: 32mm - 48mm | Thickness: 1mm - 2.0mm |
| Surface Treatment | 1) Hot dip galvanized after processing 2) Pre-Hot-dip galvanized 3) PVC Coated |
| Zinc Mass | 42 microns |

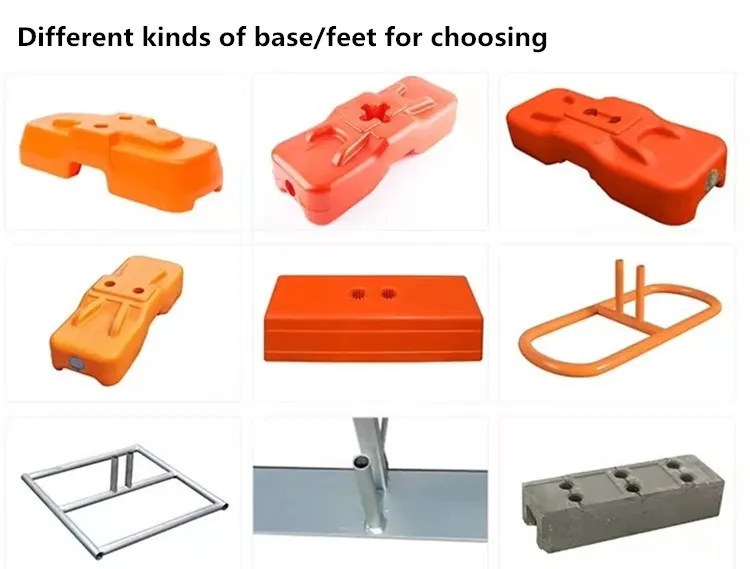

| Fence Base/Feet | 1) Plastic feet (with/without concrete) 2) Metal feet |

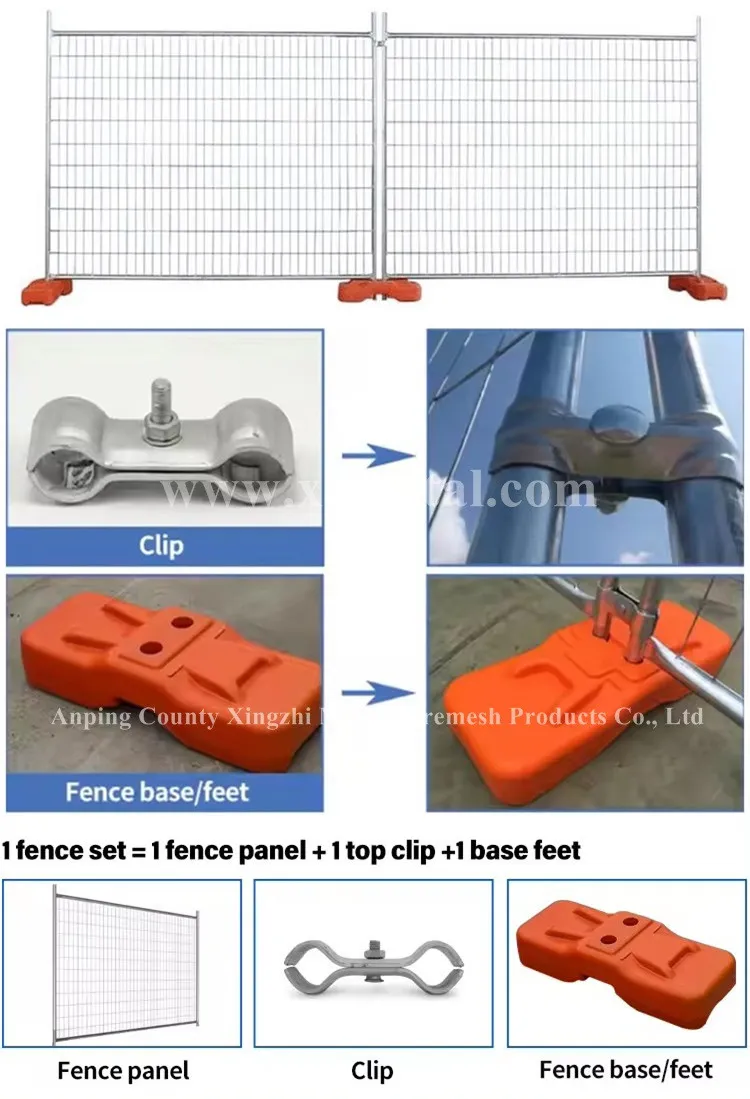

| Main Parts | Welded mesh Panel, Round Tube Frames, Plastic feet, Clamp, Stay/Support |
