Customization: Available
Certification: ISO 9001:2008
Condition: New
Send Inquiry

Product Description

Basic Information
Model NO.
ZGT315
Drill Hole Diameter
>300mm
Bit Type
Cone Bit
Drilling Way
Drag
Type
Pipeline Bursting
Rated Power
30kN
Power
4kw
Length
720mm
Diameter
335mm
Pull Rod Spec
φ60/68mm
Origin
China
Production Capacity
30sets/Month
Product Overview

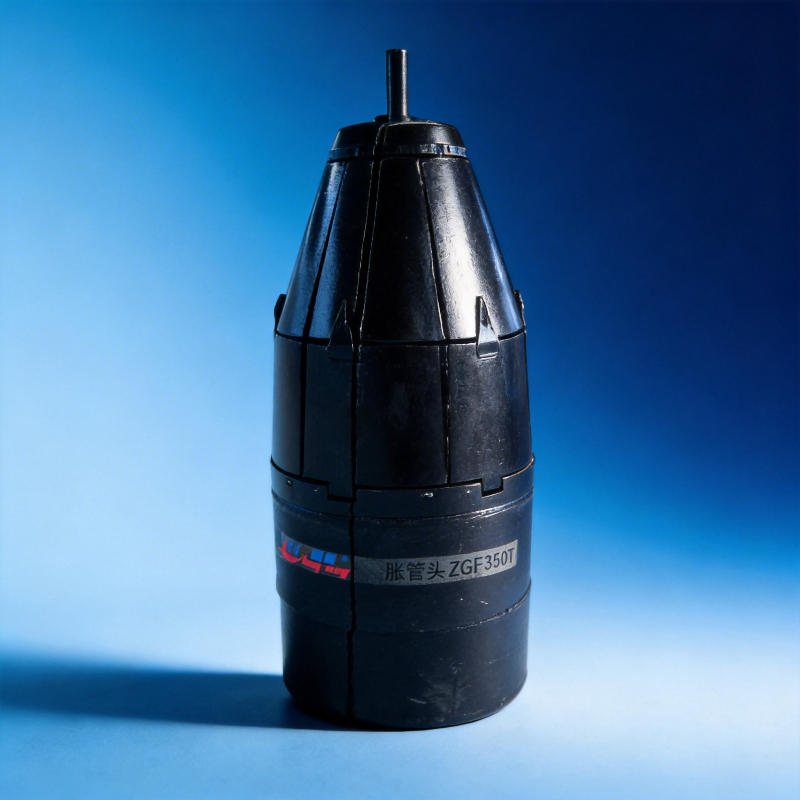

Pipeline Expander: The expansion method for in-place replacement utilizes specialized expander to generate controlled radial expansion forces within existing pipes. This uniformly enlarges or splits the old pipe diameter while simultaneously pulling new pipe into the expanded cavity. This single-pass process completes pipe rehabilitation by "expanding and replacing" without excavation or additional working pits.
Pipeline Expansion Equipment
Equipment Features
Main System

Automatic threaded tie rod traction enables one-button push/pull operation, reducing labor intensity by 70%. Lightweight quick-install locking kit at the manhole end allows single-person installation in 1 minute.

Hydraulic Power Unit

Features automatic directional switching and pressure self-locking with dual overload and leakage protection. Equipped with manual/automatic integrated solenoid valves and wireless remote control.

Operation Safety

Standard wireless remote control enables operators to work safely and efficiently away from the shaft opening, ensuring high reliability in infrastructure development.

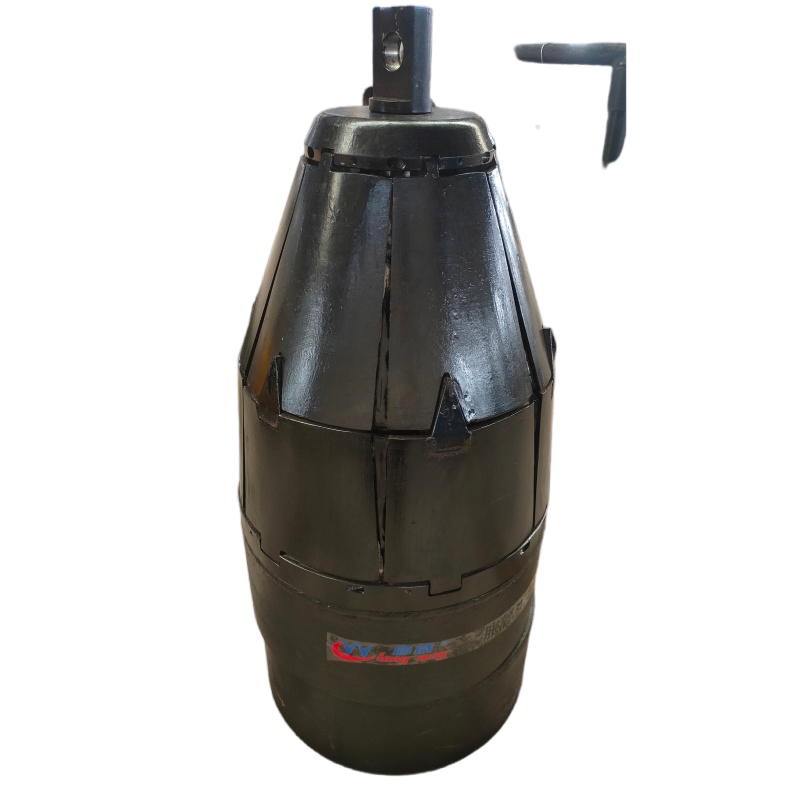

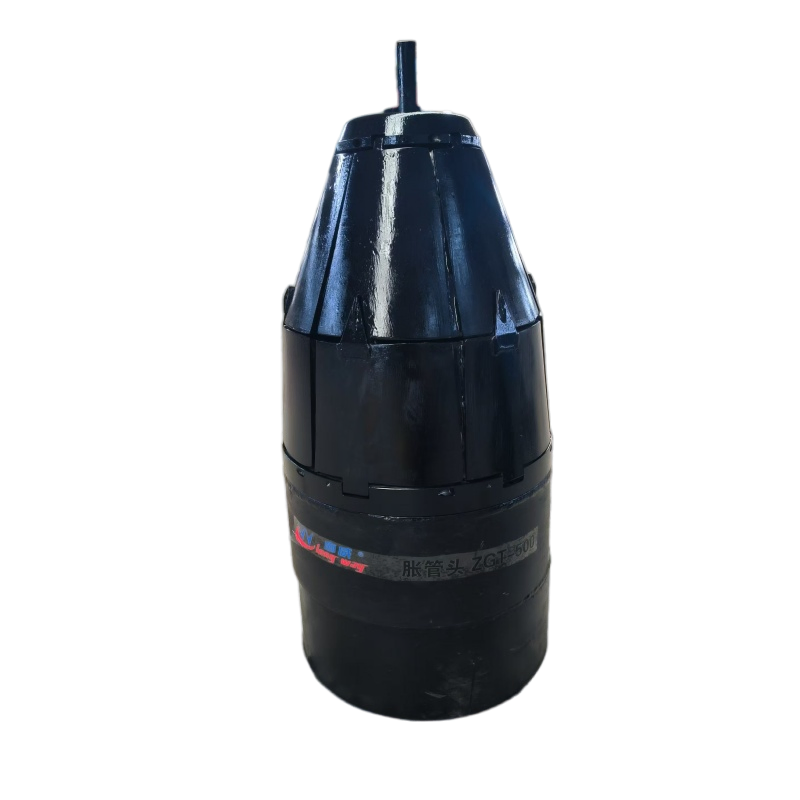

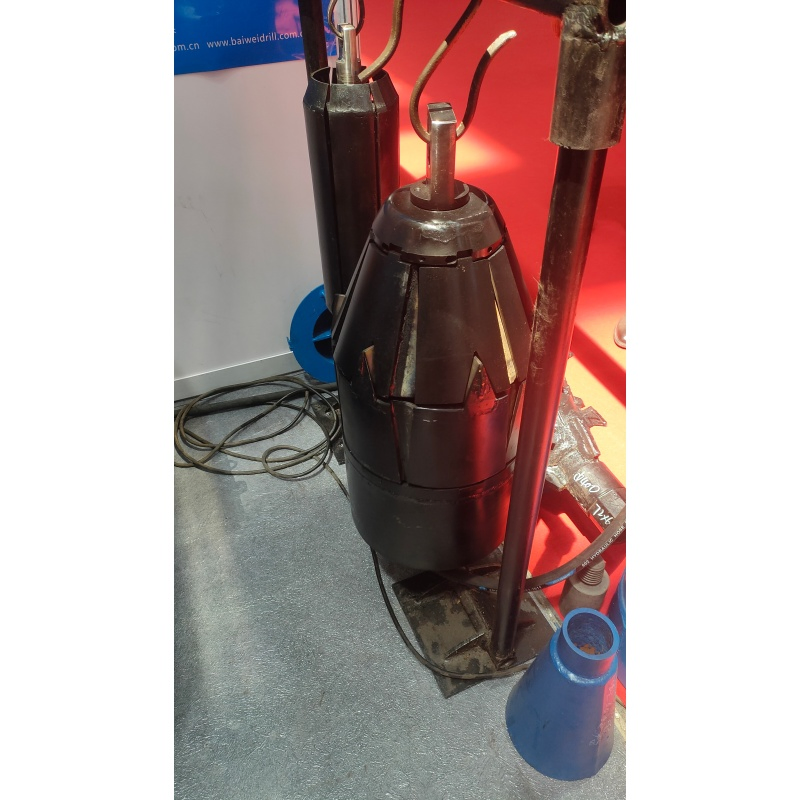

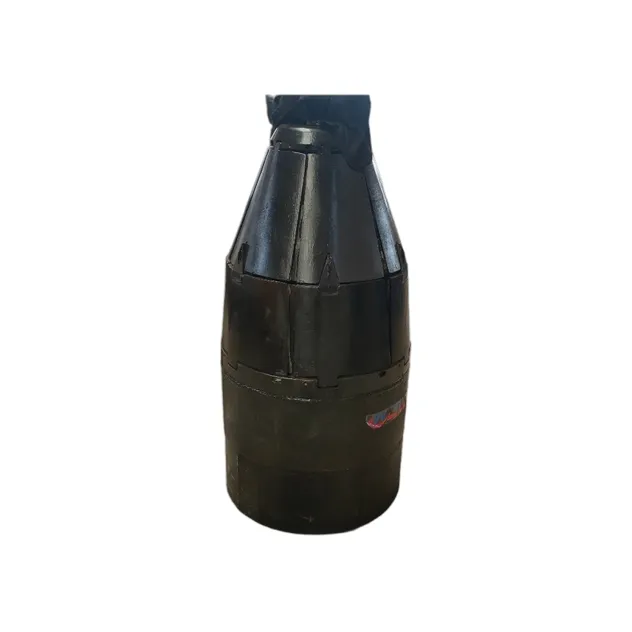

Equipment Detail 1

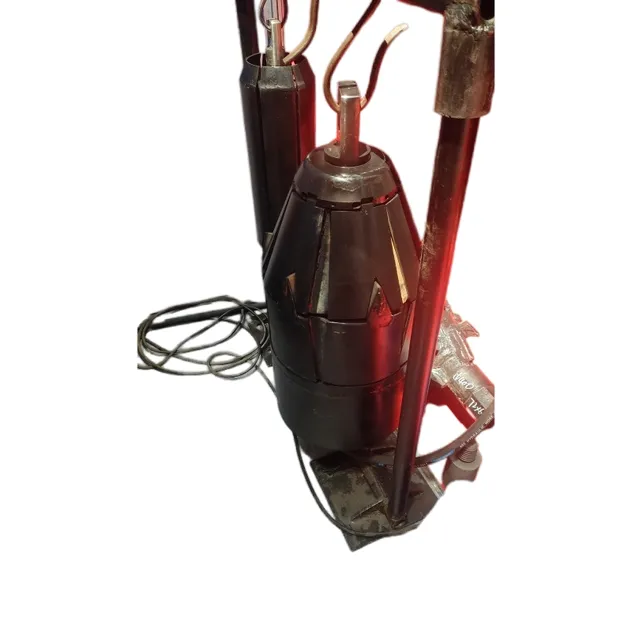

Equipment Detail 2
Equipment Detail 3
Technical Specifications
Items Unit ZGT315 ZGT355 ZGT400 ZGT450 ZGT500
Rated powerKN3030303030
PowerKW44444
Lengthmm720800810850895
Diametermm335375420470520
Max Expansion Sizemm367406448498560
Pull rod specmmφ60/φ68φ60/φ68φ60/φ68φ60/φ68φ60/φ68
Min entry holemm350390450500550
Well Length Requiredmm650730740780825
Drawings & Dimensions

Detailed CAD drawings and dimensional diagrams are available upon inquiry. Our engineering team provides tailored designs to meet specific project requirements.

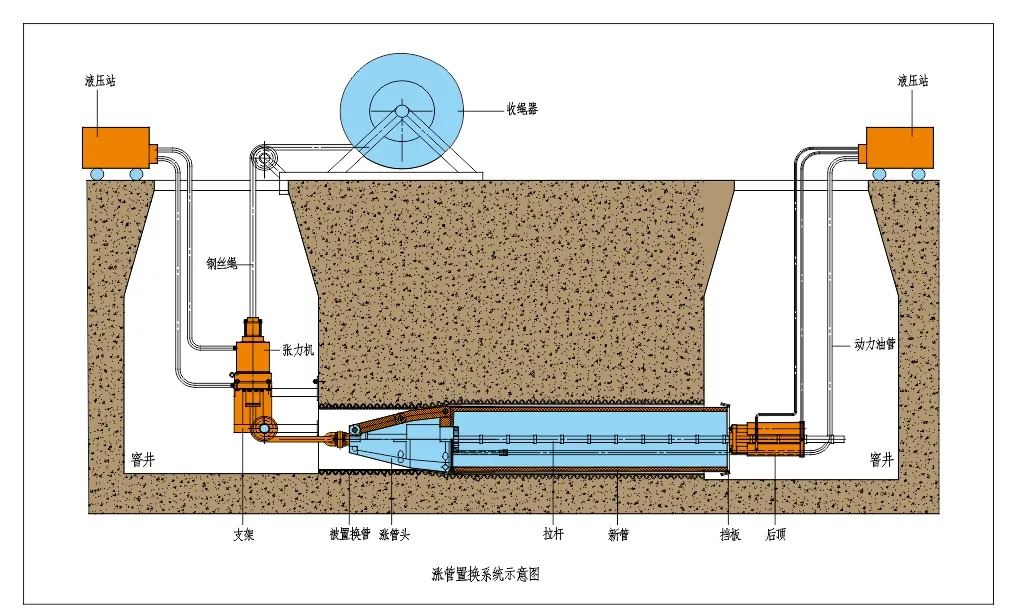

CAD Drawing
Professional Manufacturing

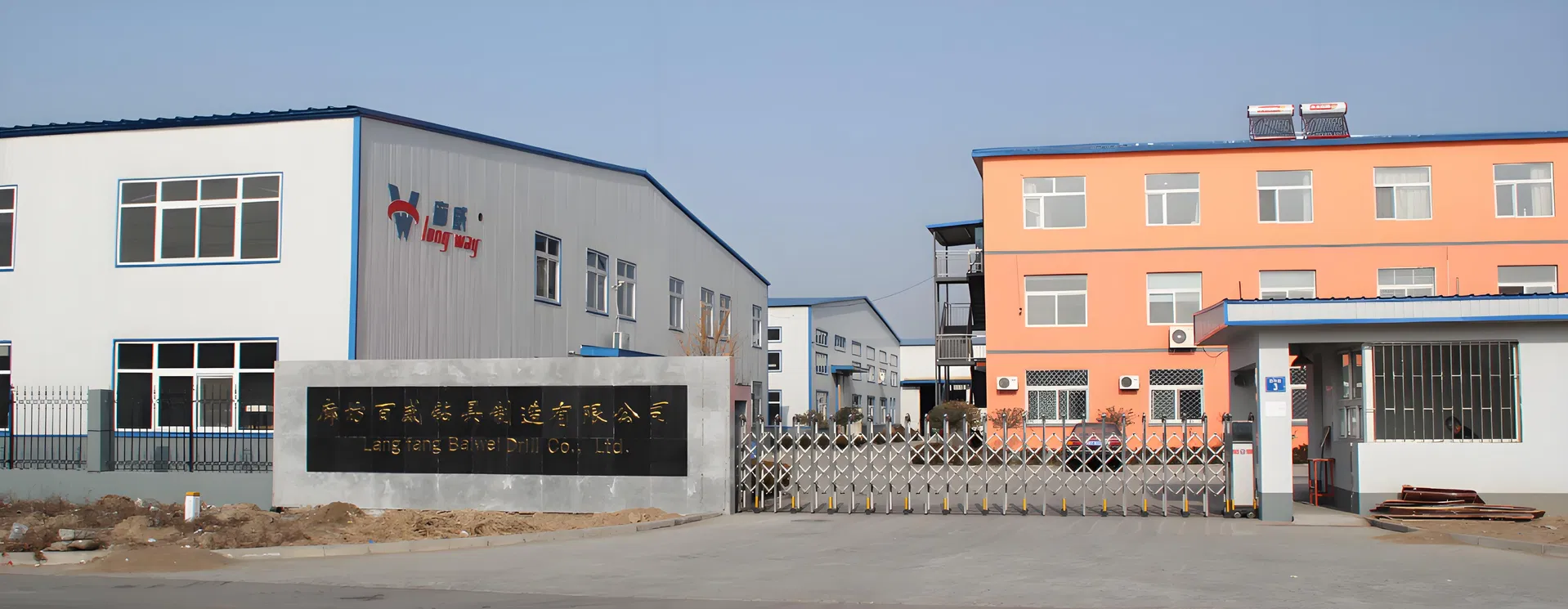

Factory Overview
The enterprise is a professional manufacturing entity engaged in R&D, design, production, and sales of trenchless drilling tools. The facilities cover over 36,000m² combined across specialized plants. Main products include various types of trenchless drill pipes, pilot bits, swivels, reamers, pipe ramming hammers, pneumatic moles, and pipe replacement machines, as well as various geological drill pipes.

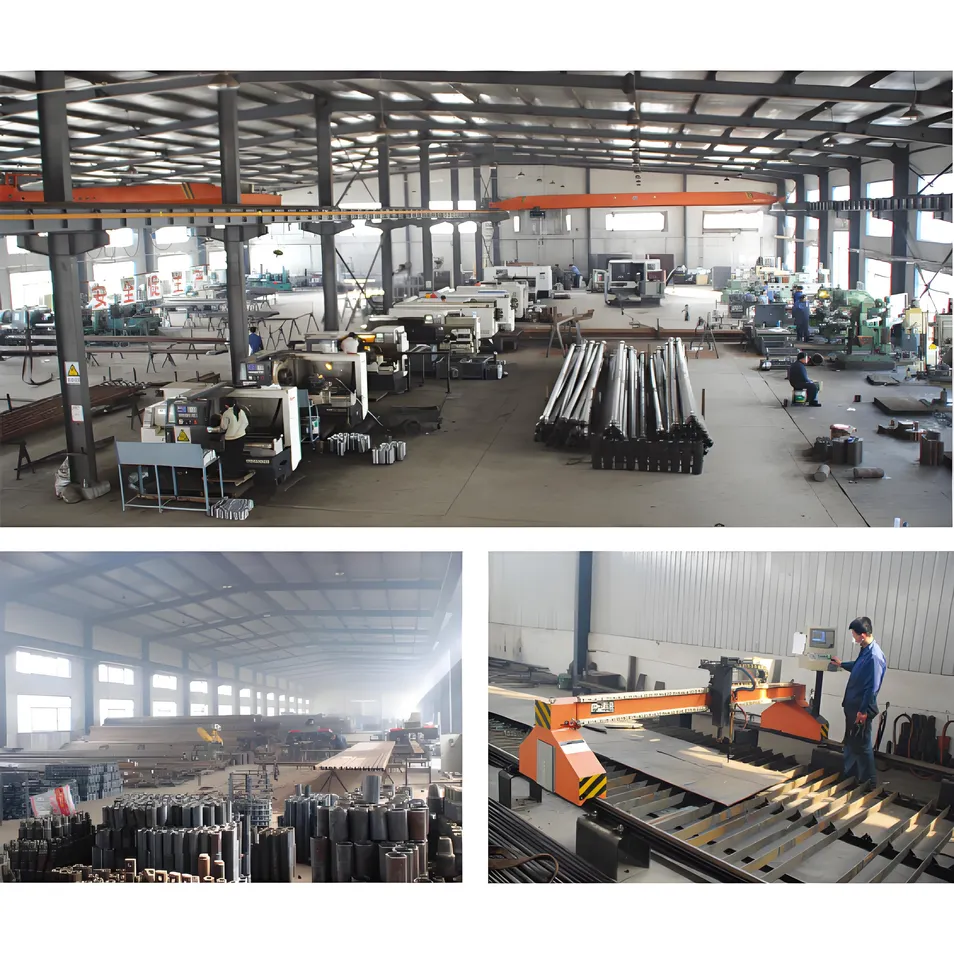

Quality Control
Other Equipment
Frequently Asked Questions
Q: What’s the lead time for orders?
A: Standard models ship in 15–30 days; customized units require 30–45 days.
Q: Do you provide after-sales service overseas?
A: Yes, we provide 24/7 technical assistance and have partnered service centers in key regions.
Q: Can I request a customized equipment size?
A: Absolutely! We offer tailored attachments and custom configurations upon request.
Q: What documents do you provide for export?
A: We provide a full export package including Commercial Invoice, Packing List, Bill of Lading, and COC.
Q: What are the main advantages of this pipeline expander?
A: It features a single-pass "expand and replace" process, reducing labor intensity by 70% with automatic traction systems.
Q: How can I confirm technical compatibility for my project?
A: You can request detailed CAD drawings and consult our engineering team for turnkey project solutions.
