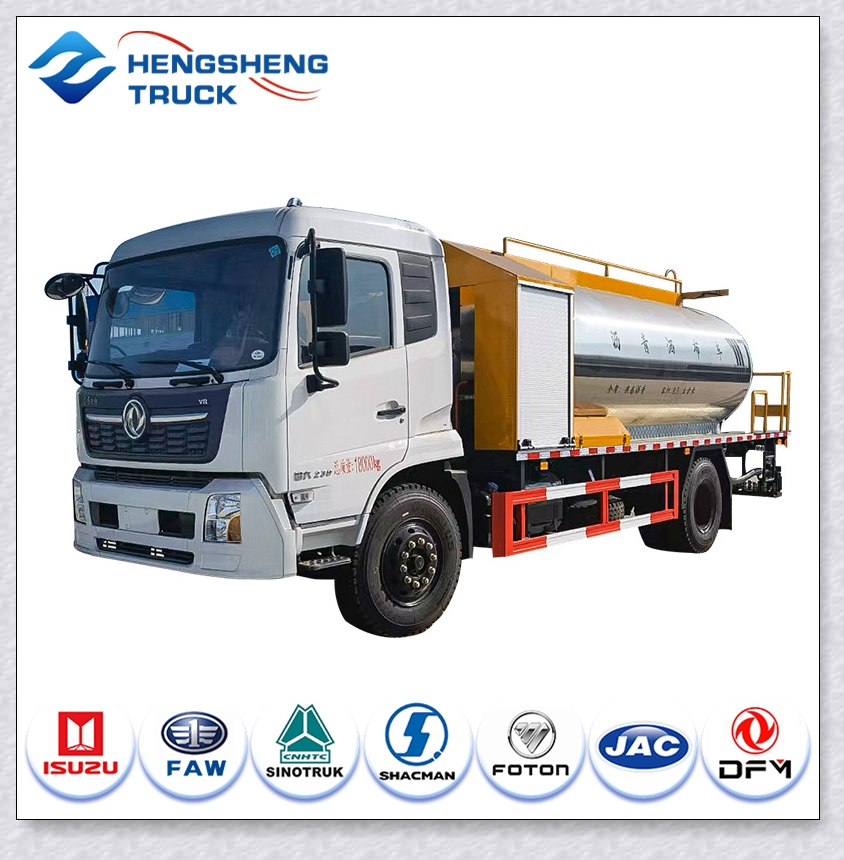

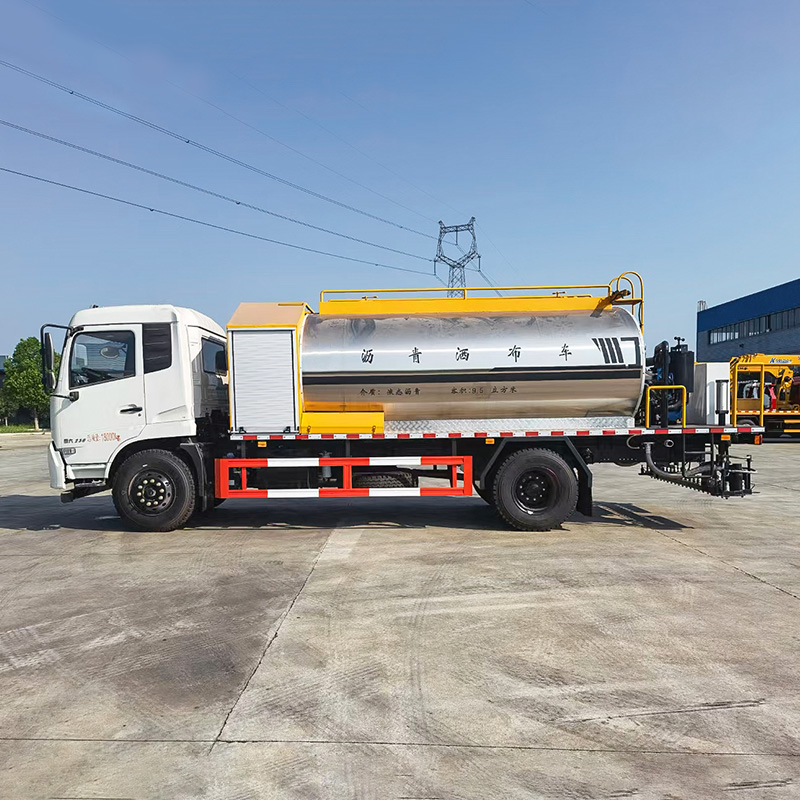

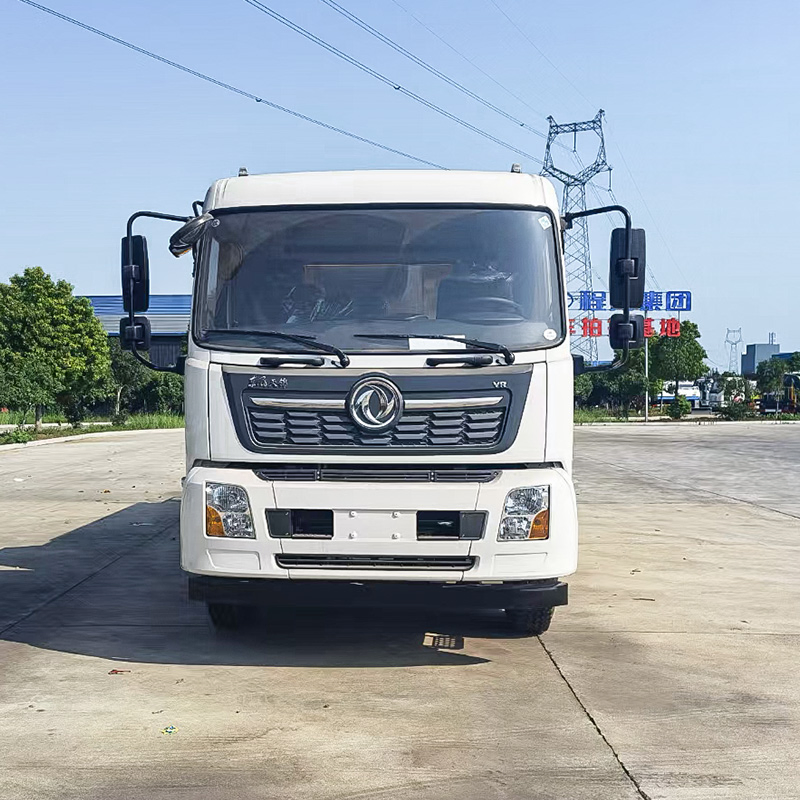

Dongfeng 4X2 Asphalt Sprayer Truck for Efficient Roadwork

Customization: Available
After-sales Service: Spare Parts and Technical Support
Warranty: One Year

Product Description

Product Overview
Model NO. HSW5125NHYT
Type Asphalt Distributor
Object Asphalt Concrete Pavement
Automatic Grade Automatic
Vehicle Brand Dong Feng
Gearbox 8 Speed Manual Transmission
Brake System Automatically Air-Cut Brake
Detailed Description
Asphalt distributor trucks primarily function to evenly spray liquid asphalt onto road surfaces, suitable for applications such as chip seal coats and stress-absorbing layers.
These trucks use pump pressure or pneumatic pressure to evenly spray asphalt onto the road surface. During stress-absorbing layer construction, the spreading rate is approximately 1.8-2.5 kg/m².
The asphalt storage tank is equipped with a heat transfer oil heating system or a bottom heating device to ensure stable asphalt temperature (≤1ºC/h cooling).
The computer-controlled spraying system automatically adjusts the spraying rate, and the triple-overlap nozzle design enhances uniformity.

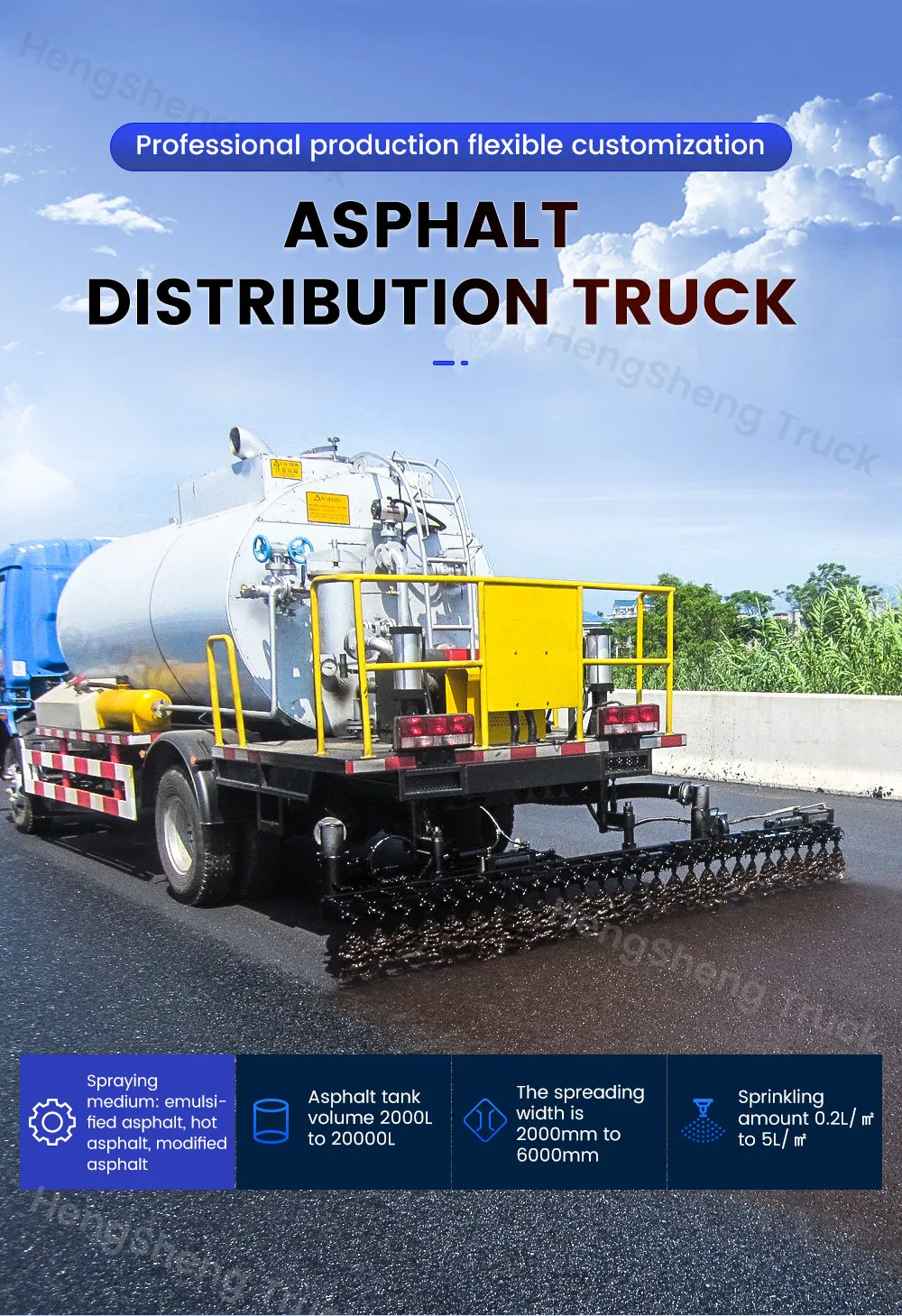

Asphalt Sprayer Truck
Technical Parameters
Vehicle Parameters
Curb Weight9552 kg
Engine Power169 kw
Vehicle Size9100 x 2500 x 3100 mm
Wheelbase5000 mm
Tire Size10.00R20 18PR
Technical Specification
Tank Volume10000 L
Insulating Layer50 mm
Asphalt Pump Flow950 L/min
Nozzle Number36
Spreading Width4.5 m
Detailed Gallery

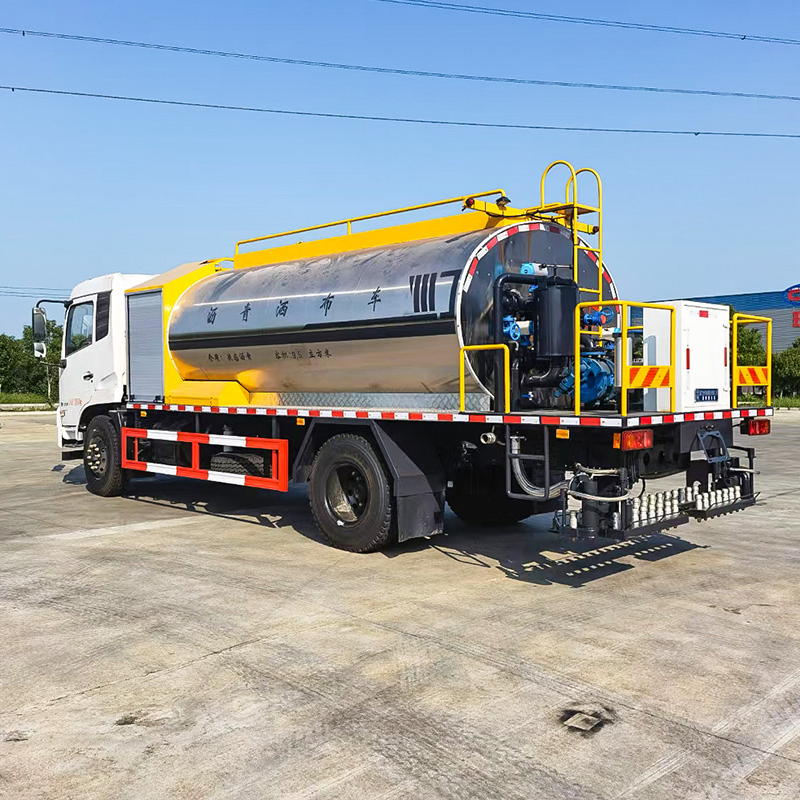

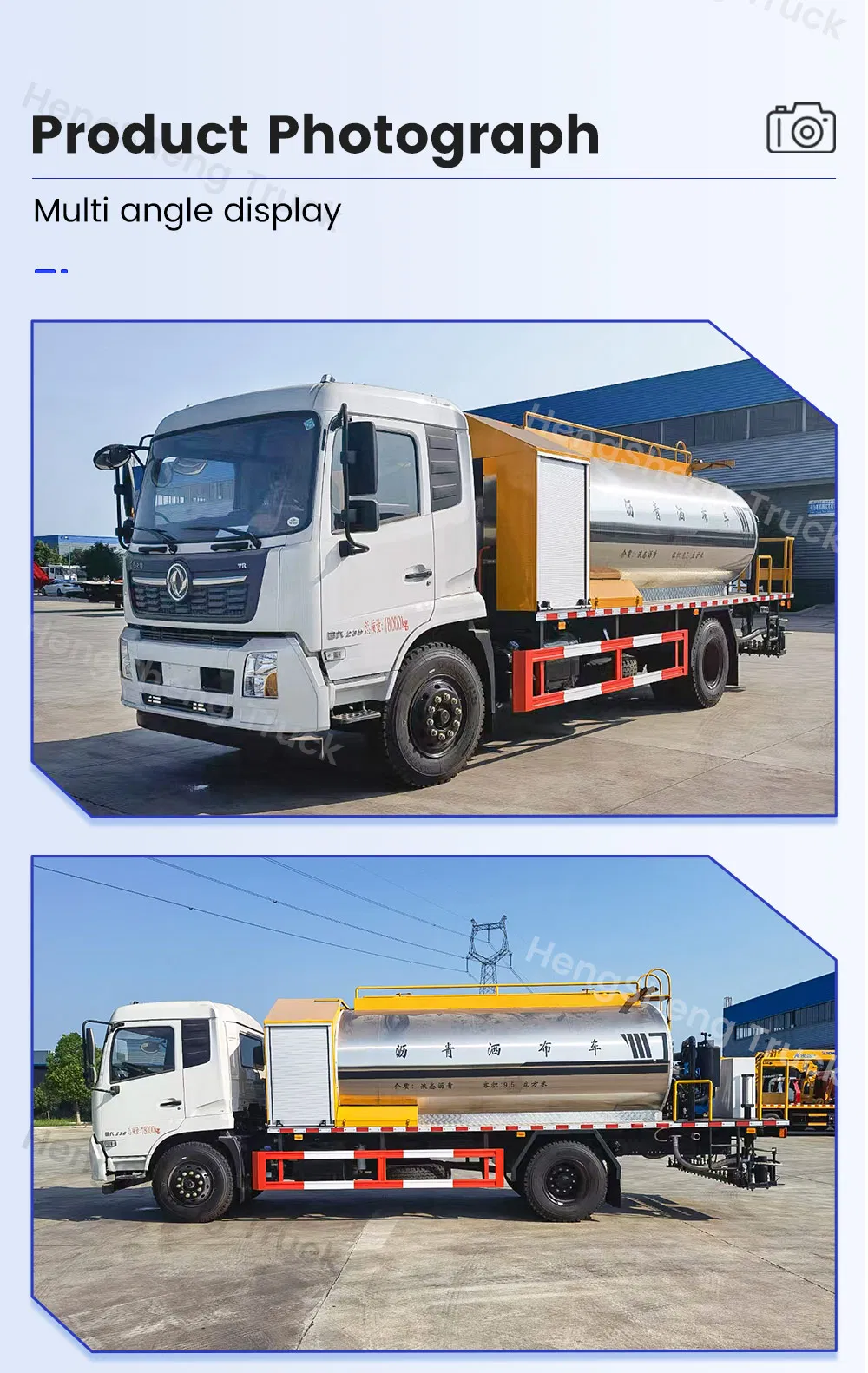

Detailed View 1

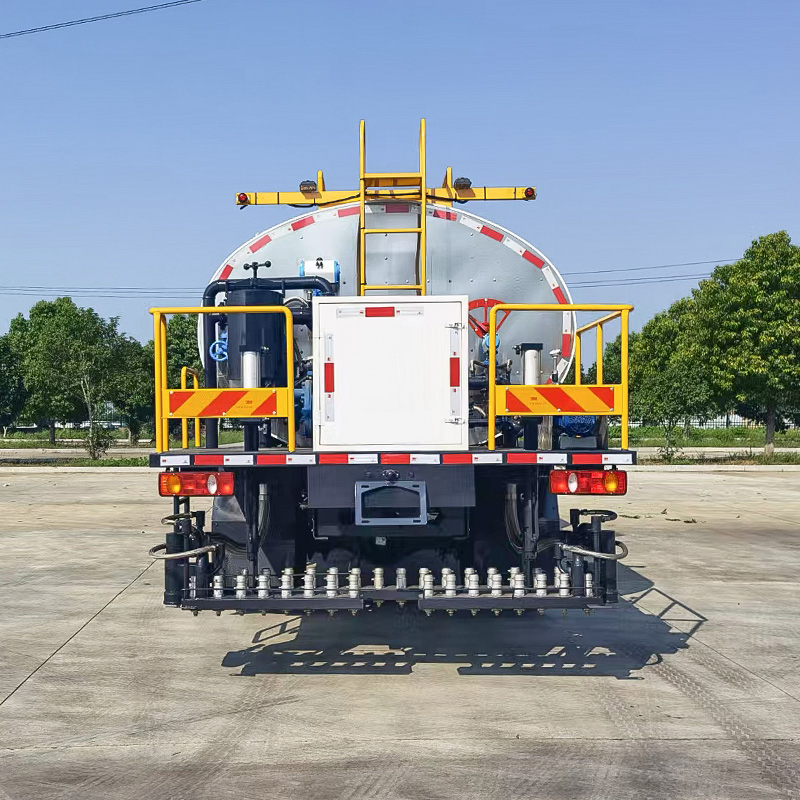

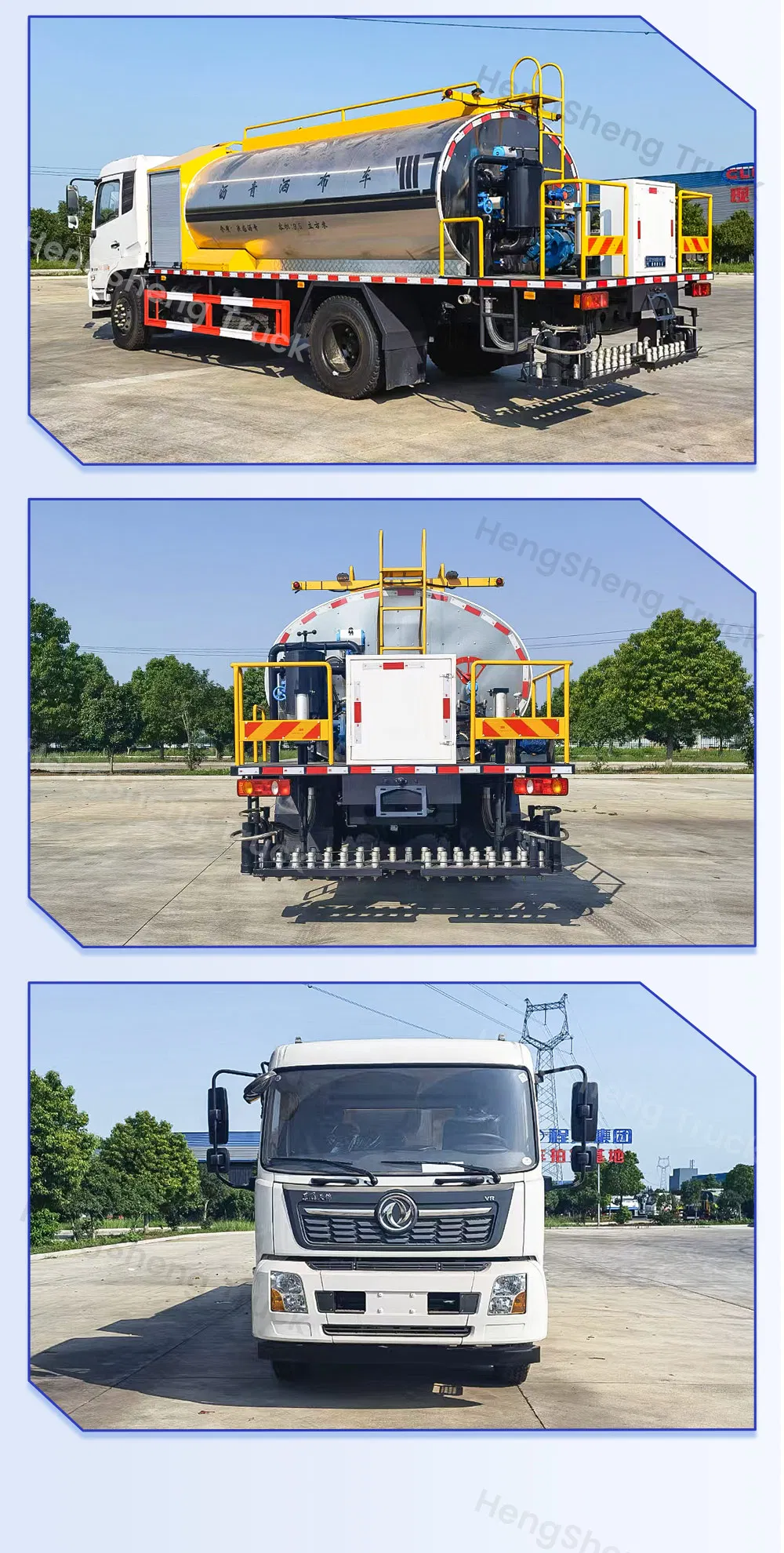

Detailed View 2

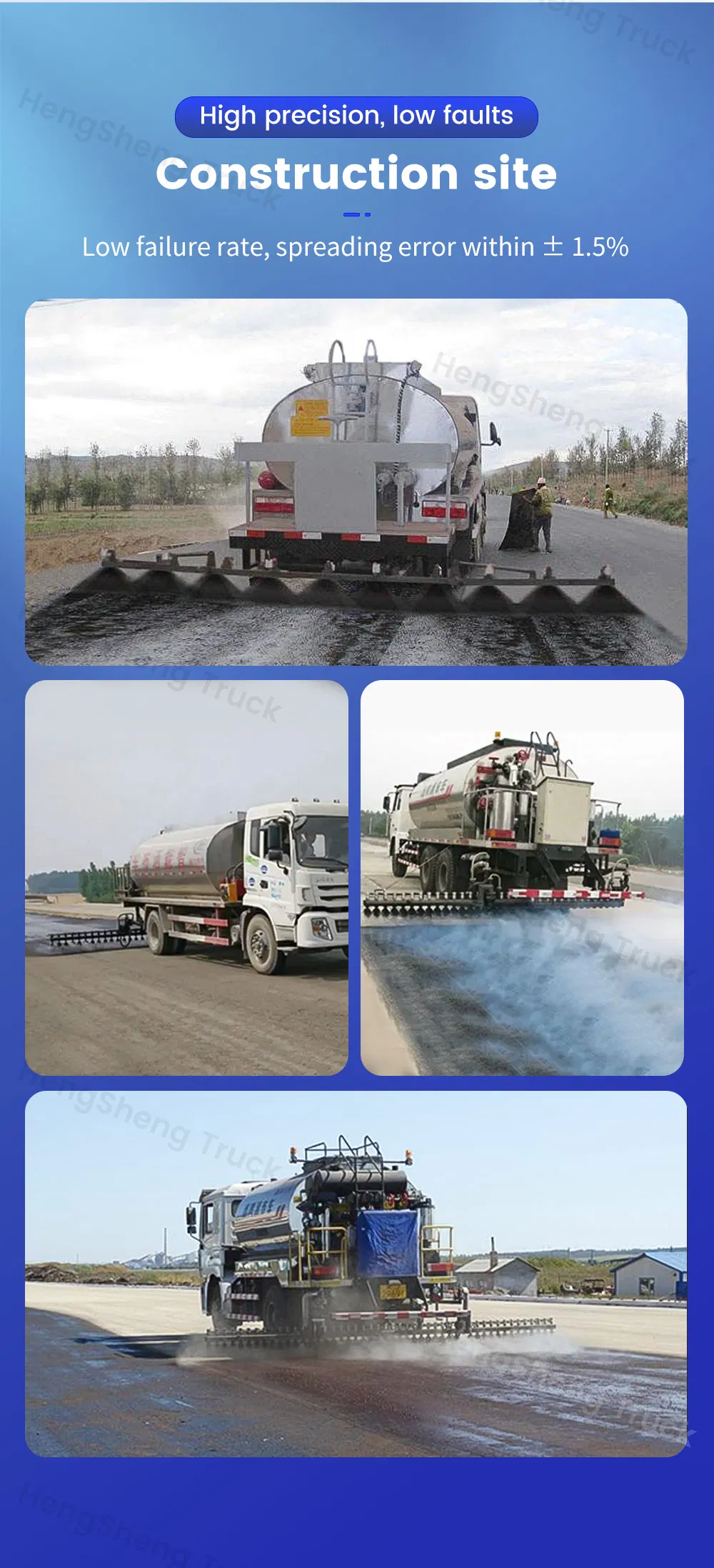

Detailed View 3
Our Advantages

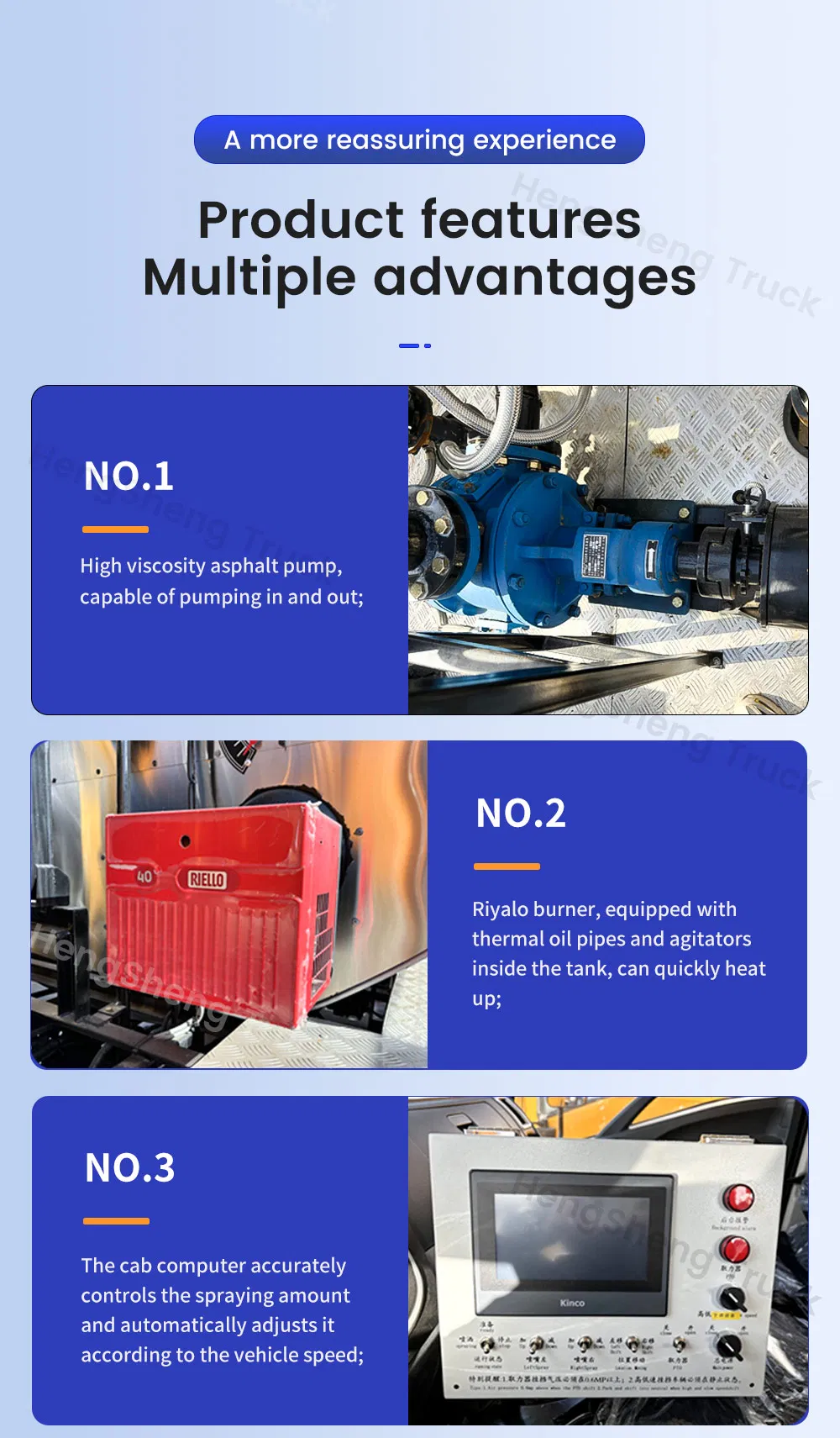

Advantage 1

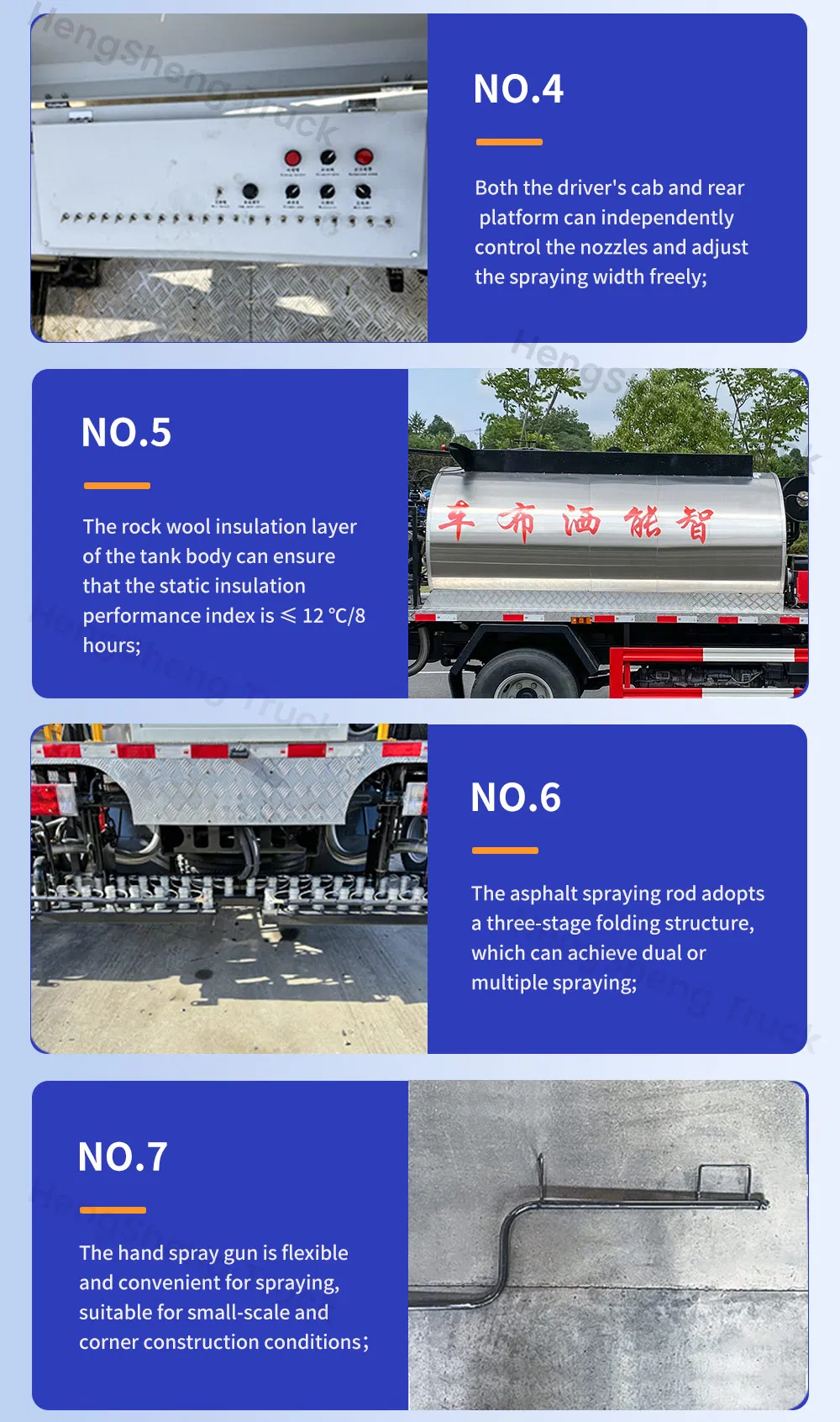

Advantage 2

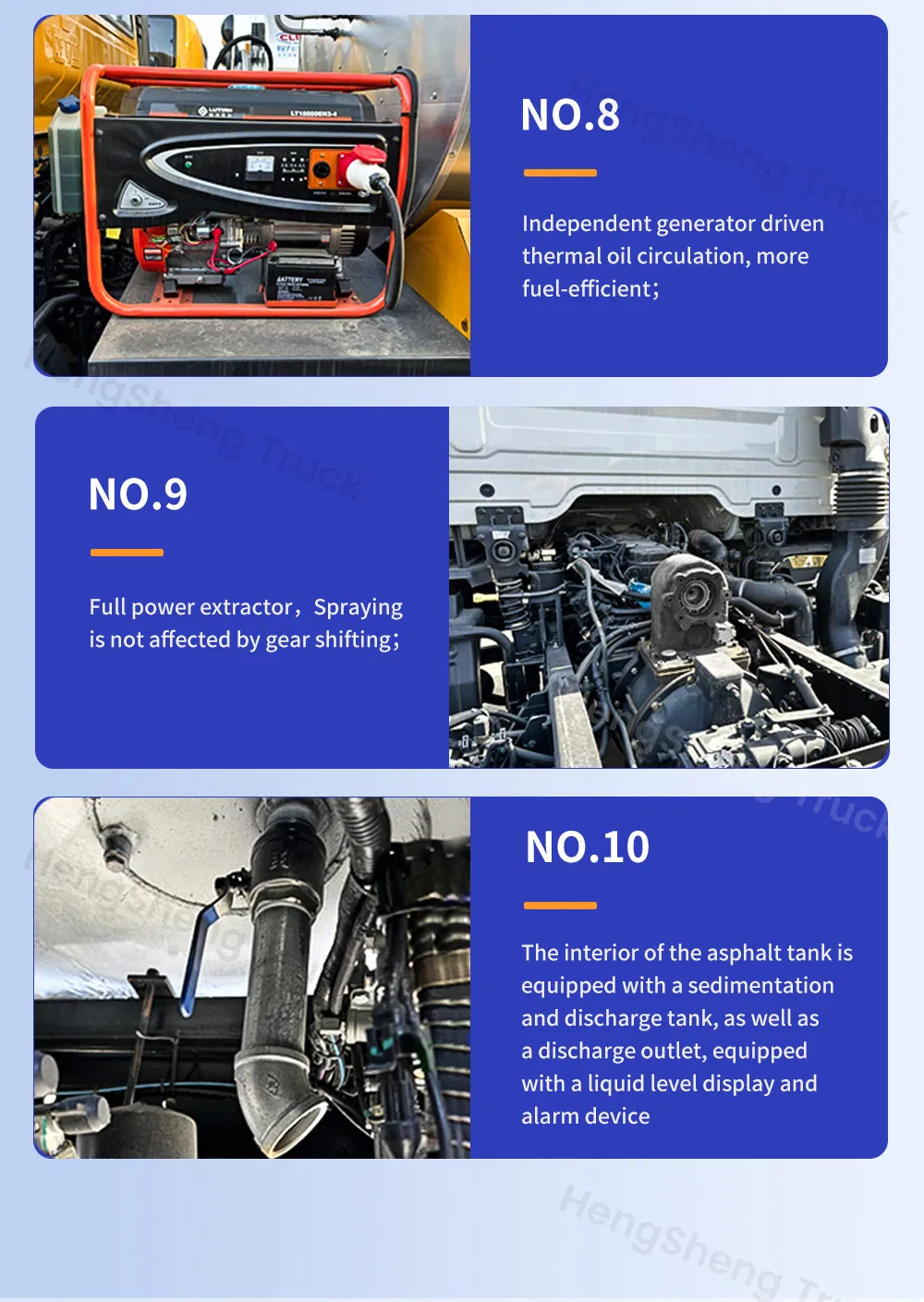

Advantage 3
Production & Quality Control

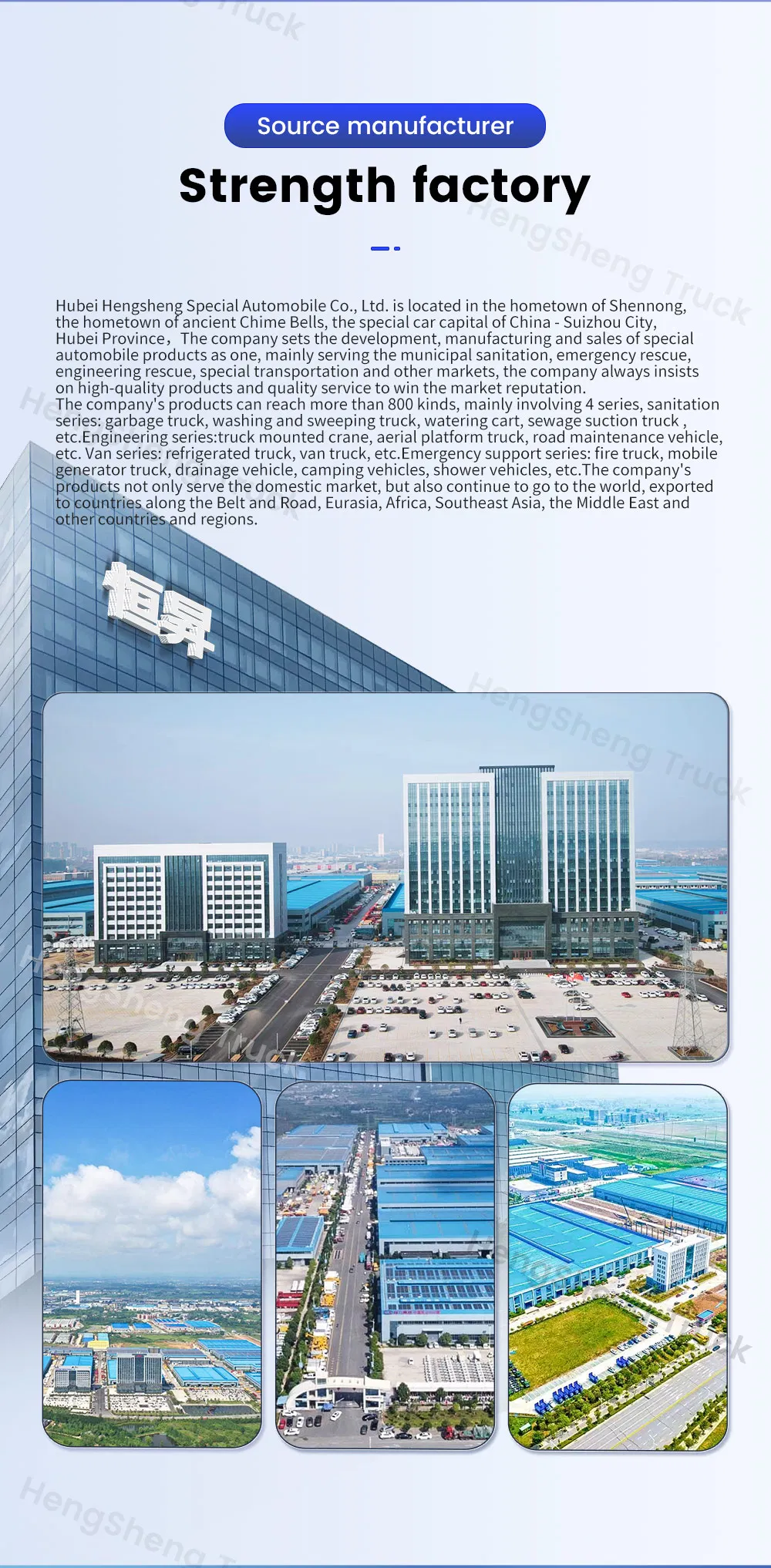

Production Line

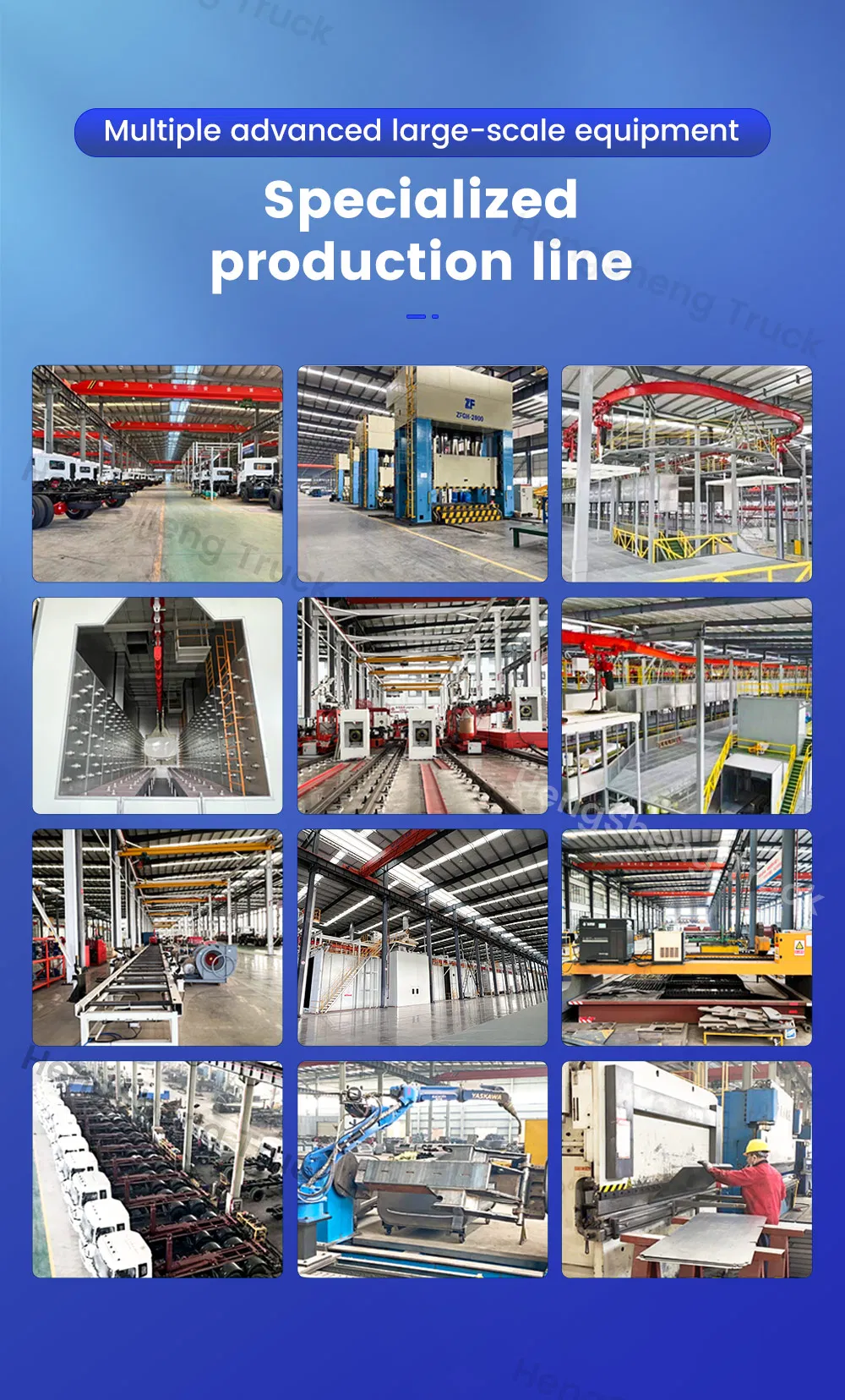

Factory View
Certifications
Packaging & Shipping
Shipping 1
Shipping 2
Frequently Asked Questions
What about the quality of the trucks?
Our trucks are brand new, with chassis and spare parts sourced from original manufacturers. They have passed ISO, 3C, BV, ASME, and other relevant certifications.
What after-sales services do you provide?
We offer technical support, free consultation, and worker training. Products come with a one-year warranty, and spare parts are available permanently.
Can you produce vehicles based on specific samples or drawings?
Yes, we can manufacture according to your specific samples or technical drawings to meet your requirements.
What are your terms of payment and delivery?
We typically accept T/T (30% deposit, 70% before delivery) and LC. Delivery usually takes 10 to 20 days depending on the order quantity.
Which logistics methods do you use for shipment?
We ship via sea (container, RoRo, or bulk) to most continents. For neighboring countries, we can also use road or railway transportation.
What trade terms are available?
We support standard international trade terms including EXW, FOB, CFR, and CIF.
