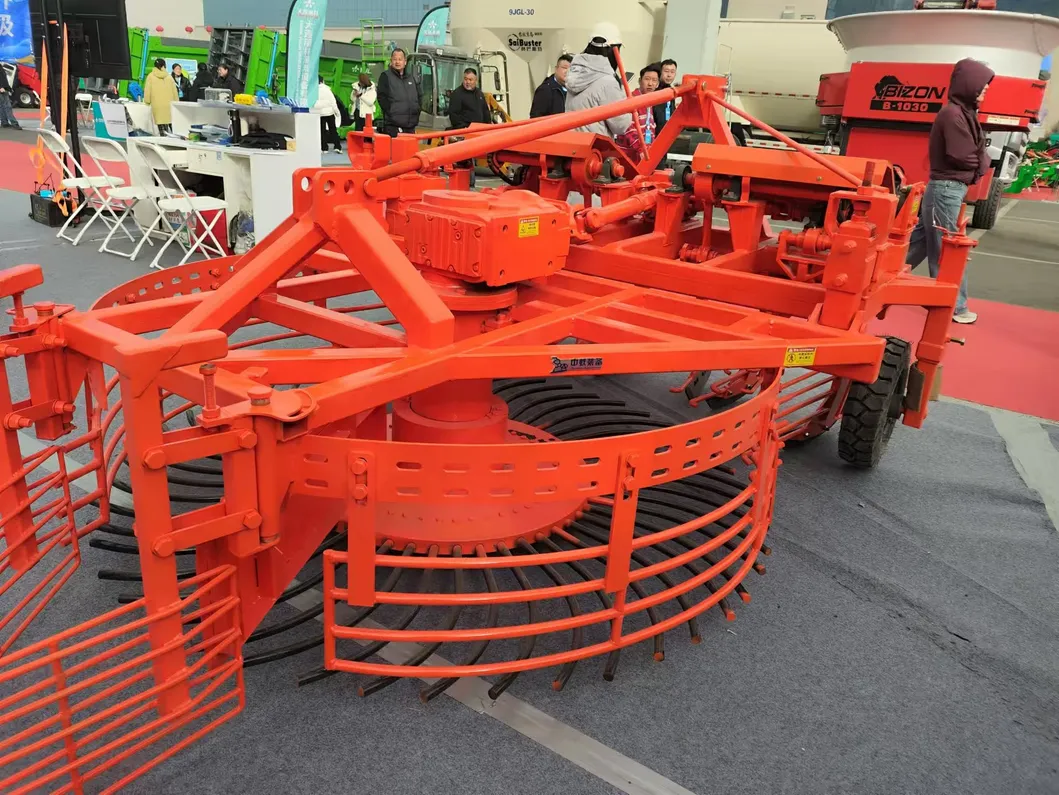

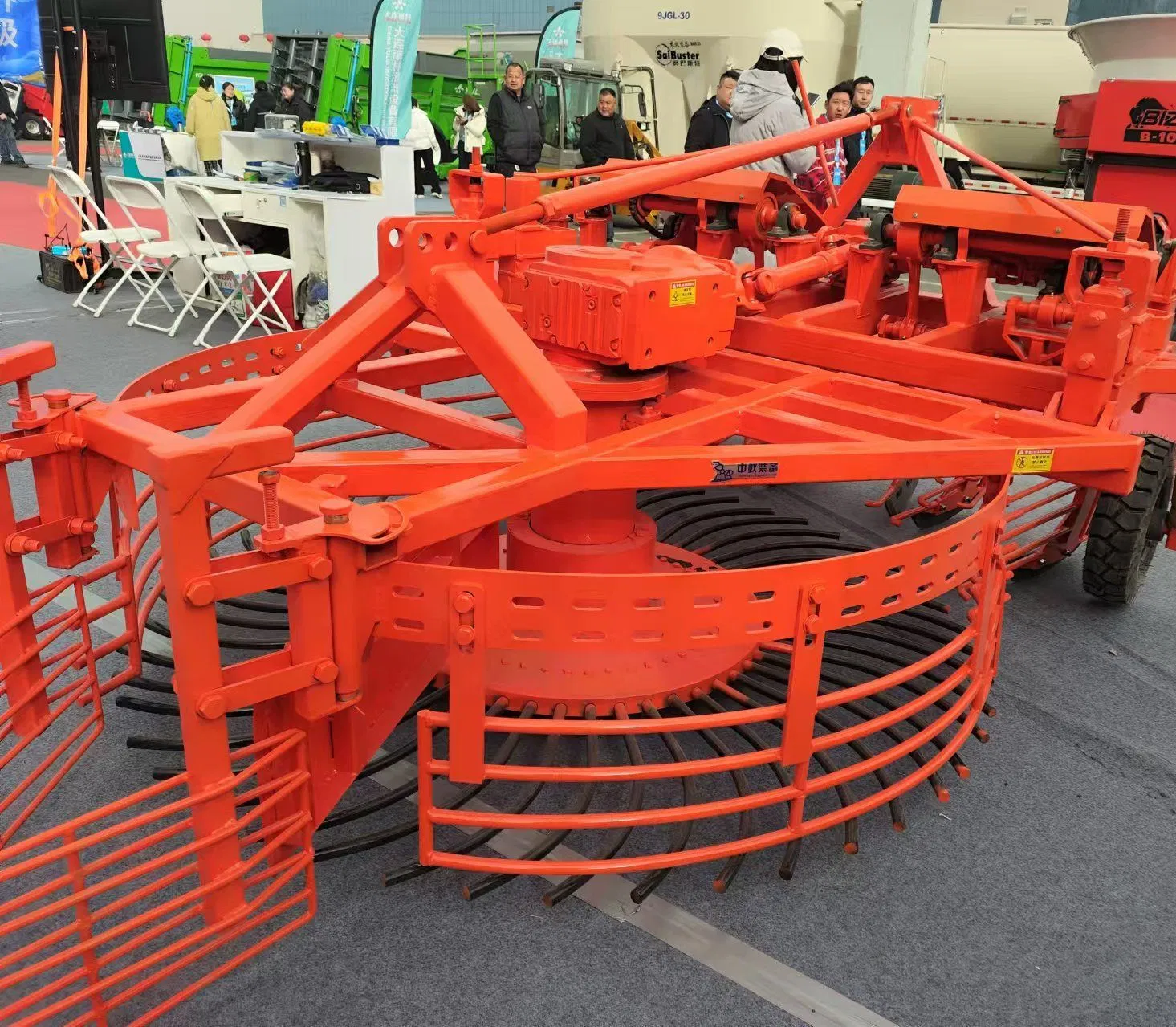

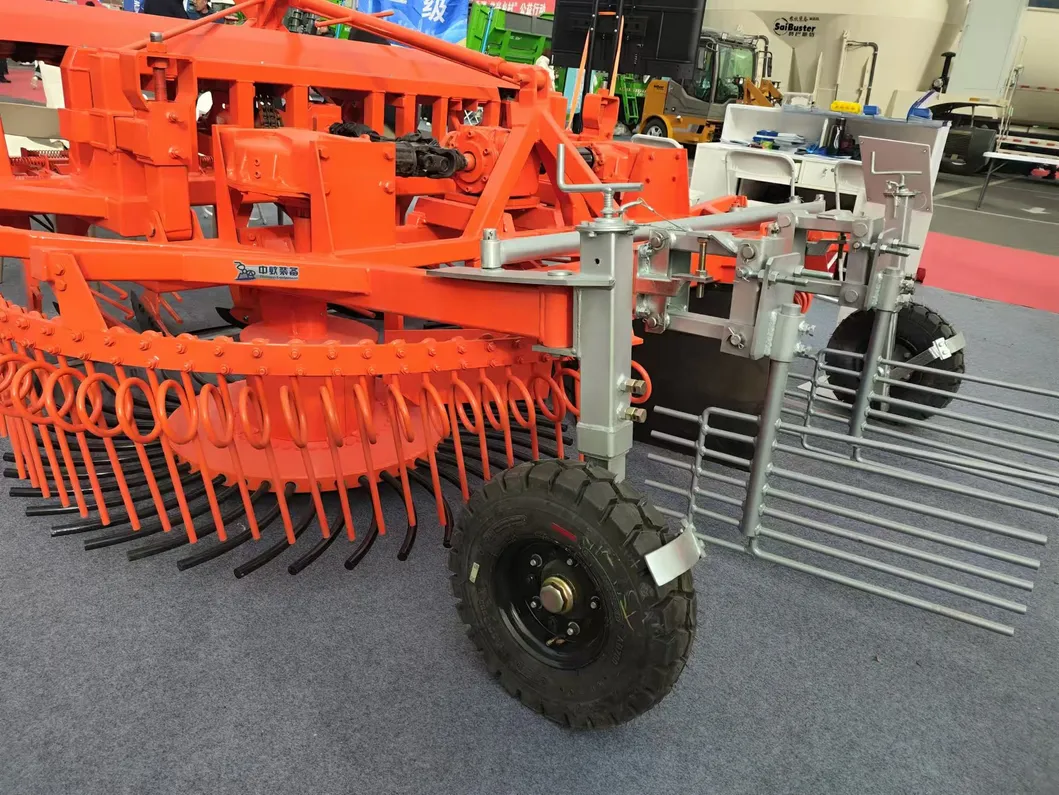

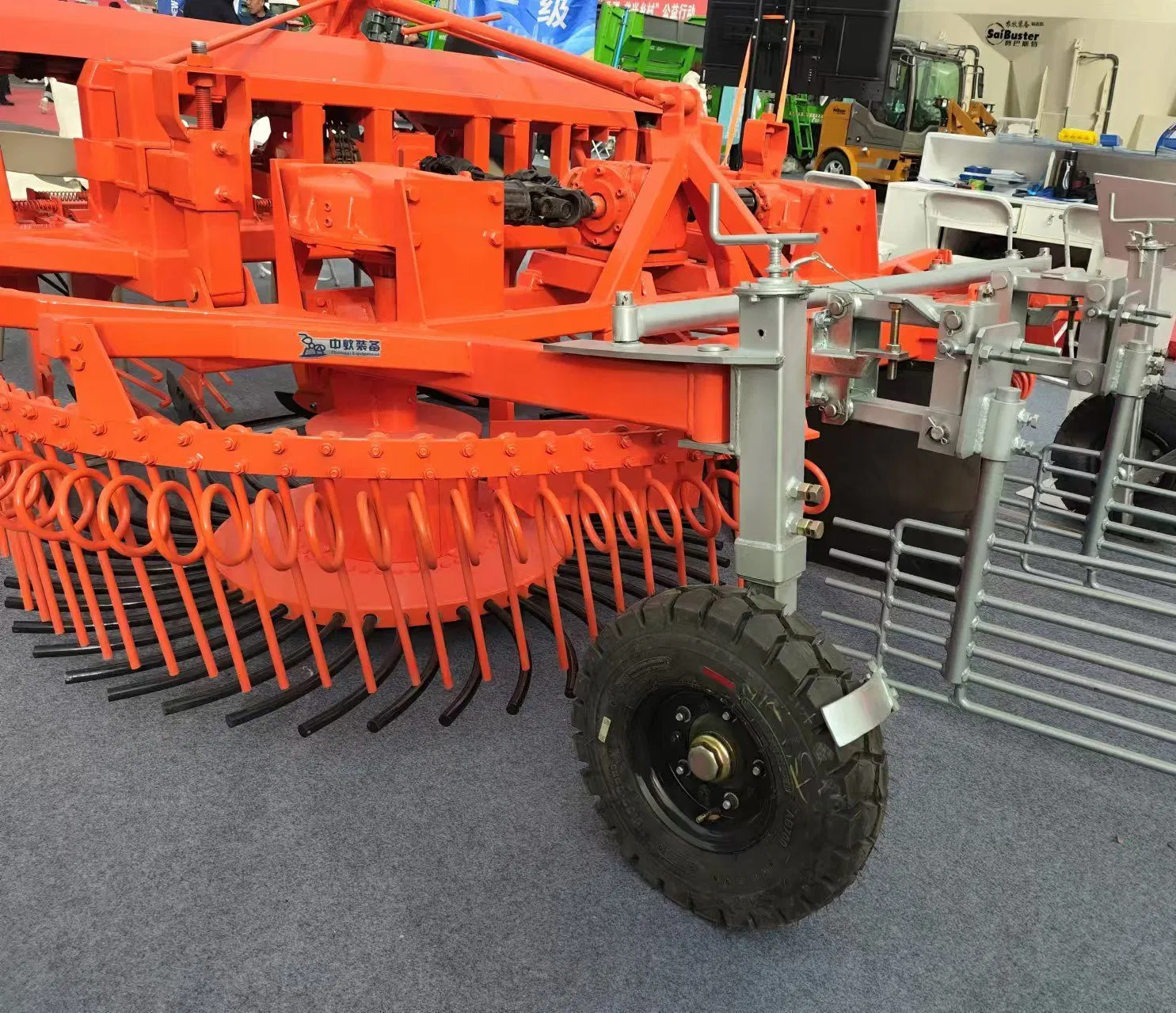

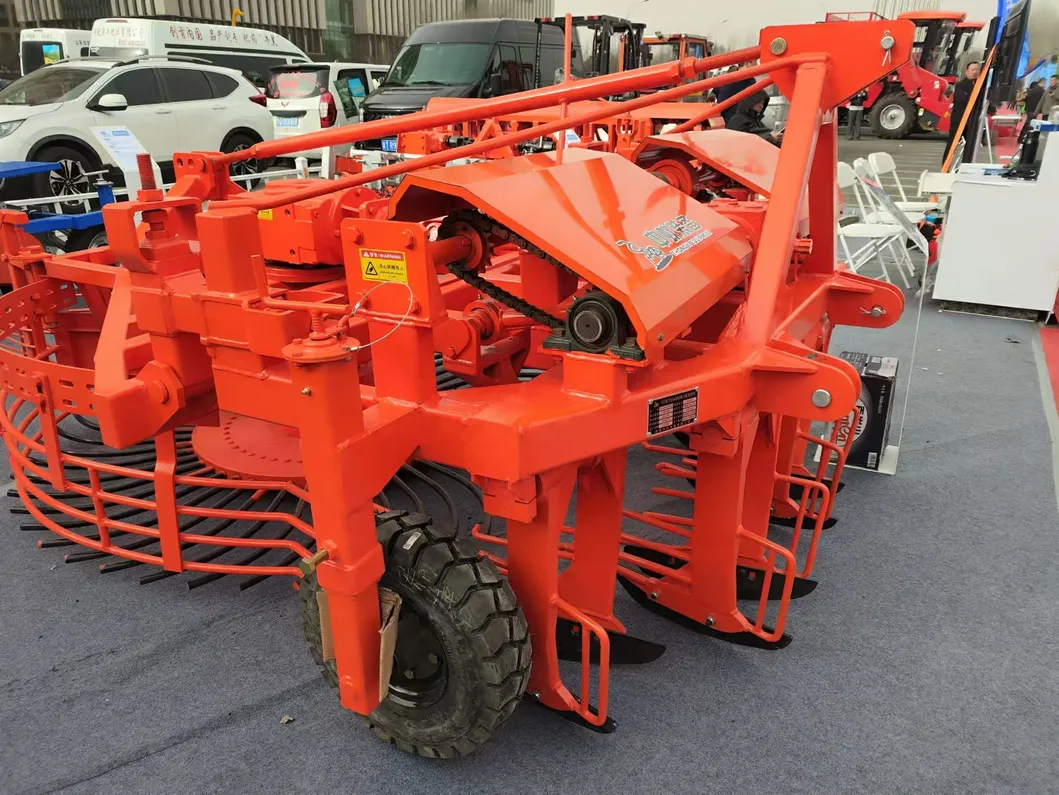

Agricultural machinery specially designed for harvesting mature sugar beet tubers. Adapted for 40/60 cm row spacing planting patterns, it can simultaneously harvest four rows of crops with high efficiency.

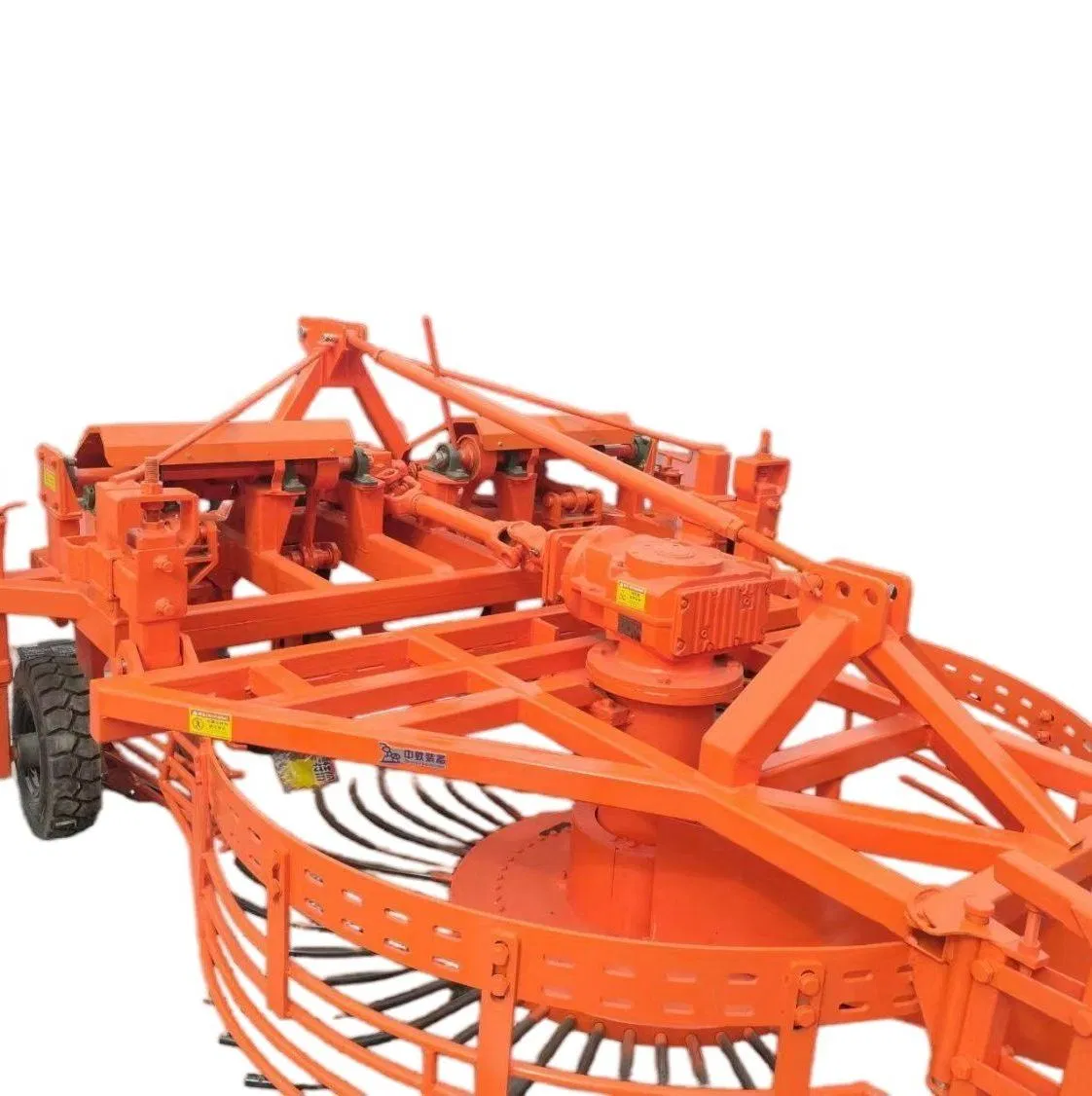

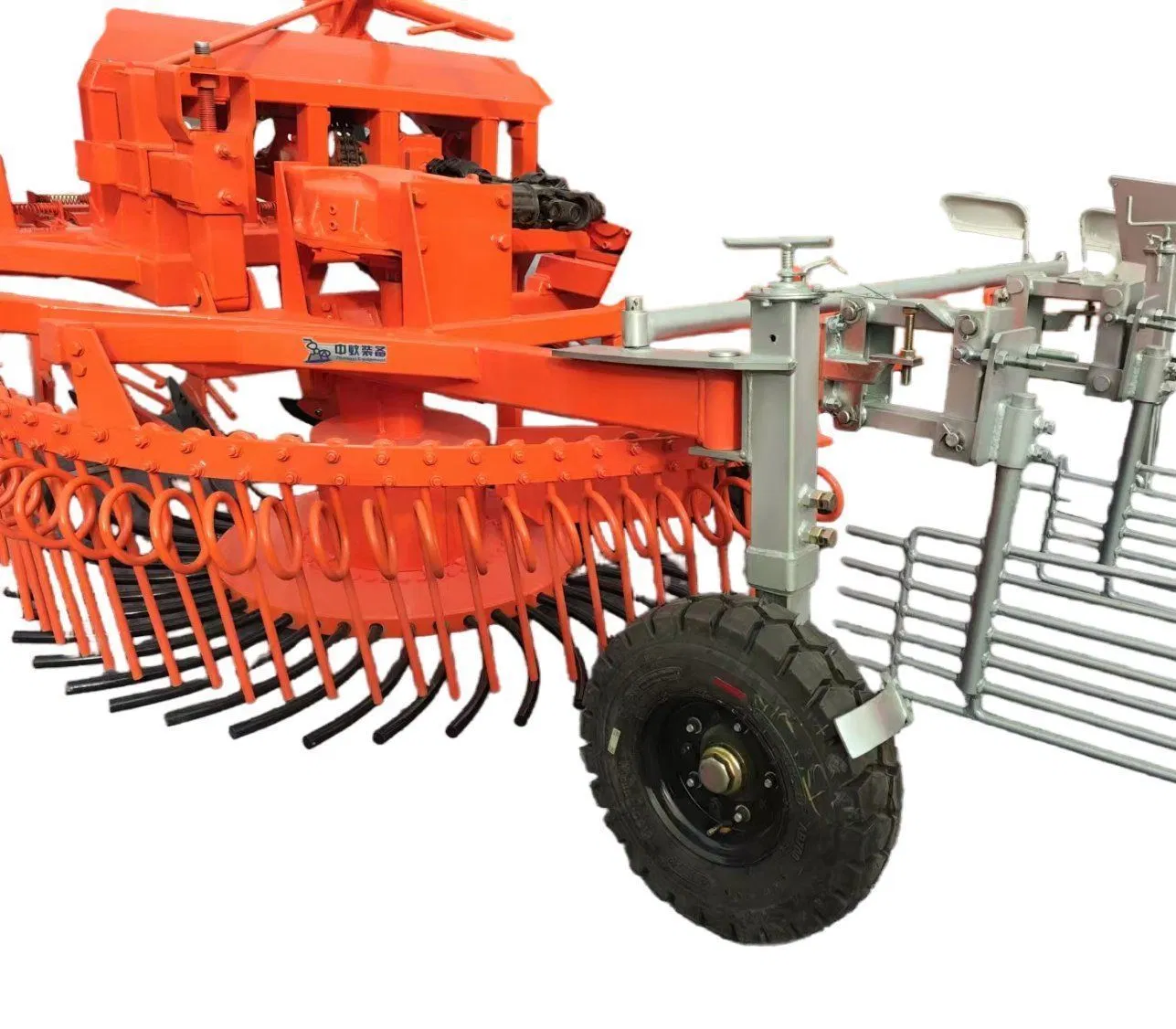

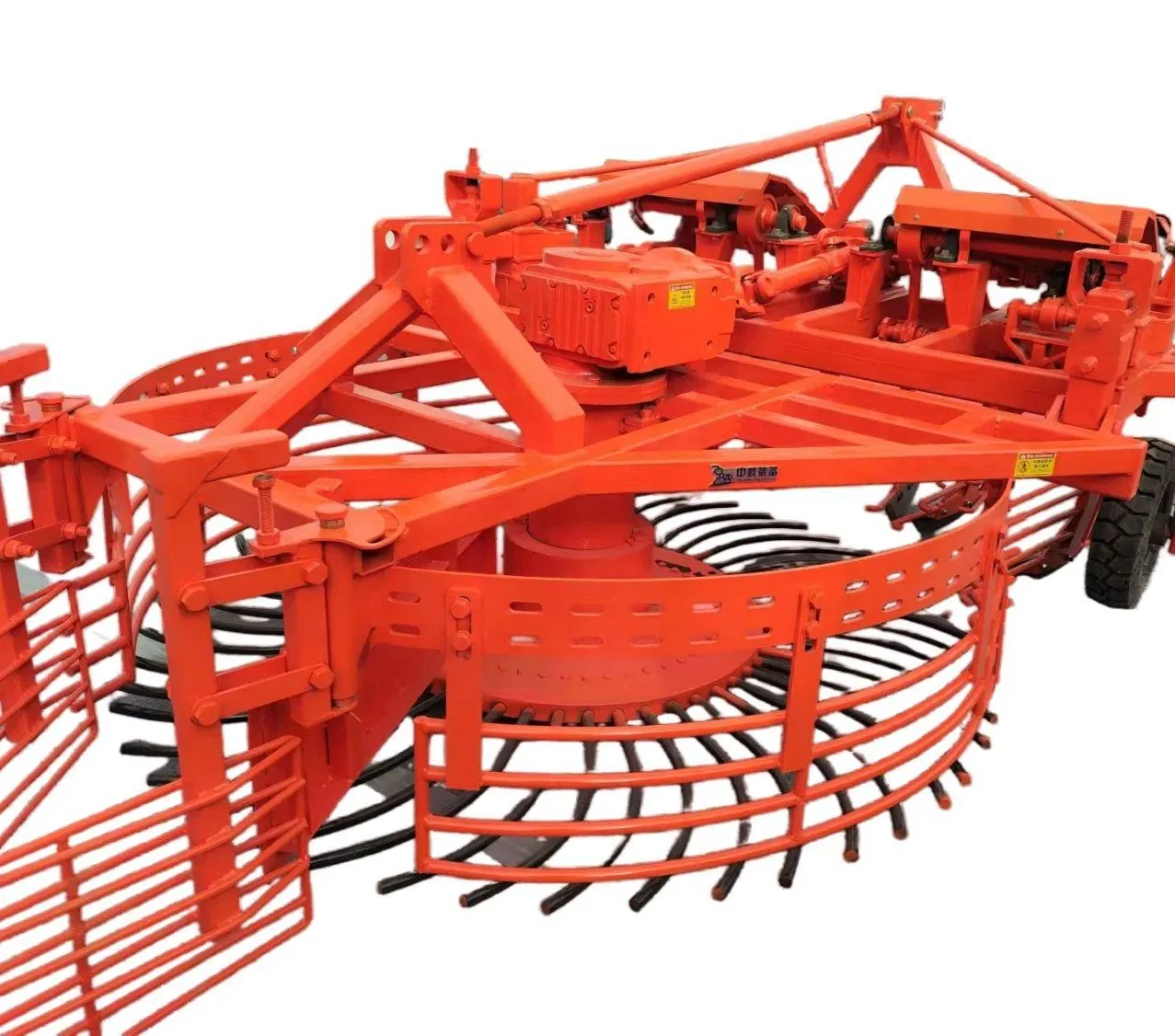

Operation Mechanism: The plow blade moves back-and-forth underground to loosen soil, lift beets, and remove soil and impurities via a rotary sieve and cleaning rollers. Beets are then transported and loaded.
Integrates excavation, picking, cleaning, lifting, conveying, film removal, stem/leaf separation, and loading into one operation. Compatible with 40-60 cm row distances and operates effectively in clay, sandy, and rocky soils.
| Model: TC-LD-40/60-4 | Name: 4-Row Plow Blade Harvester | ||
|---|---|---|---|
| Operating Width | ≥2.2m | Matching Power | 89kw |
| Input Speed | 760rpm | Machine Weight | 1130kg |
| Working Speed | ≤8km/h | Dimensions | 3.4*2.4*1.3m |
| Production Date | 2025 | Execution Standards | Q/HS001-2022 |
We are a modern agricultural machinery manufacturing enterprise specializing in the research and development, production, and service of sugar beet planting equipment. We are committed to providing efficient, intelligent, and environmentally friendly agricultural machinery for sugar beet growers worldwide, helping to reduce costs and increase efficiency.
