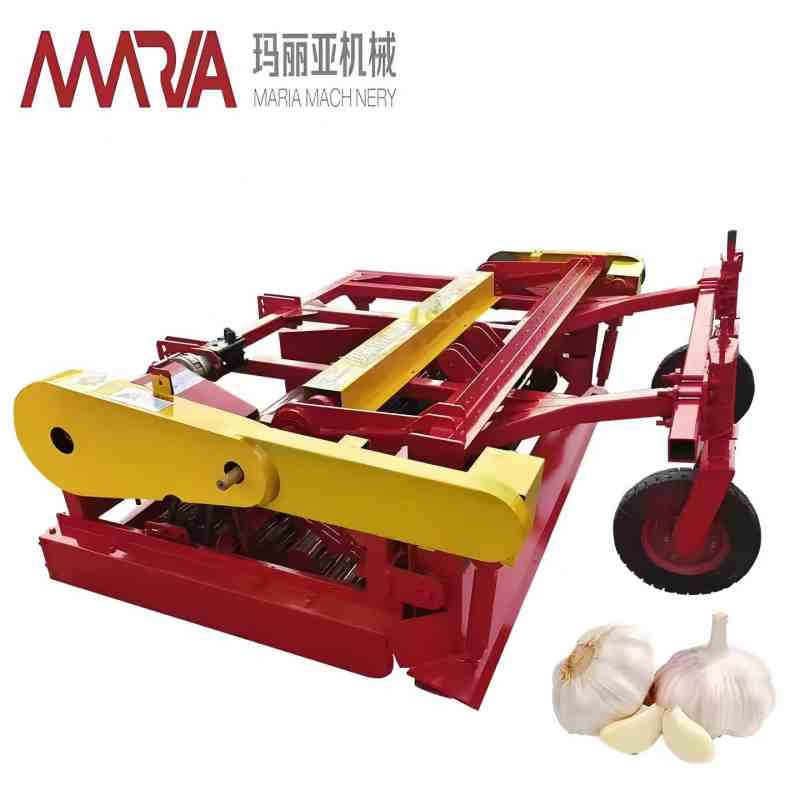

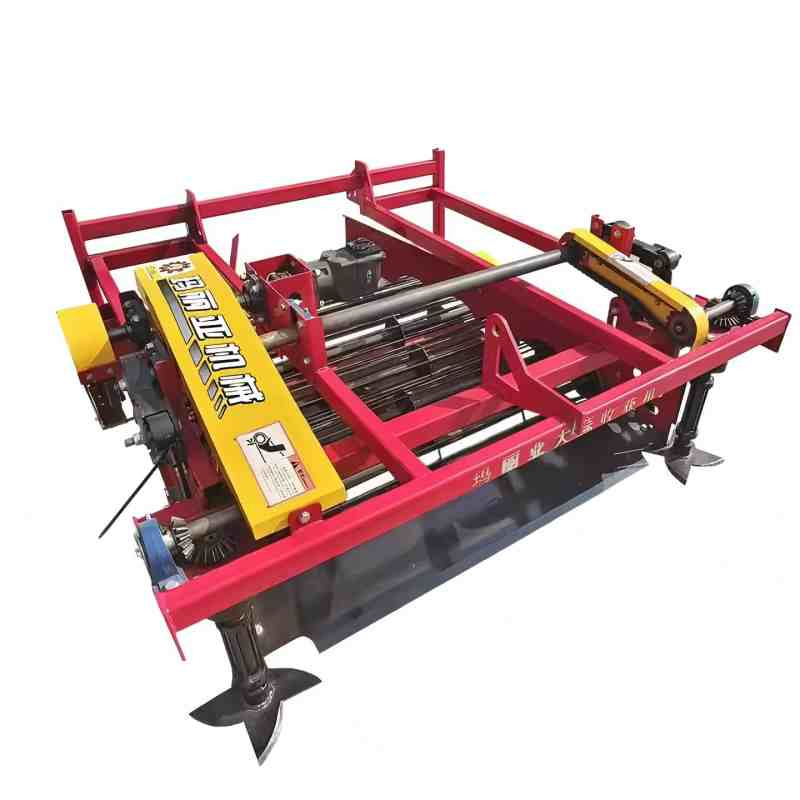

Agricultural Machinery Garlic Digger 4ds-154A for Big Farm Use

Customization: Available
After-sales Service: Provide on-Line or on-Site Service
Type: Vertical Cut Harvester

Product Description

Basic Specifications
Model NO.
4DS-154A
Application
Garlic
Power Source
Tractor
Harvest Method
Uprooted
Drive Type
Vee Belt
Working Width
1600mm
Tractor Required
60HP
Digging Depth
150mm
Efficiency
0.2ha/H
Warranty
3 Years
Tractor Mounted Front Garlic Harvester

All models are suitable for various soil conditions. It can easily harvest garlic even in hard soil. This product is popular among users due to its excellent quality and high cost-effectiveness.

Key Product Advantages:
1. Front-mounted installation allows harvesting before the tractor passes, preventing crop damage.
2. Rubber-coated steel soil-breaking wheels ensure clean removal without damaging garlic skins.
3. Systematic row laying protects garlic heads from direct sun exposure via stalks and leaves.

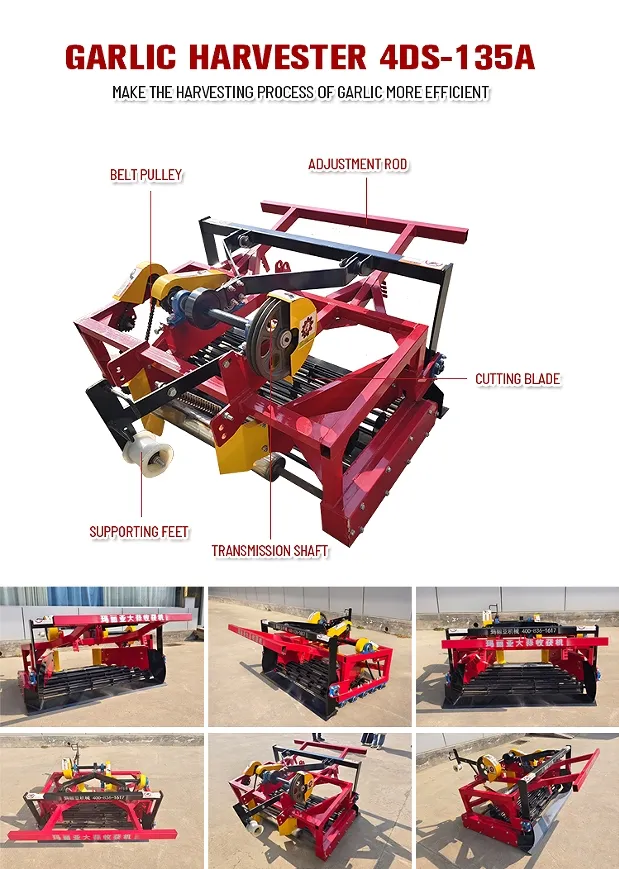

Garlic Digger Front View

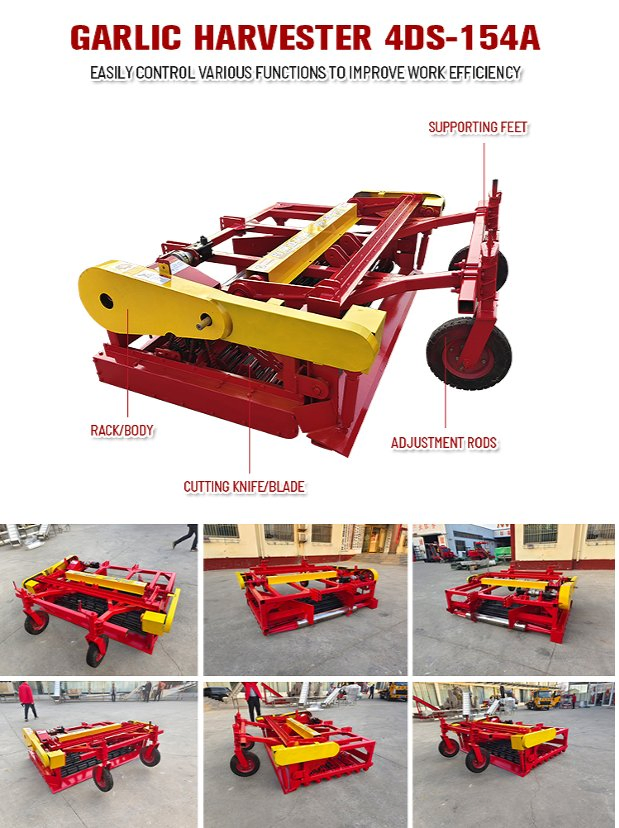

Garlic Harvester Detail

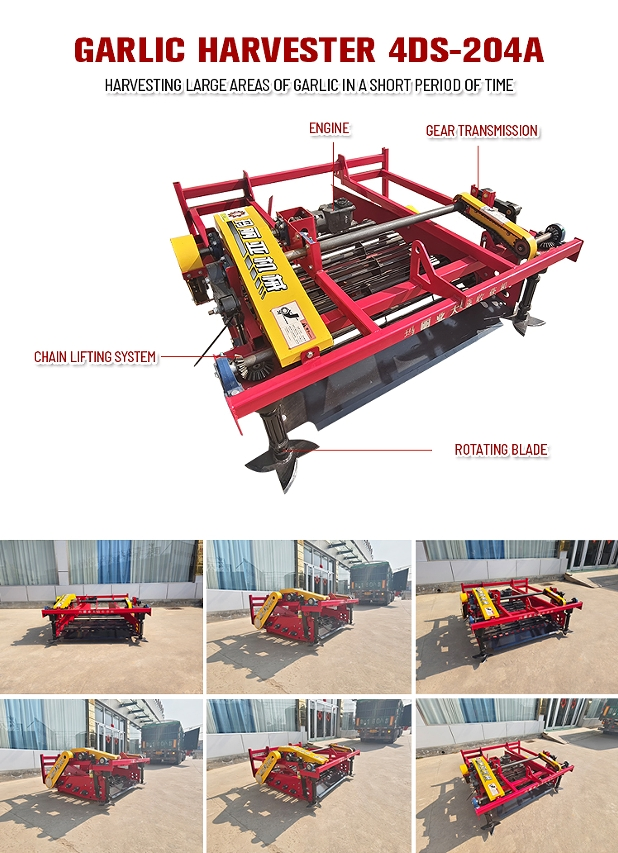

Garlic Harvesting Mechanism

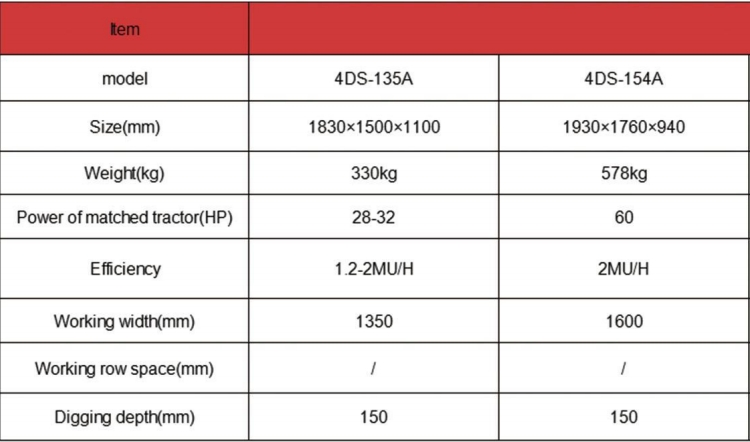

Technical Comparison Data
Model 4DS-135A 4DS-154A 4DS-204A 4DS-128A 4DS-HK02A
Size(mm)1830×1500×11001930×1760×9402100×2300×9006890×2100×23002850×2250×1760
Weight(kg)330kg578kg905kg3000kg710kg
Tractor Power (HP)28-326080-100≥100≥50
Efficiency1.2-2MU/H2MU/H2.5-3.5MU/H2-3MU/H3-4MU/H
Working Width (mm)1350160021001470 Max550
Digging Depth (mm)150150150700-1200/
Operation Video
Harvesting Performance
Field Operation 1
Field Operation 2
Clean Garlic Result

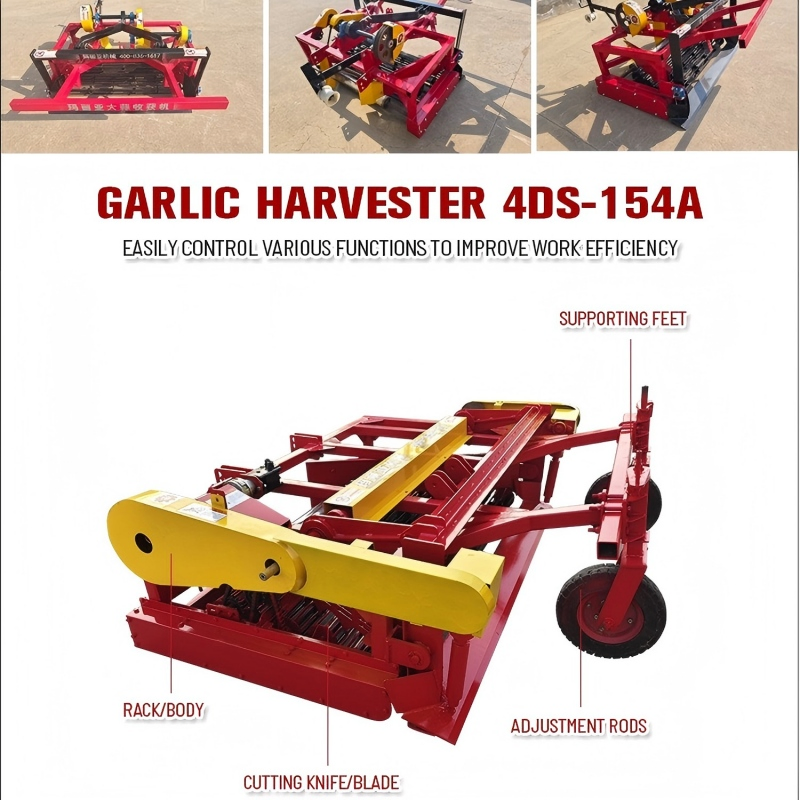

Machine Structure
Manufacturing Excellence

As a pioneer in fully mechanized precision garlic cultivation technology, the manufacturer has revolutionized the sector with 12 product series and 156 innovative machines. These solutions are proven in 30 global markets, covering 450,000 hectares of farmland worldwide.

🛡️
Technological Advantages:
With over 260 domestic patents and 6 PCT international patents, our machinery sets the standard for garlic processing. Our quality systems exceed national standards, validated by ISO certifications and multiple science awards.
Manufacturing Facility
Precision Seeding Technology
Global Market Reach
Award Winning Quality
Frequently Asked Questions
Can this harvester work in hard soil conditions?
Yes, the machine is designed with reinforced soil-breaking wheels that allow it to easily harvest garlic even in challenging, hard soil environments.
How does the front-mounted design benefit the crop?
The front-mounted design ensures that harvesting is completed before the tractor wheels pass over the field, which prevents the vehicle from crushing or damaging the garlic.
What is the required tractor power for the 4DS-154A model?
The 4DS-154A model requires a tractor with at least 60HP for optimal performance.
Does the machine damage the garlic skin during soil removal?
No, the soil-breaking wheels use special rubber-coated steel bars specifically designed to remove soil cleanly while protecting the delicate garlic skin.
What is the harvesting efficiency and digging depth?
The harvester offers an efficiency of approximately 0.2ha/H (or 2MU/H) with a standard digging depth of 150mm.
How does it protect the harvested garlic from sun damage?
After harvesting, the machine lays the garlic out in rows such that the stalks and leaves naturally cover the garlic heads, providing shade and preventing sun damage.
