Advanced Pineline Linkage Industrial Noise Detection System for Safety

Basic Information

Packaging & Delivery

Product Description

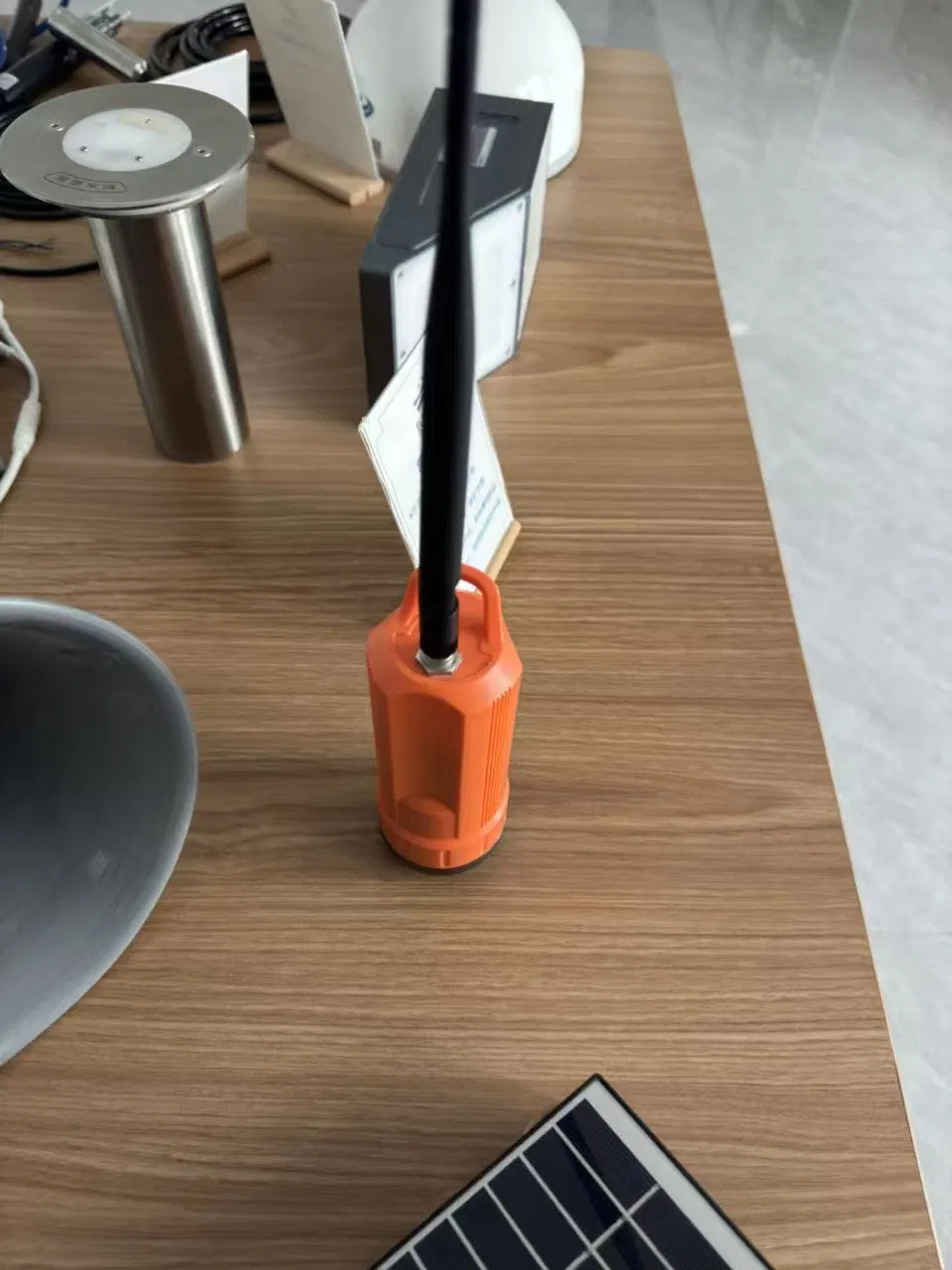

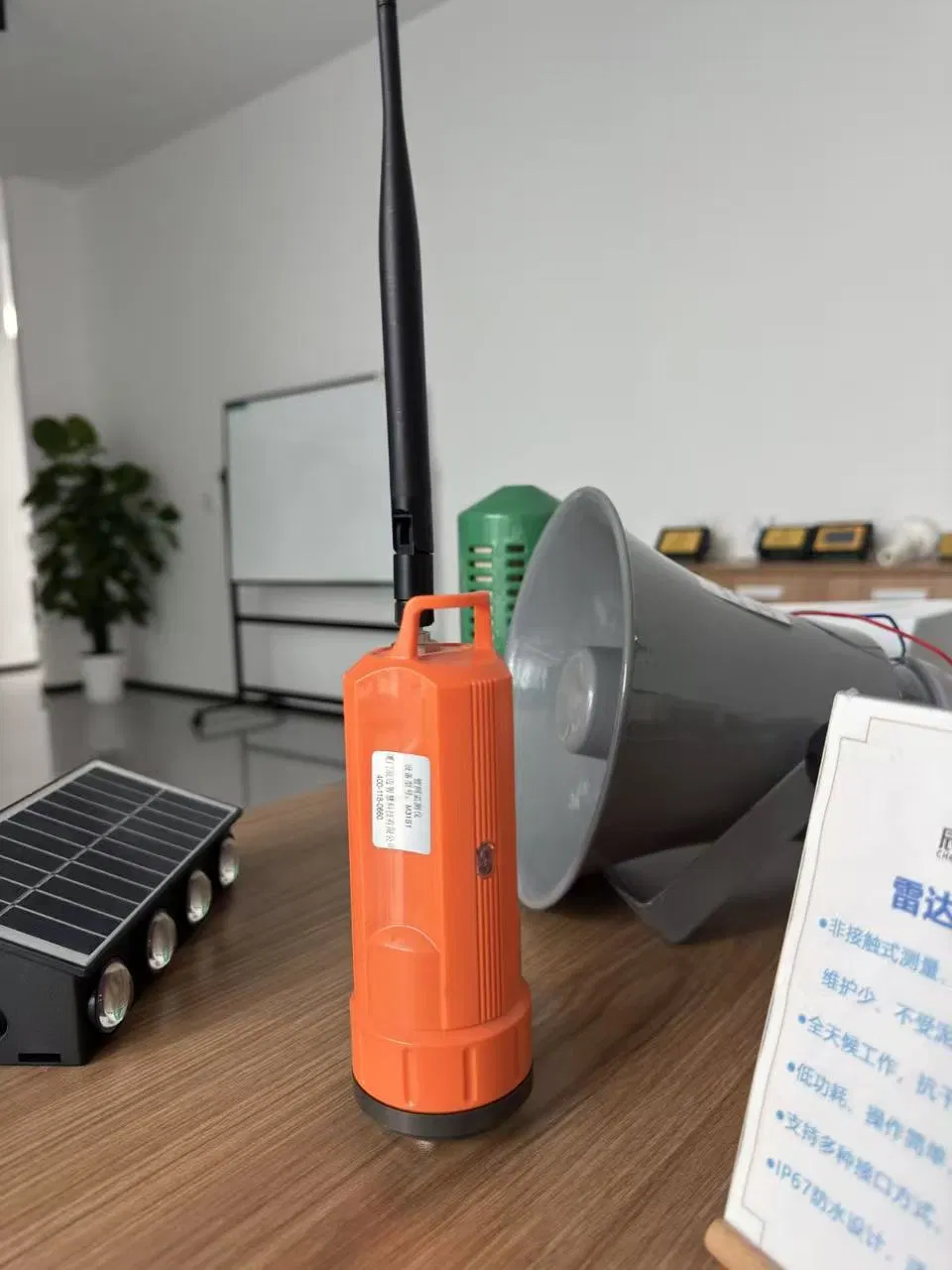

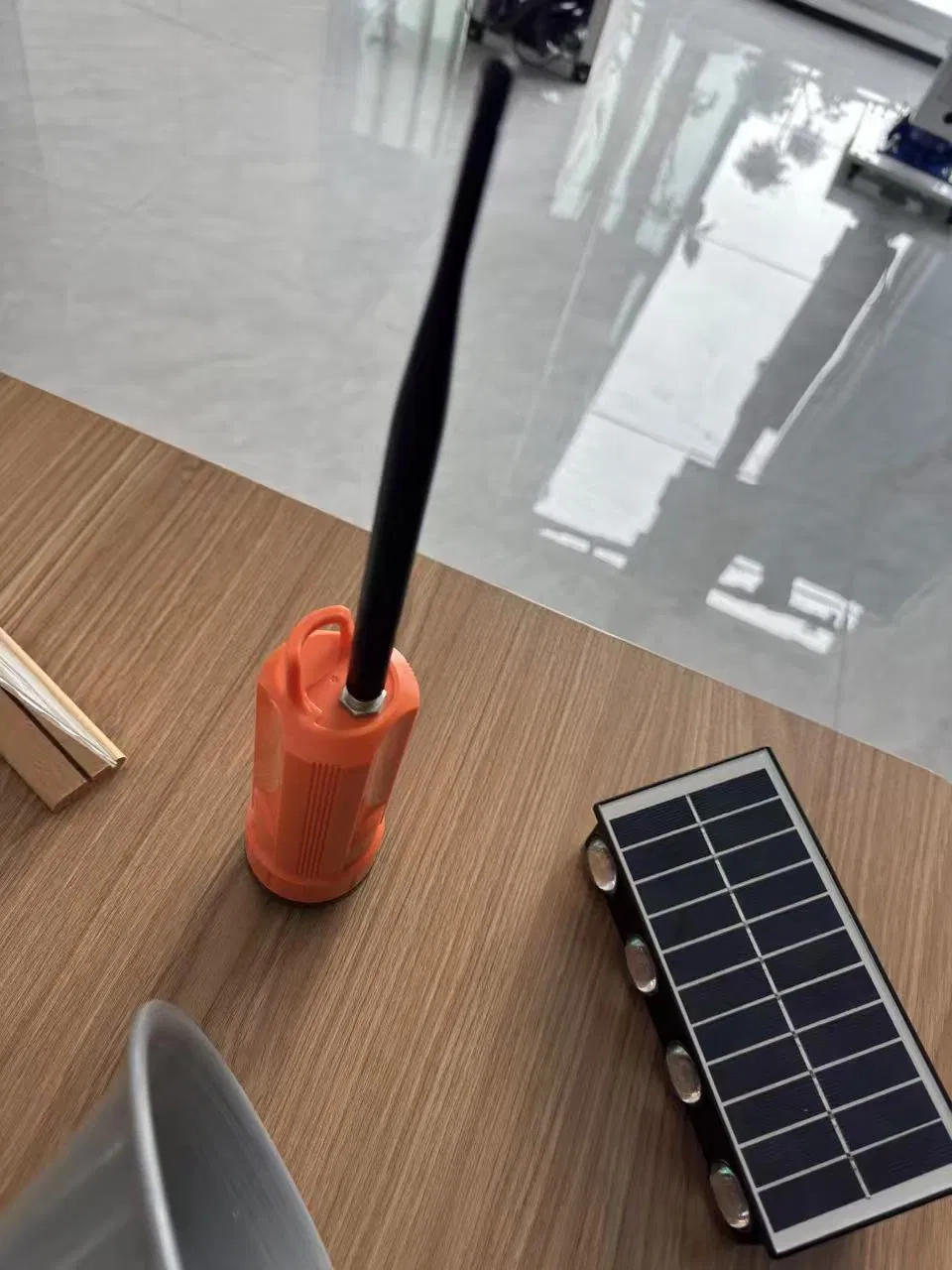

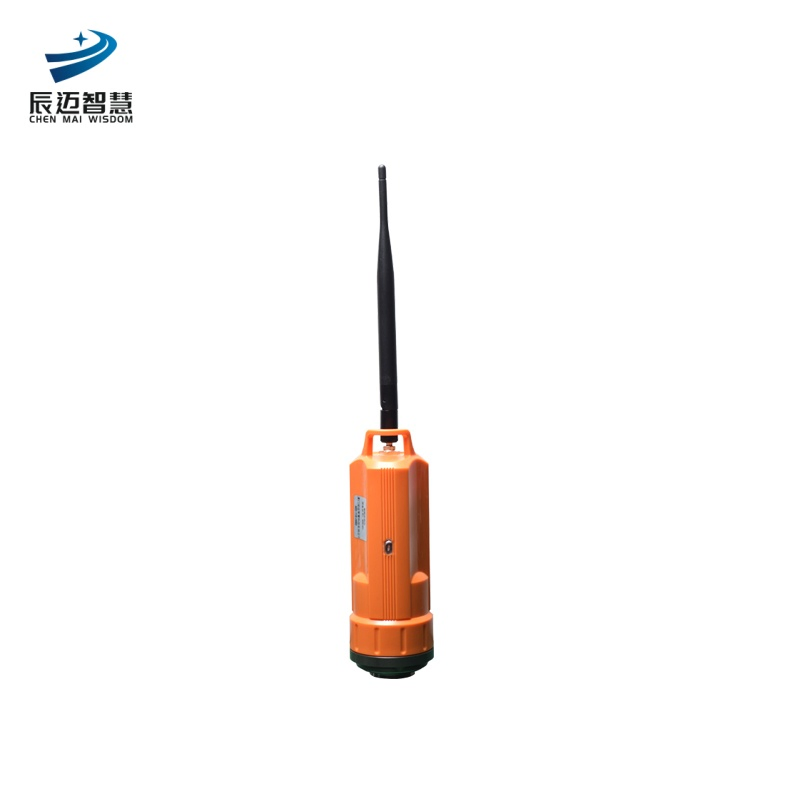

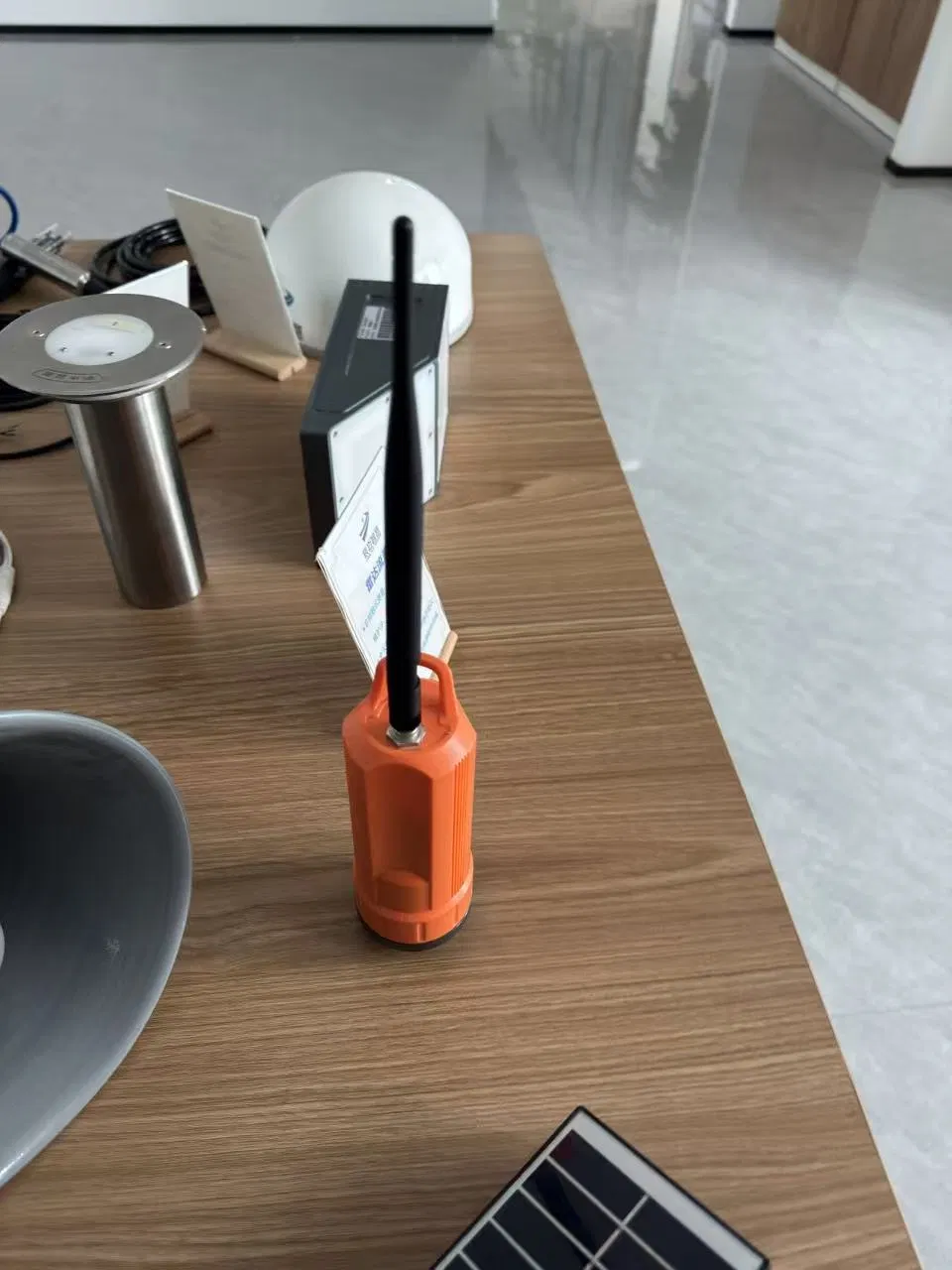

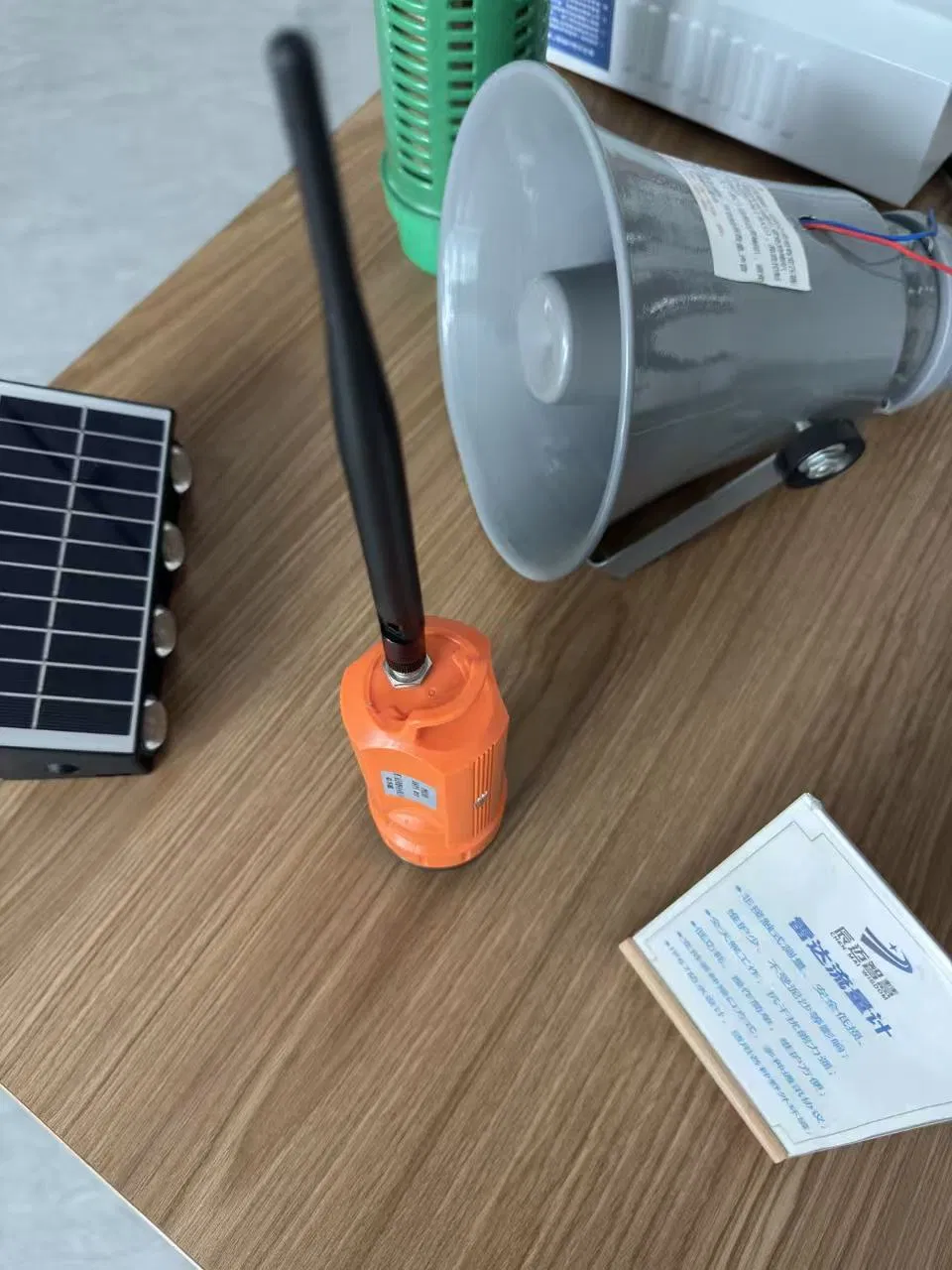

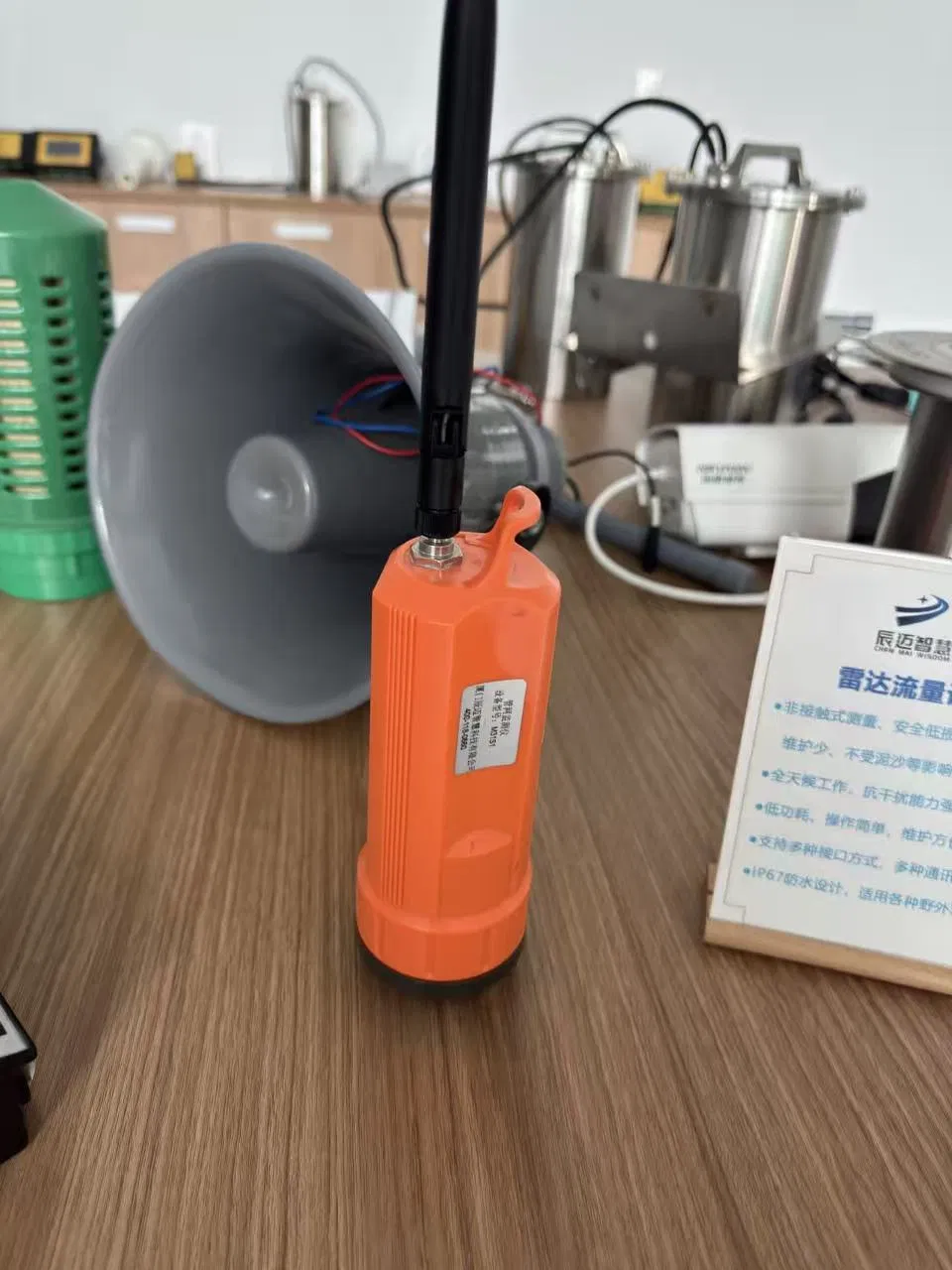

The M31S1 Noise Monitor is an acoustic monitoring device featuring simple deployment and support for remote real-time monitoring. When water leakage occurs in the pipeline network, the friction between the pipe wall and water flow generates acoustic signals. The acoustic monitor transmits the collected signals to the cloud server via wireless communication. The AI algorithm deployed on the cloud server automatically identifies water leakage signals. Once water leakage is confirmed, the location is displayed on a map, and an alarm notification is sent synchronously.

Key Product Features

• The sensor is attached to the pipe wall via the built-in magnet at the bottom (no excavation required).
• The sensor enters sleep mode when inverted (when not attached to the pipe).
• Supports mobile deployment and flexible installation.
• Professional leakage algorithm combined with massive data models.
• Leak point analysis accuracy ≥ 95%.
• Synchronous control via dedicated mobile application.
• Built-in RTC clock, supporting online time synchronization.
• Low-power consumption design with scheduled wake-up for data transmission.
• Supports parameter configuration via intelligent inspection app.
• Supports remote configuration, remote upgrade, and management via Intelligent Operation and Maintenance Platform.

Technical Parameters
