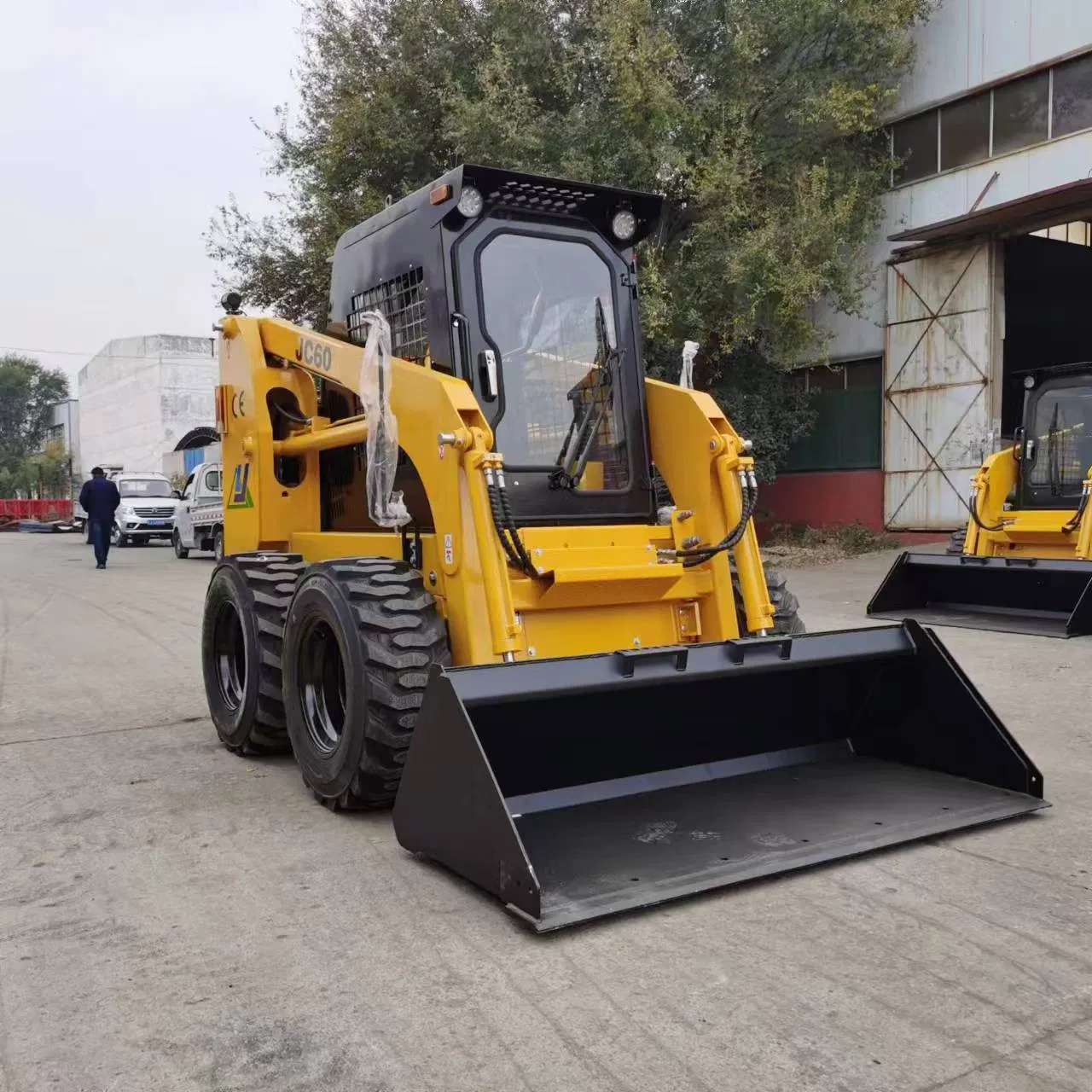

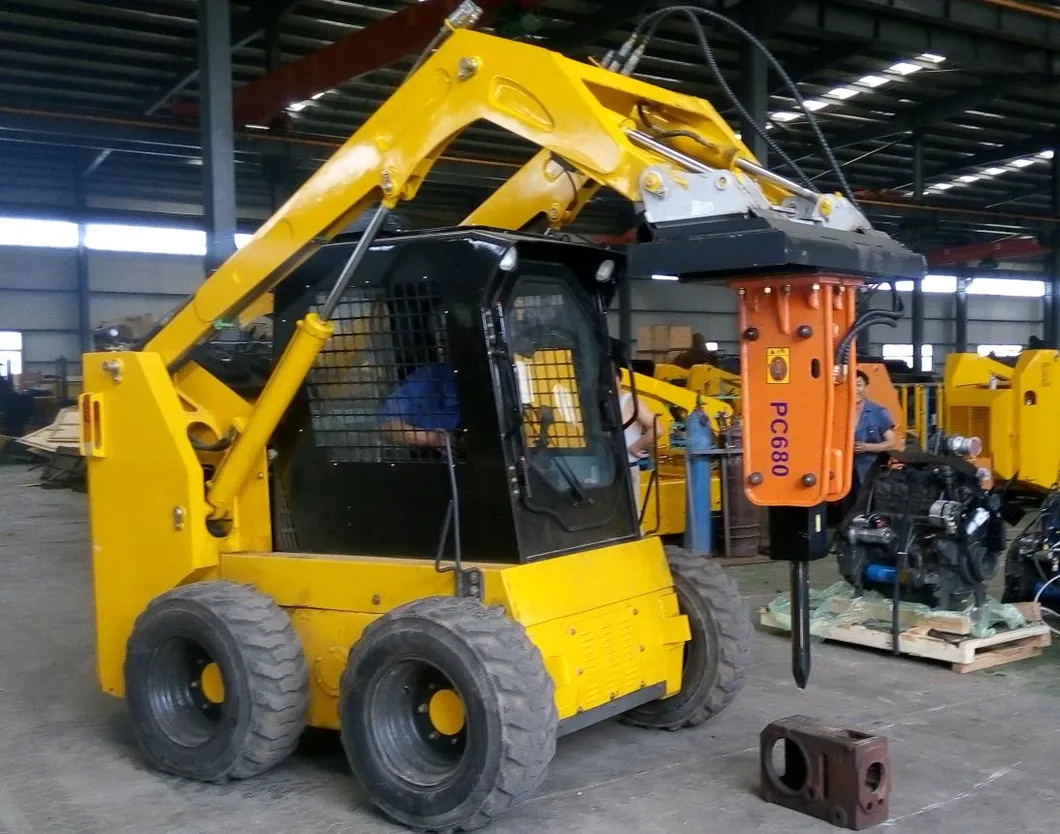

construction equipment mini skid steer loader JC45 model with xinchai 36.7kw diesel engine hot sale

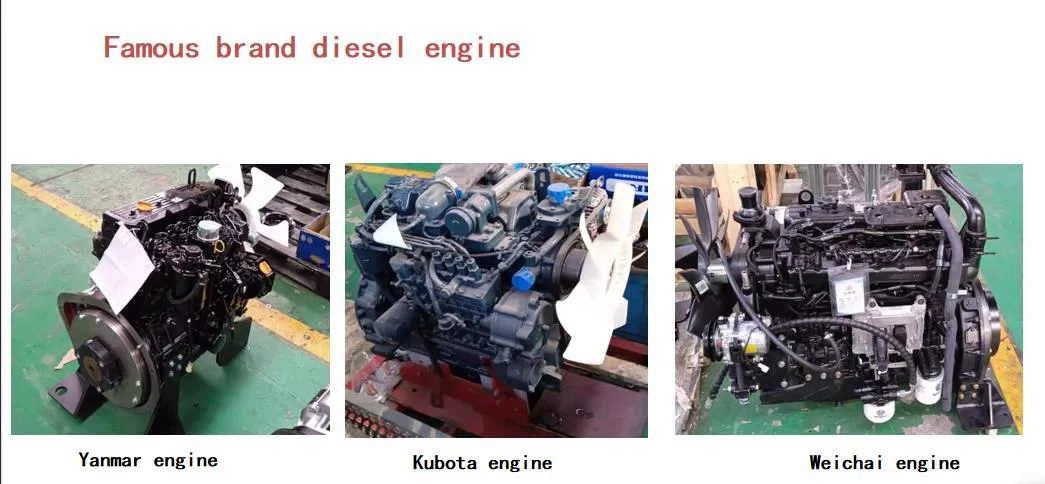

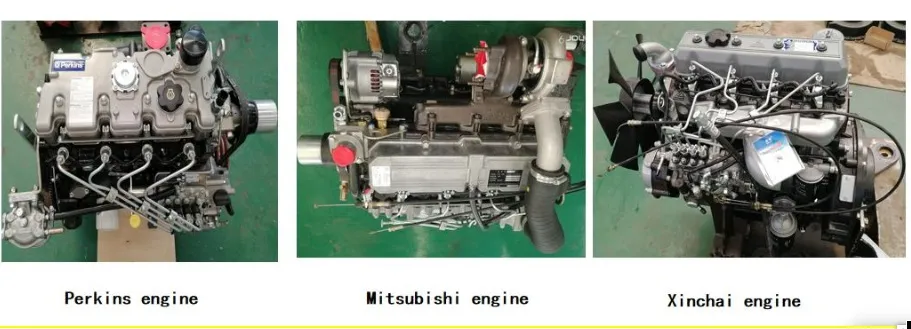

Chinese xinchai brand diesel engine C490BPG
| Item | Description | Item | Description |
| Rated operating capacity(kg) | 700 | Hinge pin height (mm) | 3080 |
| Tipping load (kg) | 1400 | Total height (mm) | 2050 |
| Bucket capacity(m3) | 0.4 | Length with bucket (mm) | 3420 |
| Hydraulic pump flow (L/min) | 75 | Length without bucket(mm) | 2640 |
| Engine power (hp) | 50 | Width with bucket (mm) | 1740 |
| Weight(kg) | 3100 | Track width (mm) | 1450 |
| Max travel speed (km/h) | 12 | Wheelbase (mm) | 991 |
| Grade ability | 20 | Ground clearance (mm) | 185 |
| Tire | 10-16.5 | Dumping angle | 40 |
| Fuel/hyd oil capacity (L) | 65/65 | Dumping height (mm) | 2380 |
| Height at maximum extension | 3980 | Maximum reach (mm) | 750 |
