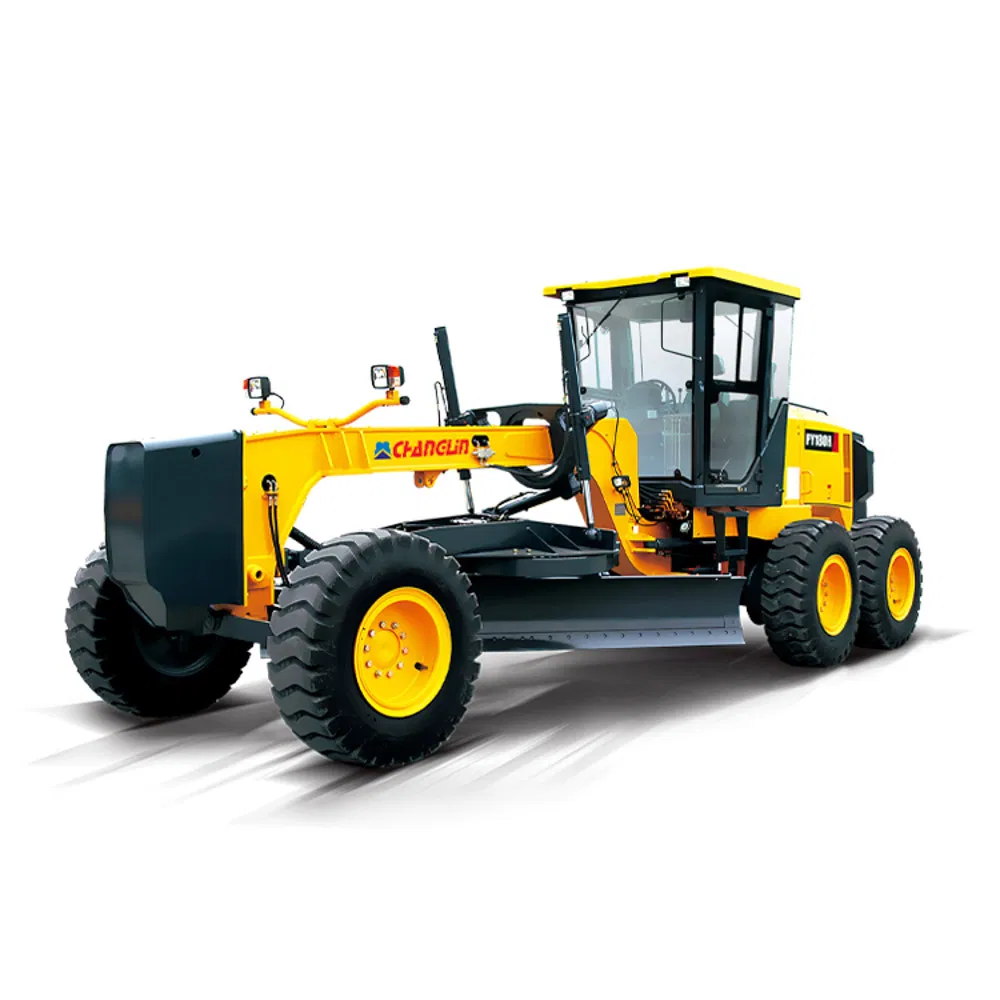

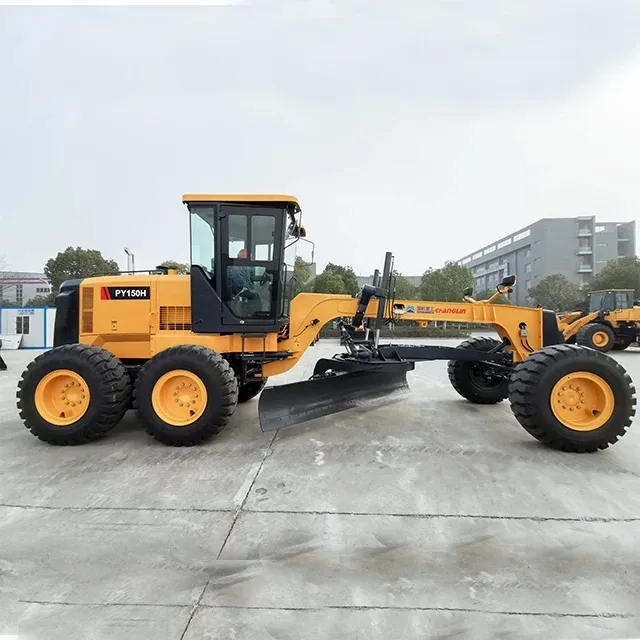

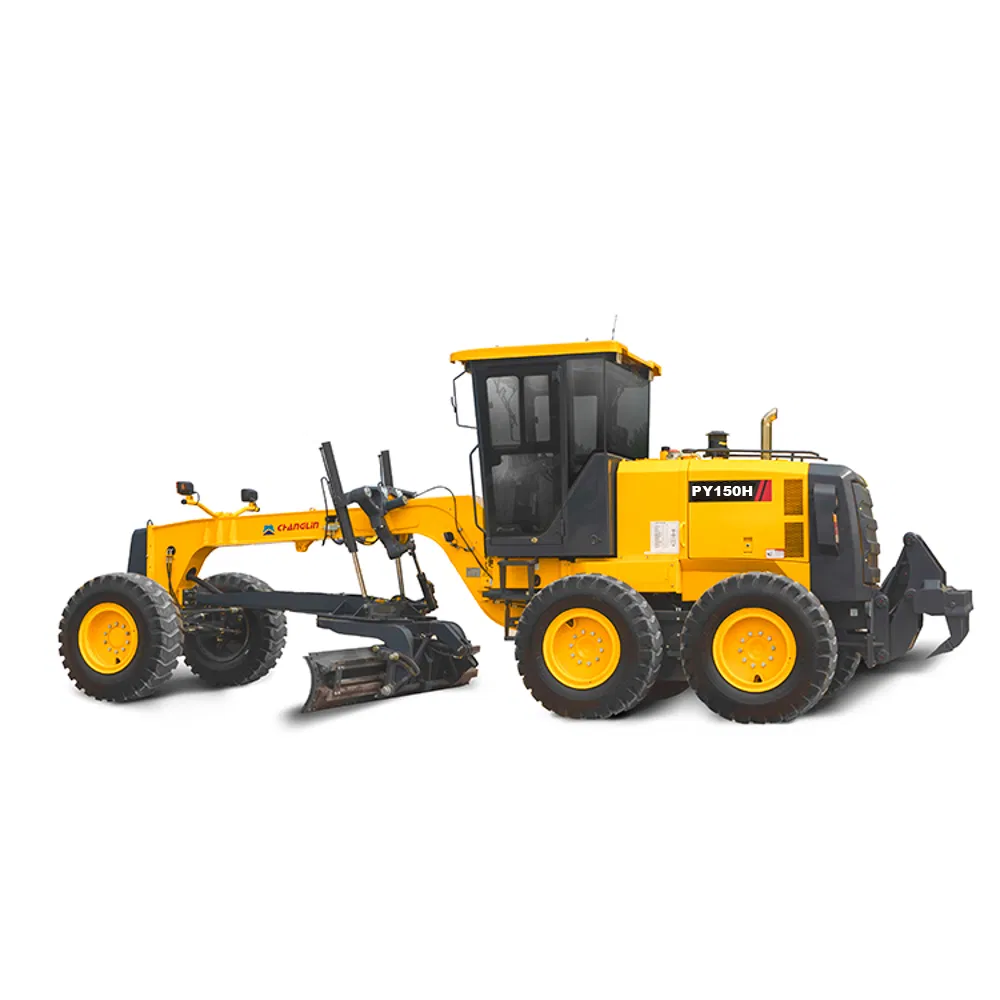

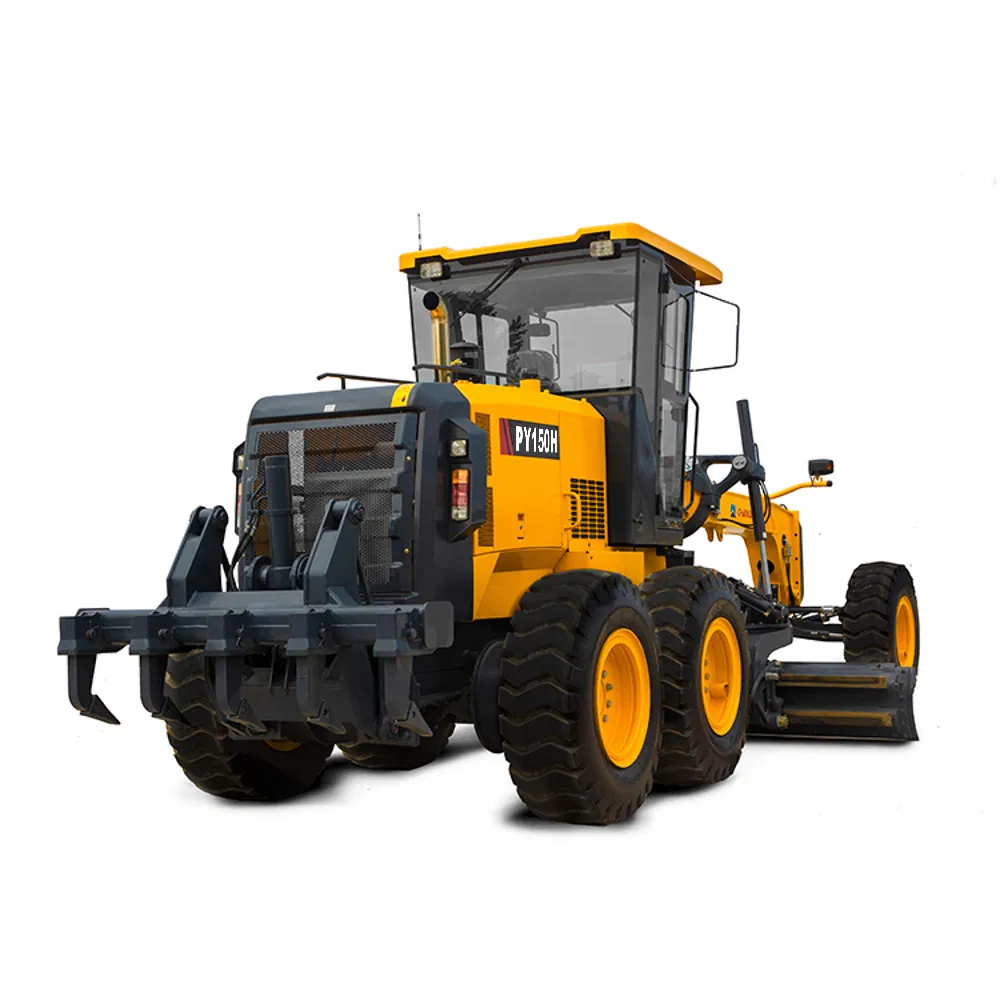

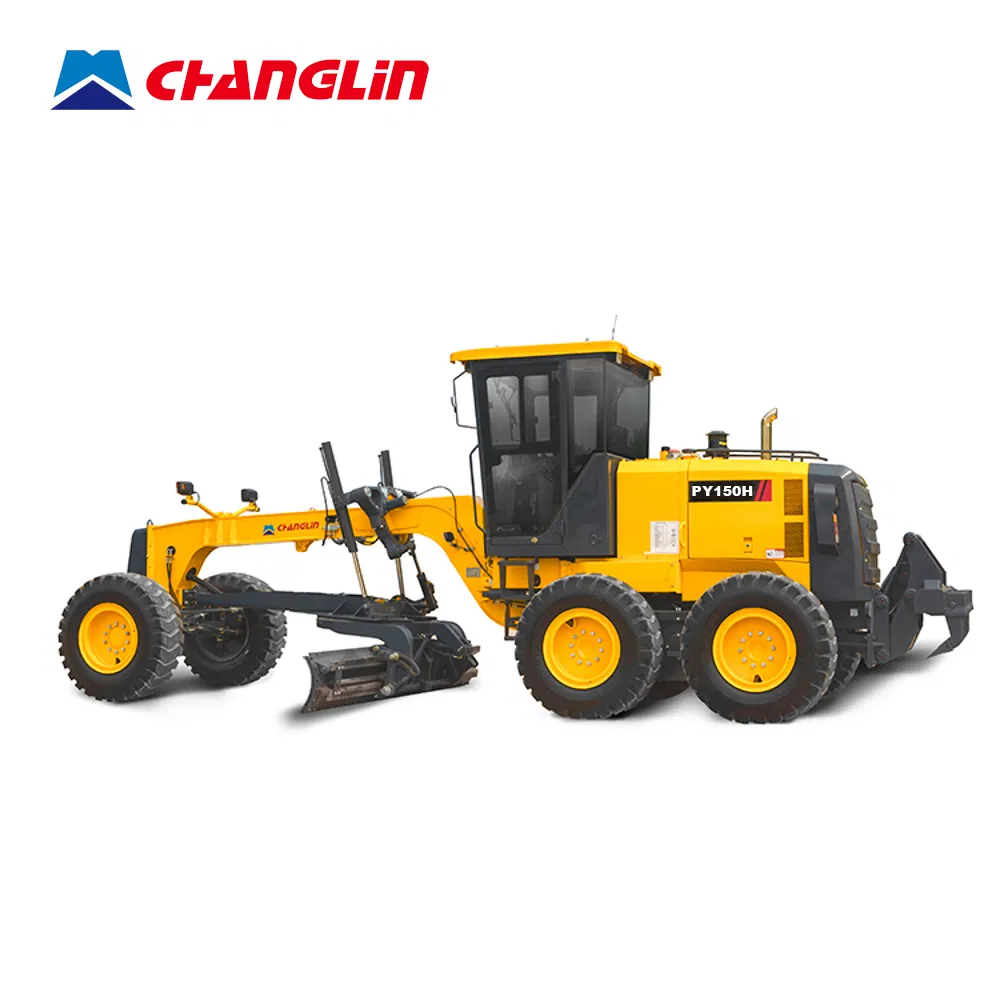

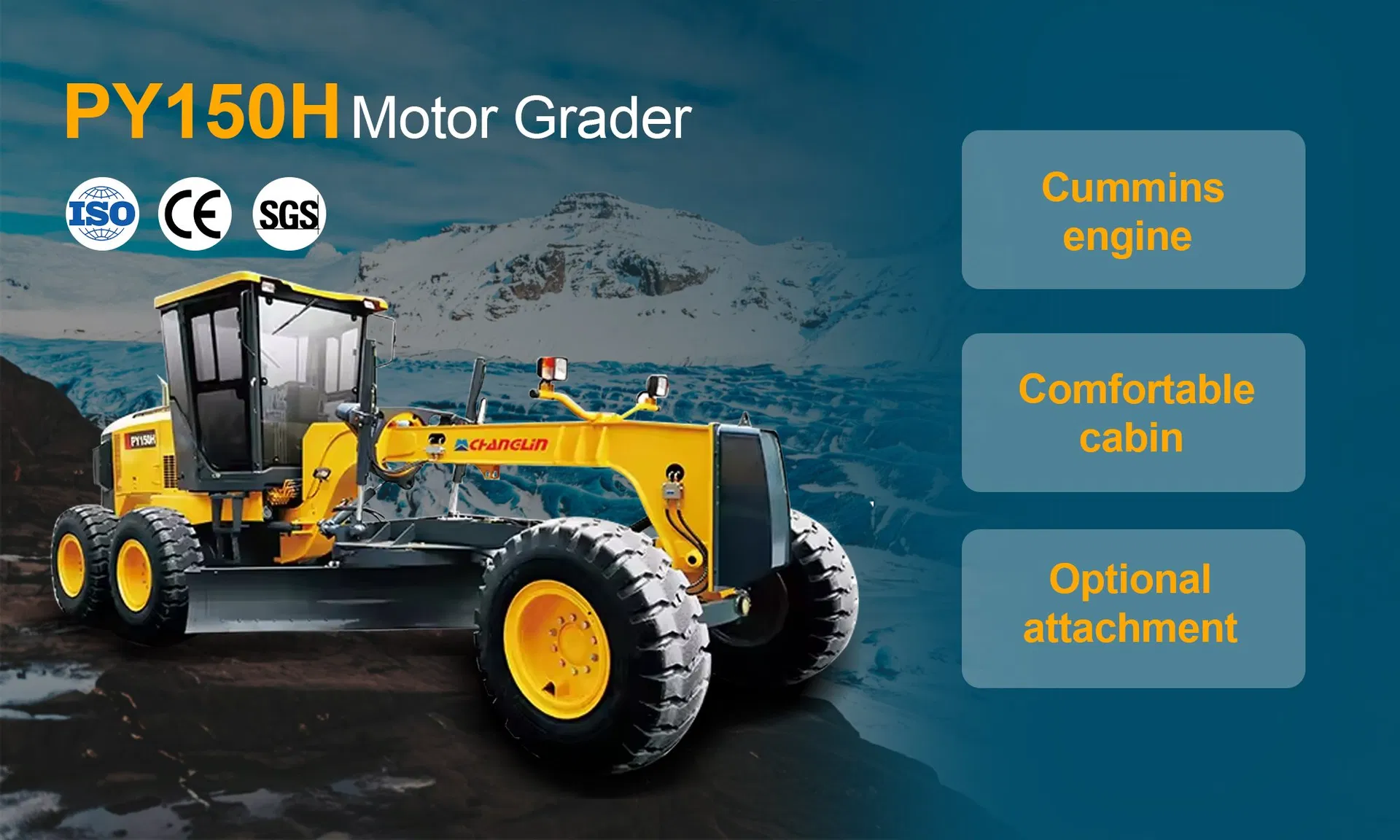

PY150H Heavy-Duty Grader: Efficient, Reliable, and Stable

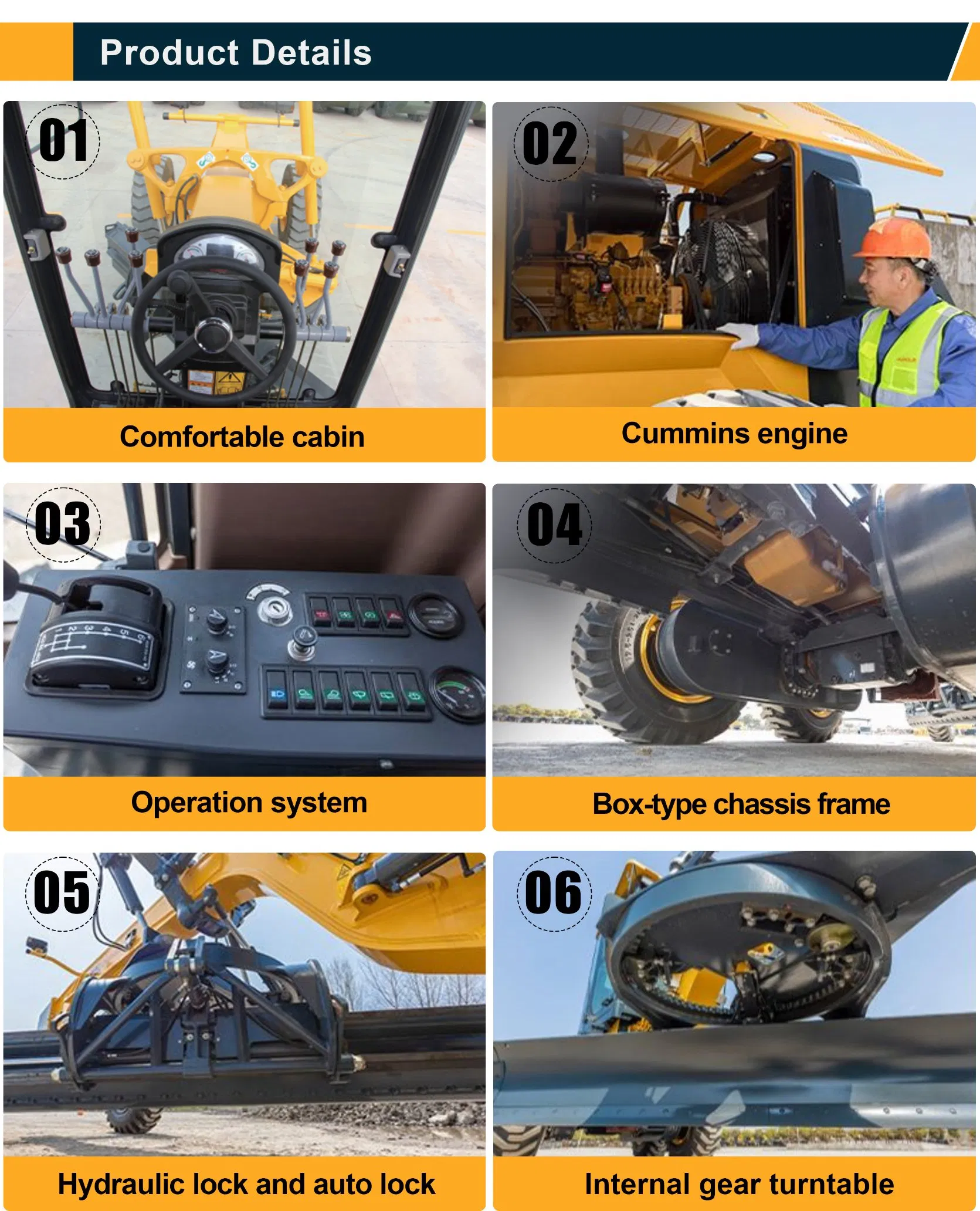

The PY150H heavy-duty grader features a single-handle electro-hydraulic controlled power-shift transmission with 6 forward and 3 reverse shifts, ensuring easy and convenient operation. Equipped with a hydraulic lock and optional NO-SPIN differential, it guarantees stability and powerful traction. Its ideal axle load allocation ensures excellent stability on hard surfaces. The grader boasts a serviceable, efficient hydraulic system and a reliable full hydraulic brake system for safety.
Motor Grader Features:
Operating Weight: 12000Kg
Rated Power: 97kW/2200rpm
Moldboard Dimensions: 3658mm × 545mm × 16mm
| Basic specification | |
|---|---|
| Engine model | Cummins 6BT5.9-C150 |
| Rated power | 120KW@2200rpm |
| Dimension (L*W*H) | 8290*2600*3465 (mm) |
| Operating weight (Standard) | 12000KG |
| Performance specification | |
| Travelling speed, forward | 6.9/10.7/17.3/26/37.8/53.4 |
| Travelling speed, reverse | 6.9/17.3/37.8 |
| Tractive force (f=0.75) | 61.7KN |
| Blade Data | |
| Maximum lift above ground | 410mm |
| Maximum grading depth | 560mm |
| Maximum blade position angle | 90° |
| Blade cutting angle | 29°~77° |
| Circle reversing rotation | 360° |

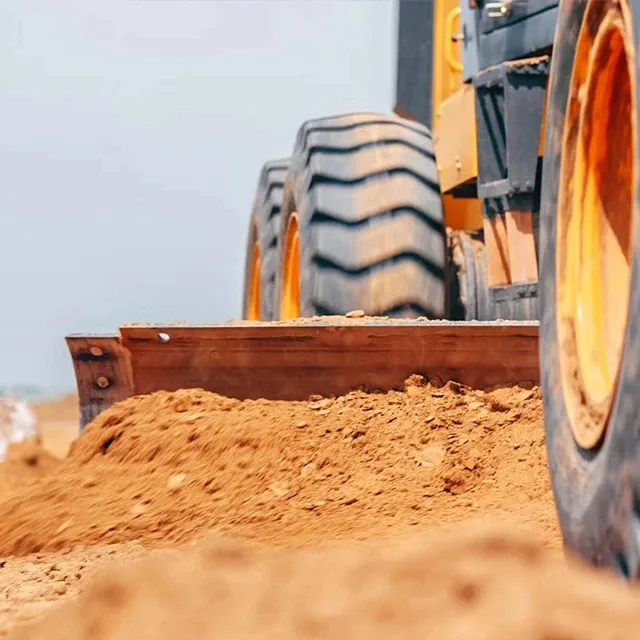

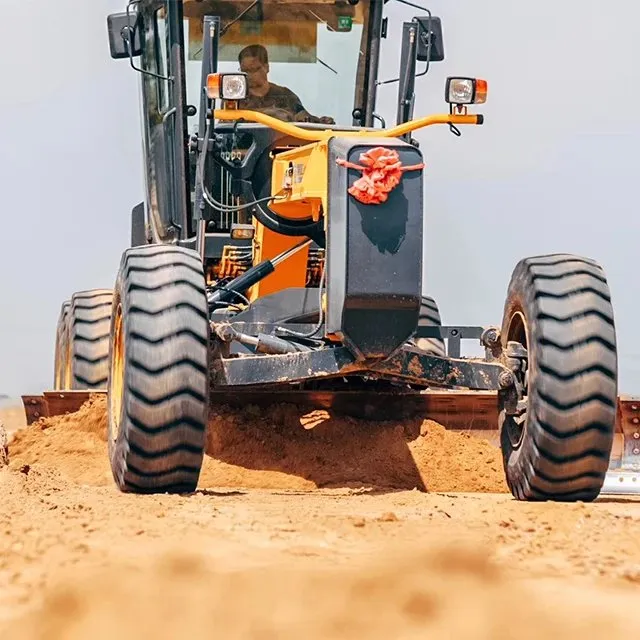

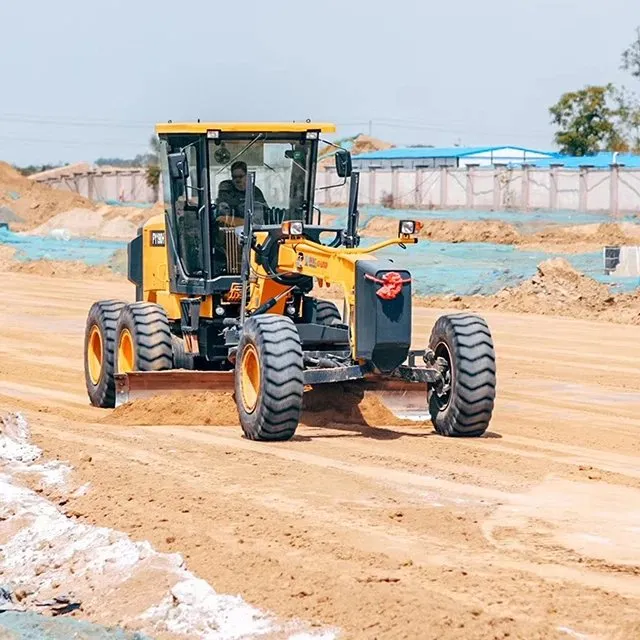

The motor grader is mainly used for ground leveling, ditching, slope scraping, bulldozing, scarification, snow removal for large areas such as highway, airports, and farmlands.

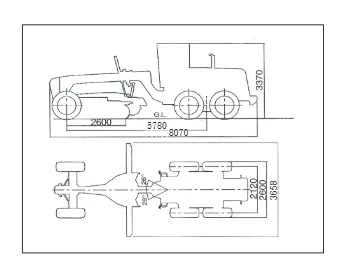

Detailed CAD drawings and dimensional diagrams are available to meet specific project requirements.

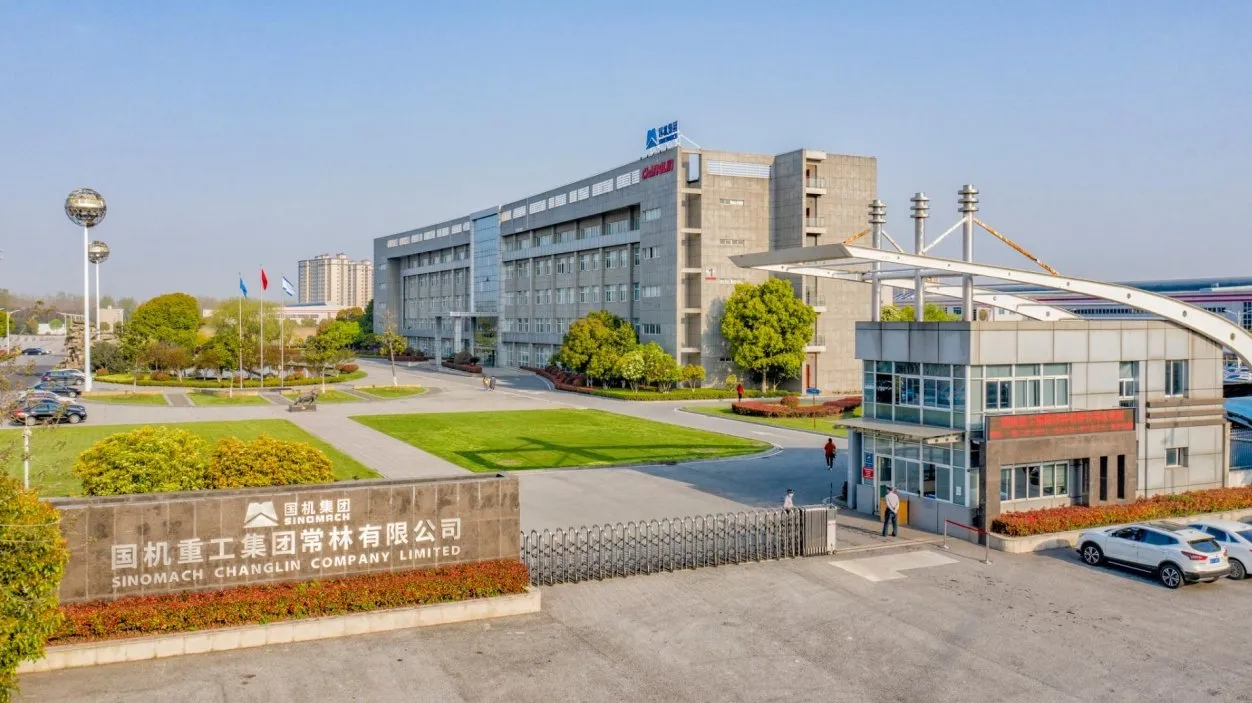

The manufacturing facility has over 60 years of R&D and manufacturing experience in the engineering equipment field. We have established a diversified trade pattern, encompassing a wide range of products and trade methods globally.
