Product Description

📋

Basic Information

Model NO.

L08

Type

Pile Driver

Application

Pile Driver

Certification

CE, ISO9001: 2000

Condition

New

Core Components

Engine

Weight

3150 Kg

Efficiency

High Operating Efficiency

Carrier

14-50 Ton

Piling Speed

7-10m/Min

Dimension

3000*1200*1700

HS Code

8430100000

🏗️

TurboVibro High-Power Solution

The Hydraulic pile driver is a high-performance construction machine designed to press reinforced concrete piles into the ground using hydraulic power. By utilizing high-frequency vibration, the machine liquefies the surrounding soil, drastically reducing frictional resistance to sink piles efficiently via downward pressure and its own weight.

▶ L08 model: for 20-30 ton excavators

▶ L10 model: for 30-40 ton excavators

▶ L12 model: for 40-50 ton excavators

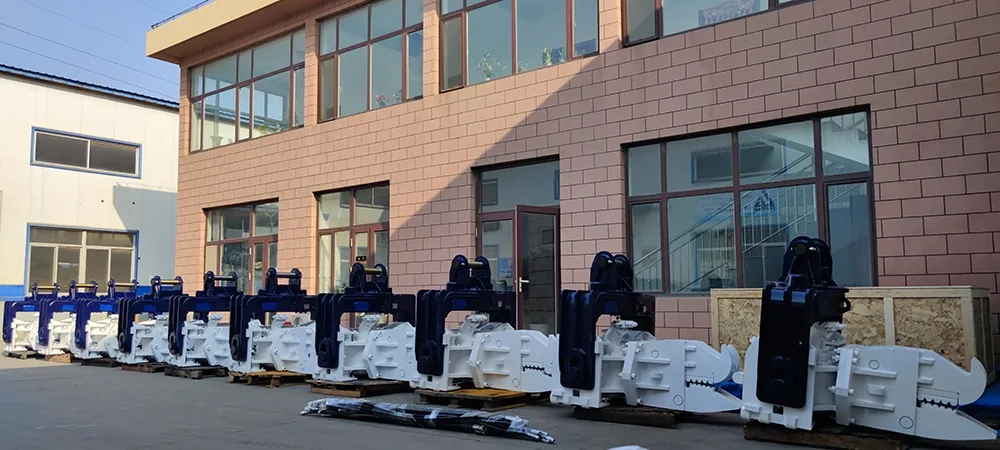

Excavator Pile Driving Solution

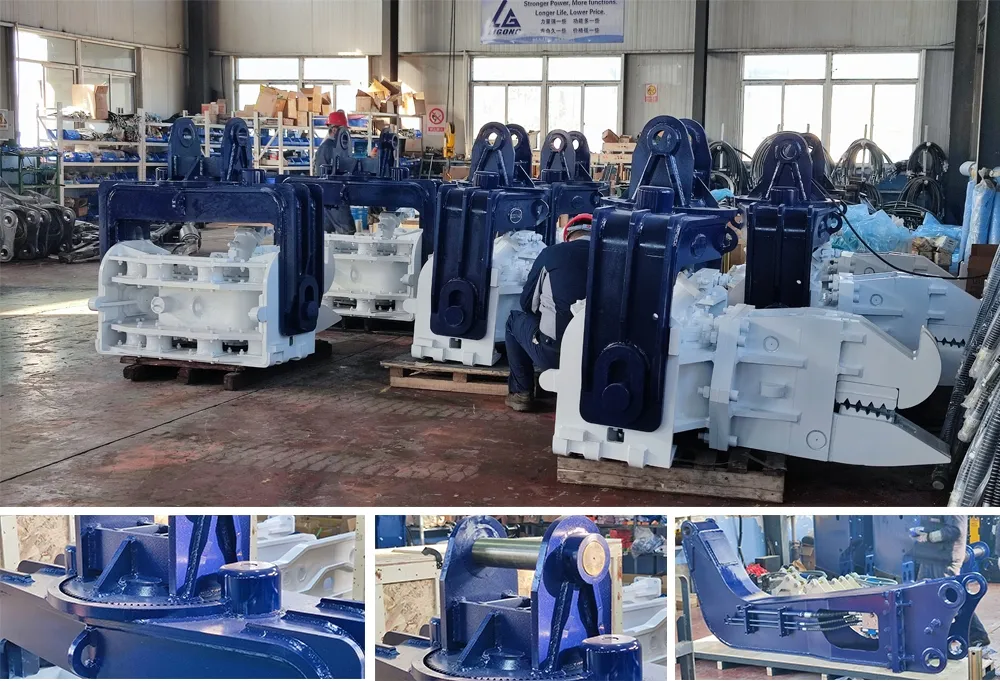

High-Power Solution

📊

Product Parameters

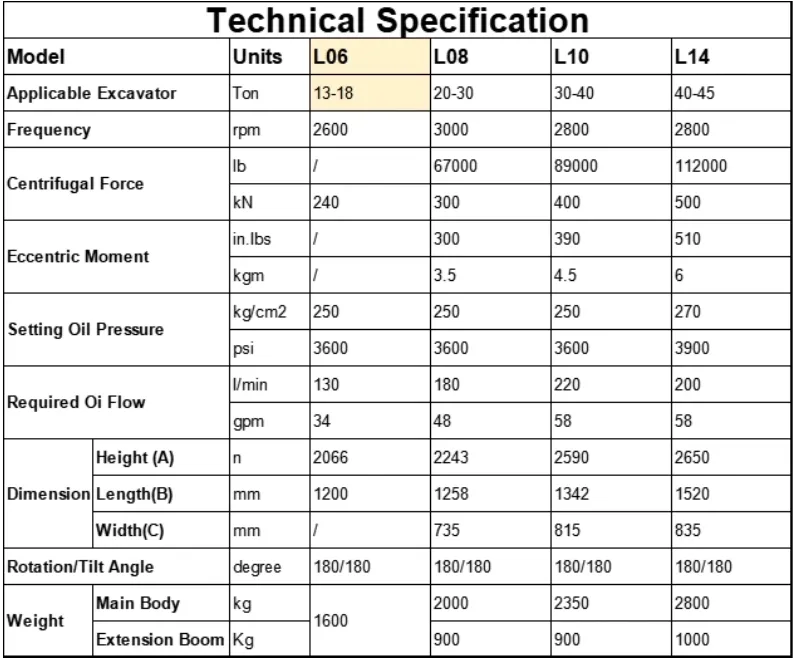

Parameter Chart 1

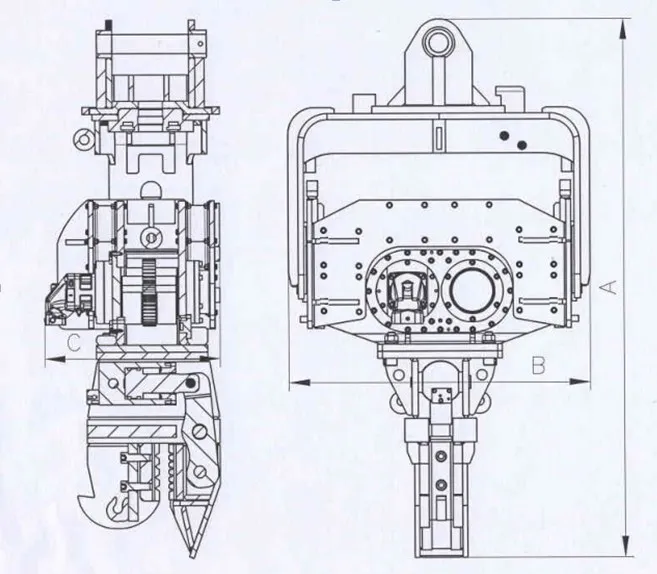

Parameter Chart 2

⭐

Main Features & Applications

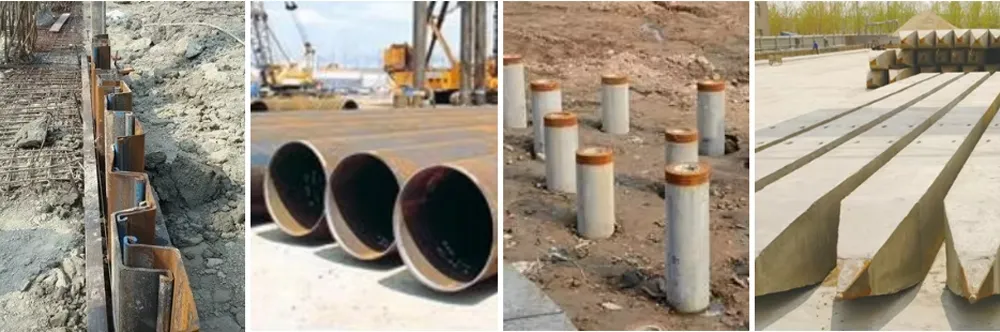

Ideally suited for versatile projects including:

✔ H-Beam Driving

✔ PVC Vinyl Sheet Piles

✔ Highway Barriers

✔ Solar Farm Profile Projects

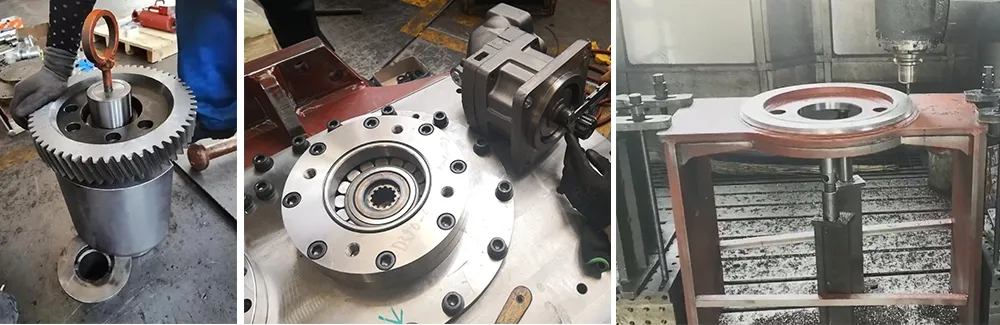

Feature Overview

Design Superiority

🔹 Special Design: Enlarged vibration block and specialized gear technology.

🔹 Precision Machining: 100% inspection qualified processing.

🔹 Quality Accessories: Equipped with high-quality hydraulic motors and bearings.

📷

Detailed Product Photos

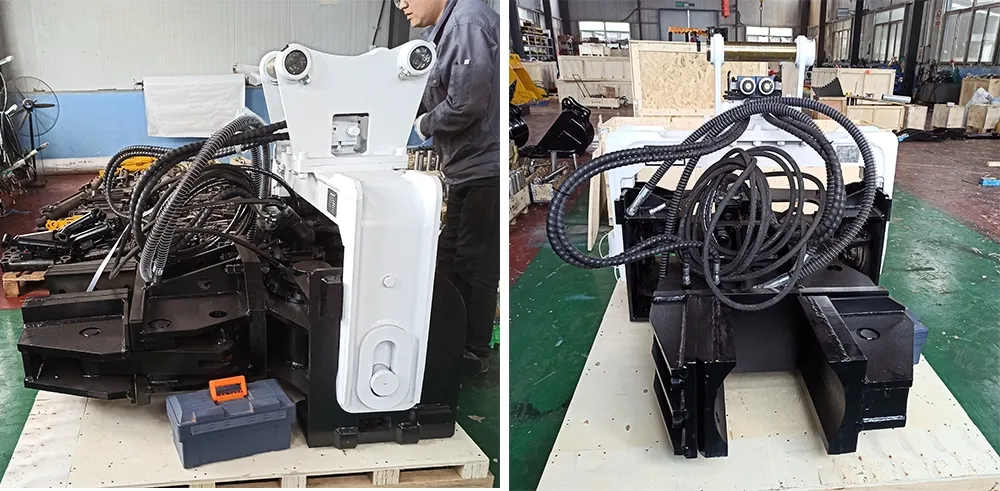

L06 Model (14-19 Ton)

L08 Model (20-30 Ton)

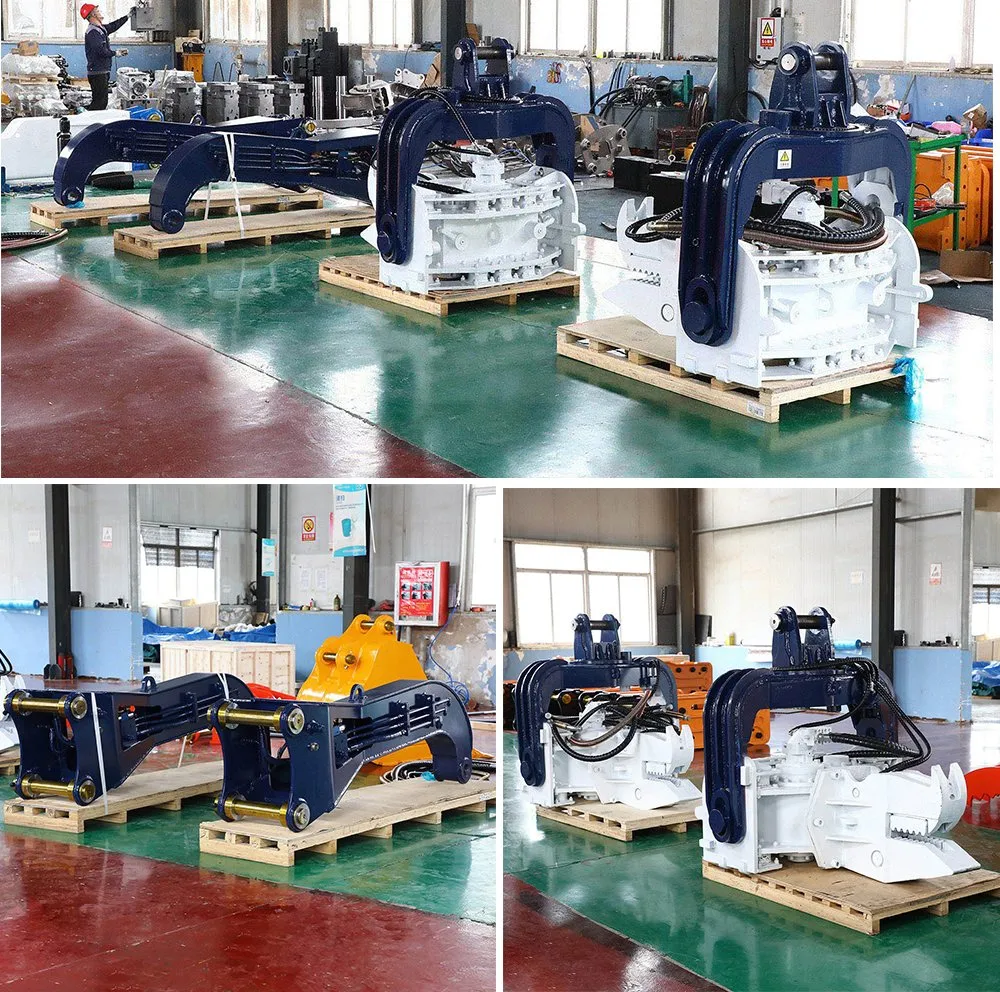

L08 Detail 1

L08 Detail 2

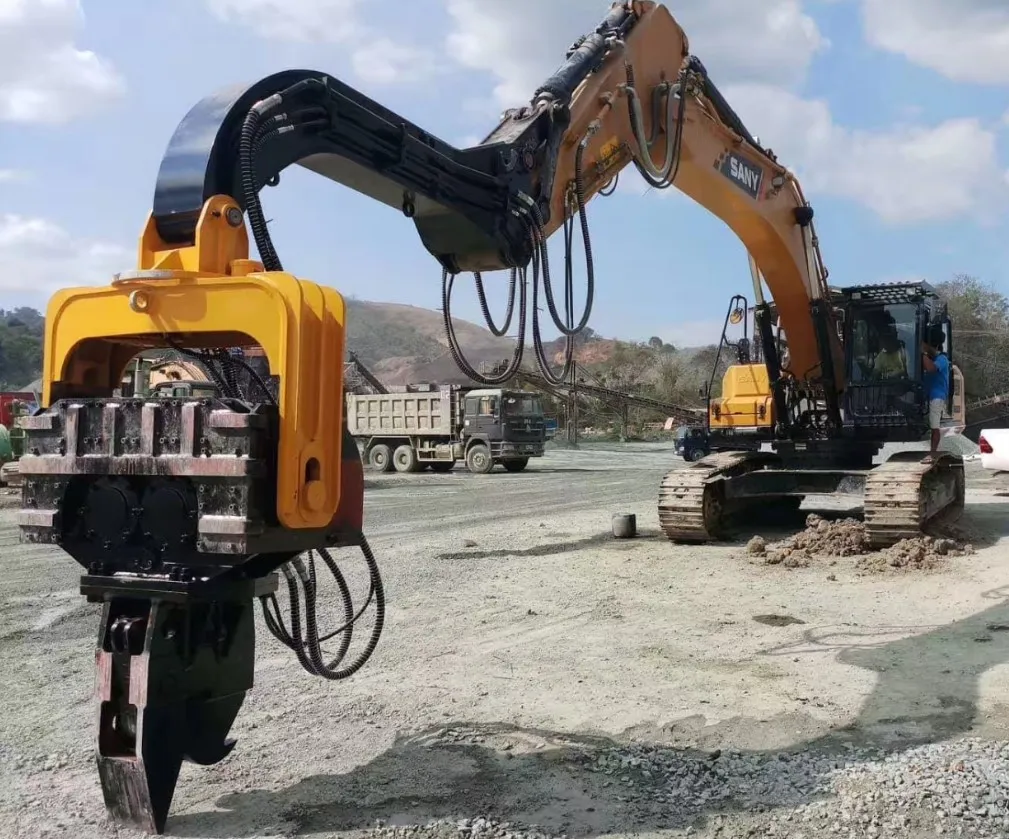

L08 Detail 3

Simplified Installation

Worried about complexity? Our hydraulic pile driver arm uses only 2 hydraulic oil pipes, making the installation process extremely easy and fast.

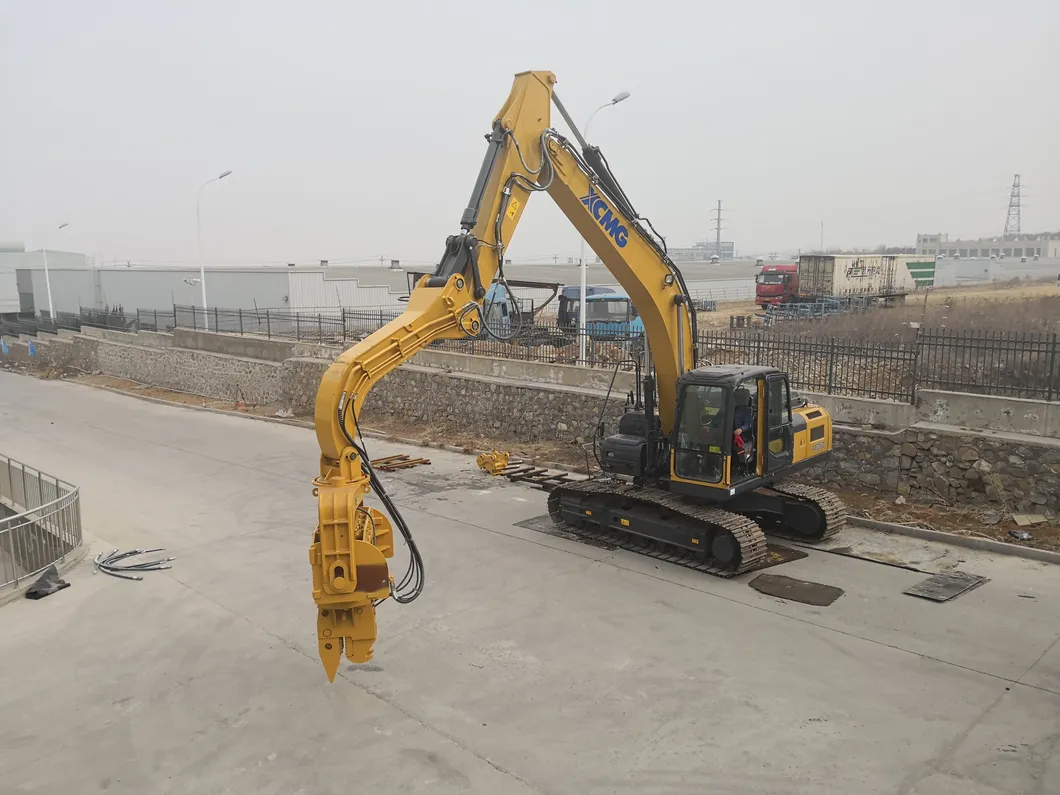

Installation 1

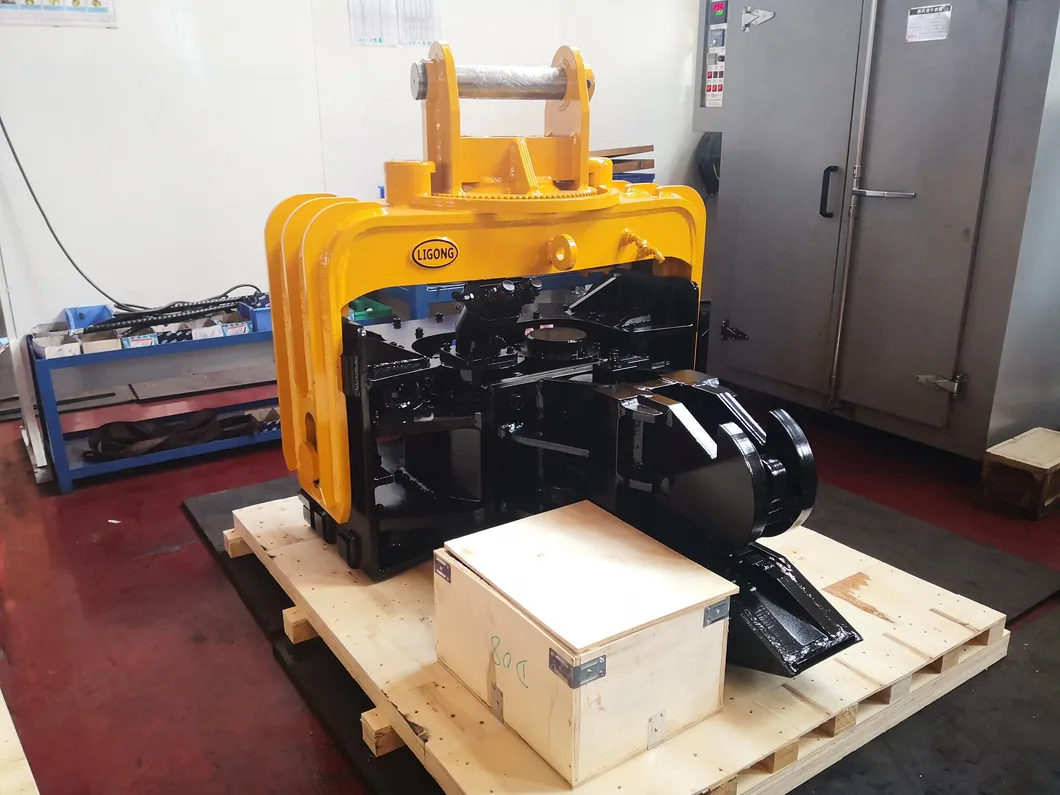

Installation 2

📦

Packaging & Shipping

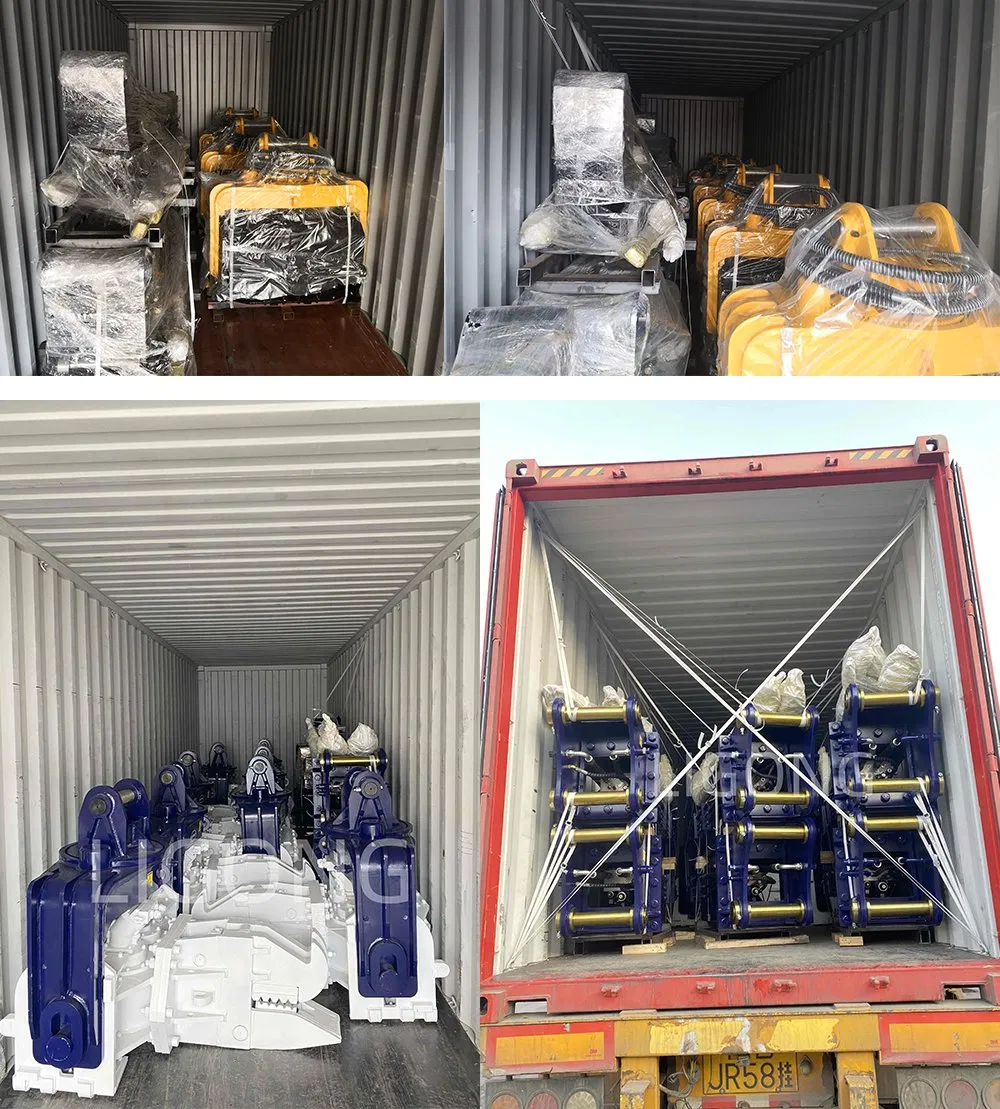

Shipping Packaging

🔗

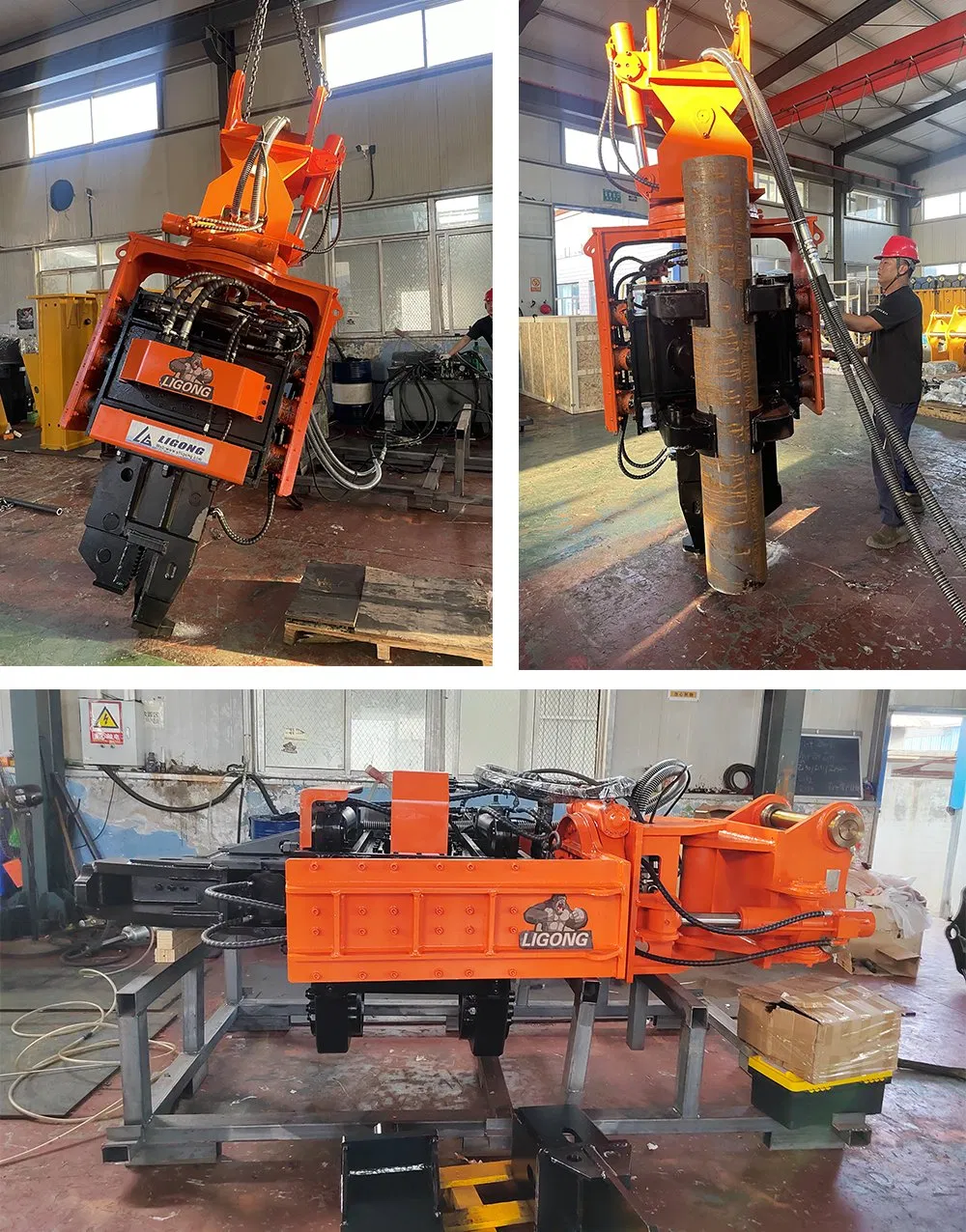

Related Products: Side Grip Vibro Hammer

Side Grip Vibro Hammer

Model	Unit	L08	L10	L14
Excavator	Ton	20-30	30-40	40-50
Weight	kg	2900	3250	3800
Volume	CBM	5	6	7

❓

Frequently Asked Questions

Which excavator models are compatible with the L08 pile driver?

The L08 model is specifically designed for excavators ranging from 20 to 30 tons.

How many oil pipes are required for installation?

Our design is simplified for efficiency, requiring only 2 hydraulic oil pipes for a complete installation.

What types of piles can this machine handle?

It is highly effective for H-Beams, PVC Vinyl sheet piles, and steel profiles used in solar farms and highway barriers.

What is the standard piling speed?

Under standard conditions, the machine achieves a piling speed of approximately 7 to 10 meters per minute.

Does the machine support pile extraction?

Yes, by using the lifting force of the excavator combined with the high-frequency vibration, it can efficiently pull out piles.

What certifications does the product hold?

Our pile drivers are fully certified with CE and ISO9001:2000 standards, ensuring international quality compliance.
