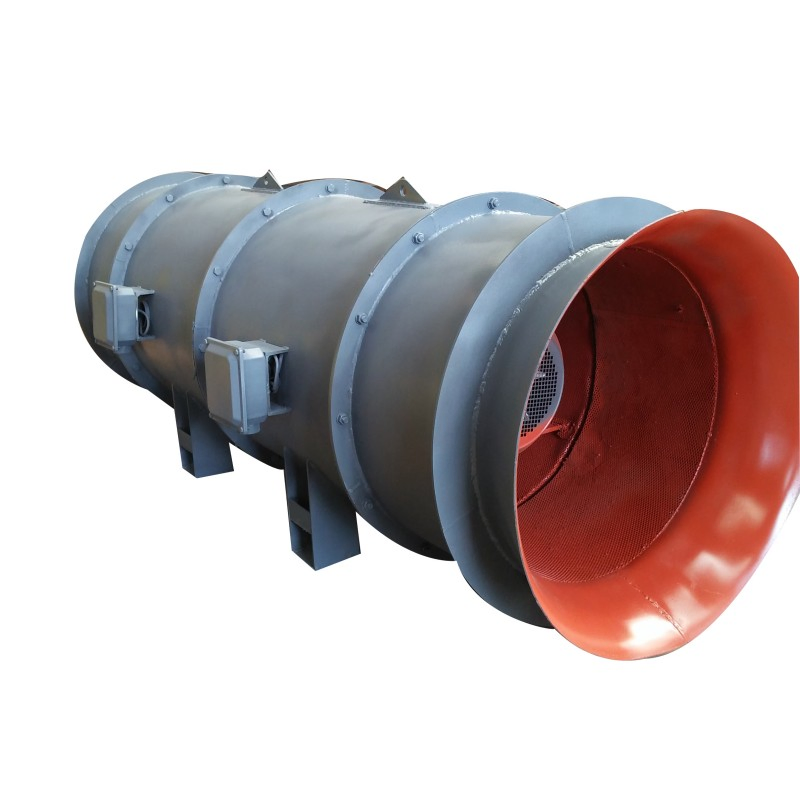

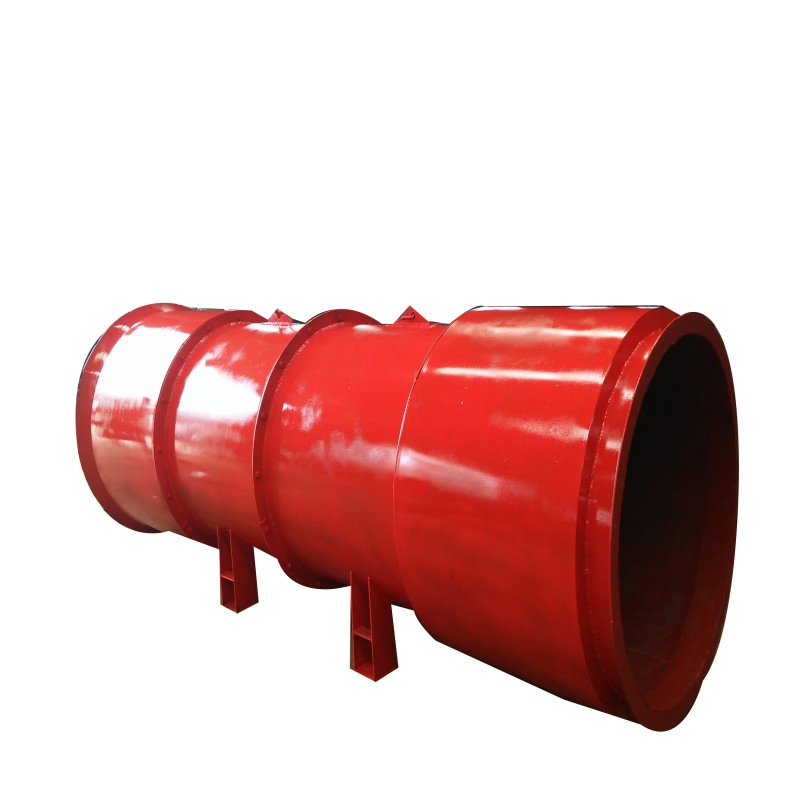

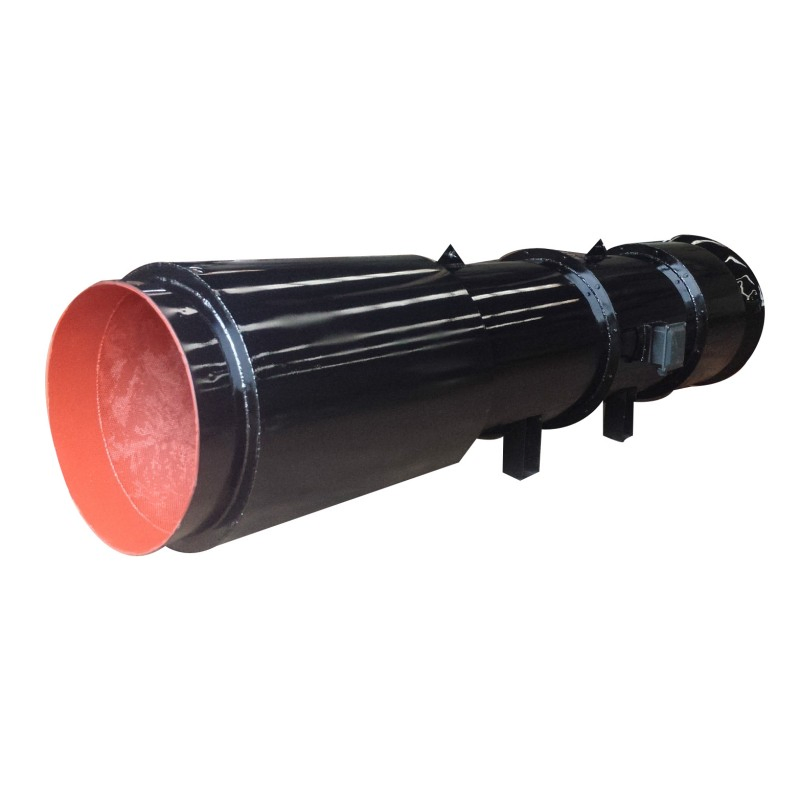

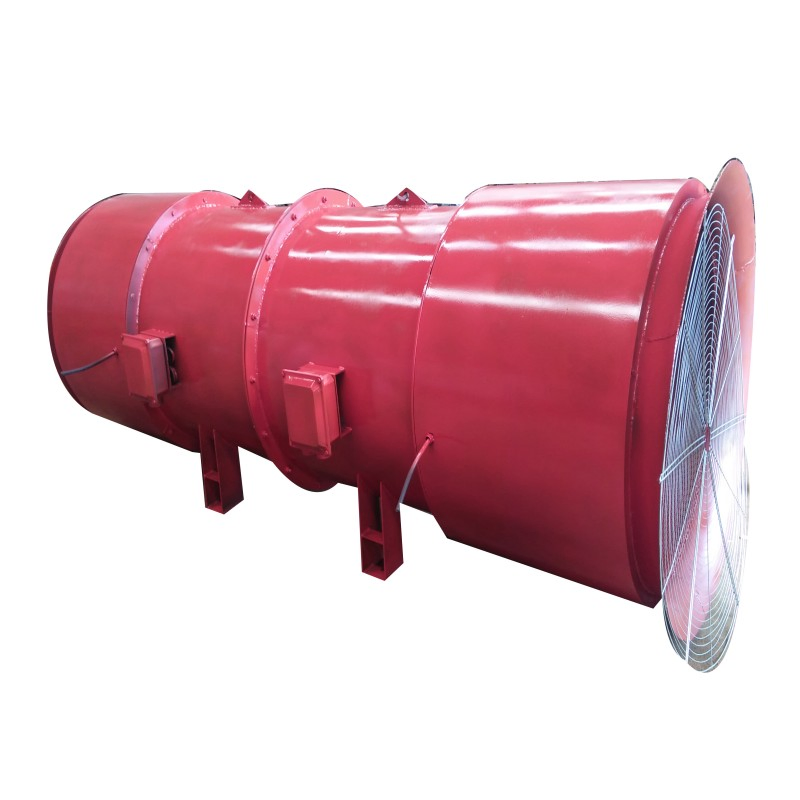

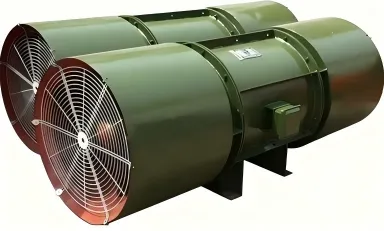

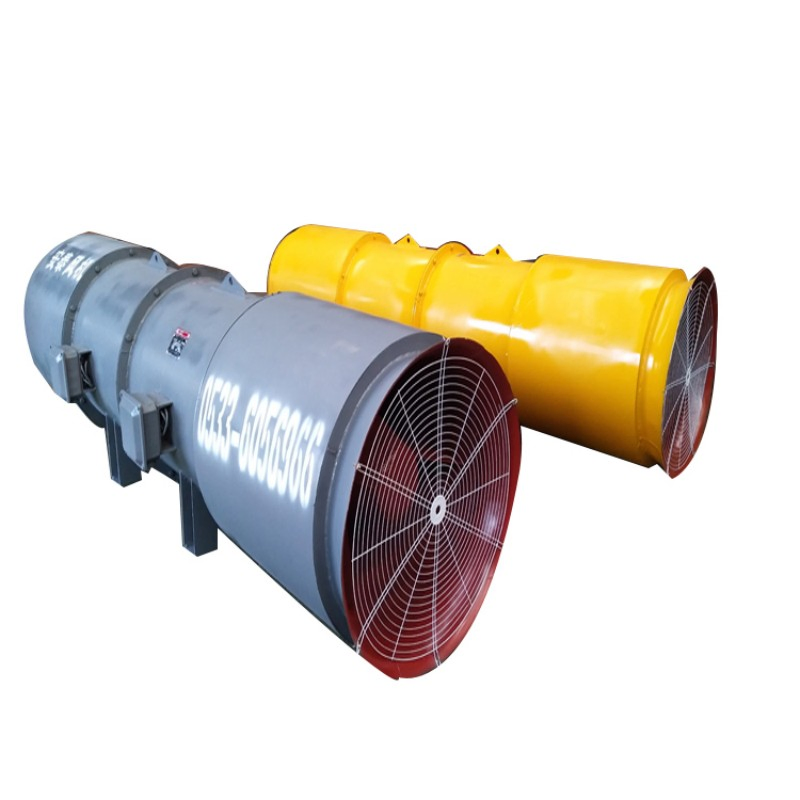

Advanced Shipping Technology: Long Range Jet Fan Solutions

Customization:	Available
Material:	Iron
Usage:	for Manufacture

📋 Basic Information

Model NO.SDF

Flow DirectionAxial Flow

PressureHigh Pressure

CertificationISO, CCC

TrademarkShen Gu

TransportationShipping

PackageWooden Case

Weight Specification500kg

Capacity100

📦 Packaging & Delivery

Package Size200.00cm * 100.00cm * 100.00cm

Gross Weight1000.000kg

🚀 Product Description

High-Performance Hydraulic Excavator & Jet Fan Systems

Our solution offers durability, efficiency, and versatility for construction, mining, and earthmoving. Designed with advanced technology and robust materials, it ensures superior digging force, smooth operation, and fuel efficiency. Ideal for heavy-duty use, it excels in diverse terrains and conditions.

🔹 Highway & Urban Tunnels

One-way/two-way highway tunnels, tunnel clusters, and entrance/exit sections. Ductless design saves space; bidirectional ventilation switches between daily ventilation and fire smoke exhaust (280°C/60 mins).

🔹 Railway & Subway Tunnels

High-speed railway tunnels and subway passages. Compact for hanging installation, low noise, and rapid ventilation for moisture reduction and heat/dust removal.

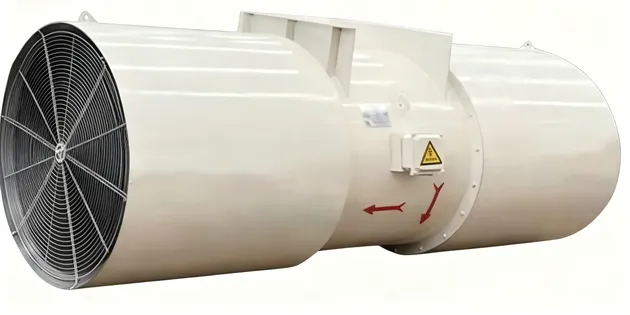

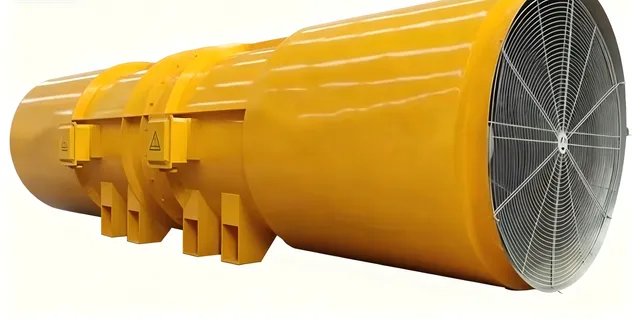

⚙️ Key Features & Advantages

✔ High thrust: Single unit up to 2500N

✔ Long range: Outlet speeds 4.2~50m/s

✔ Space saving: Ductless ceiling/wall mount

✔ Energy saving: Direct drive minimizes losses

✔ Heat resistant: Runs 60 mins at 280°C

✔ Intelligent: Auto-adjust speed/power

📊 Technical Parameters (SDF Series)

Fan Model	Air Volume (m³/min)	Wind Pressure (Pa)	Speed (r/min)	Peak Power (kW)
SDF(A)-2-No4.0	90-140	275-1450	2900	2.2x2
SDF(A)-2-No5.0	214-328	485-2695	2900	5.5x2
SDF(A)-2-No5.6	250-385	540-2900	2900	11x2
SDF(A)-2-No6.0	310-480	1350-4600	2900	15x2
SDF(A)-2-No6.3	450-725	1500-5000	2900	18.5x2
SDF(A)-2-No6.5	500-800	1600-5400	2900	22x2
