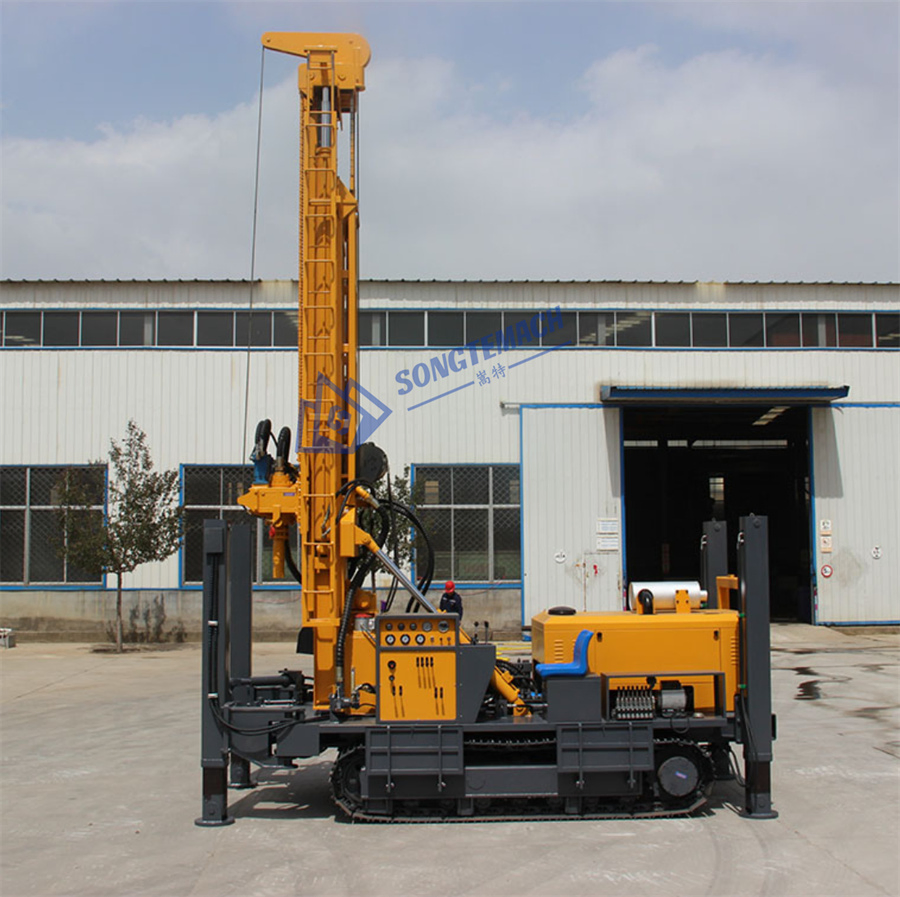

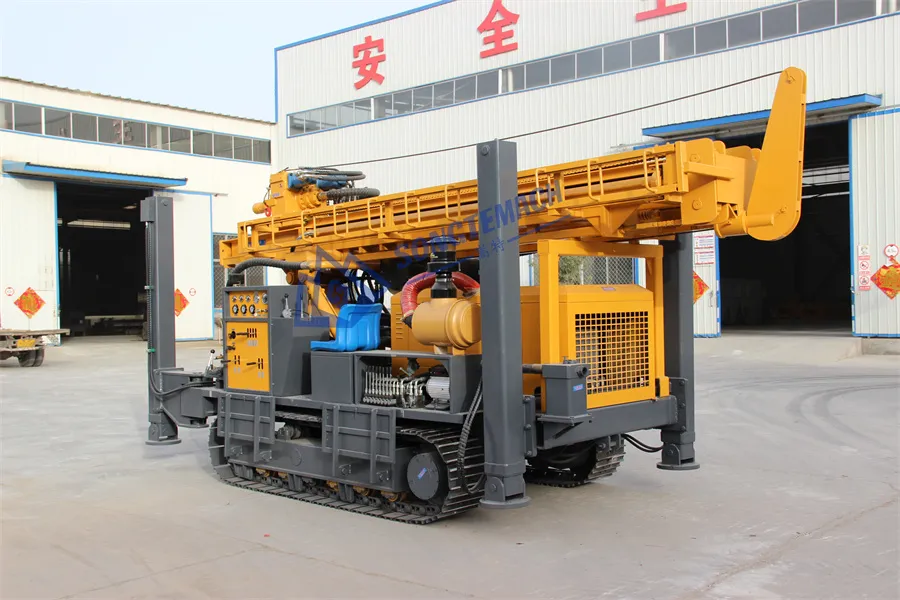

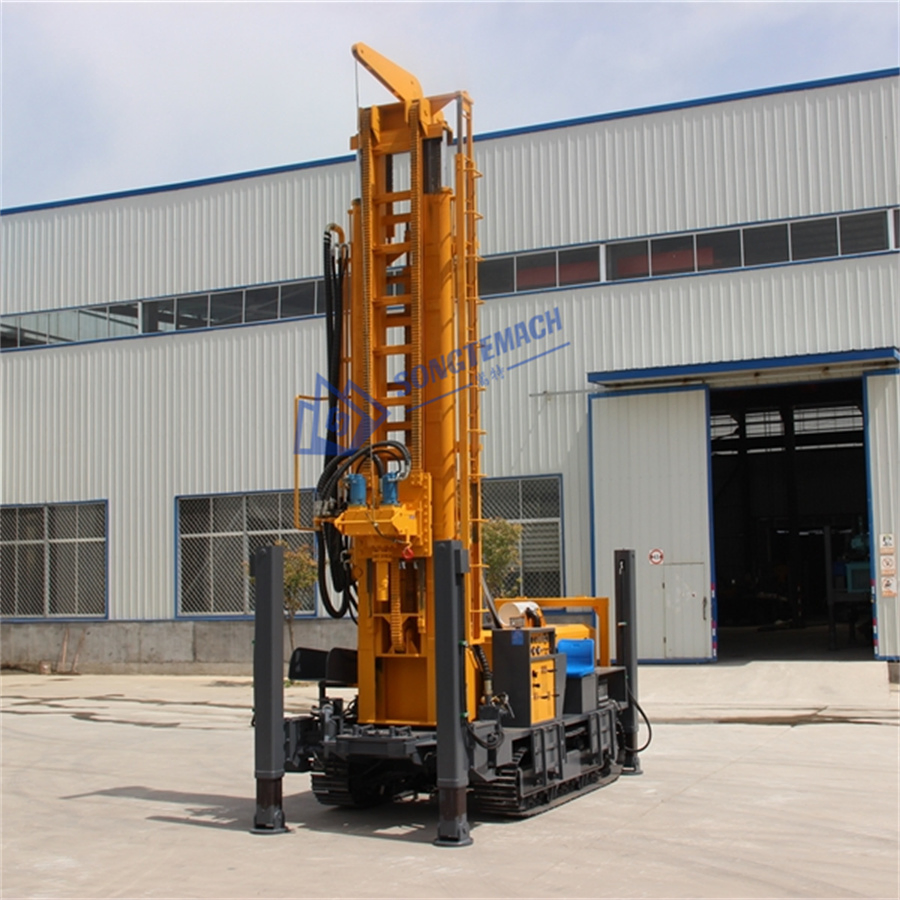

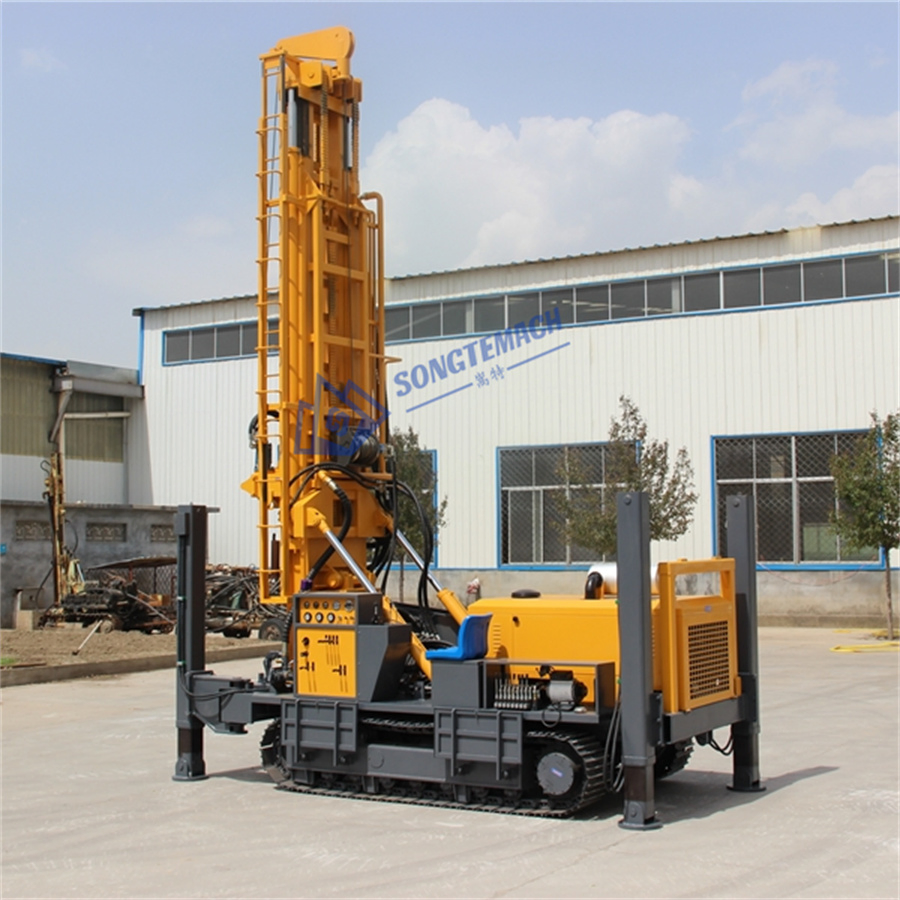

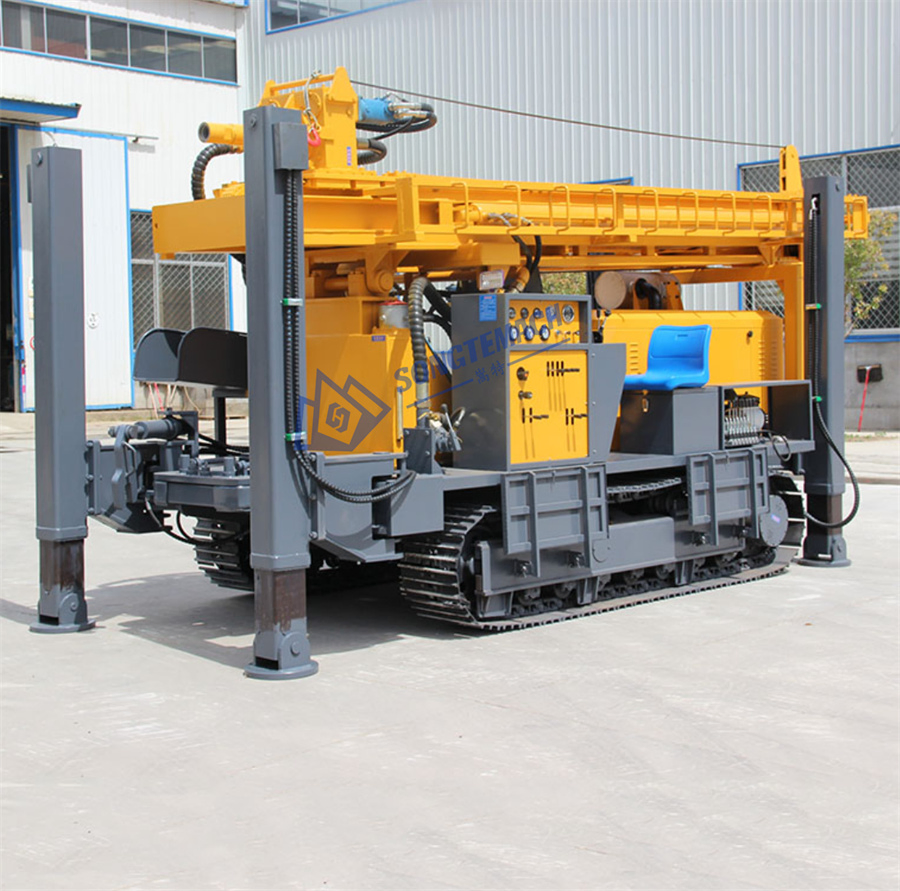

SW-580C Multi-purpose Hydraulic Water Borehole Well Drilling Machine

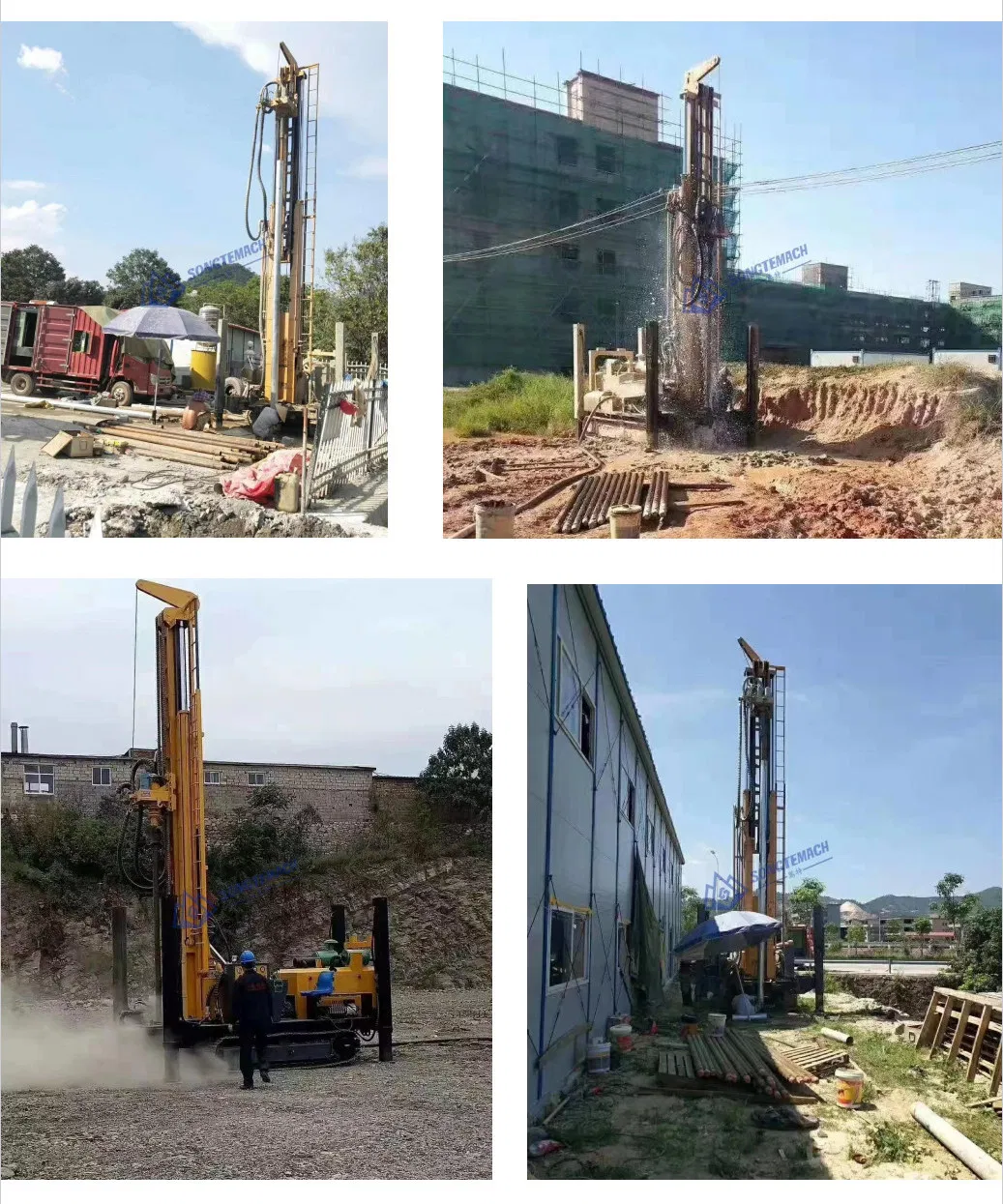

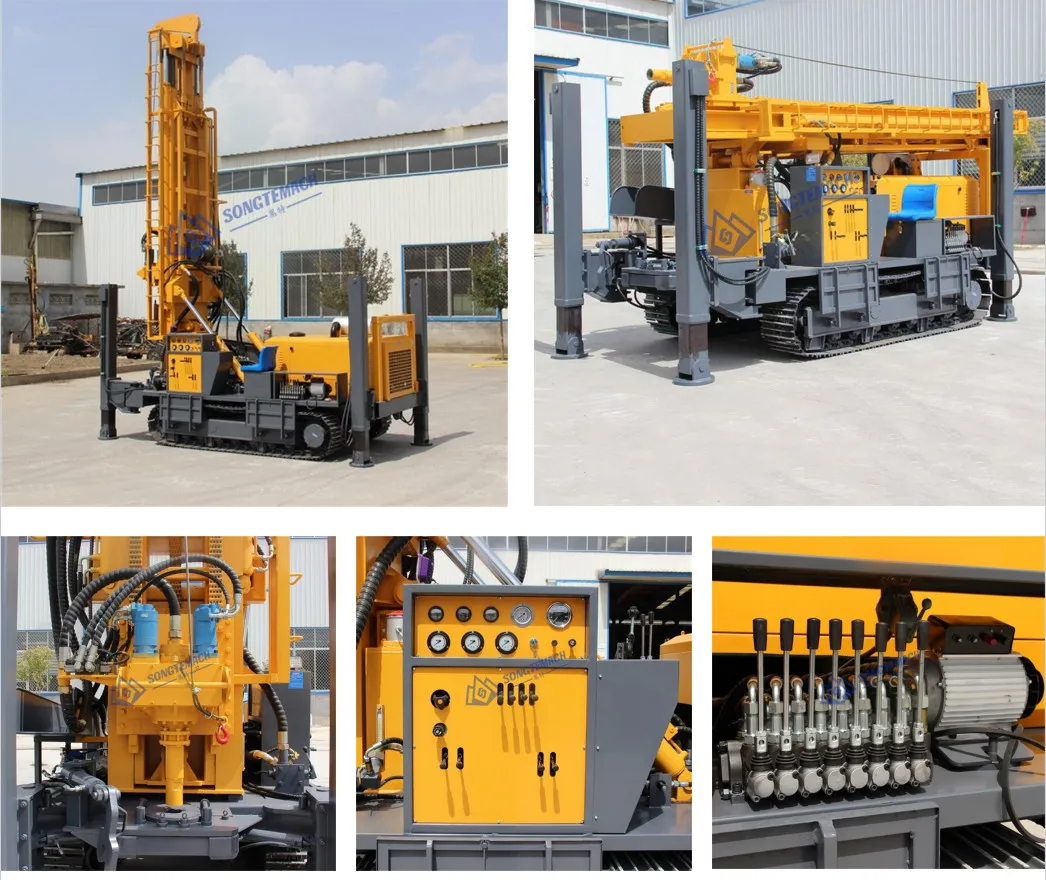

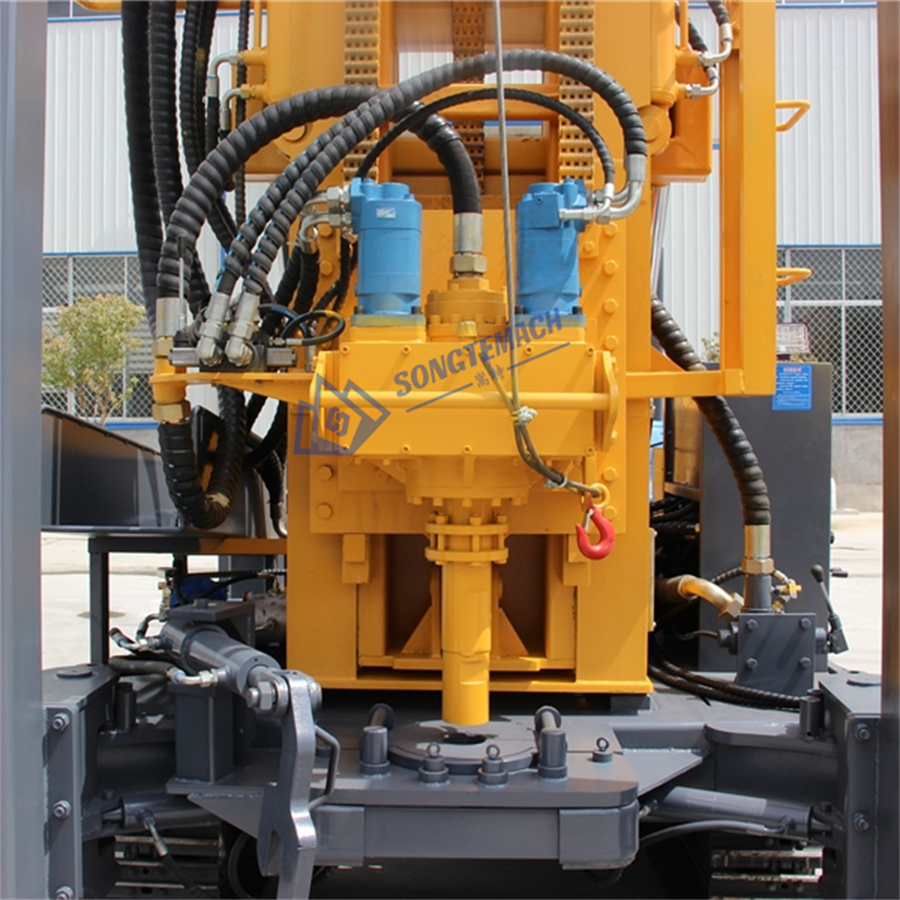

The SW-580C crawler type water well drilling rig features top head driving, capable of both mud pump drilling and air compressor drilling. Adopting advanced hydraulic technology, it offers low consumption, large rotary torque, and convenient hole deflection. It is primarily used for resource exploration, hydrology wells, civil water wells, and agriculture irrigation projects.
| Parameter | Specification |
|---|---|
| Drilling depth (m) | 580 |
| Drilling diameter (mm) | 140-350 |
| Drill rod diameter (mm) | Φ89 Φ102 Φ114 |
| Rig lifting capacity (t) | 28 |
| Winch lifting capacity (t) | 2 |
| One-time advance length (m) | 6.6 |
| Rapid rise speed (m/min) | 20 |
| Rotating speed (rpm) | 45-140 |
| Rotating torque (N.m) | 8500-11000 |
| Rig engine power (KW) | 132 |
| Engine brand | Cummins |
| Dimension (mm) | 6200*2200*2650 |
| Total Weight (T) | 12 |
Detailed preliminary planning, equipment selection, and customized technical support to meet specific project needs.
Strict inspection protocols with a dedicated QC department ensuring every machine operates perfectly before dispatch.
One-year quality warranty and lifelong technical guidance, including online training and troubleshooting support.
Our company is a leading machinery manufacturer and international trading enterprise, integrating R&D, manufacturing, and technical services for high-quality drilling equipment. Our diverse product range includes water well rigs, rotary piling machines, solar pile drivers, and DTH rigs.

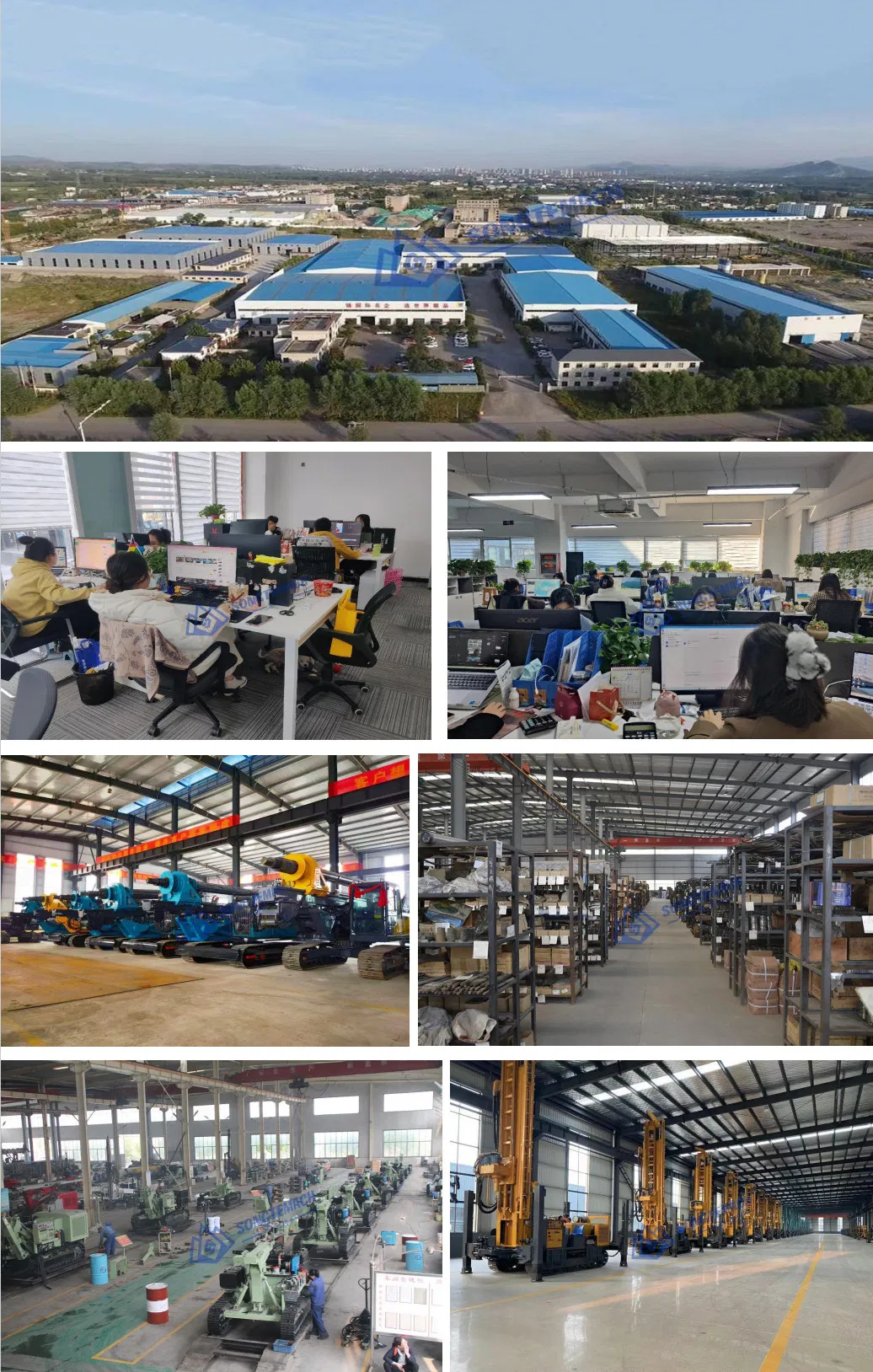

With a full suite of high-precision machining and testing equipment, we export to over 50 countries including the United States, Australia, Brazil, South Africa, and Southeast Asia, earning a global reputation for excellence and reliability.
