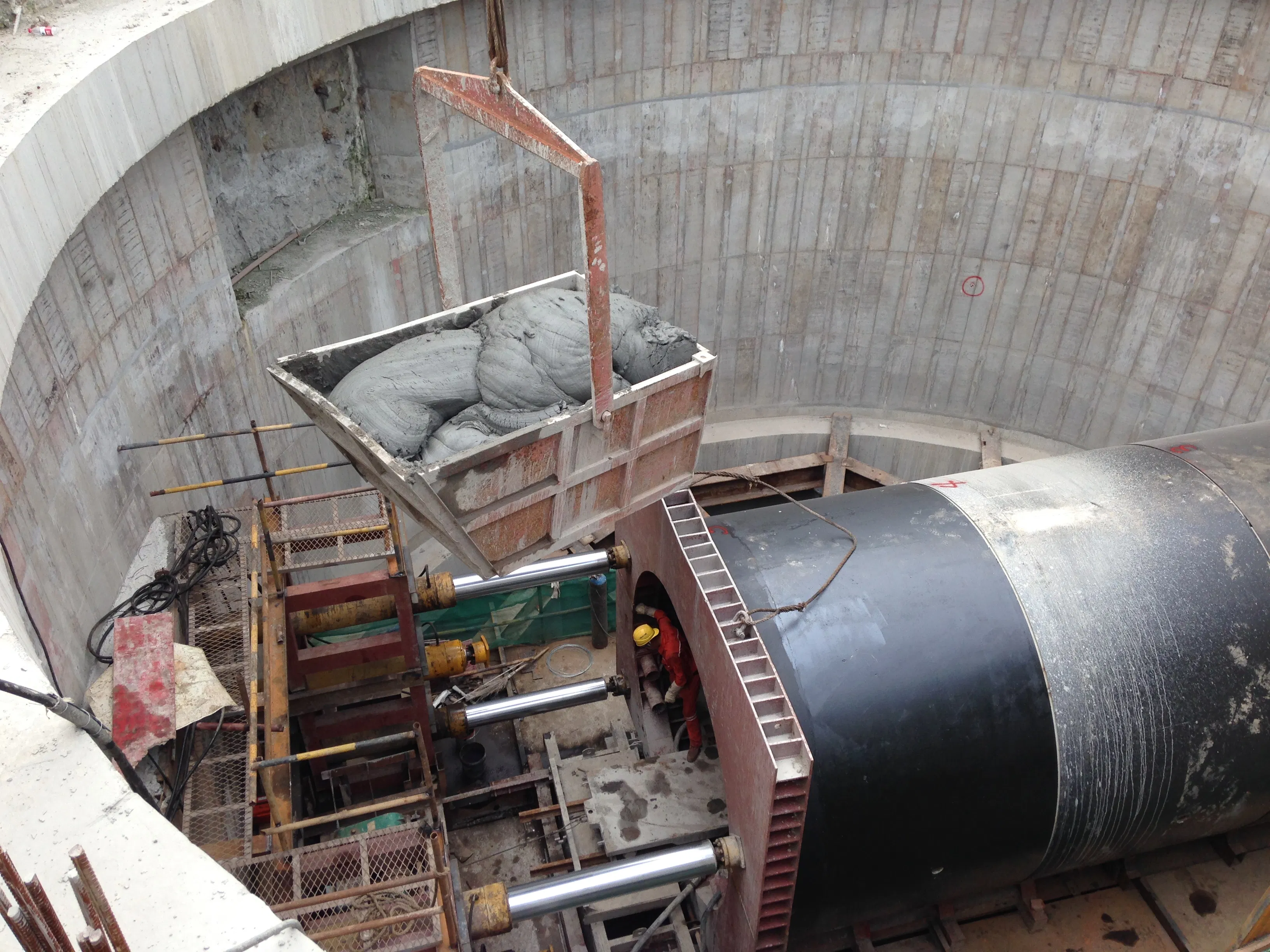

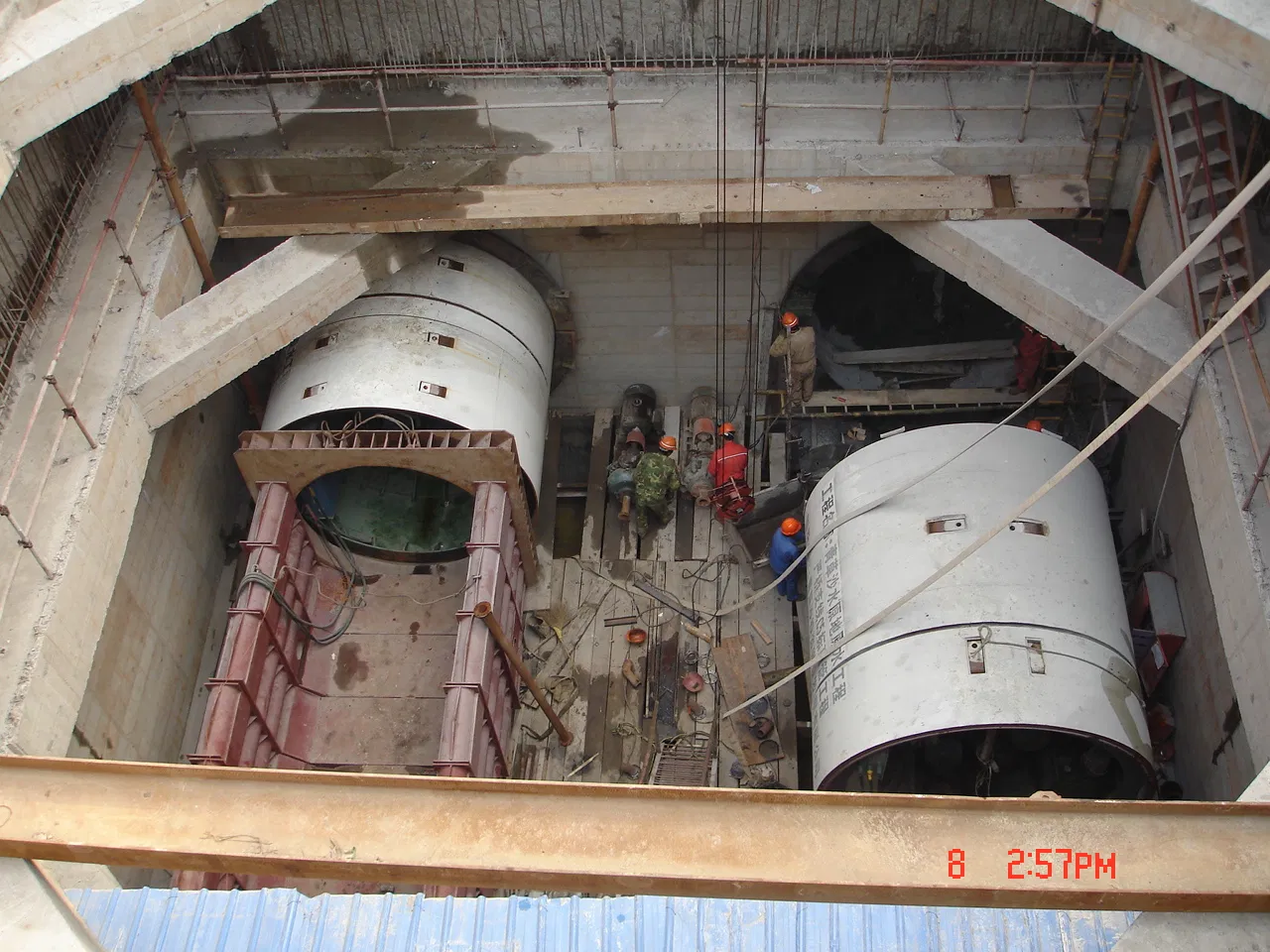

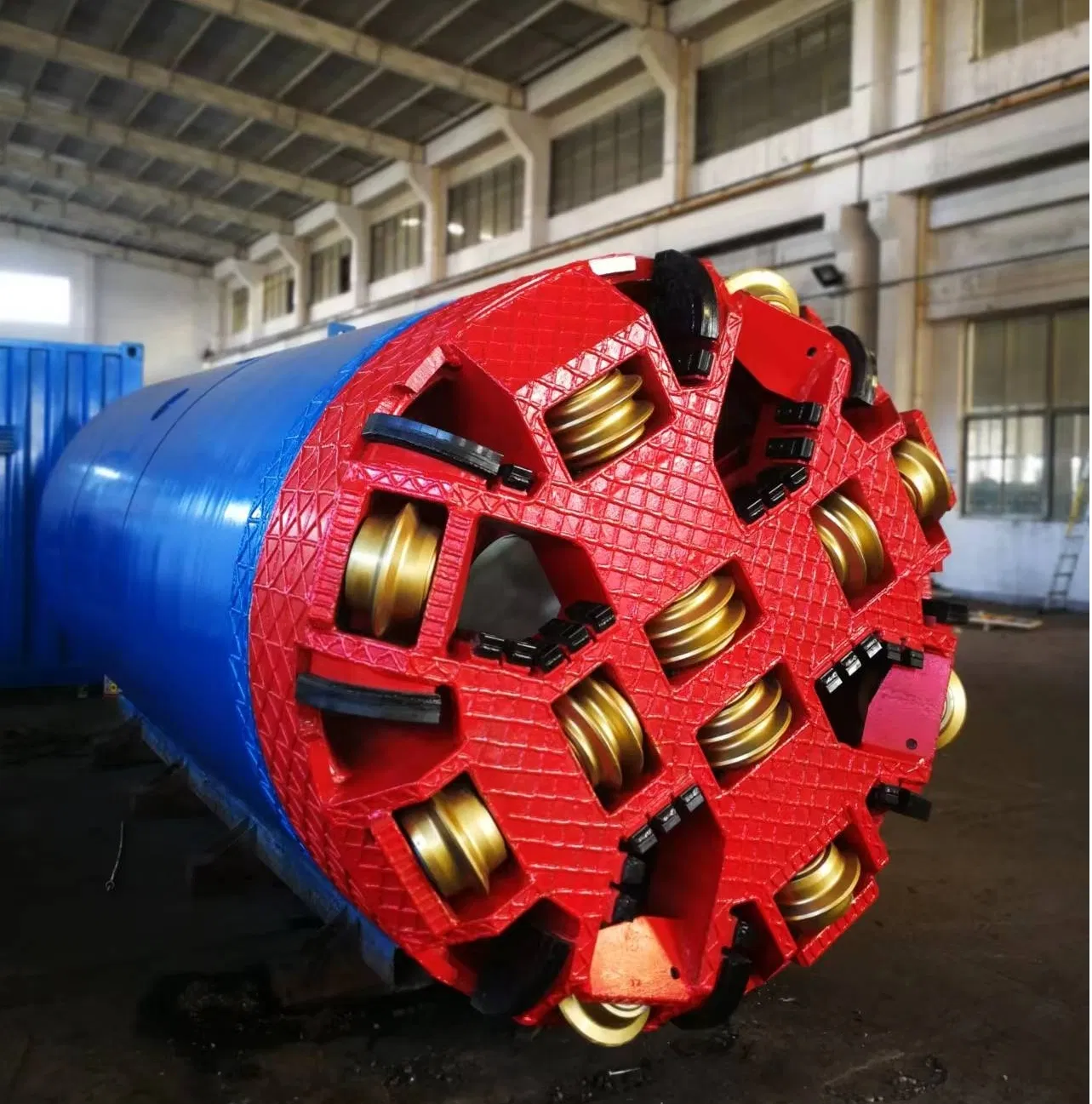

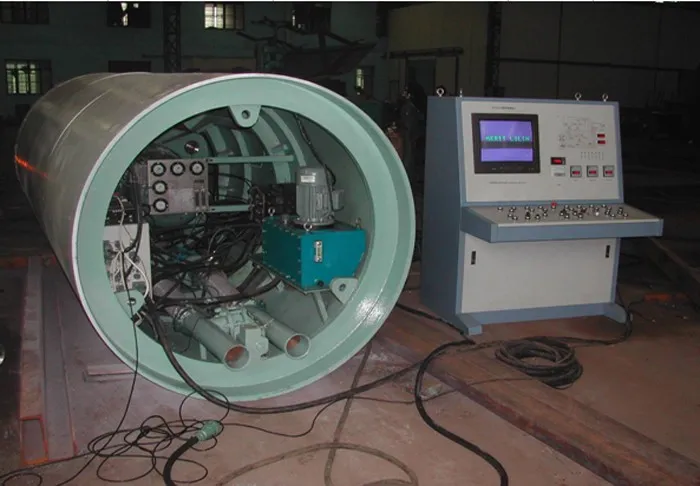

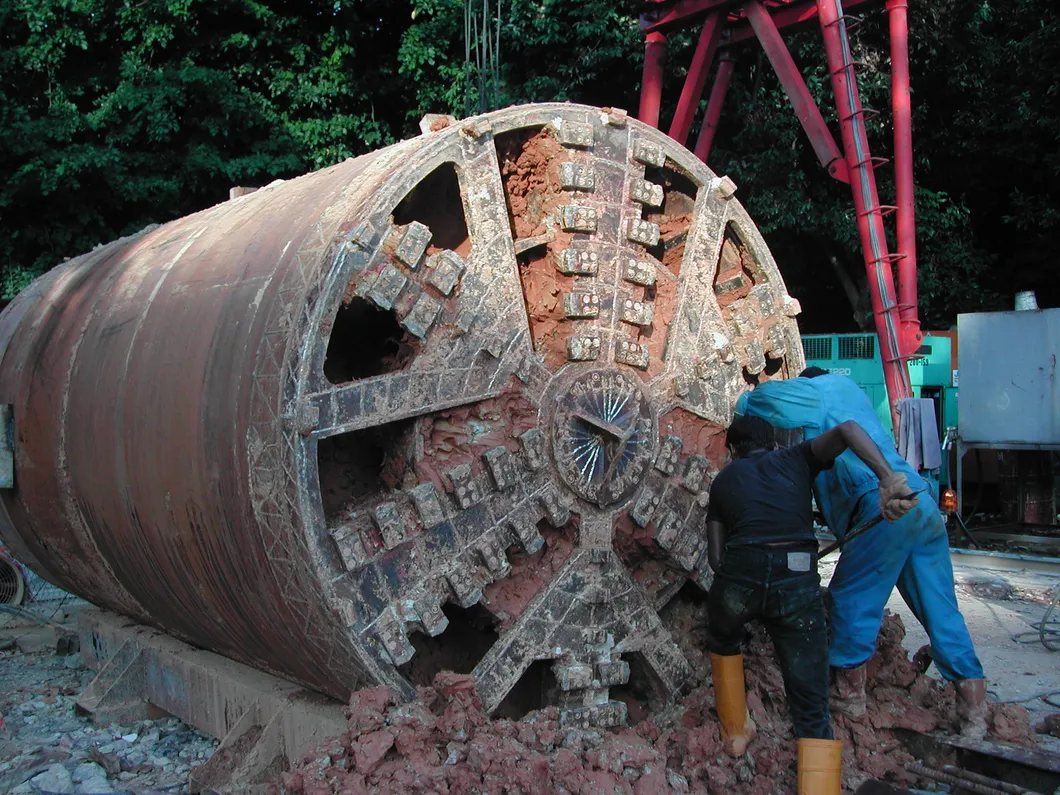

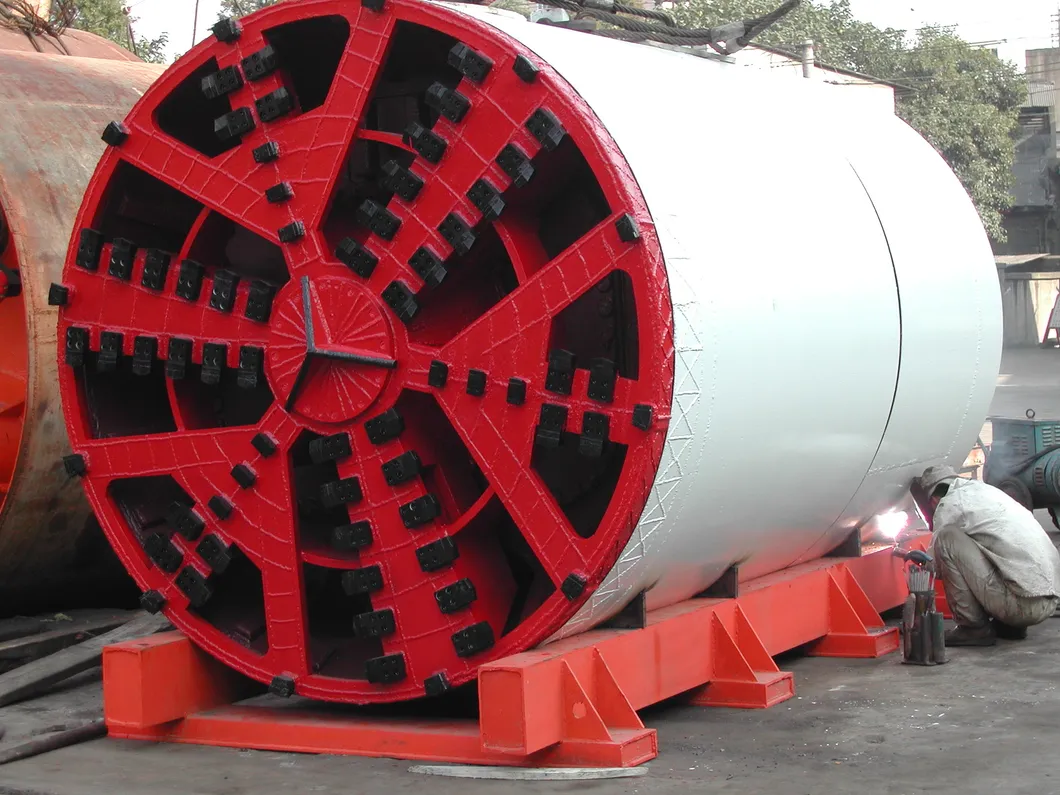

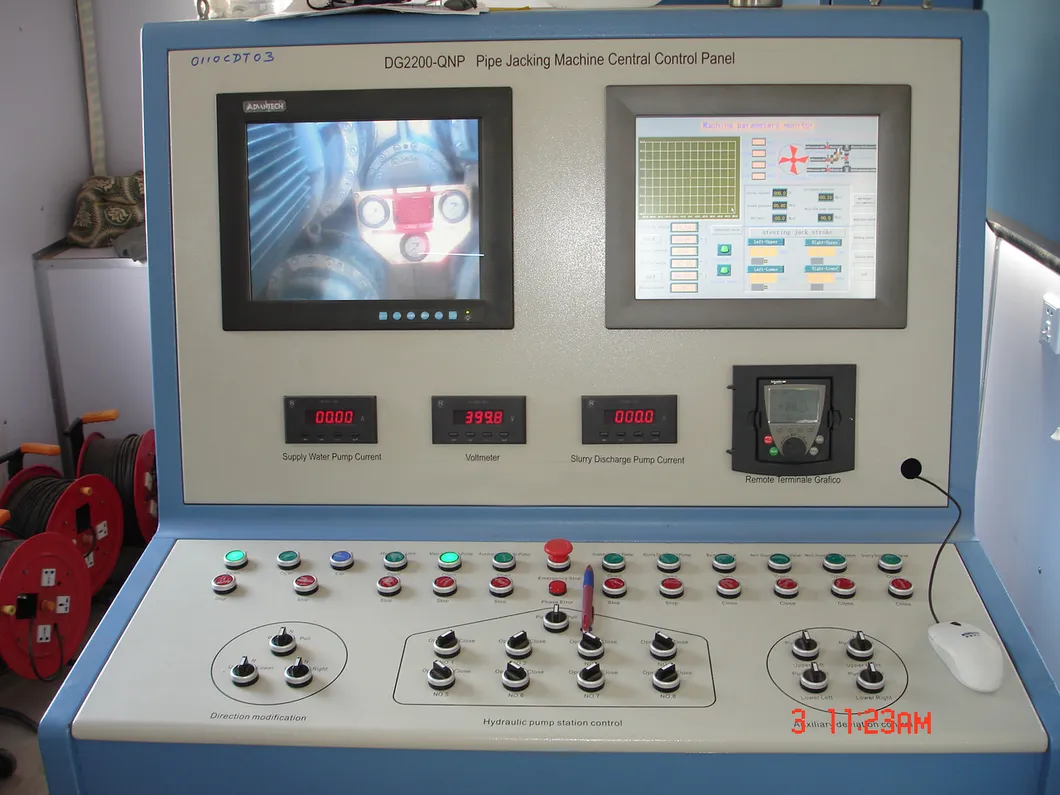

The Remote-Controlled Slurry Balance Pipe-Jacking Machine represents a leap forward in non-digging technologies. This innovative machinery seamlessly integrates various advanced systems, including machinery units, a sophisticated hydraulic system, an electric controller with PLC, an accurate Laser guidance system, and precise measuring devices. It ensures minimal disruption to above-ground traffic, promoting environmental sustainability and reducing construction costs.

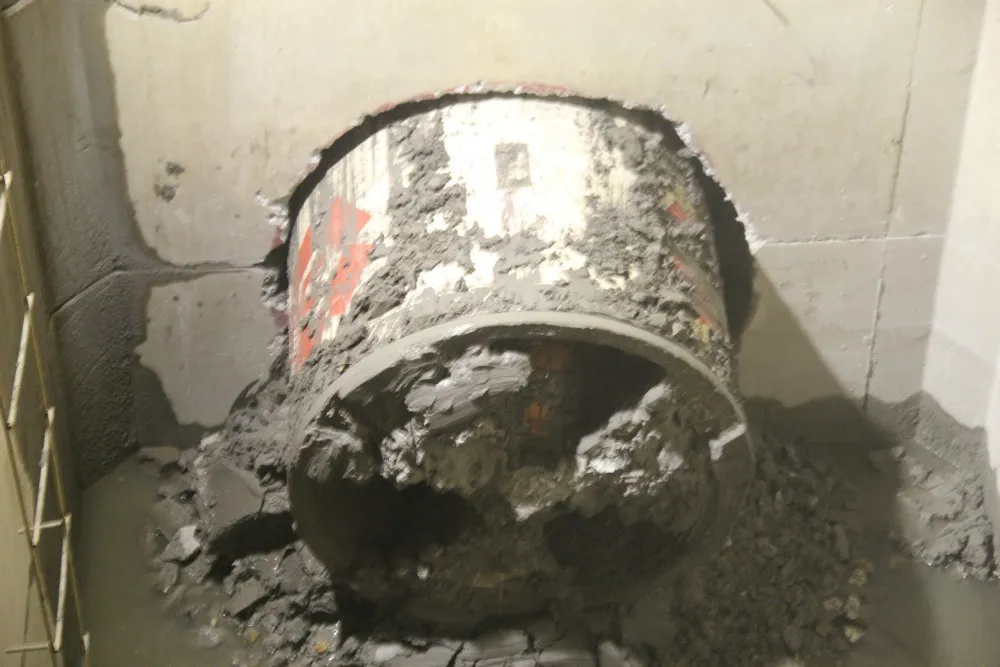

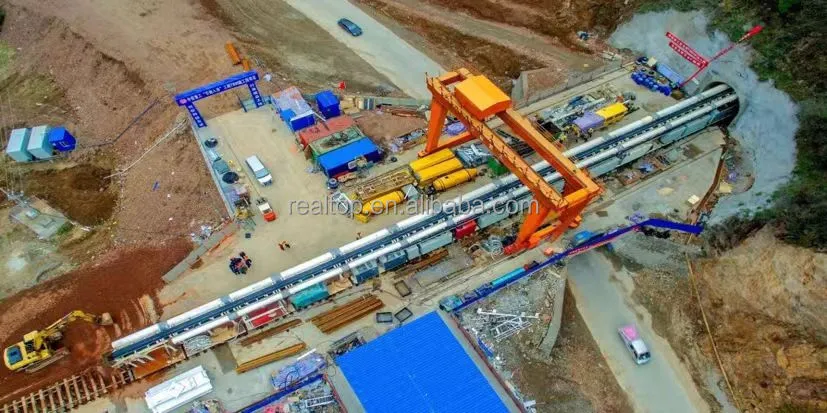

Ideal for trenchless underground pipe-laying projects, including sewage systems, water supply lines, discharge projects, cable installations, and tunnels.

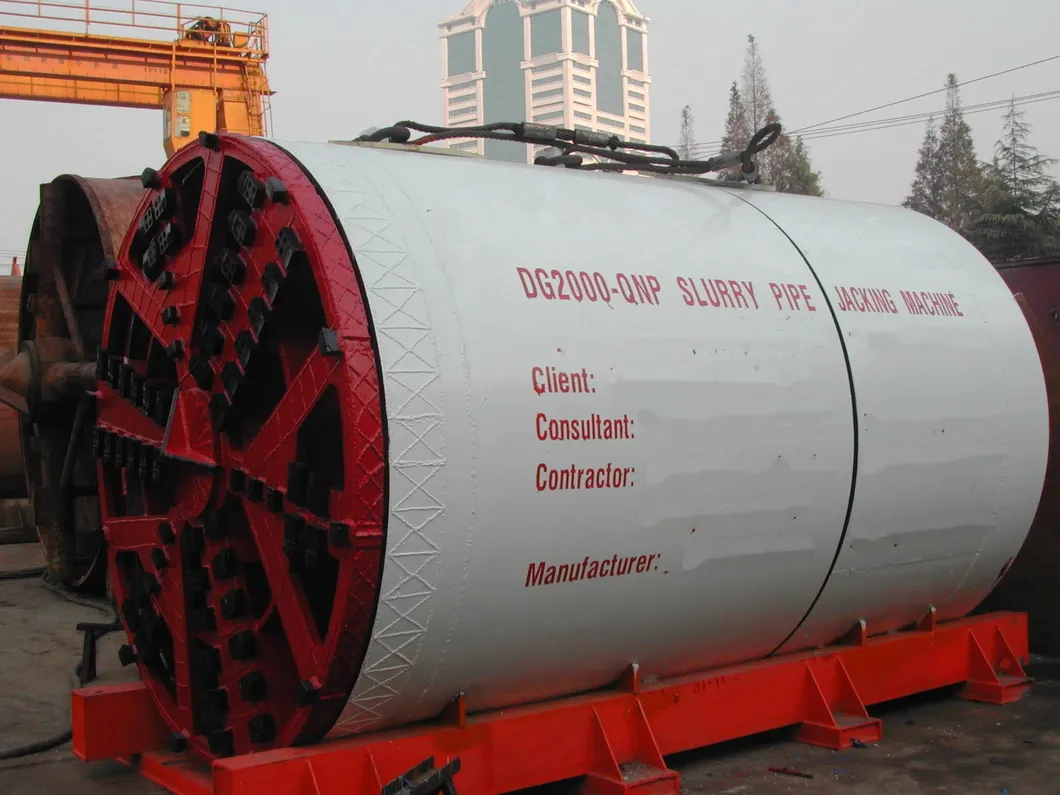

| Main Body Dimensions | Parameters | DGR2000-QNP |
|---|---|---|
| Inner Diameter | mm | 2000 |
| Outer Diameter | mm | 2470 |

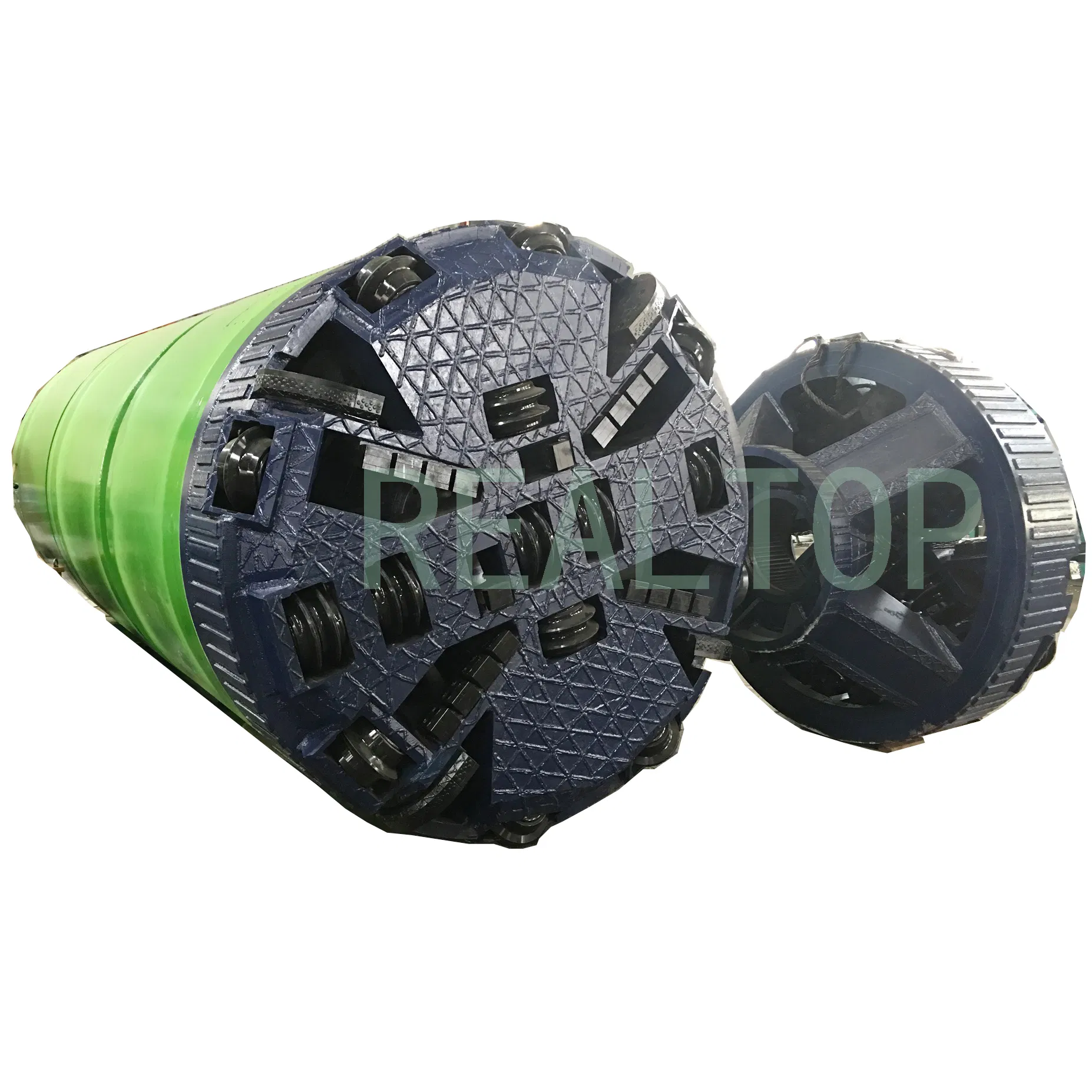

| Cutter Head Diameter | mm | 2520 |
| Total Length | mm | 6000 |
| Motor Power | kW | 55*5 |
| Cutterhead Torque | kN·m | 525 |
| Rotating Speed | r/min | 0-6 |
| Thrust Force | kN | 980 |
| Rectification Angle | ° | ±2 |
| Jacking Speed | mm/min | 0~80 |
| Shaft Size (L*W) | mm | 7,500*5,000 |
Strategically positioned in a global engineering machinery hub, our enterprise is at the forefront of high-tech innovation, specializing in sophisticated trenchless pipe jacking solutions. Since 2009, we have focused on global expansion, consistently providing premium equipment for major underground engineering projects. Our full-face TBM system sets benchmarks for geological adaptability, efficiency, and environmental cost-effectiveness.
We offer a diverse range of machines with diameters spanning Φ250mm to Φ4000mm, including slurry balance and earth pressure balance systems tailored for soil, sand, pebble, and rock conditions.
Benefit from comprehensive inquiry support, sample testing, and factory visits to witness precision manufacturing firsthand.

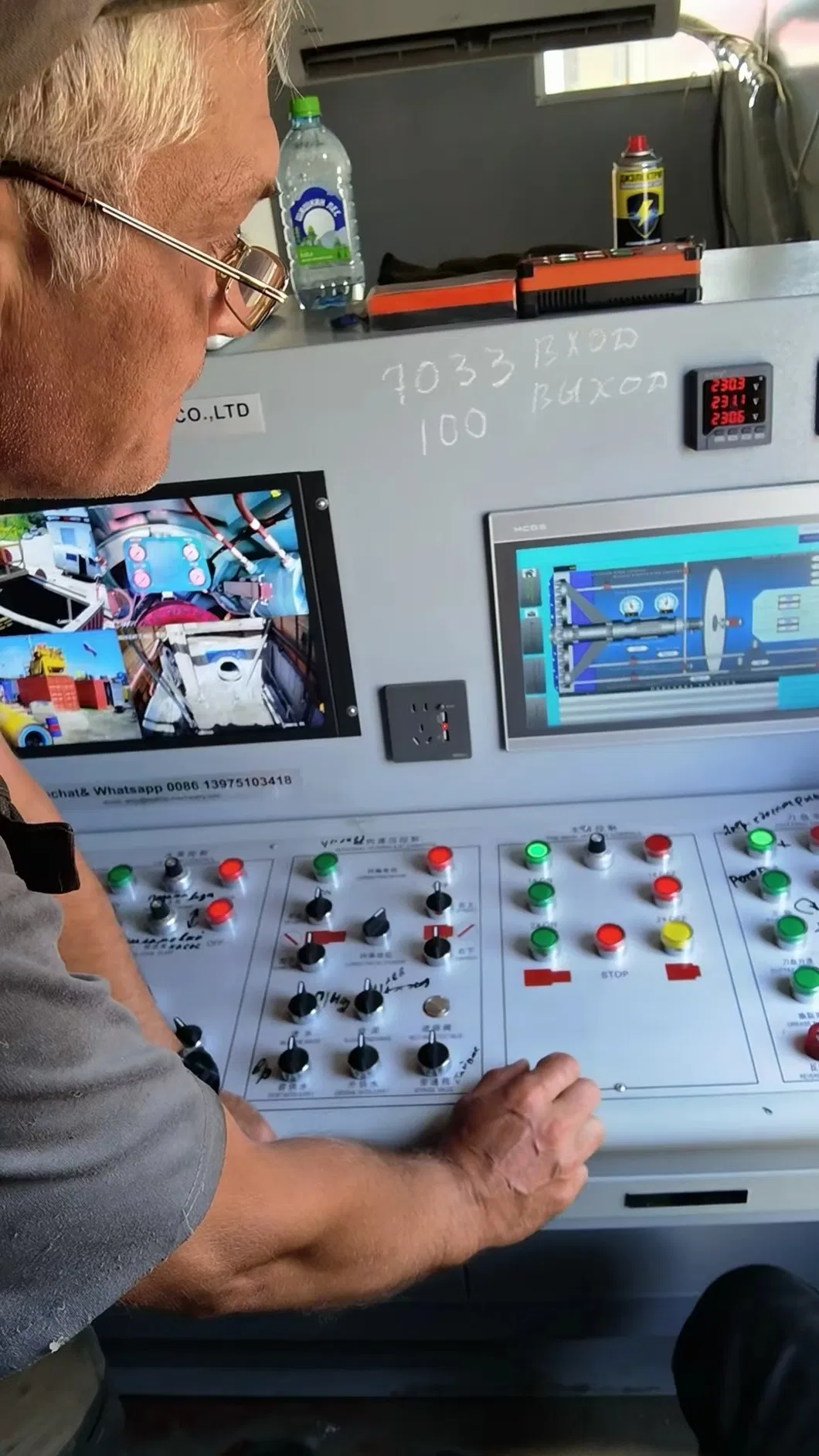

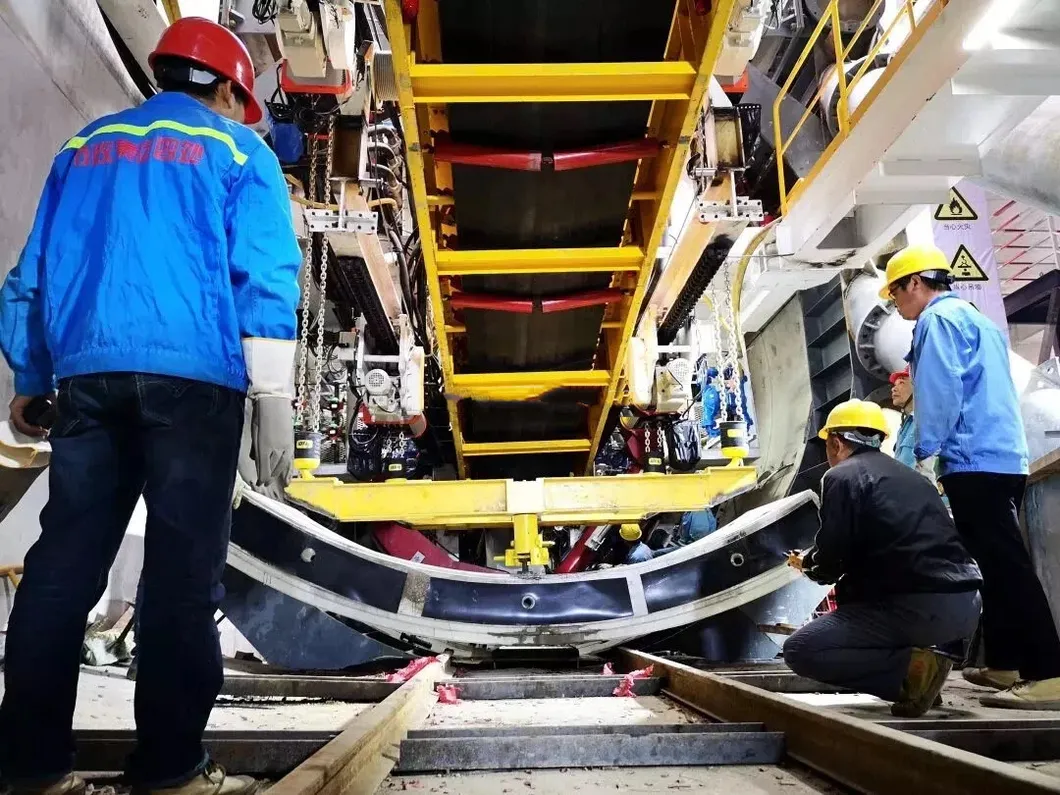

Skilled technicians assist at the project site, offering hands-on machine operation and operator training for the initial phase (100m - 200m) at no extra cost.
