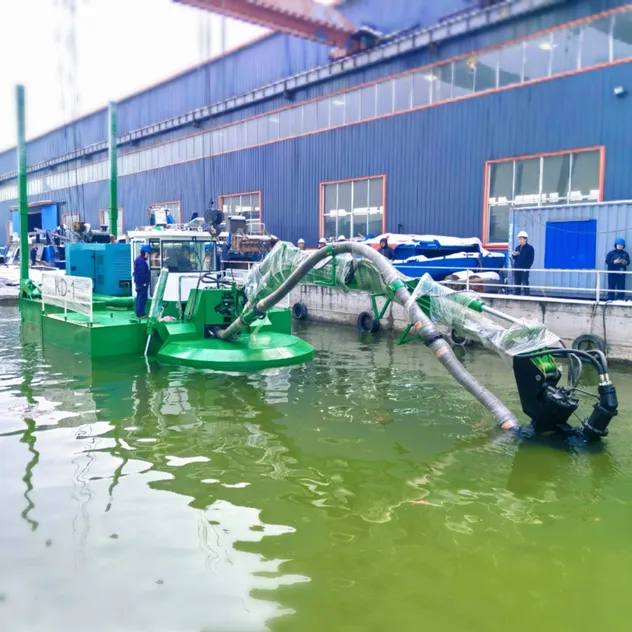

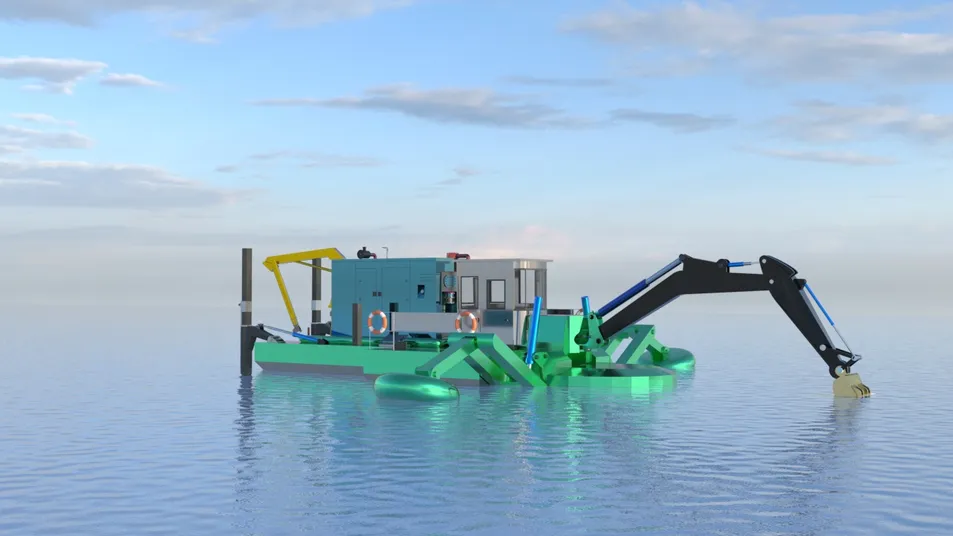

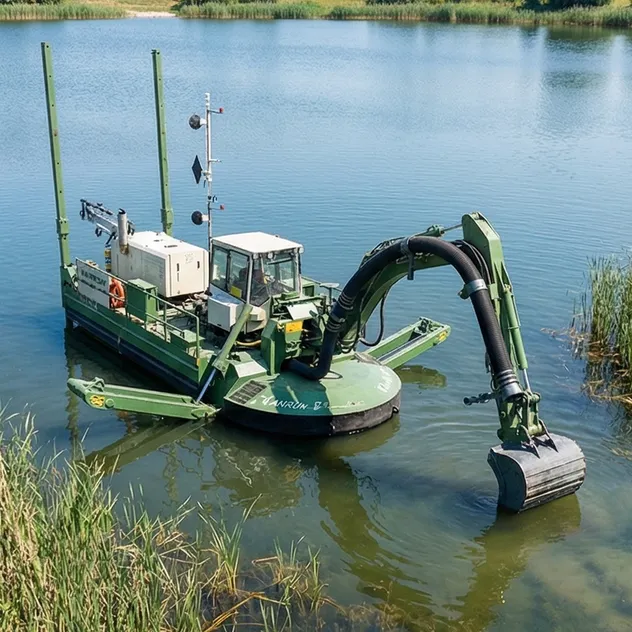

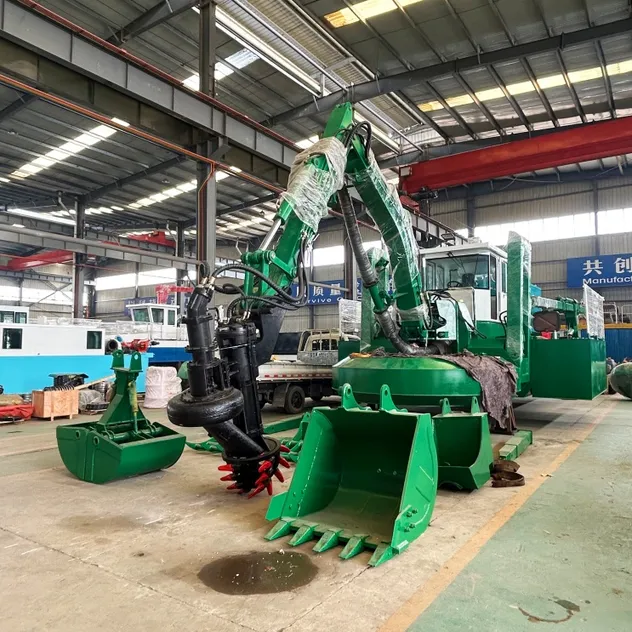

Engineered for versatility, this dredger excels in both land and water, unlike traditional equipment. It performs in confined, shallow, or sensitive areas where standard dredgers cannot operate.
| No. | Name | WR-400 | WR-900 |
|---|---|---|---|

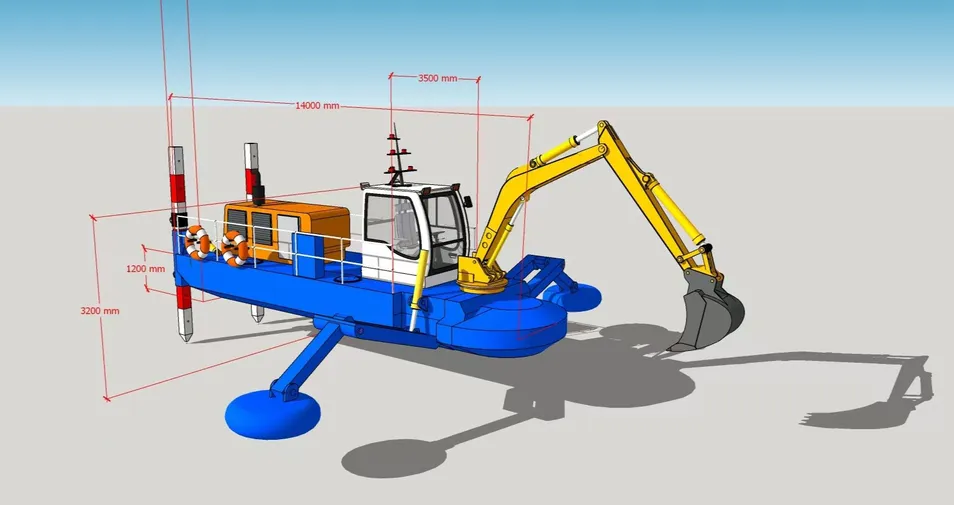

| 1 | Size(L*W*H) | 11*3.3*3.1m | 13*3.5*1.2m |
| 2 | Weight | 20T | 27T |
| 3 | Engine | Cummins Made In China | Cummins Made In China |
| 4 | Power | 194kw (260hp) | 335kw (456hp) |
| 5 | Fuel tank | 1100L | 1100L |
| 6 | Max. dredging depth | 6m | 7m |
| 7 | Water flow | 400m3/h | 900m3/h |

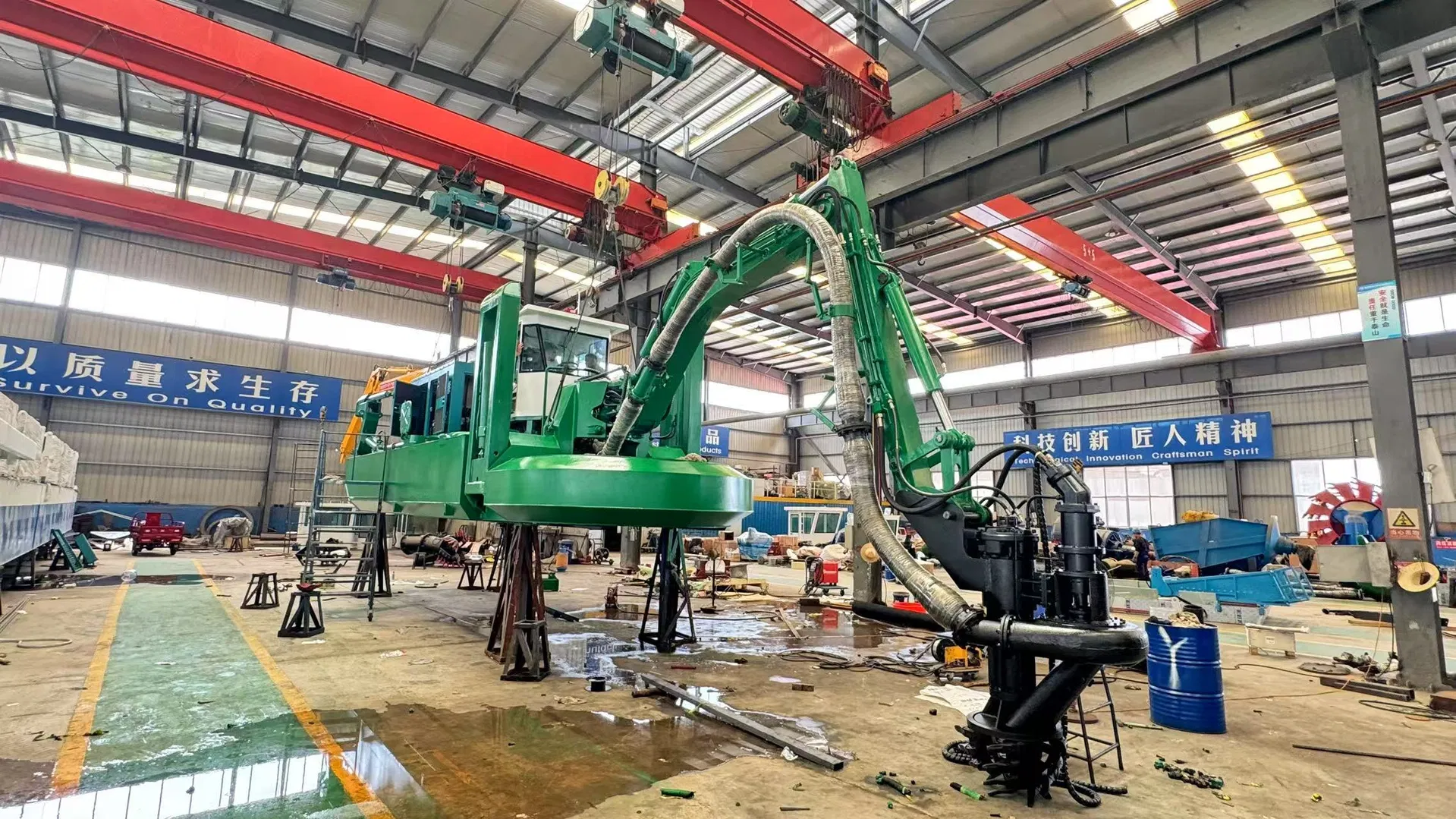

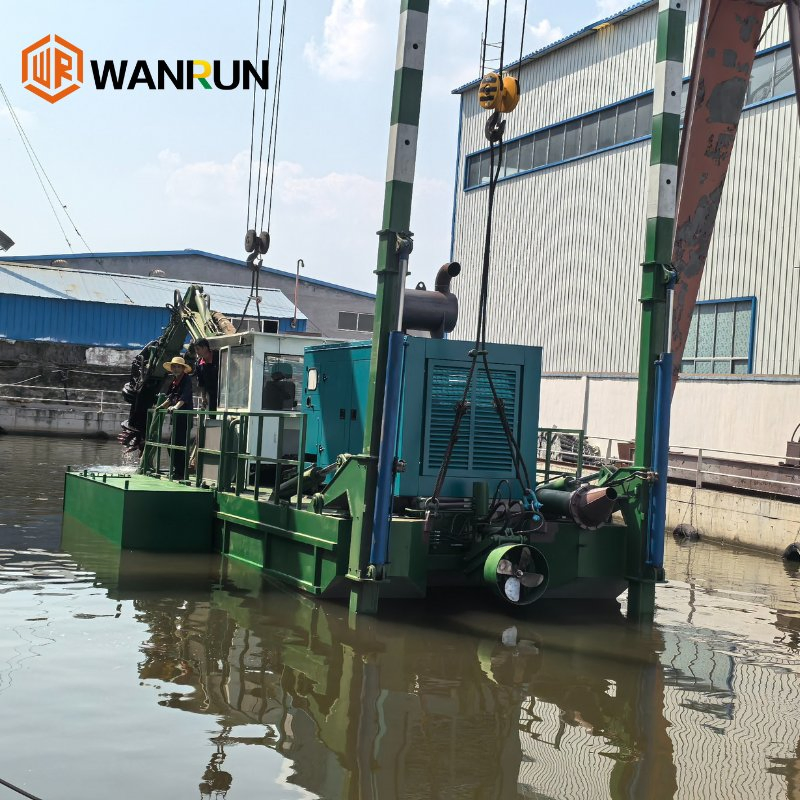

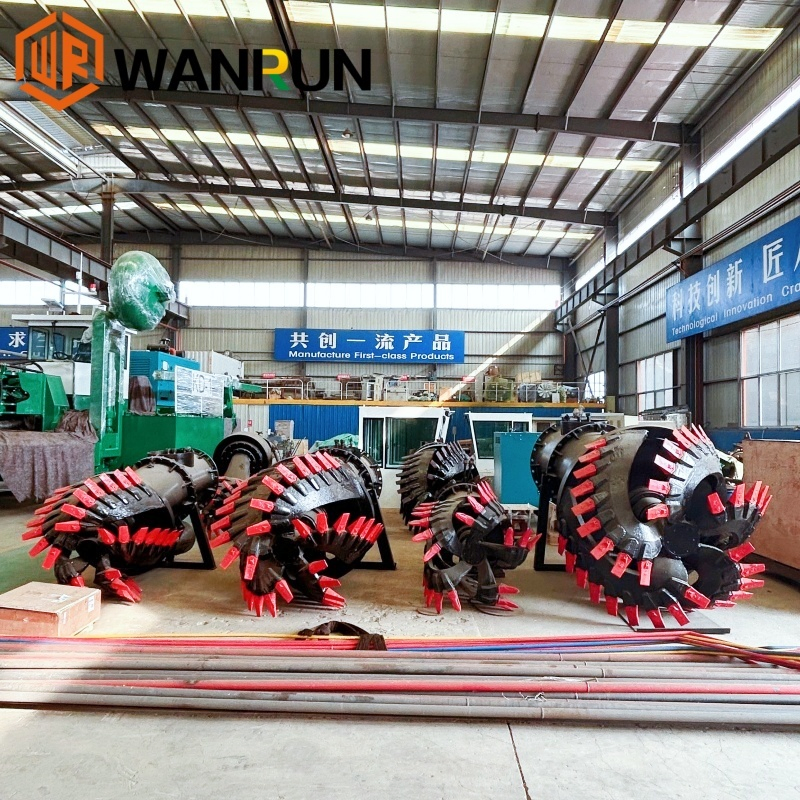

Driven by a high-efficiency system, featuring a submersible pump and cutter head. It extracts high-density material, producing 25% solid slurry, maximizing productivity. Stability is ensured by spuds and support legs.

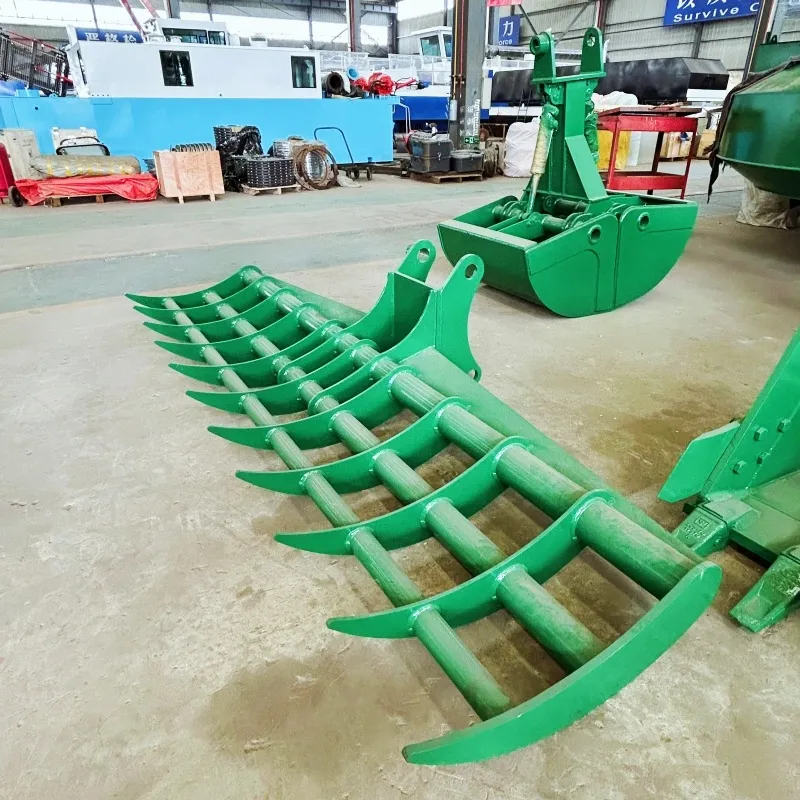

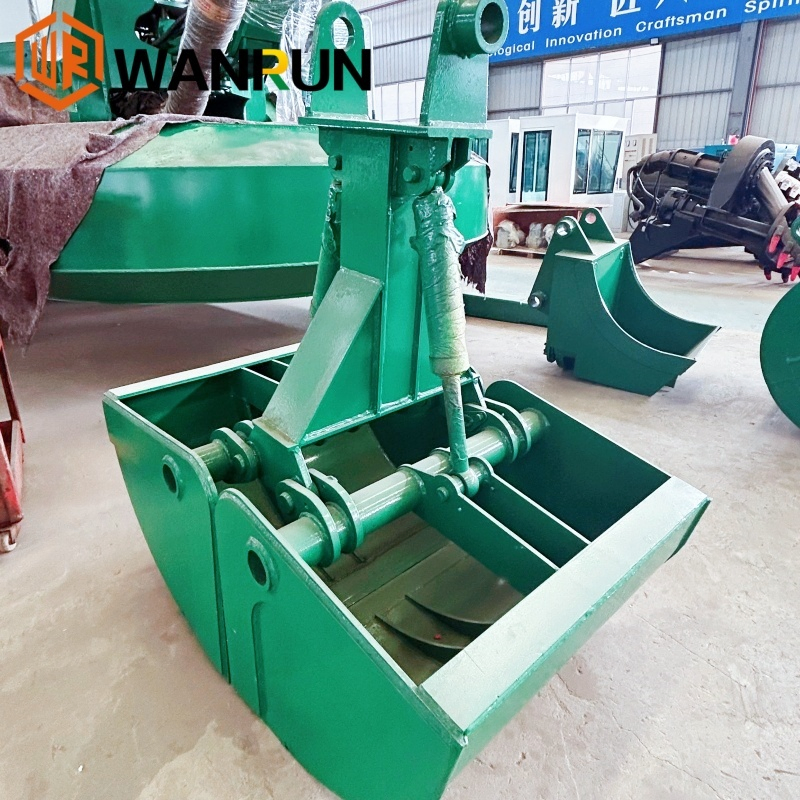

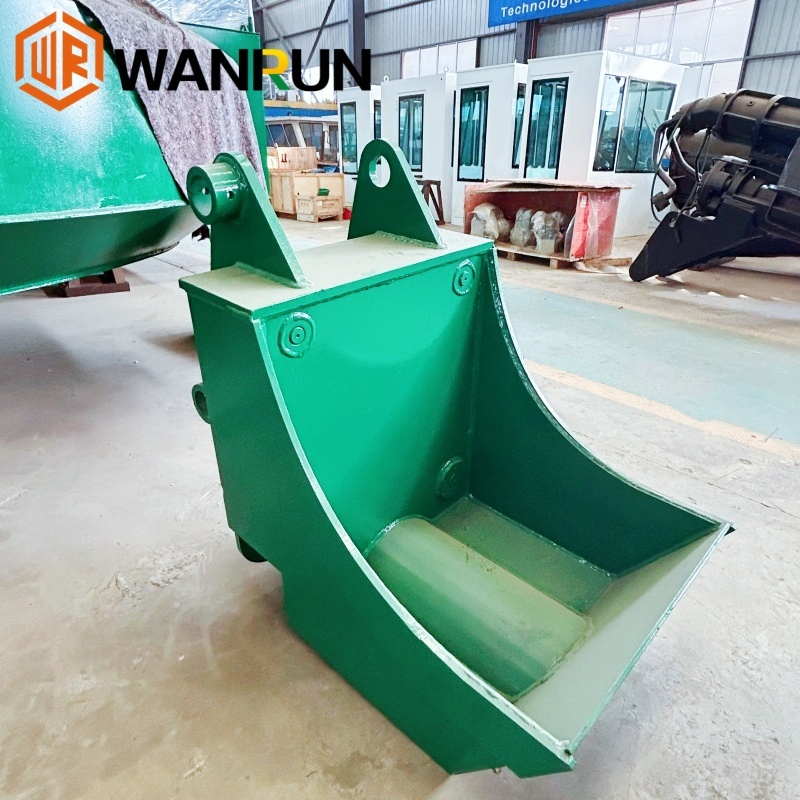

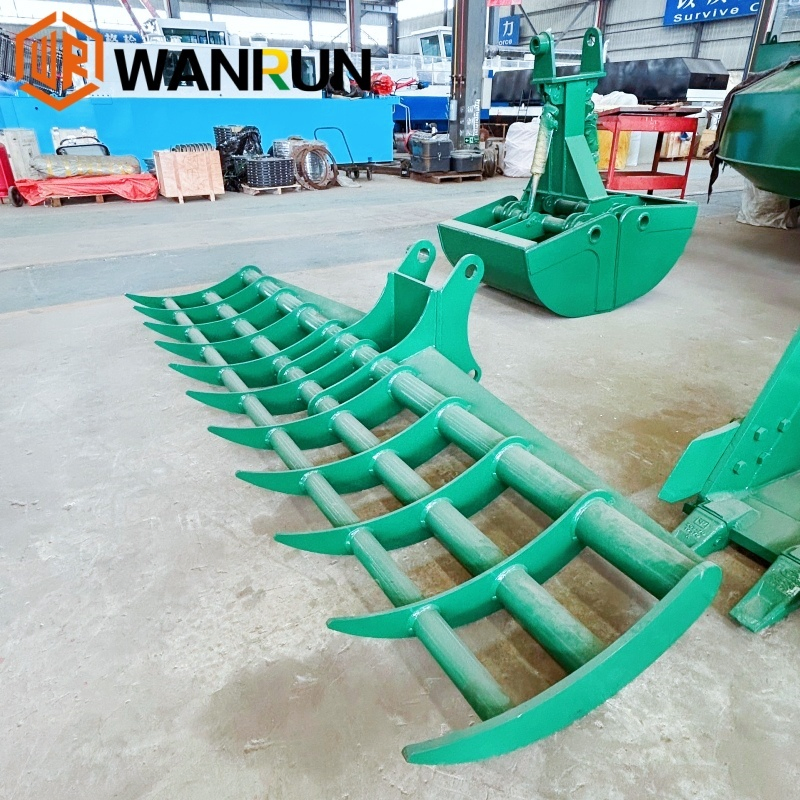

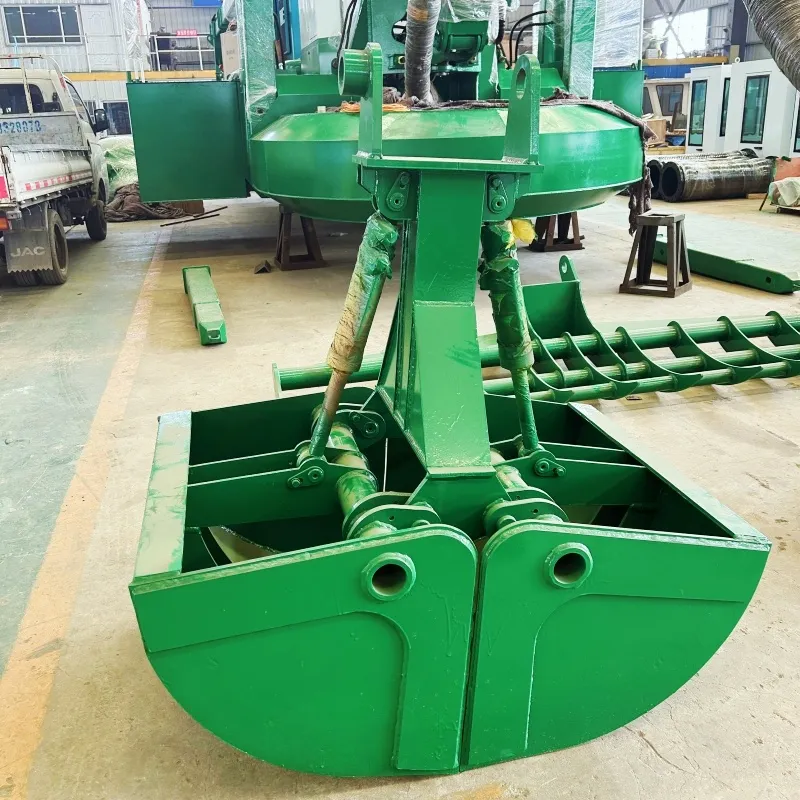

Designed for efficiency, supports continuous operation with onboard lighting. One-person operation with standard skills. Configurable with various tools for tasks like shoreline excavation and wetland restoration.
