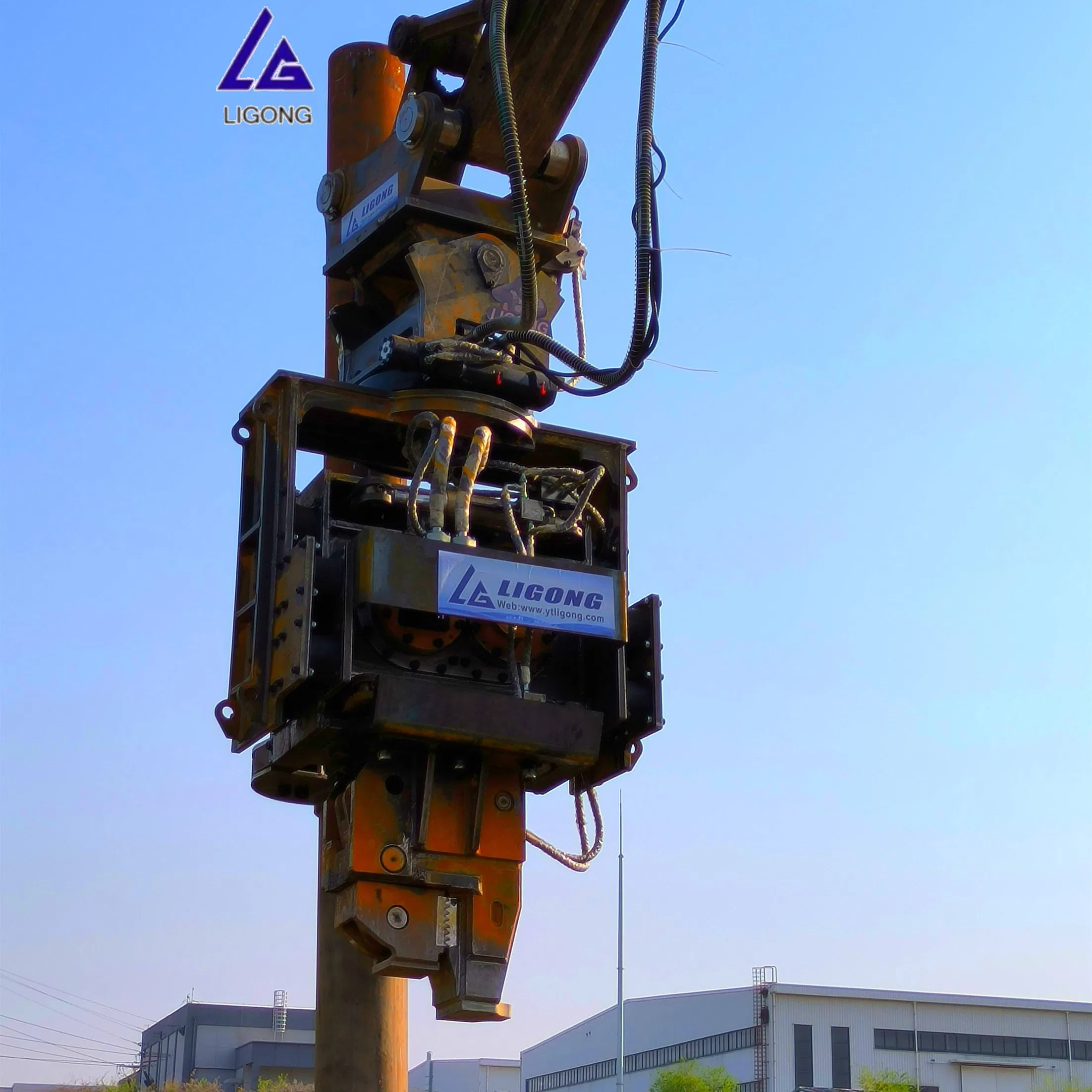

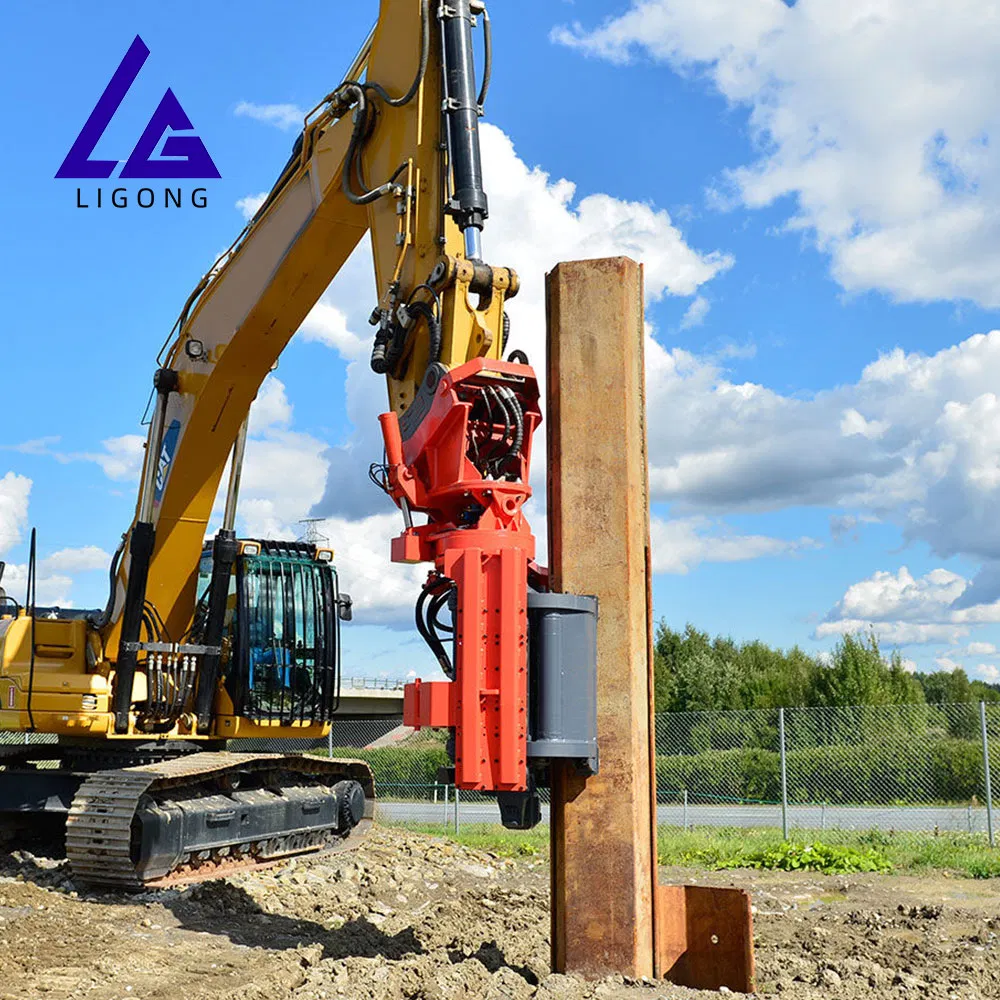

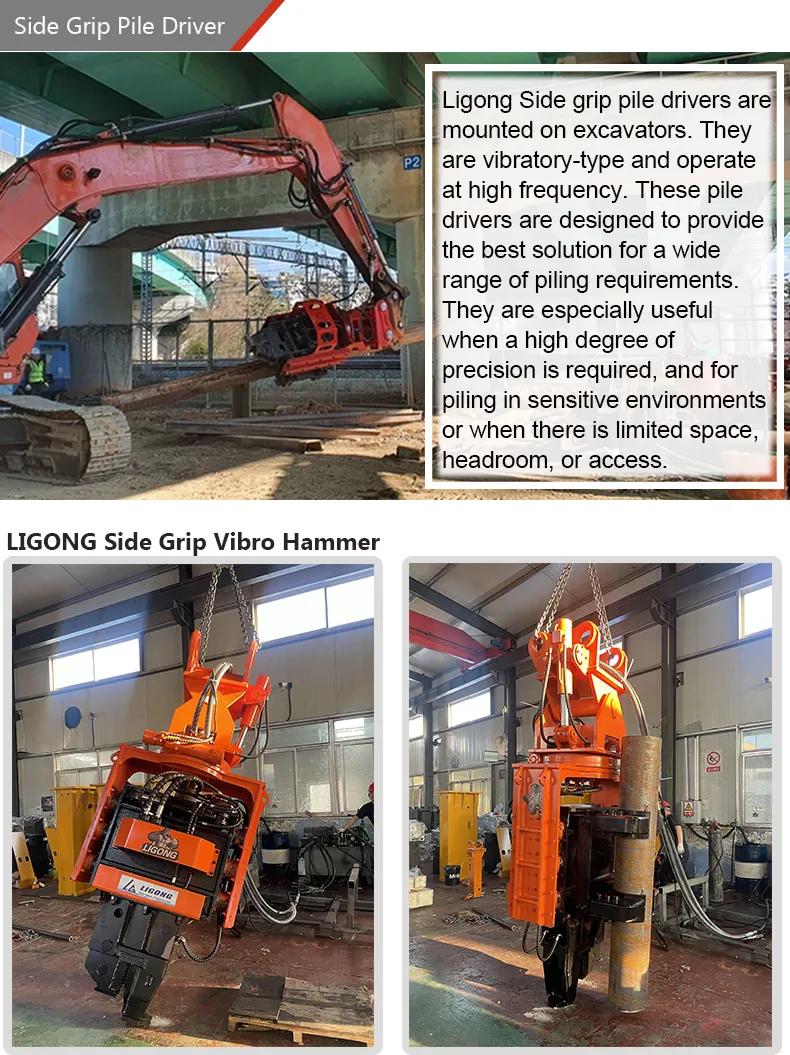

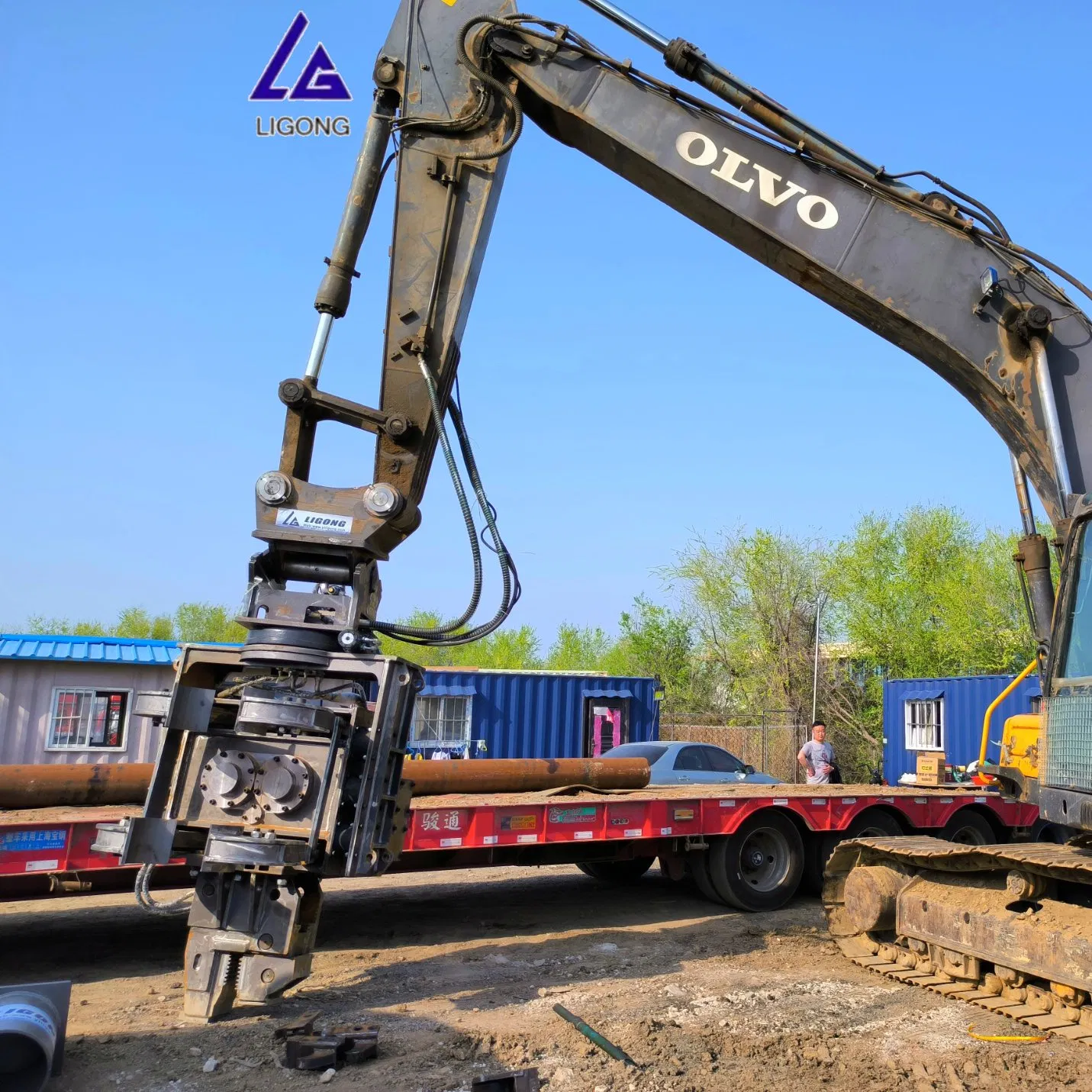

Our excavator-mounted side gripper pile driver series utilizes high-frequency vibration to transmit vertical energy to the pile body. This process liquefies the surrounding soil, drastically reducing frictional resistance to allow for seamless pile sinking via the machine's pressure and vibration.

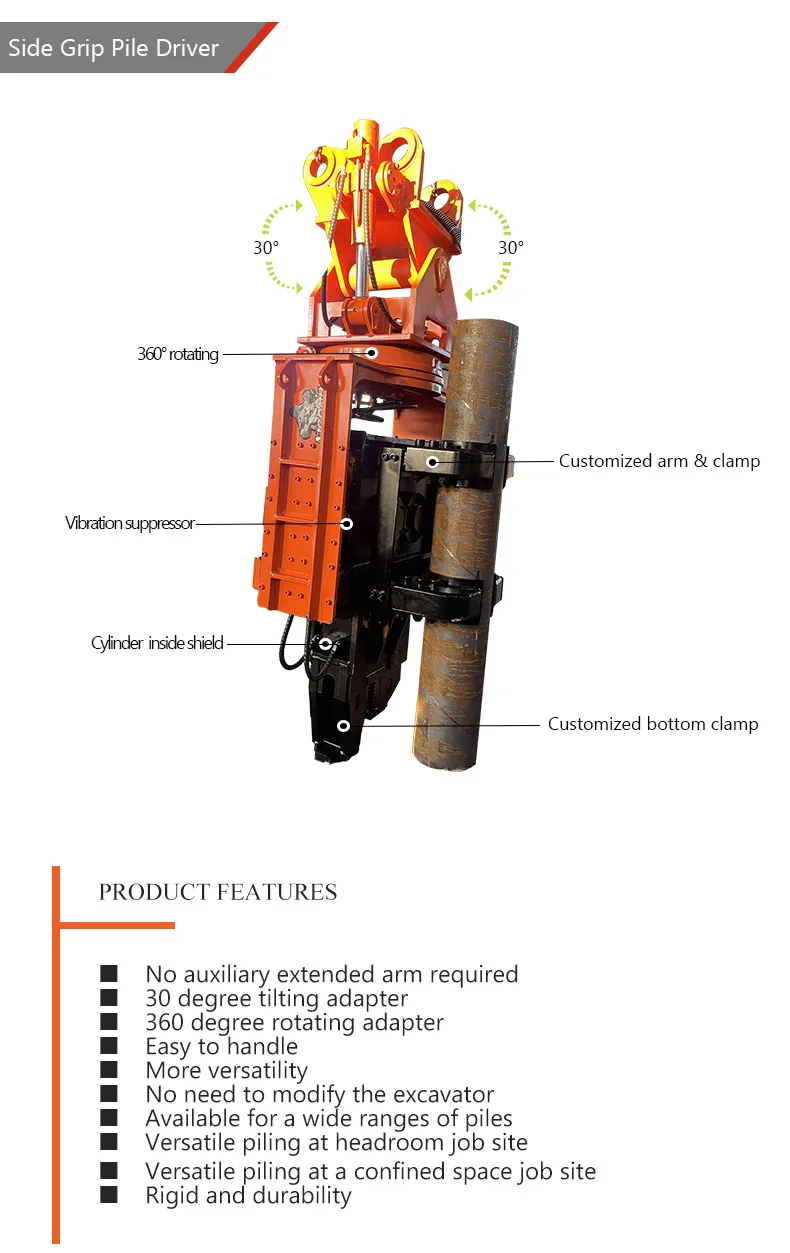

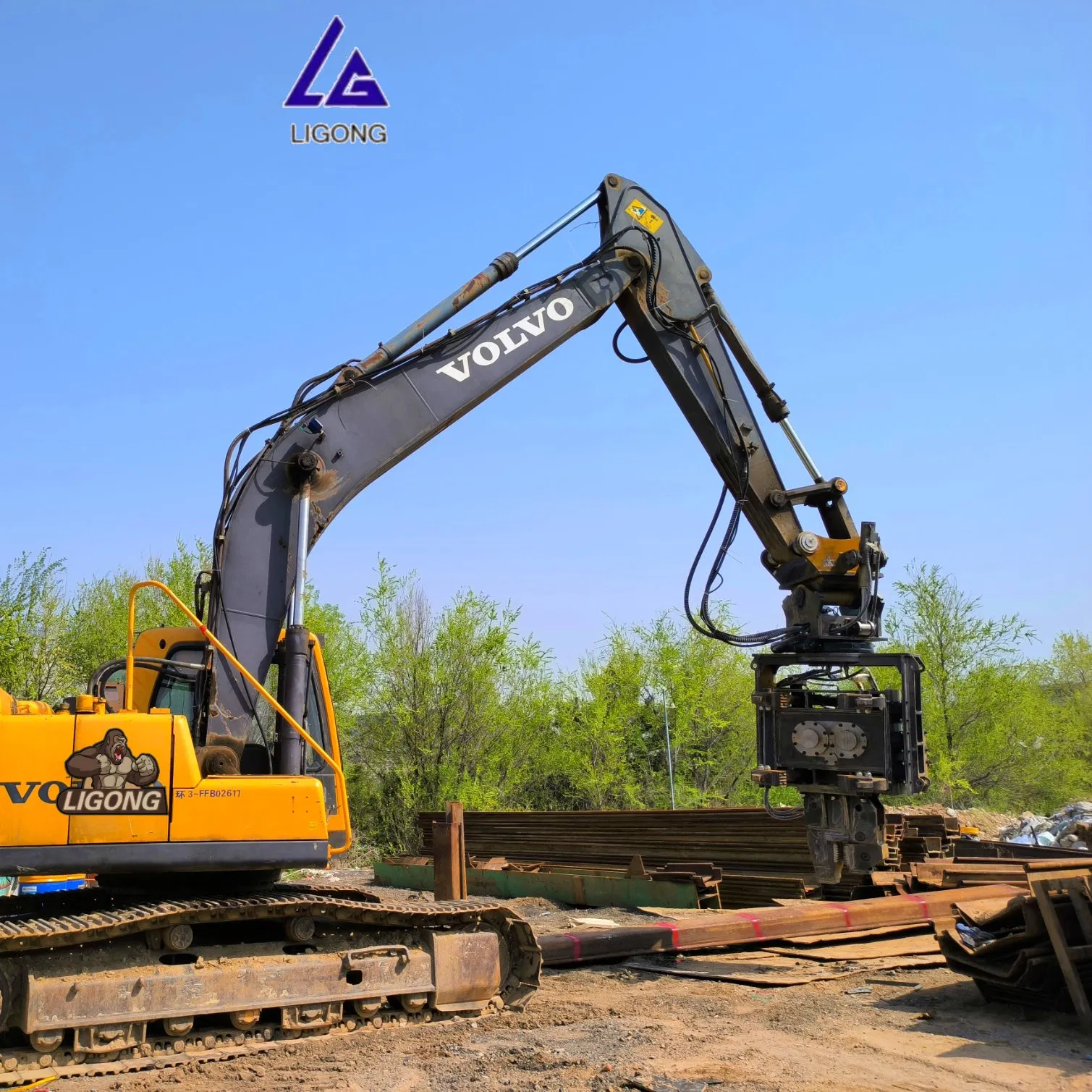

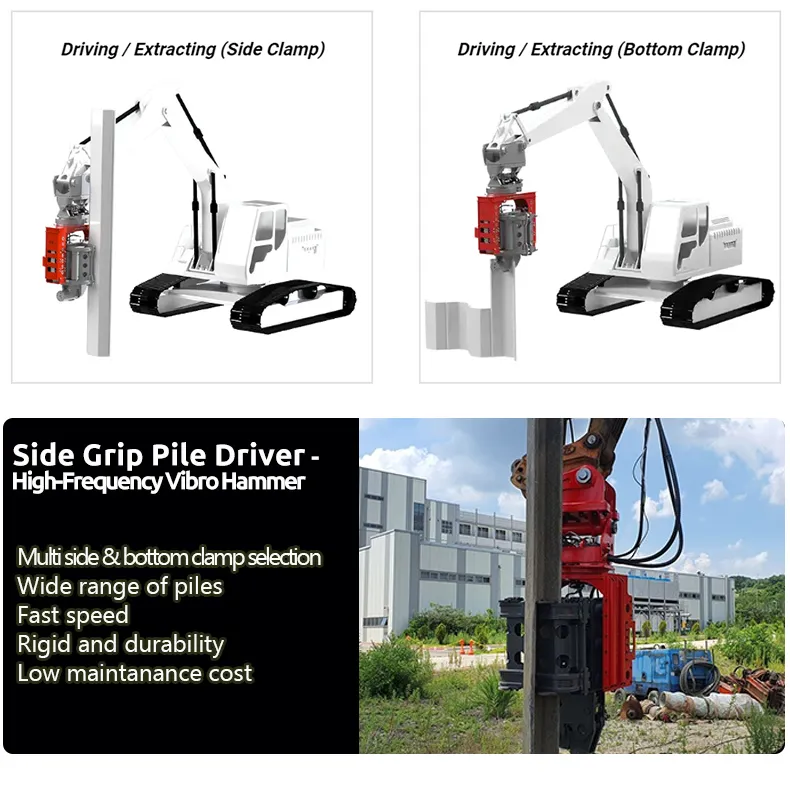

The swivel head is a significant time-saver, reducing manual interference by picking up sheet piles from a horizontal position with a 90-degree tilting function. This allows for near-continuous operation and shorter cycle times compared to standard pile drivers.

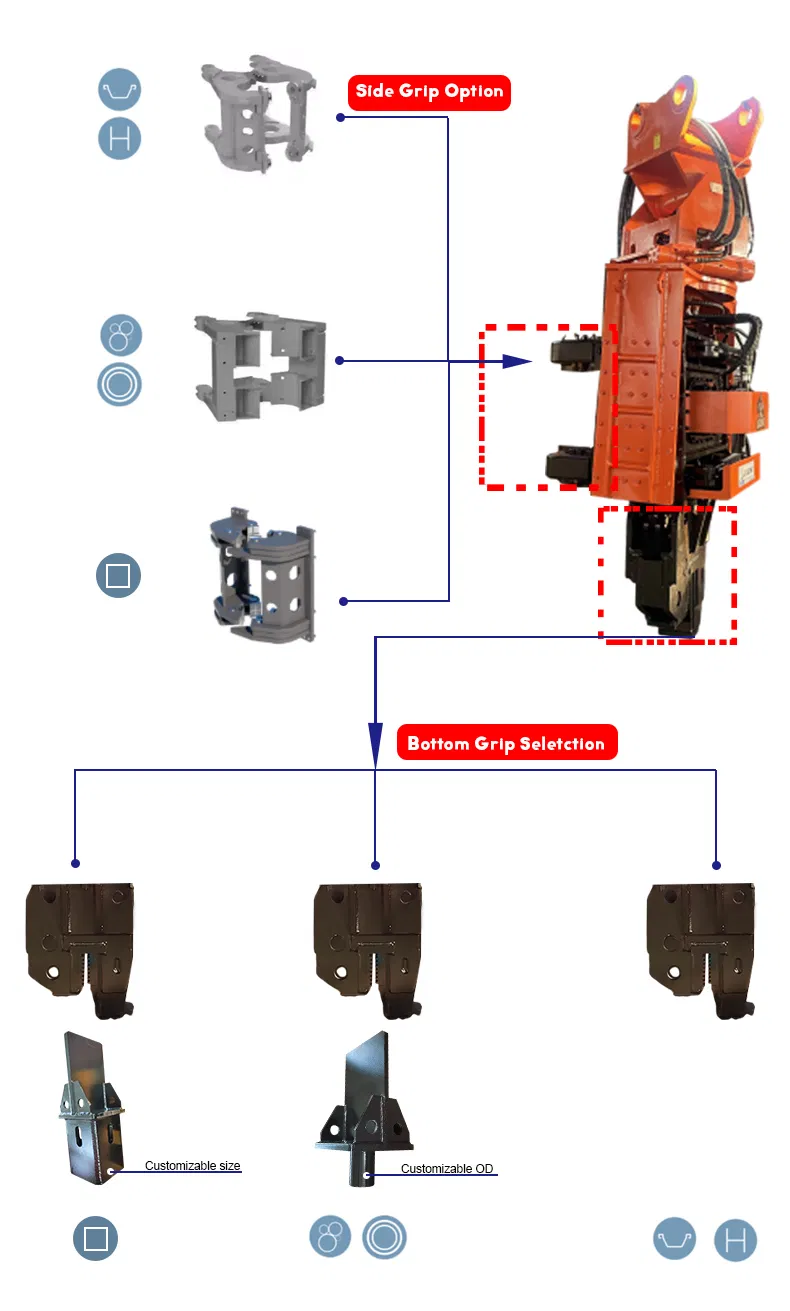

Tailored solutions available based on specific user requirements and pile types.
Prioritizes operator safety and ensures secure operations in diverse conditions.
Potential to save over 30% on project timelines, significantly shortening construction periods.

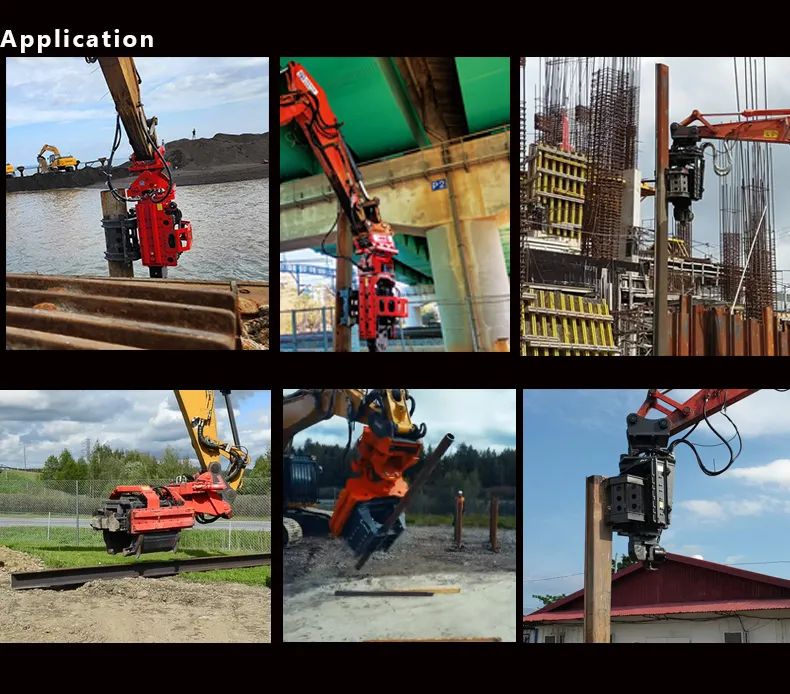

Suitable for steel sheet piles, H-beams, tubular piles, concrete, and timber piles.

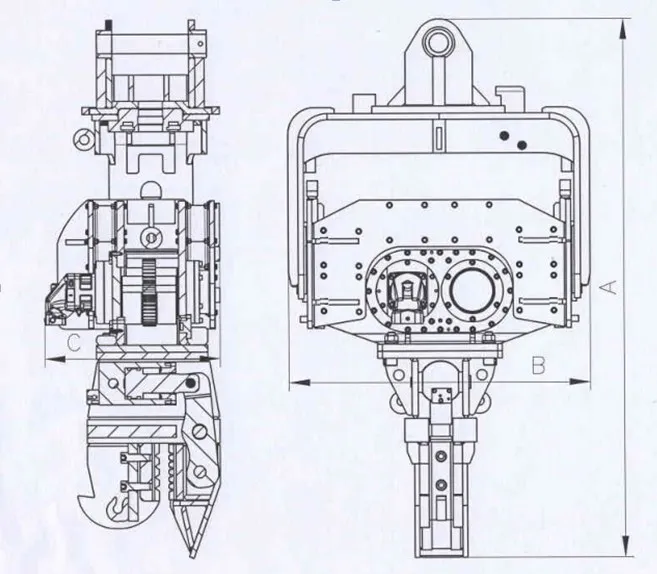

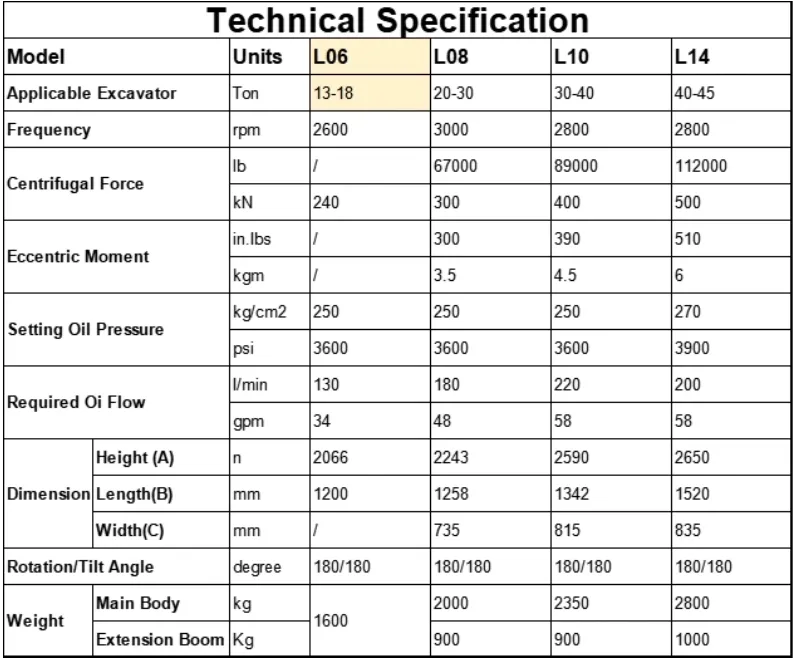

| Model | Unit | L08 | L10 | L14 |
|---|---|---|---|---|
| Excavator | Ton | 20-30 | 30-40 | 40-50 |
| Weight | kg | 2900 | 3250 | 3800 |
| Volume | CBM | 5 | 6 | 7 |

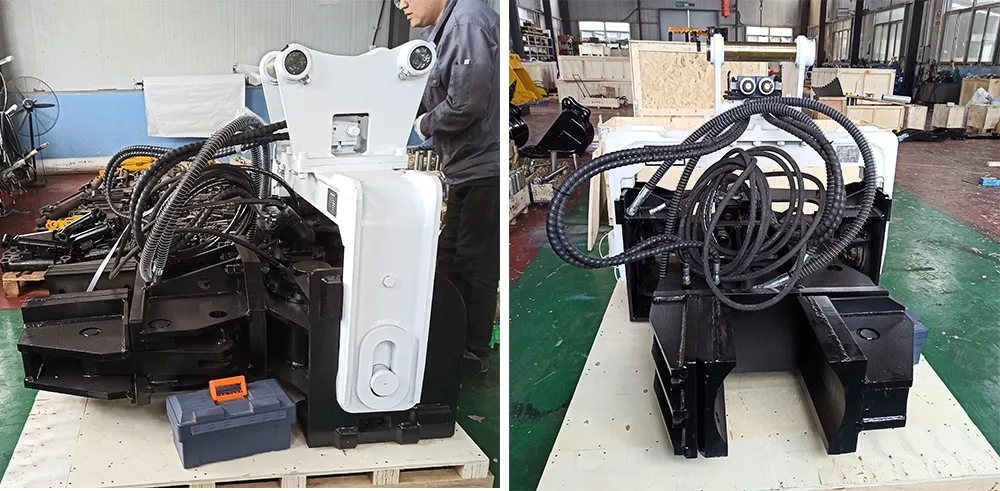

L06 Model for 14-19 ton excavators:

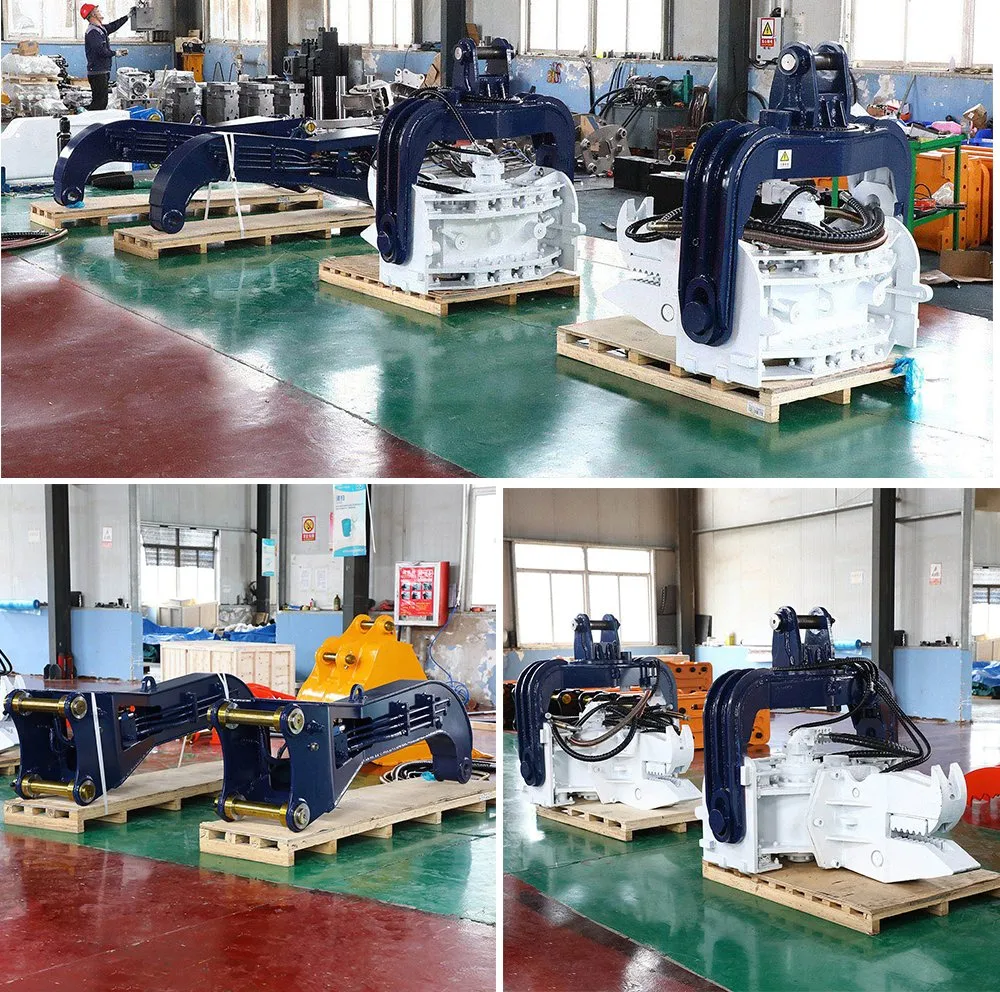

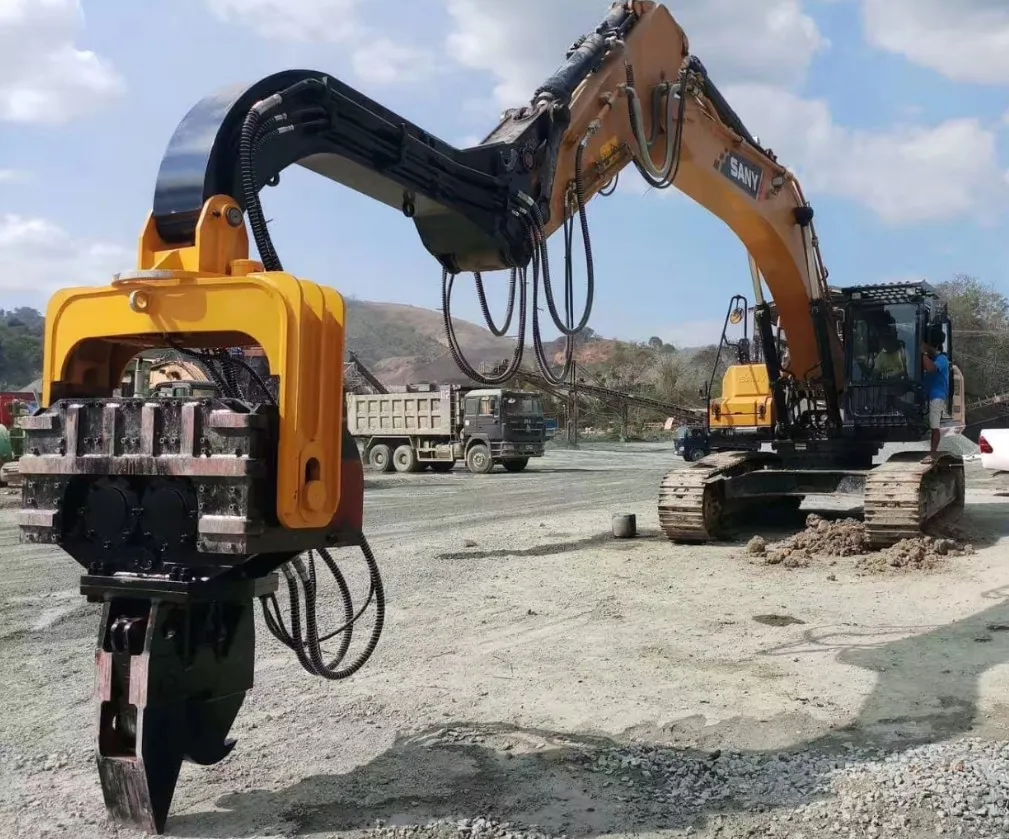

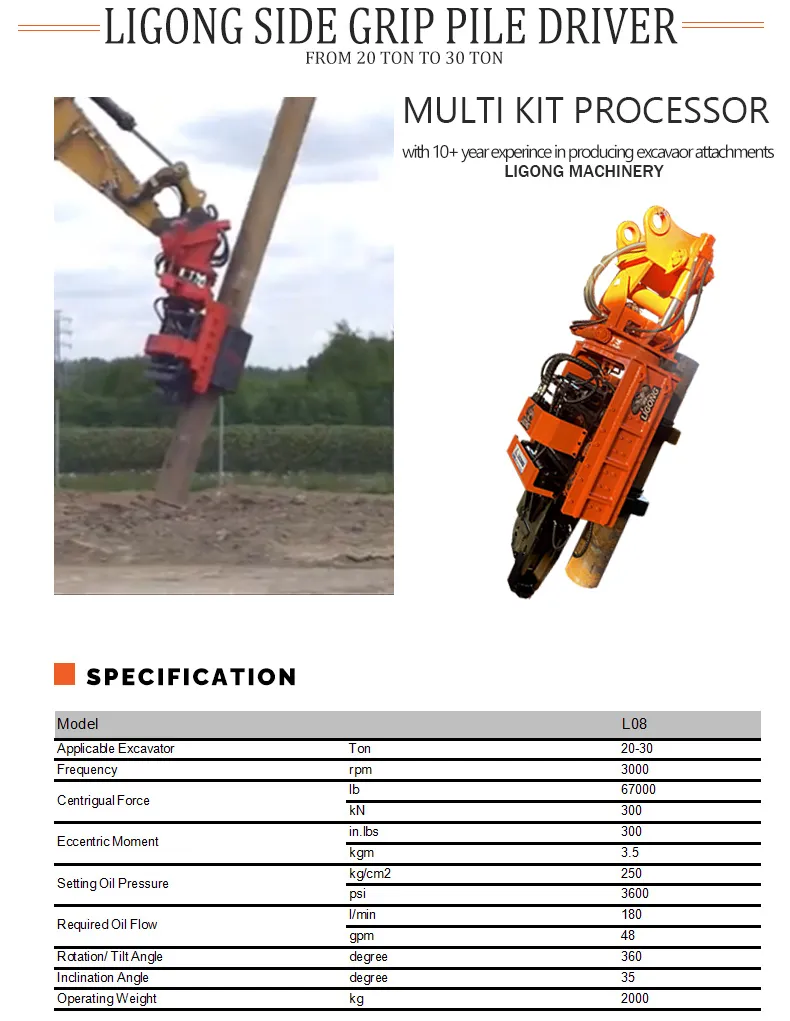

L08 Model for 20-30 ton excavators:

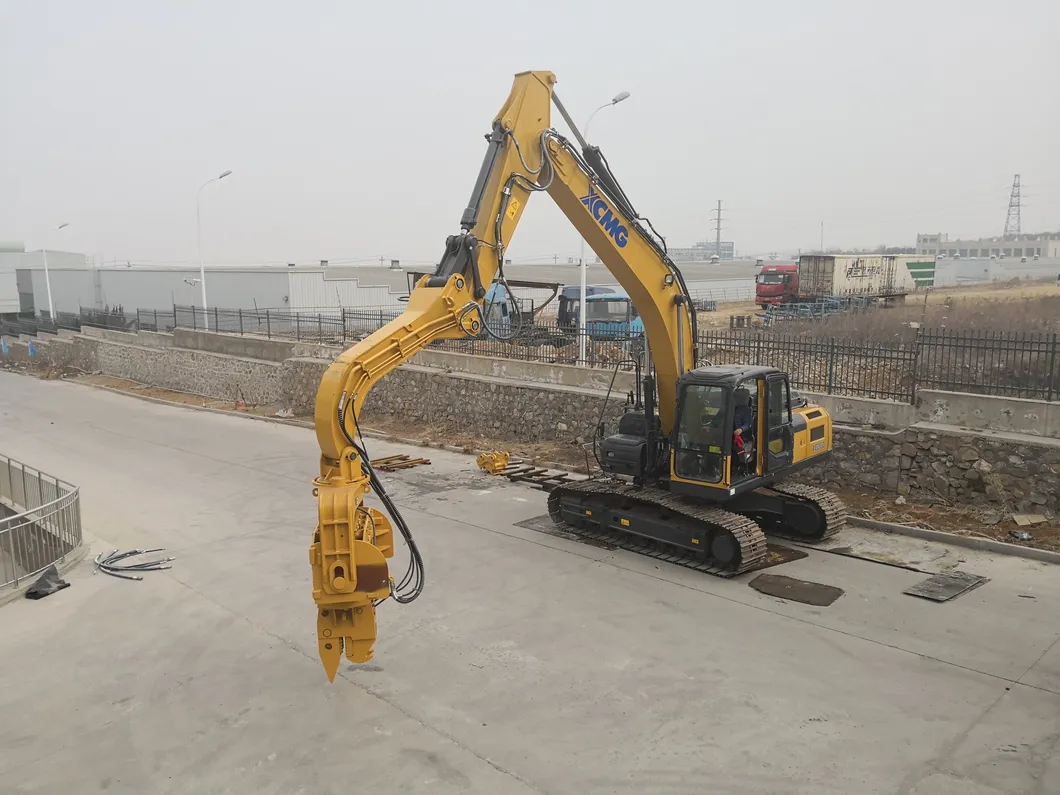

Worried about complexity? Our hydraulic pile driver arm requires only 2 hydraulic oil pipes, making the installation process straightforward and fast.
