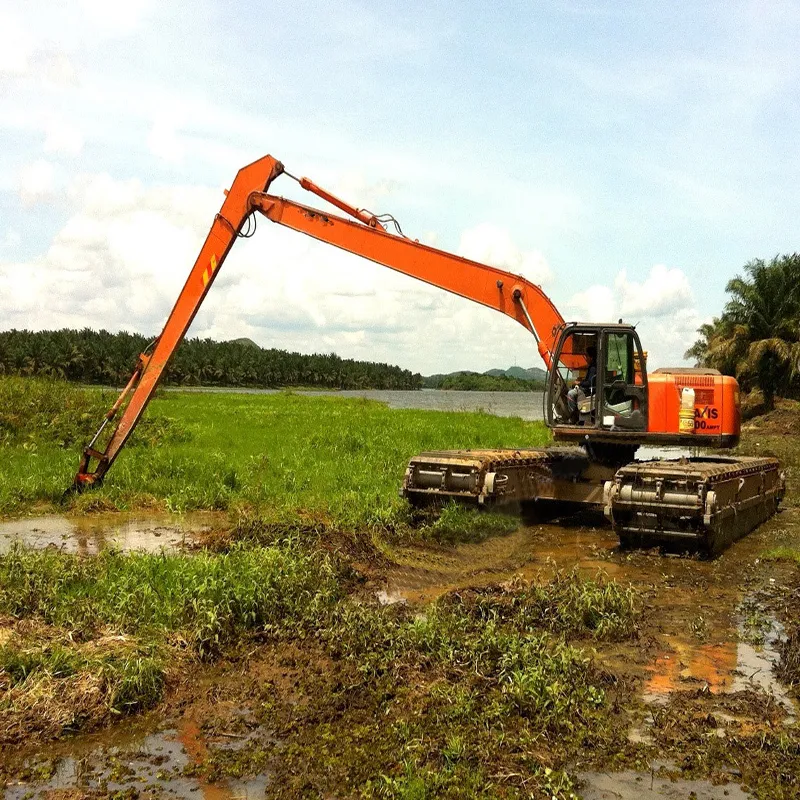

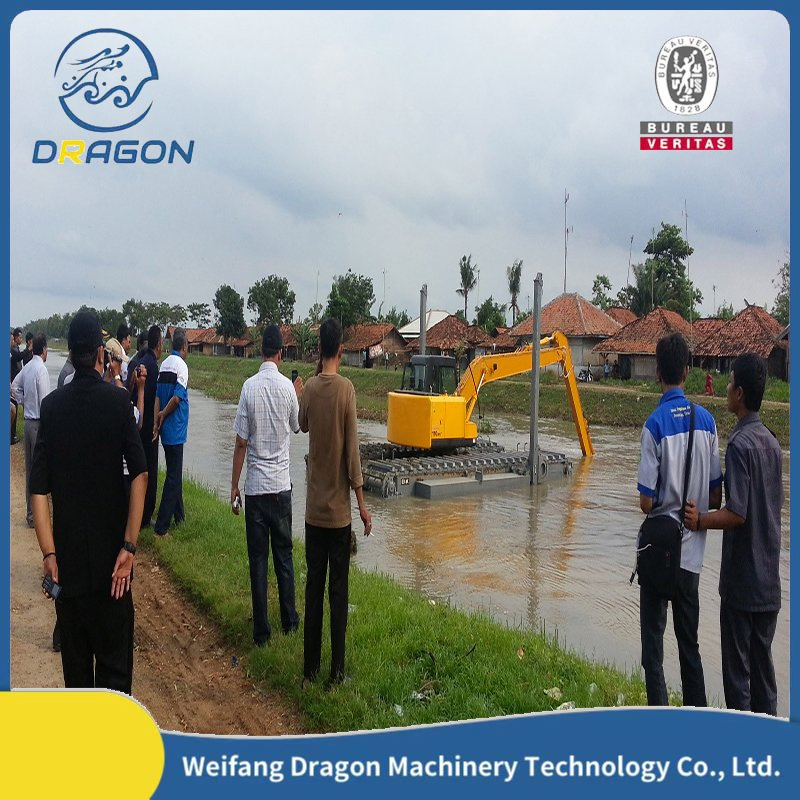

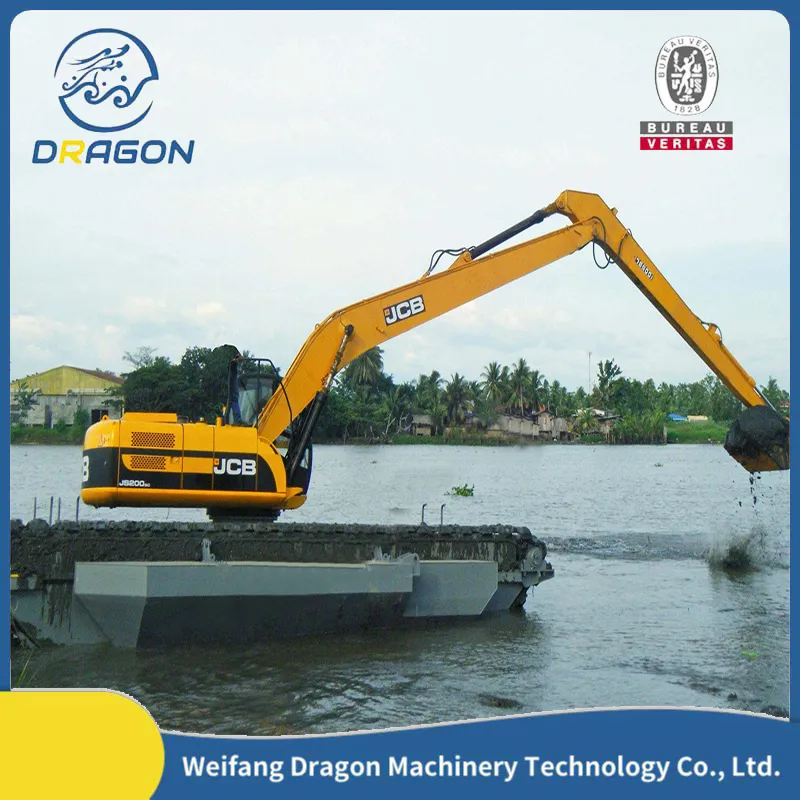

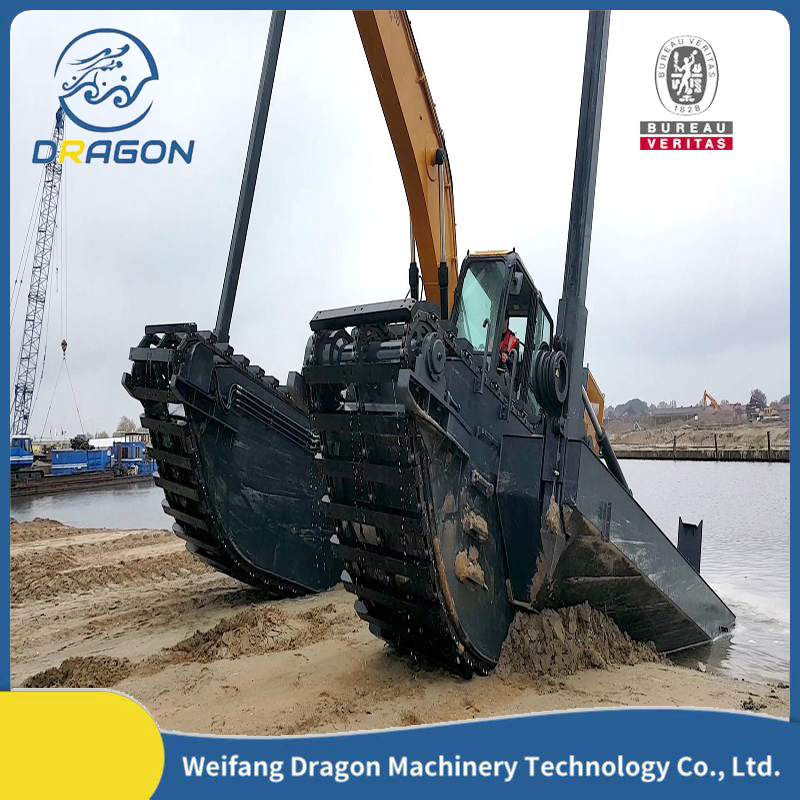

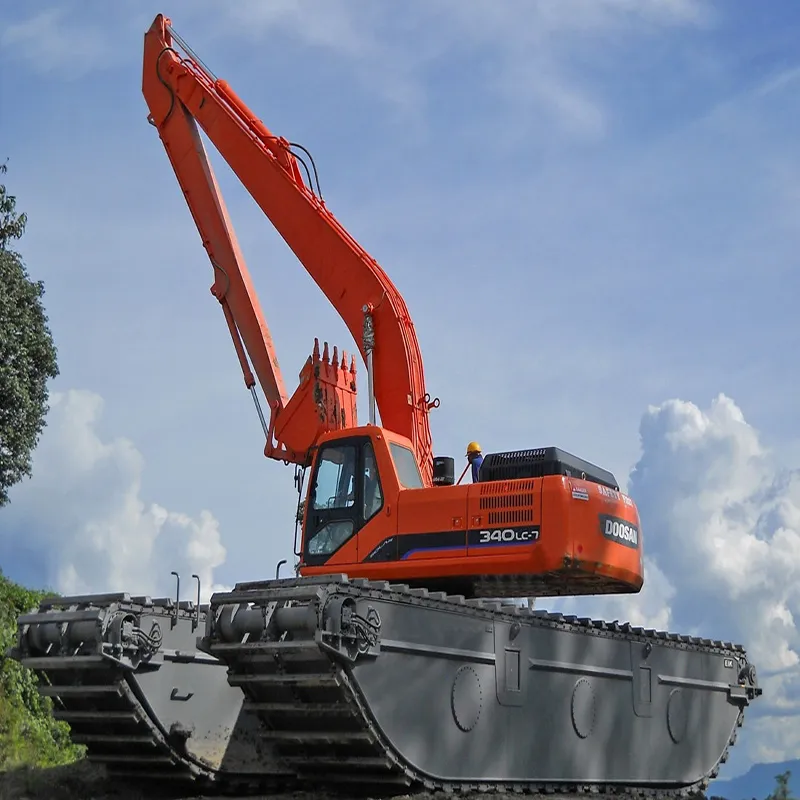

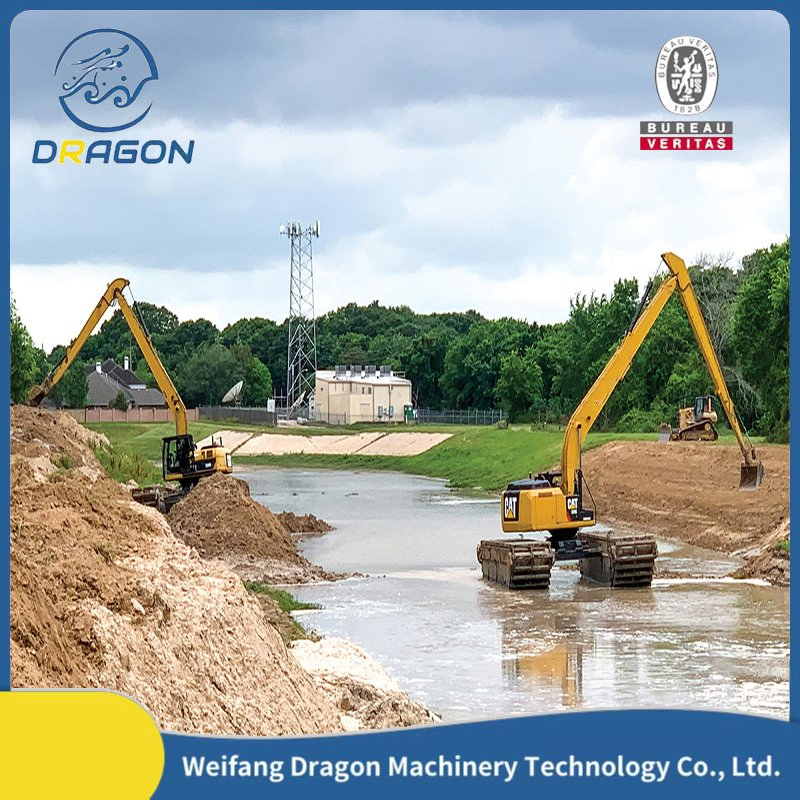

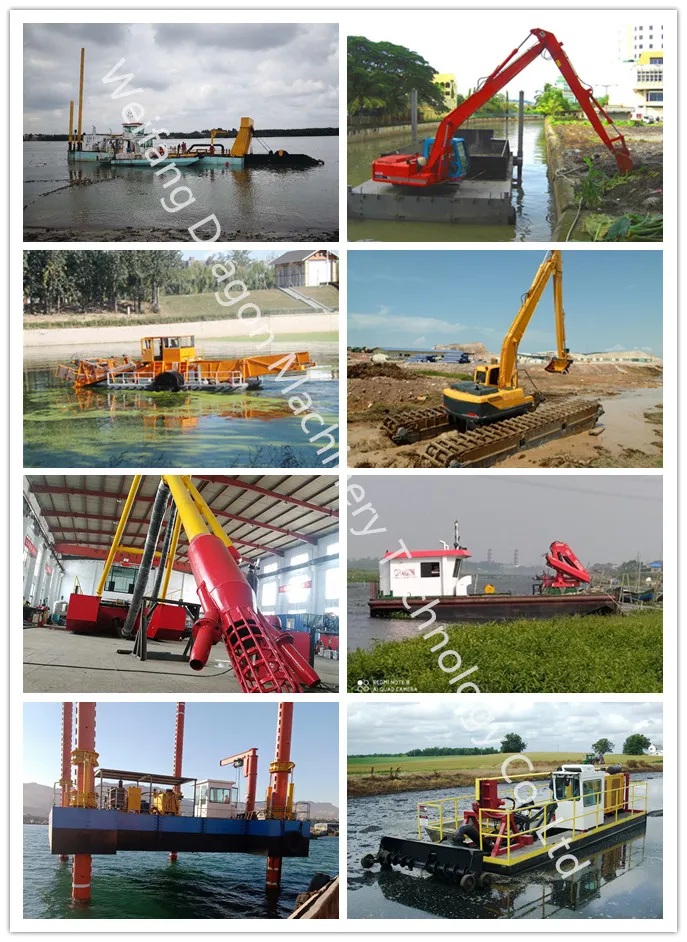

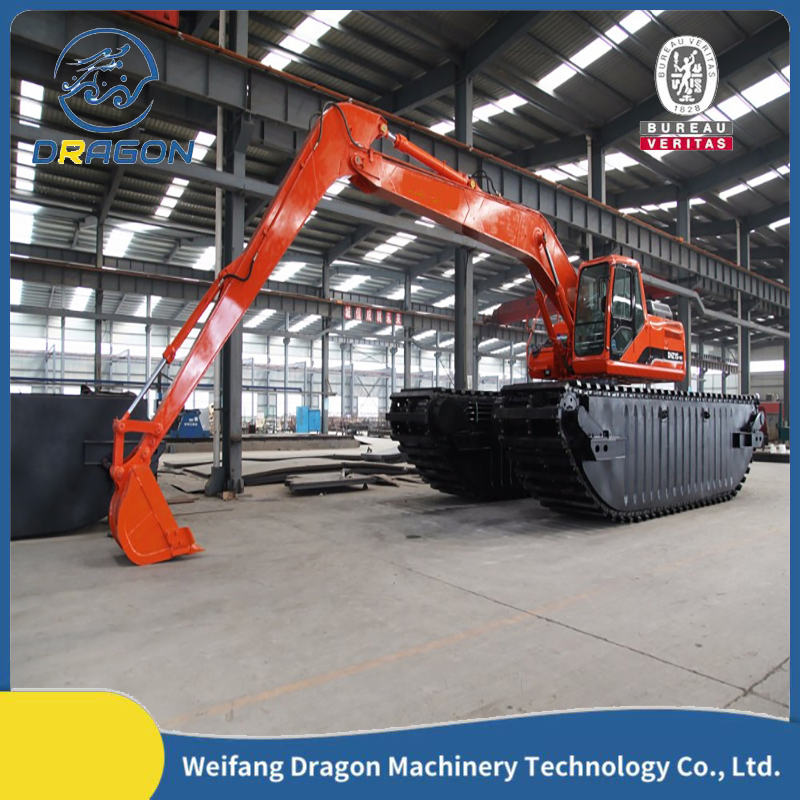

The amphibious excavator is a multifunctional machine suitable for working in swamps, shallow water, and land areas. This equipment is widely utilized for dredging work in rivers and lakes, as well as resources and environmental protection in wetlands and coastal regions.

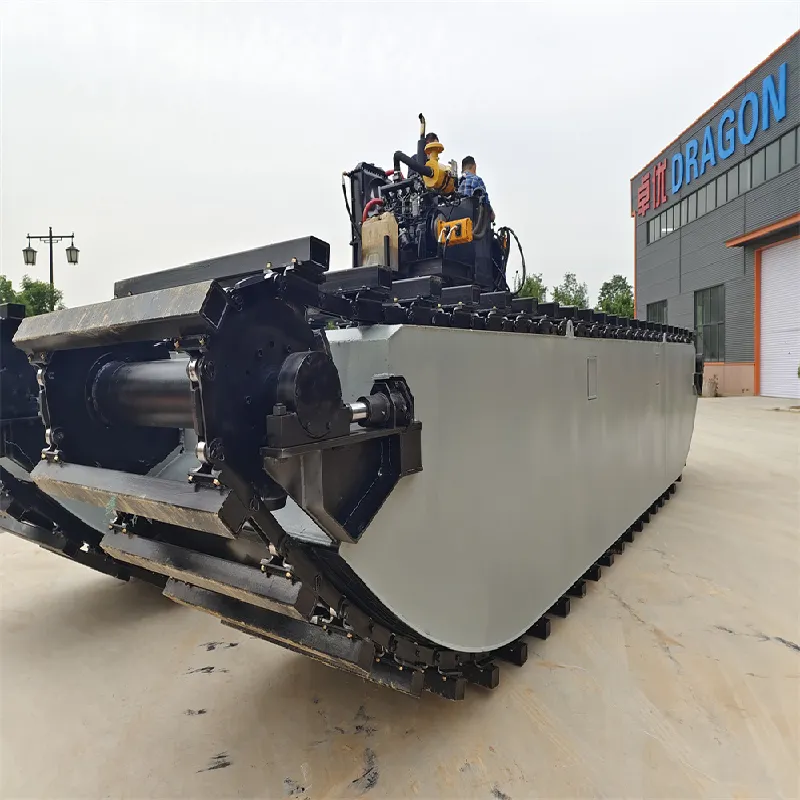

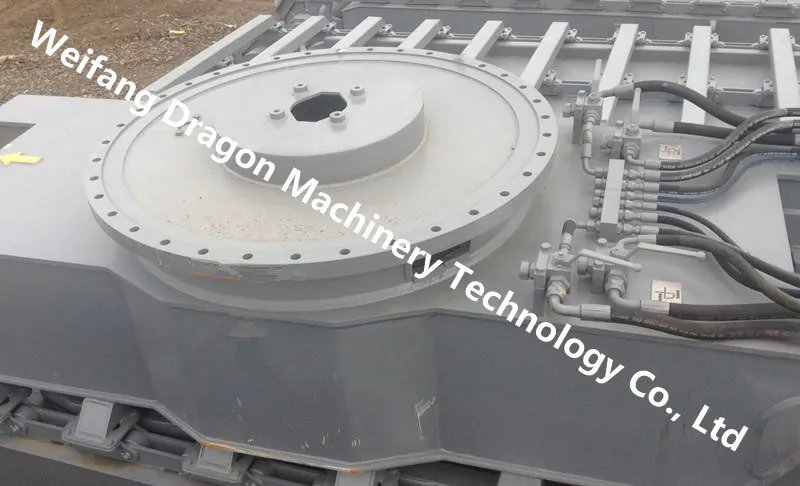

The track shoe and floating pontoon are specifically strengthened to enable the amphibious excavator to operate in harsh environments. There is a replaceable joint unit between the excavator and floating pontoon, allowing it to be equipped with various attachments.

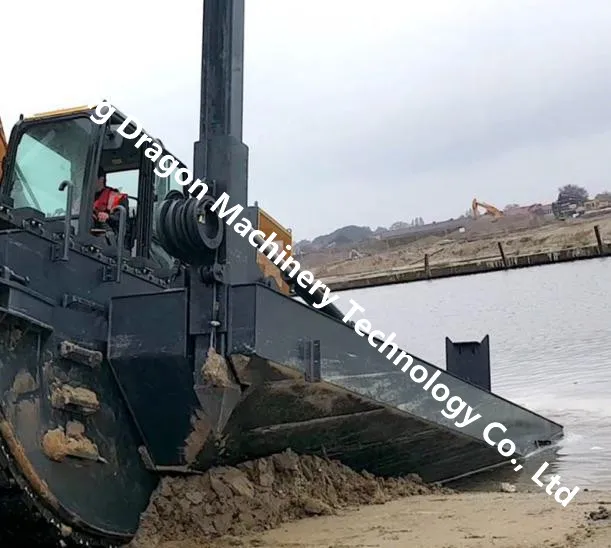

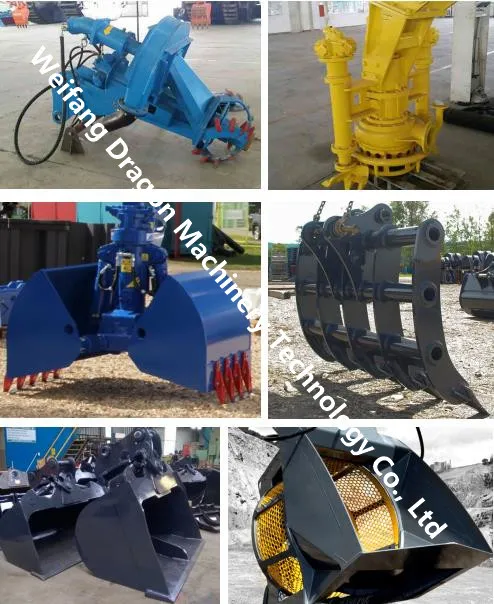

To increase stability, two spuds can be installed on the floating pontoons. The amphibious excavator can work with different attachments, significantly enlarging its operational range.
| Model | DGAME15 | DGAME20 | DGAME26 | DGAME30 |
| Weight | 15000 kg | 20000 kg | 26000 kg | 30000 kg |
| Bucket Capacity | 0.25 m³ | 0.4 m³ | 0.9 m³ | 0.9 m³ |
| Installed Power | 56.5 kw | 89.3 kw | 114 kw | 114 kw |
| Walking Speed | 3.8 km/h | 3.1 km/h | 3.2 km/h | 3.1 km/h |
| Max Digging Depth | 5870 mm | 7360 mm | 5700 mm | 7360 mm |
| Max Digging Radius | 8990 mm | 10810 mm | 9920 mm | 10810 mm |
| Pontoon Dimension | 6640x1300x1420mm | 7170x1490x1700mm | 8080x1490x1700mm | 8290x1800x1650mm |
