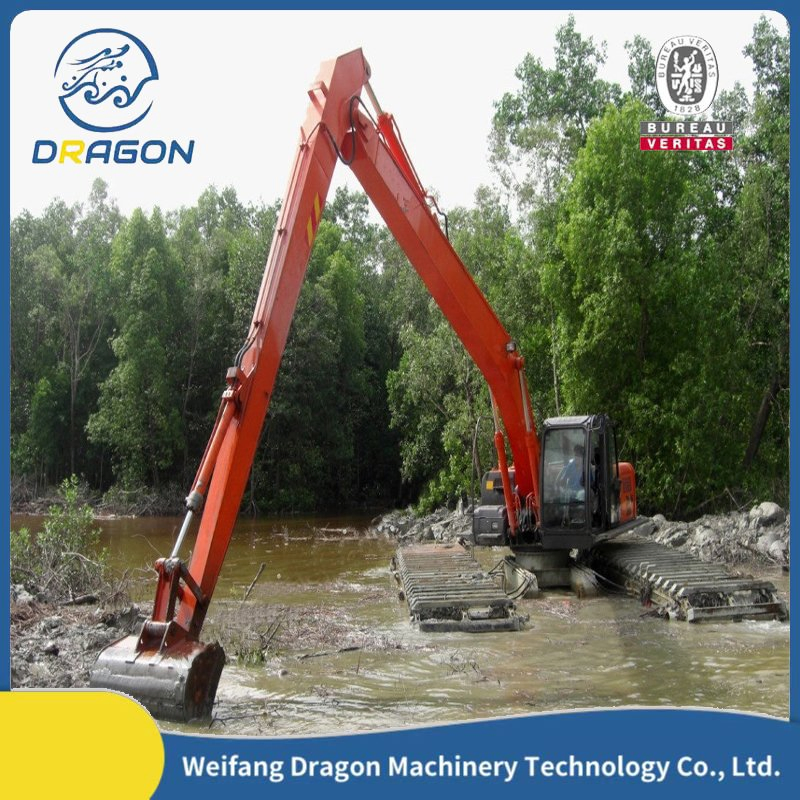

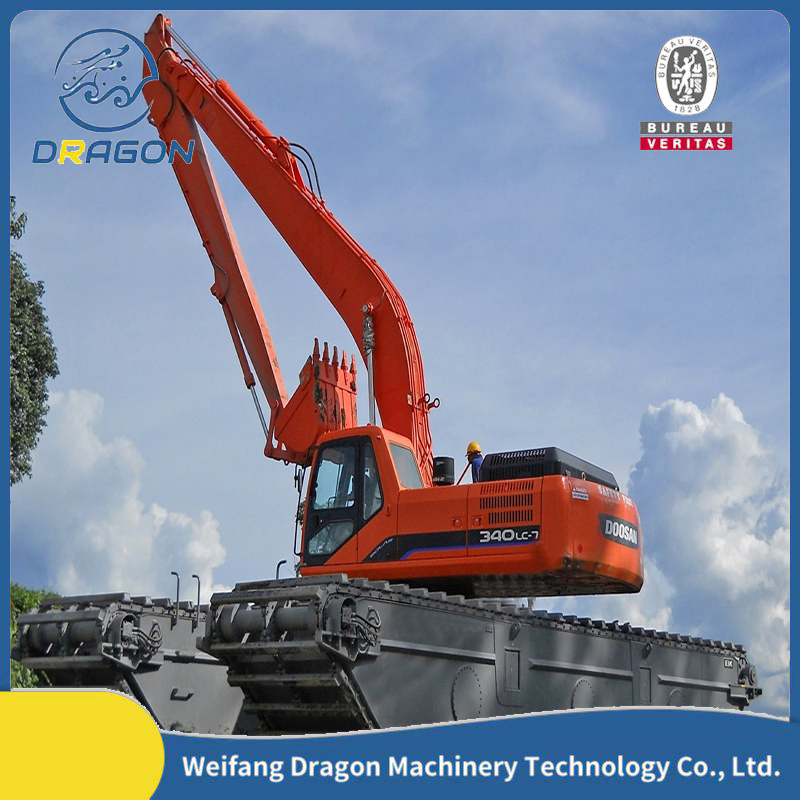

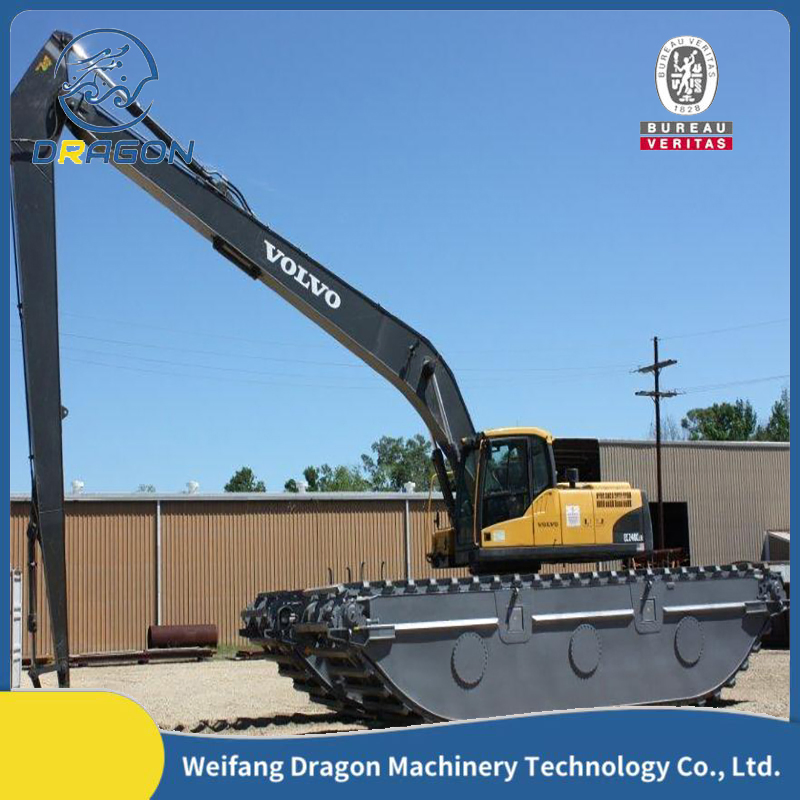

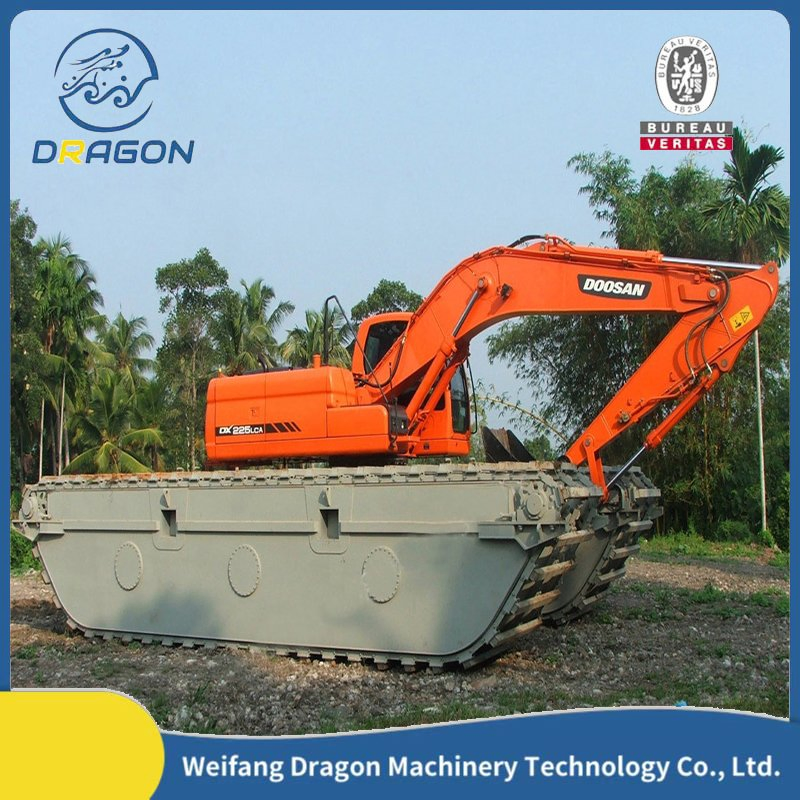

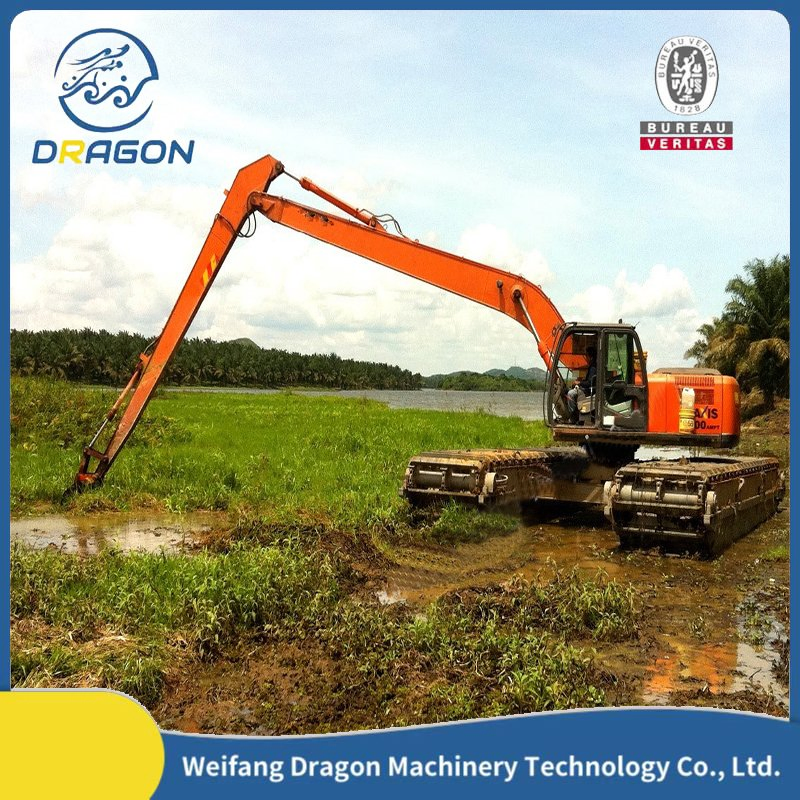

Amphibious Dredger New Backhoe Dredger Price 15000 kg Dredging Equipment

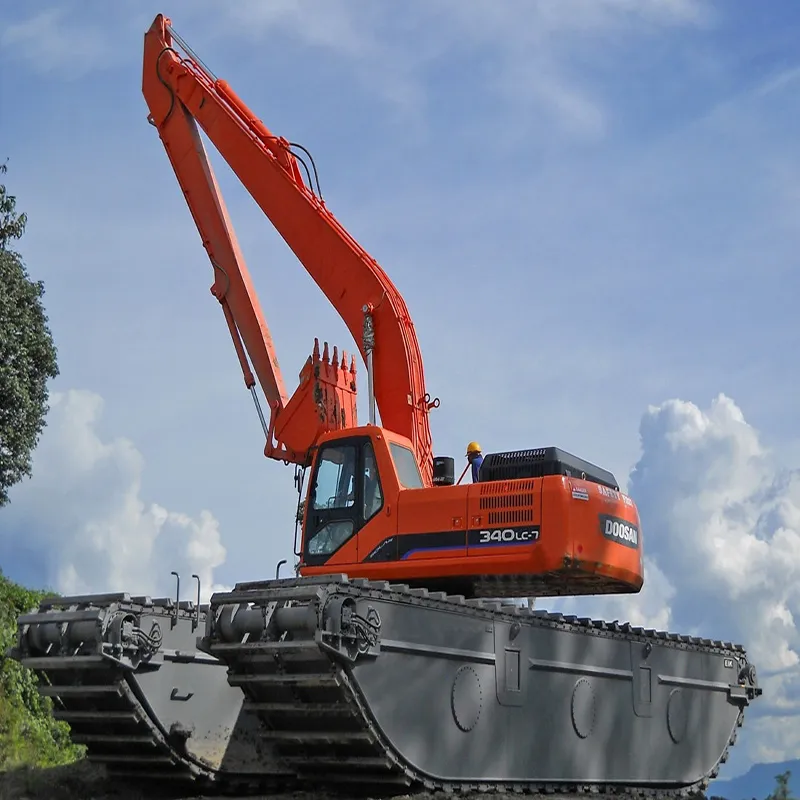

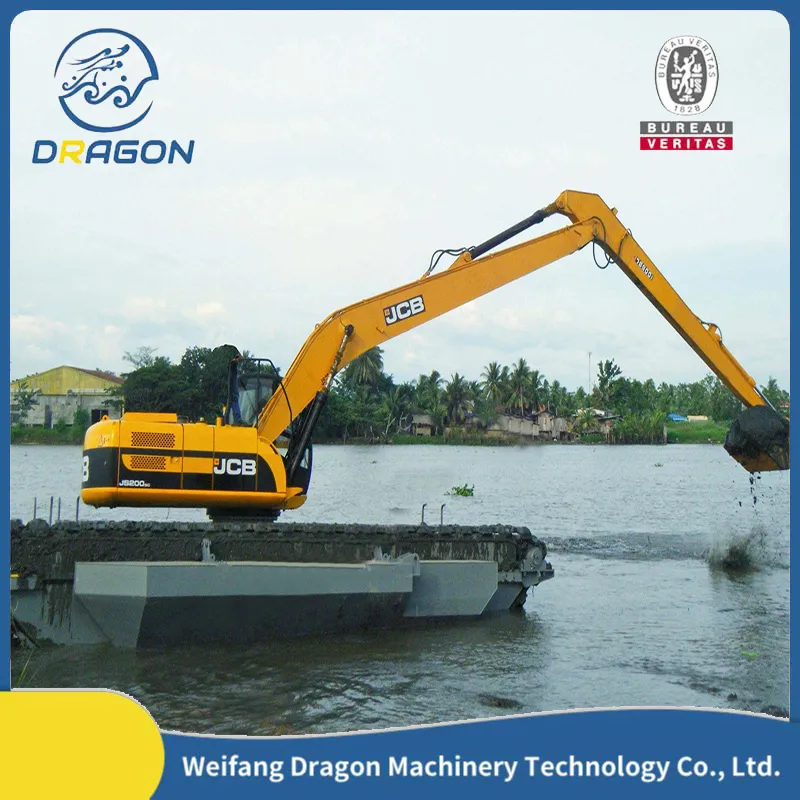

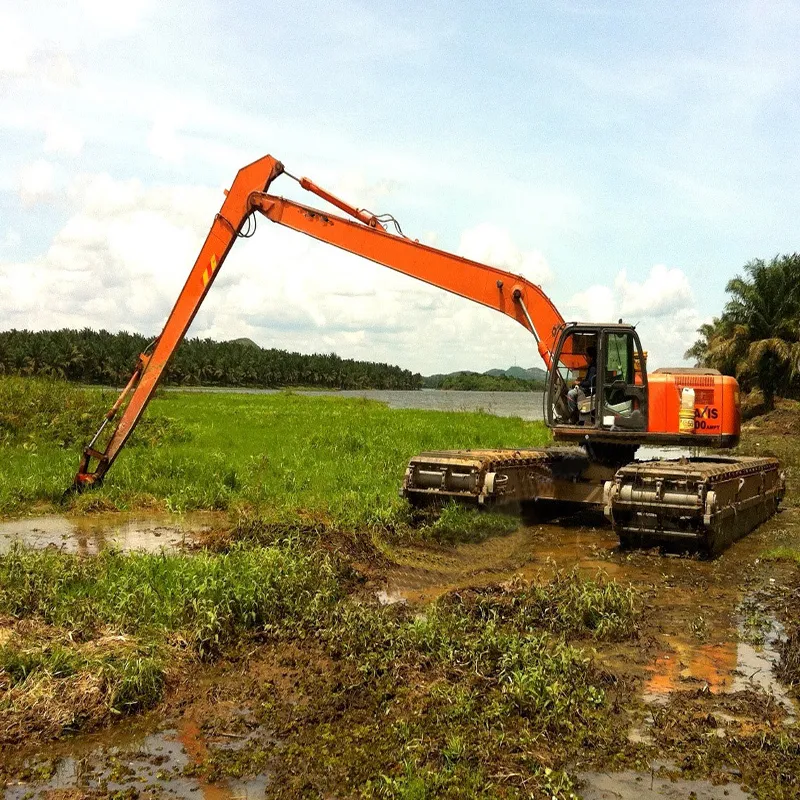

The amphibious excavator is a multifunctional excavator suitable for working in swamps, shallow water, and land areas. This equipment is widely used for dredging work in rivers and lakes, as well as resources and environmental protection in wetlands and coastal areas.

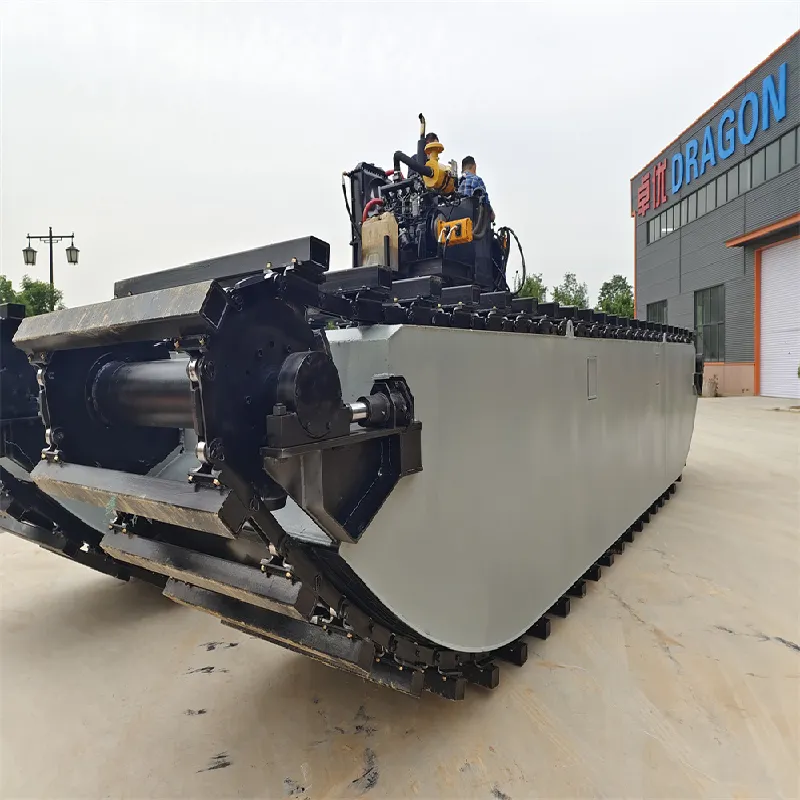

The track shoe and floating pontoon are strengthened specially to enable the amphibious excavator to work in harsh environments.

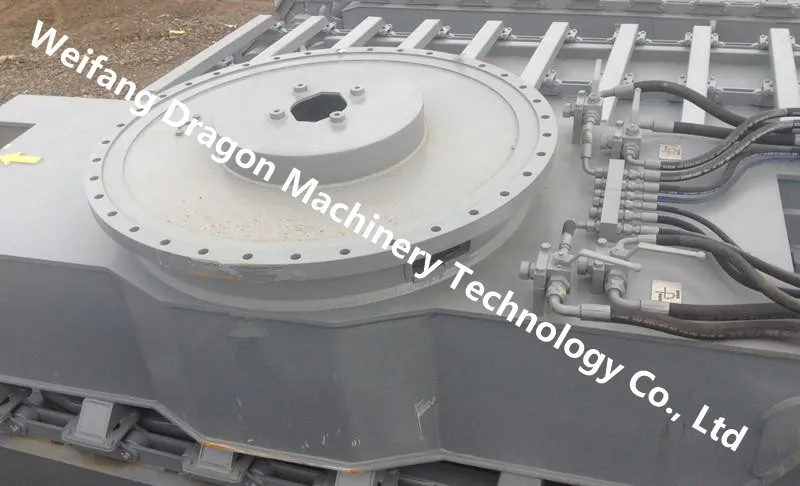

There is one replaceable joint unit between the excavator and floating pontoon which can make it equip with different brands of excavators.

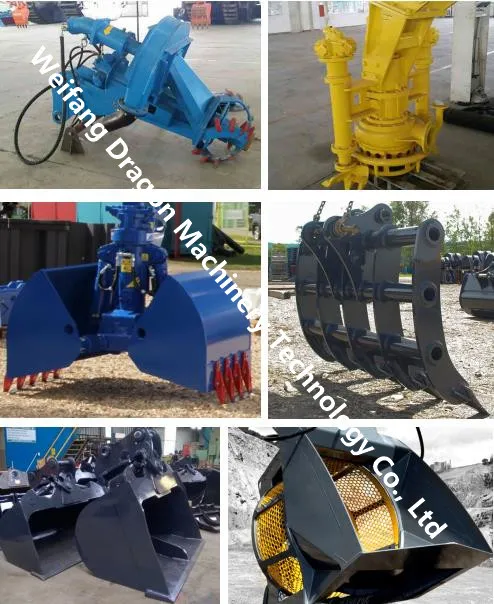

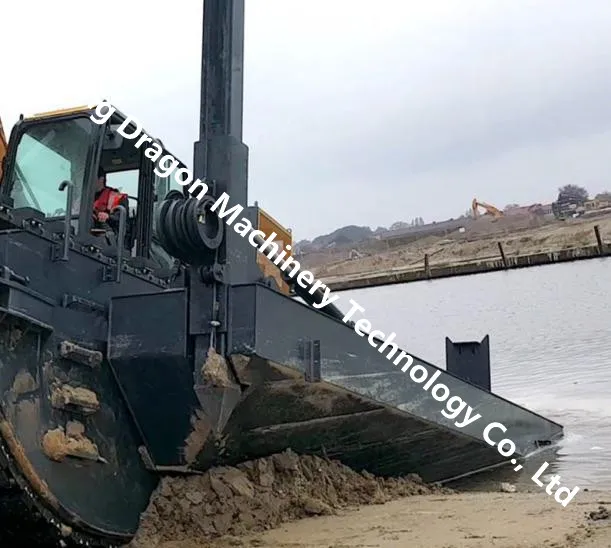

To increase the stability of the amphibious excavator, two spuds can be installed on the floating pontoons. The amphibious excavator can work with different attachments which enlarges the working range.
| Model | DGAME15 | DGAME20 | DGAME26 | DGAME30 |
| Weight | 15000 kg | 20000 kg | 26000 kg | 30000 kg |
| Bucket Capacity | 0.25 m³ | 0.4 m³ | 0.9 m³ | 0.9 m³ |
| Installed Power | 56.5 kw | 89.3 kw | 114 kw | 114 kw |
| Walking Speed | 3.8 km/h | 3.1 km/h | 3.2 km/h | 3.1 km/h |
| Rotating Speed | 11 rpm | 11 rpm | 11 rpm | 11 rpm |
| Grade Ability | 30° | 30° | 30° | 30° |
| Max Digging Depth | 5870 mm | 7360 mm | 5700 mm | 7360 mm |
| Max Digging Radius | 8990 mm | 10810 mm | 9920 mm | 10810 mm |
| Pontoon Dimension | 6640x1300x1420mm | 7170x1490x1700mm | 8080x1490x1700mm | 8290x1800x1650mm |

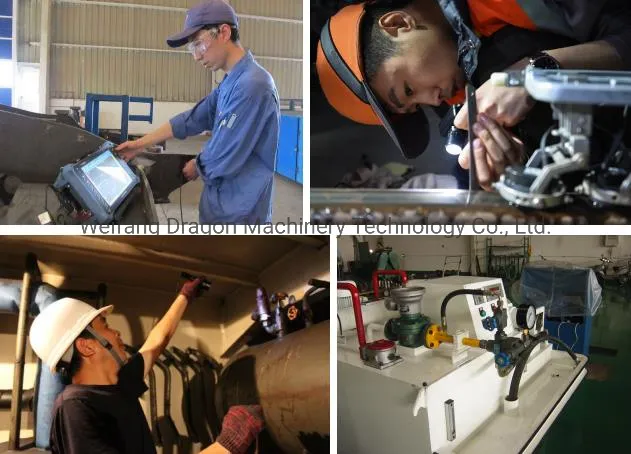

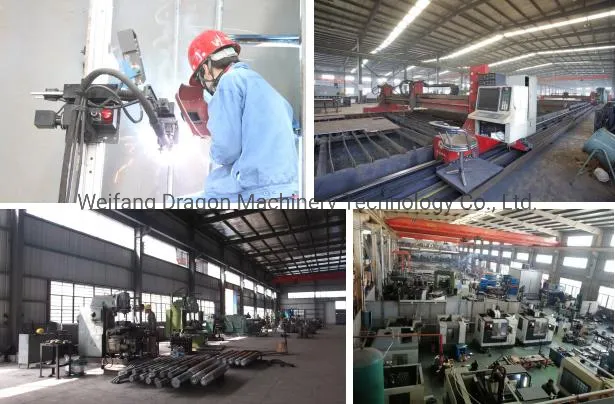

During manufacturing, our quality control department maintains high-frequency quality checks on every detail. The factory is equipped with necessary manufacturing facilities, including CNC cutting machines, welding robots, digital controlled lathes, machining centers, milling machines, grinding machines, punching machines, and surface handling lines. We complete all kinds of machining work, plate welding, finishing, and painting in-house.
Customers rely on the unrivalled level of commitment offered through dedicated and comprehensive life-cycle support services. These help to maximize equipment availability and return on investment, reducing the total cost of ownership.
We supply high-quality training services for site operators to ensure crews operate the dredger efficiently. Logistical support includes the immediate supply of spare parts and repair of components via a global network of technicians.

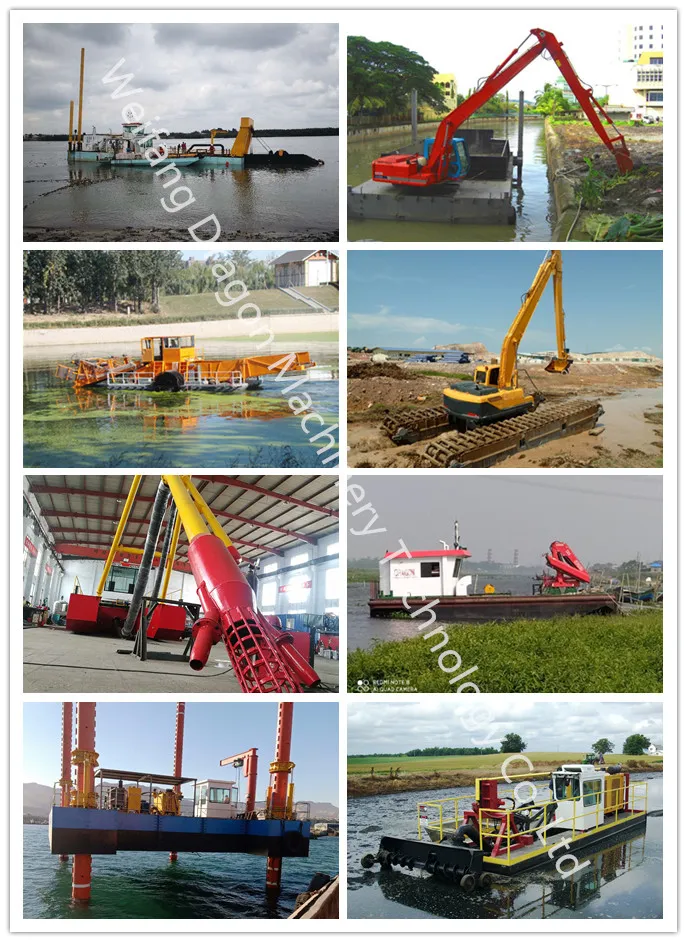

Product scope covers all kinds of dredgers, aquatic weed harvesters, amphibious excavators, workboats, backhoe barges, and jack-up platforms.
