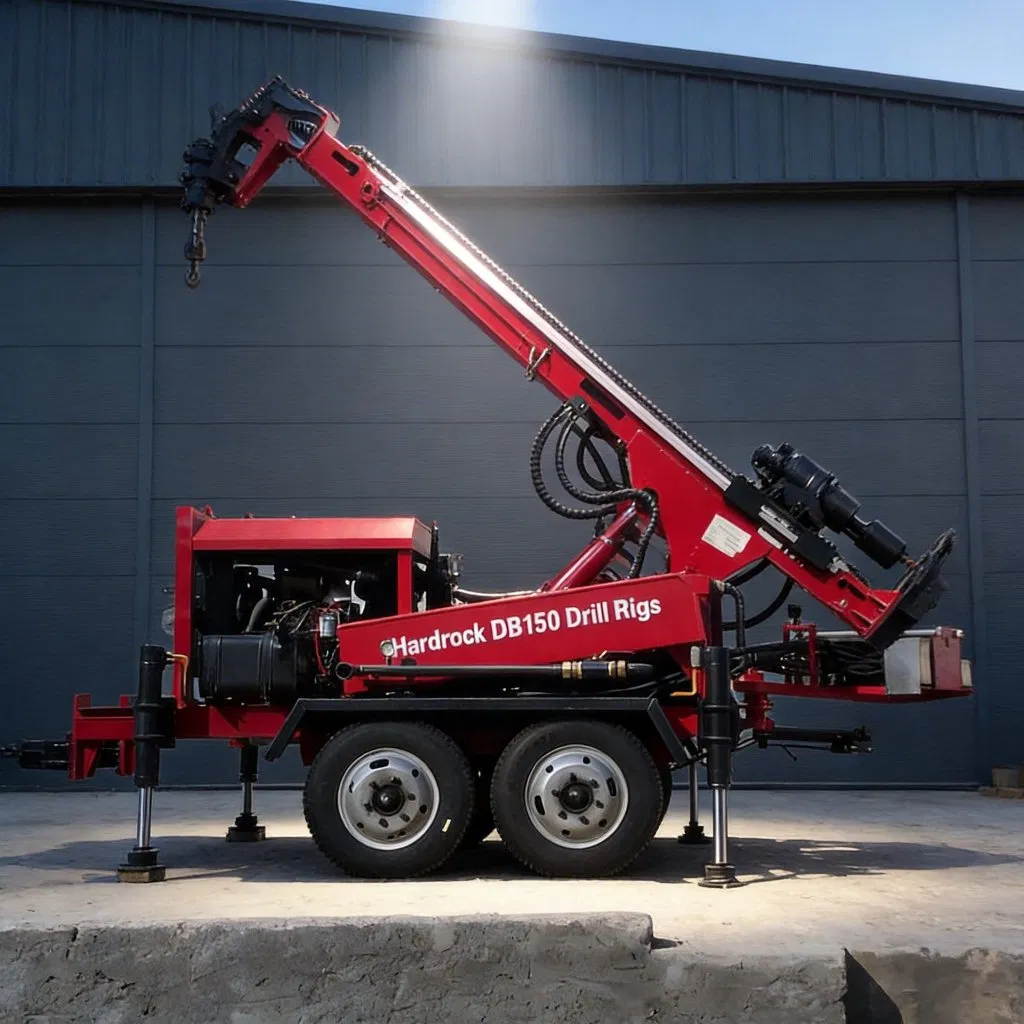

300m Full Hydraulic Water Well Drilling Rig /Portable Digging Machines/Borehole Drilling Machine
300m Full Hydraulic Water Well Drilling Rig /Portable Digging Machines/Borehole Drilling Machine
300m Full Hydraulic Water Well Drilling Rig /Portable Digging Machines/Borehole Drilling Machine
300m Full Hydraulic Water Well Drilling Rig /Portable Digging Machines/Borehole Drilling Machine
300m Full Hydraulic Water Well Drilling Rig /Portable Digging Machines/Borehole Drilling Machine
1 / 5
300m Full Hydraulic Water Well Drilling Rig /Portable Digging Machines/Borehole Drilling Machine
300m Full Hydraulic Water Well Drilling Rig /Portable Digging Machines/Borehole Drilling Machine
300m Full Hydraulic Water Well Drilling Rig /Portable Digging Machines/Borehole Drilling Machine
300m Full Hydraulic Water Well Drilling Rig /Portable Digging Machines/Borehole Drilling Machine
300m Full Hydraulic Water Well Drilling Rig /Portable Digging Machines/Borehole Drilling Machine

300m Full Hydraulic Water Well Drilling Rig /Portable Digging Machines/Borehole Drilling Machine

Customization: Available
Warranty: 12 Months
Certification: CE, RoHS, ISO 9001:2000, ISO 9001:2008
Send Inquiry

Product Description

Basic Information

Model NO.
HM-DB150
Condition
New
Motor
AC Motor
Drill Hole Diameter
200-250mm
Drill Hole Depth
150-200m
Bit Type
Drag Bit
Drilling Way
Impactor
Type
Four-Wheel trailer
Max Pull Force
16-30kN
Working Pressure
13bar
Production Capacity
200 Units/Month
Origin
China

Product Description

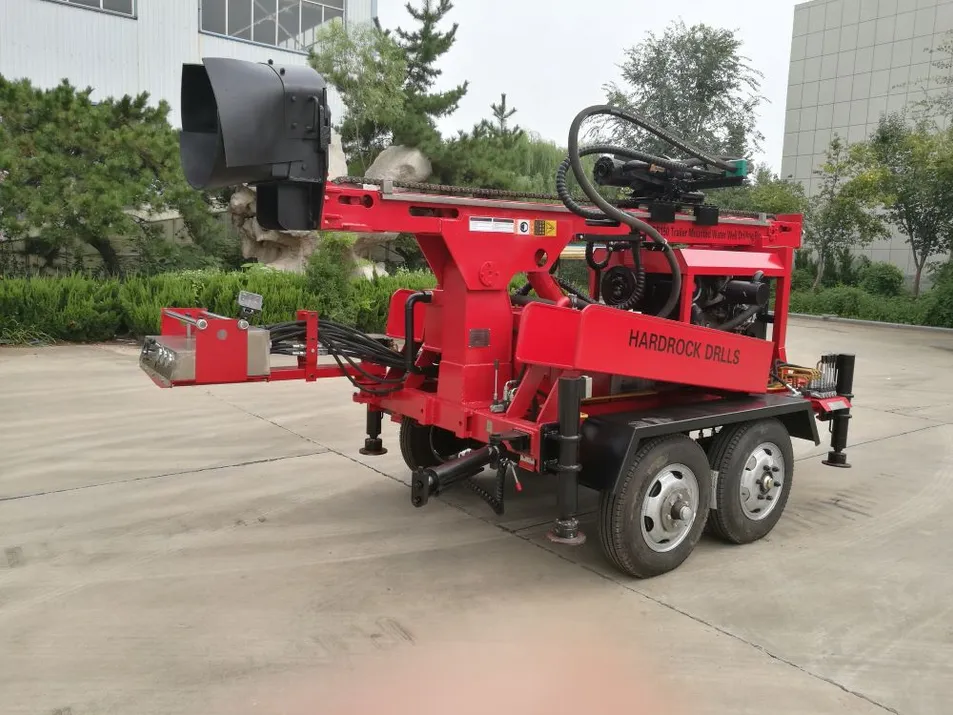

Trailer Water Well Drilling Rig

160m Mini Small Portable Trailer Water Borehole Drilling Machine

The DB Series trailer-mounted hydraulic drilling rig is portable and easy to move, designed for cost-effective and highly efficient water drilling operations. These rigs are widely utilized for building basements, geological core drilling, blasting holes, civil wells, and earth central air-conditioning wells.

Main Features:

  • Equipped with wheel running gear and hydraulic oil cylinder pillars for convenient transferring and easy horizontal adjustment.
  • Hydraulic feed mechanism significantly improves drilling efficiency.
  • Cassette clamping device replaces the standard chuck, allowing for non-stop down rod operation—convenient, safe, and reliable.
  • Integrated pressure gauge allows for easy monitoring of hole conditions at the bottom of the bore.
  • Hydraulically operated falling tower for reliable setup.
  • Diesel engine with electric start for labor-saving operation.

Technical Specification

Spec Item Unit Value
Model-HM-DB150
Drilling Diametermm90 - 230
Drilling Depthm0 - 160
Once Promotion Distancem2
Applicable RockF6 - 20
Wind PressureMpa1.2 - 2.46
Air Consumptionm³/min16 - 25
Engine Powerkw45
Outline Dimensionmm4375 x 1650 x 1920
Total Weightkg2000

Detailed Photos

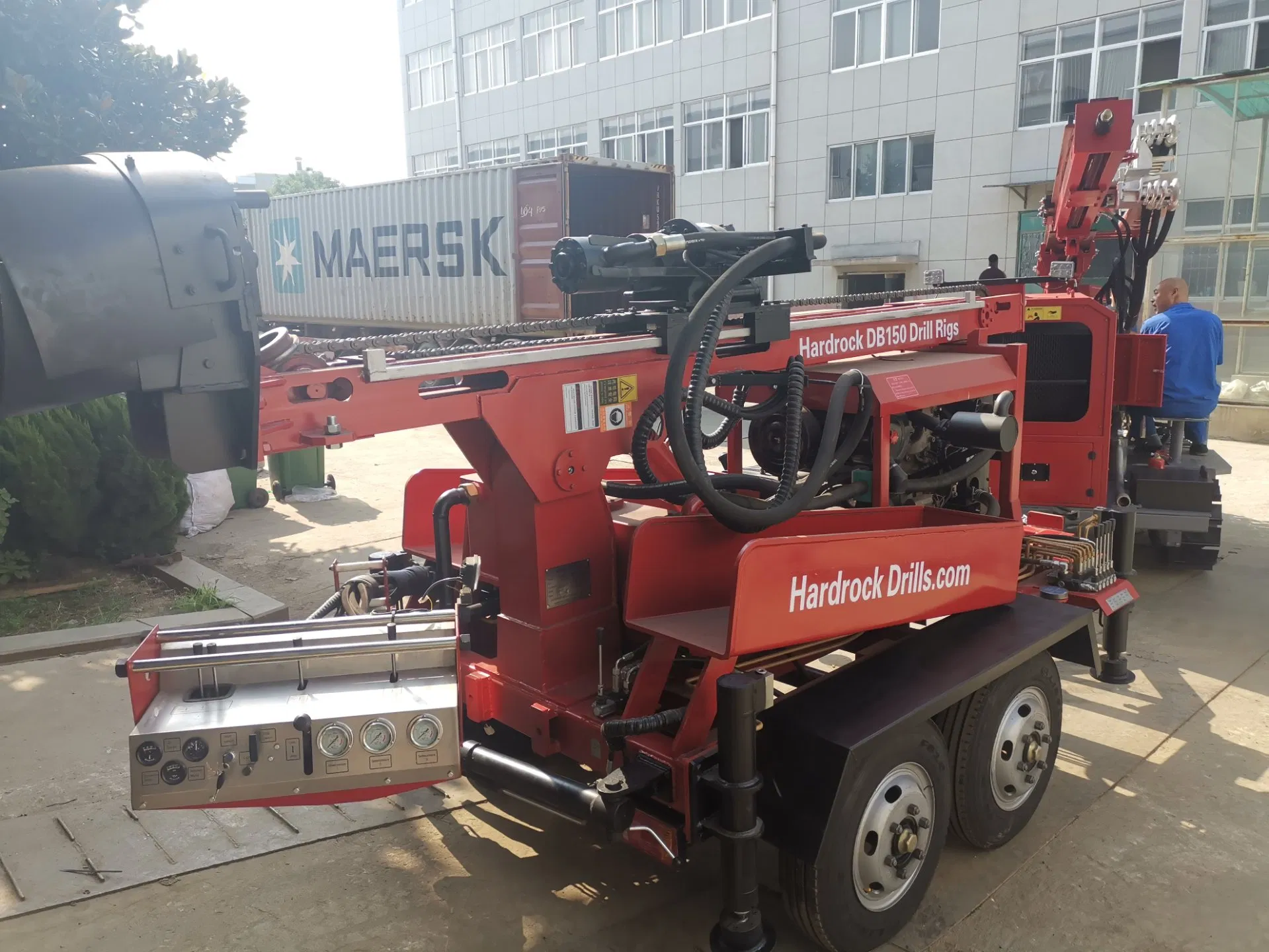

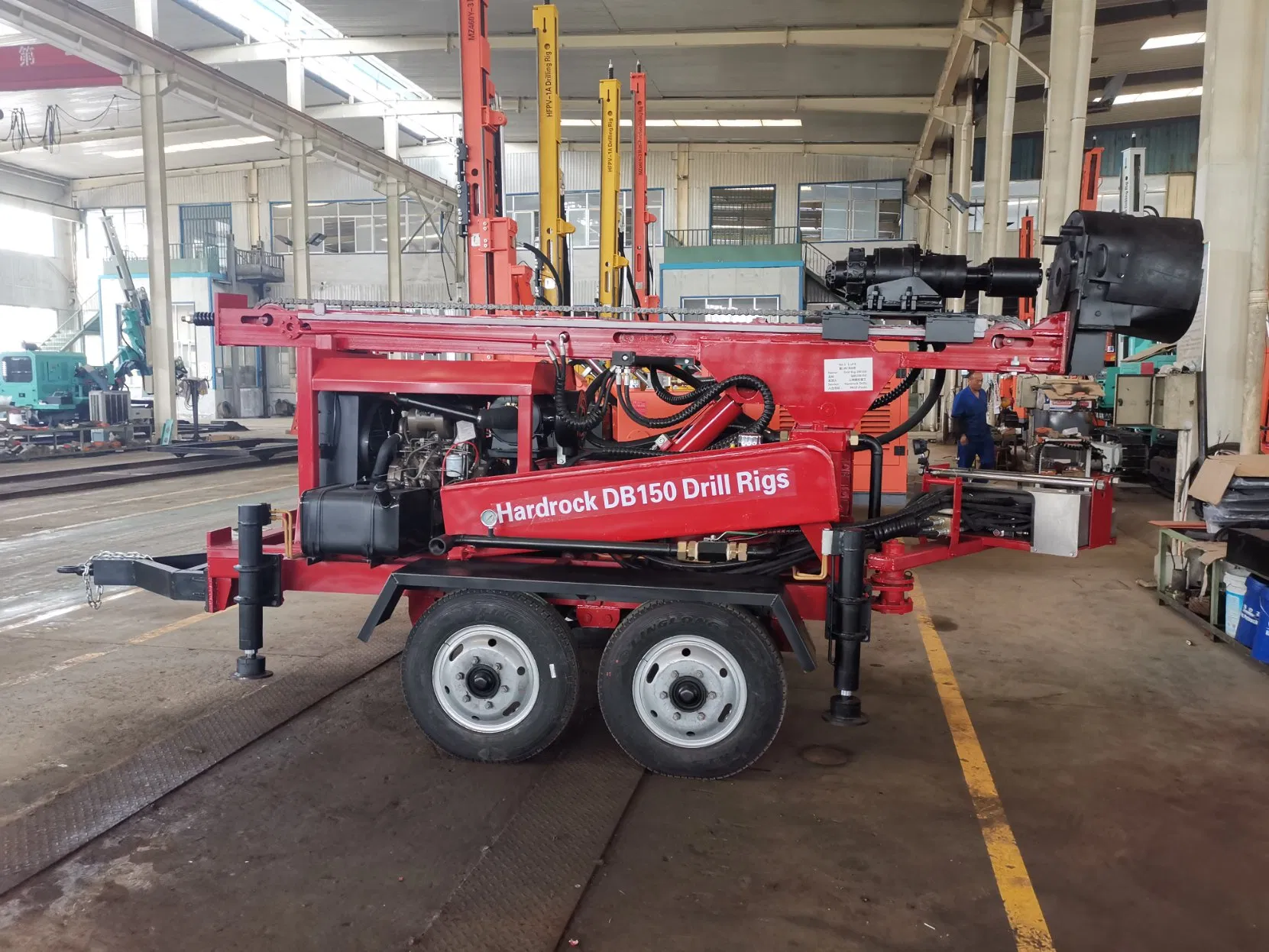

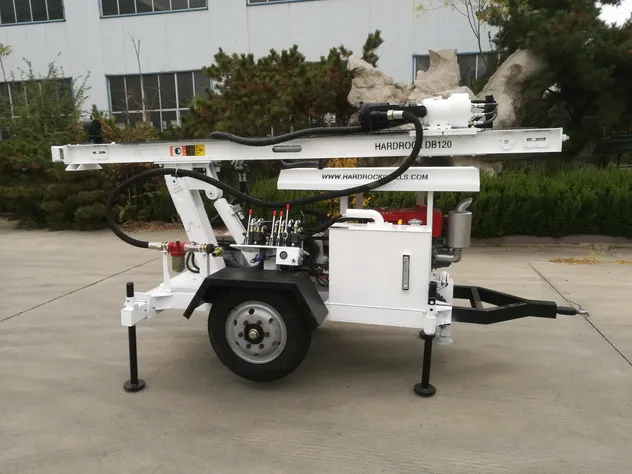

Detailed View 1

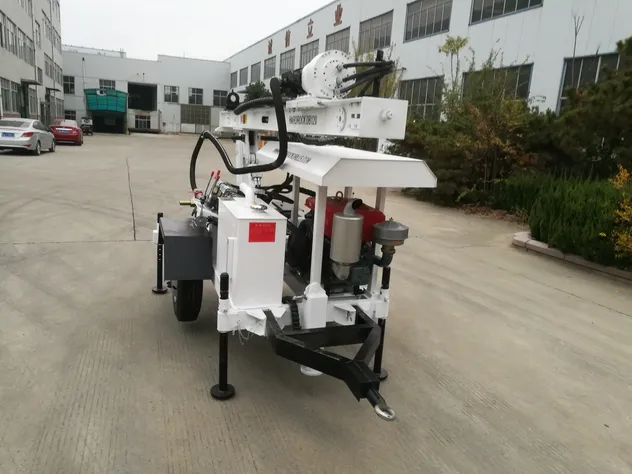

Detailed View 2

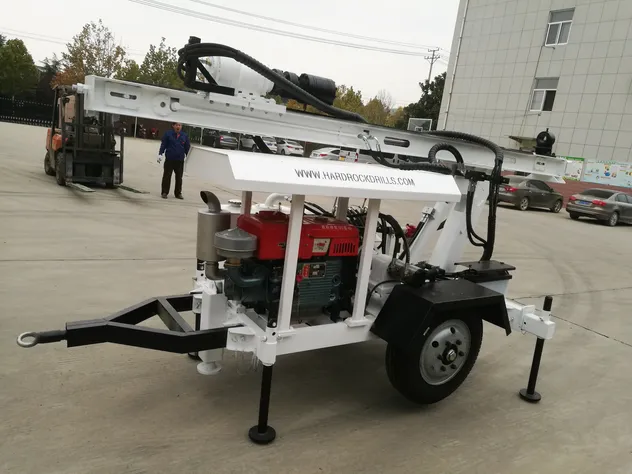

Detailed View 3

Company Profile & Certifications

Company Profile Details
Certifications

After Sales & Delivery

After Sales Service

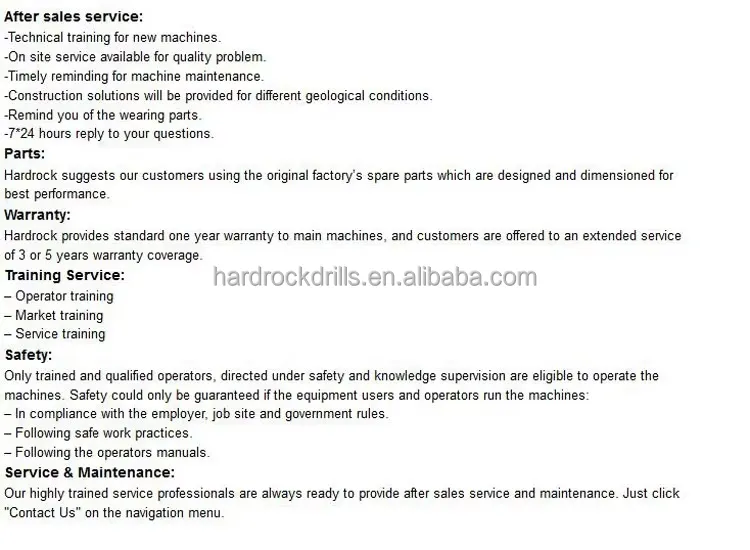

Service Support
Support Network
Packing Details
Delivery Process
Loading

Frequently Asked Questions

What is the maximum drilling depth of the HM-DB150?
The HM-DB150 is designed to reach a drilling depth of 150 to 200 meters, depending on geological conditions.
What types of drilling methods does this machine support?
It supports both Drag Bit drilling and Impactor drilling ways, making it versatile for various soil and rock types.
Is the drilling rig easy to move between work sites?
Yes, it features a four-wheel trailer design and is equipped with wheel running gear, making it highly portable and easy to transport.
What power source does the drilling machine use?
The unit is equipped with a 45kw engine and an AC motor. It also features a diesel engine with an electric start for labor-saving operation.
What kind of after-sales service is provided?
After-sales service includes technical support and engineers available to service machinery overseas if required.
What are the primary applications for this rig?
It is ideal for civil water wells, geological core drilling, building basement foundation work, and blasting holes.
