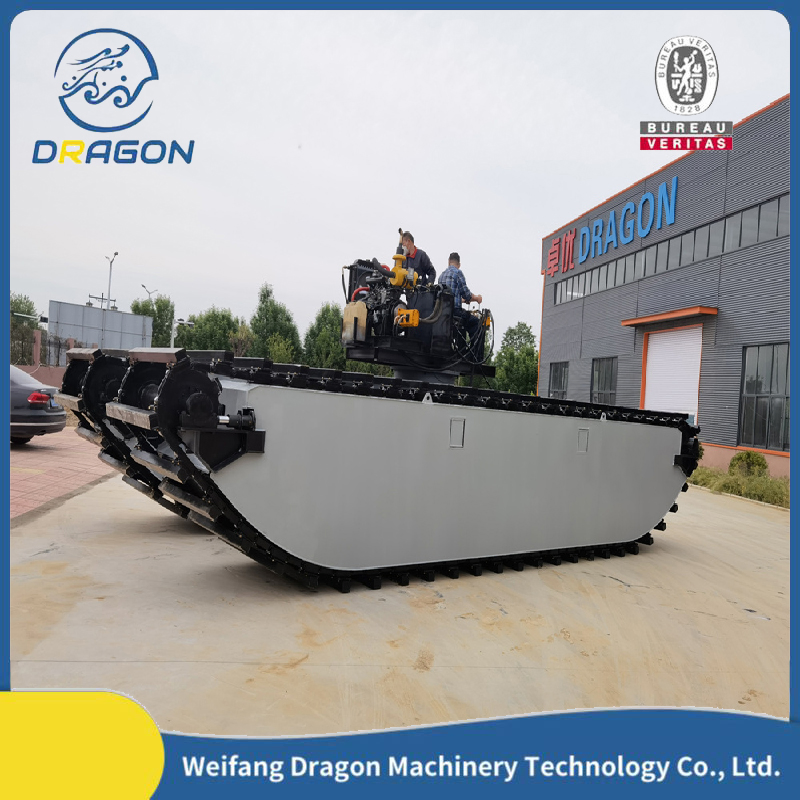

Multi Function Amphibious Cutter Suction Dredger for Sale 15000 kg Dredging Equipment

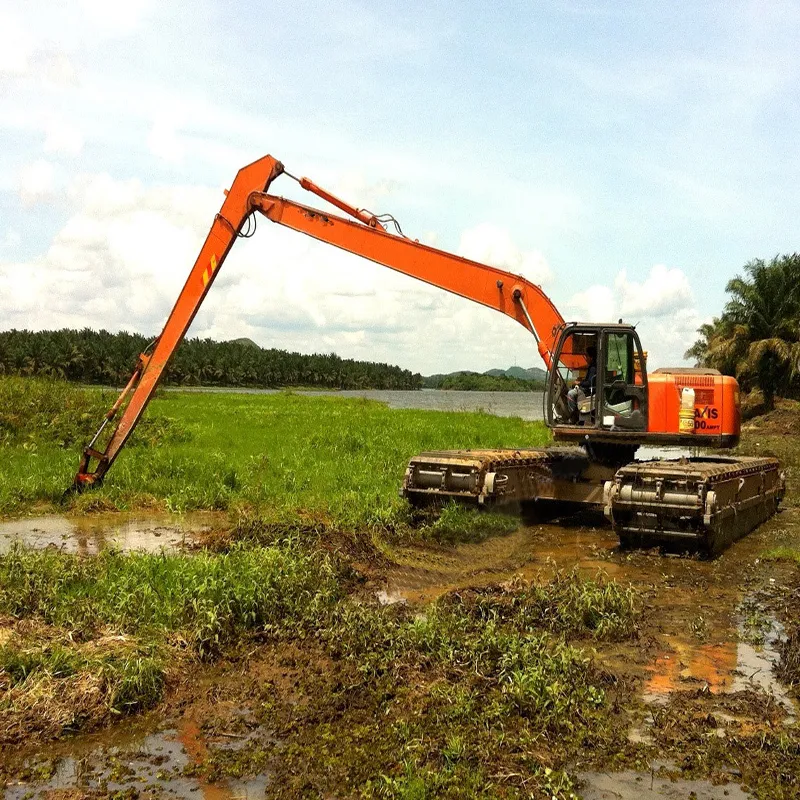

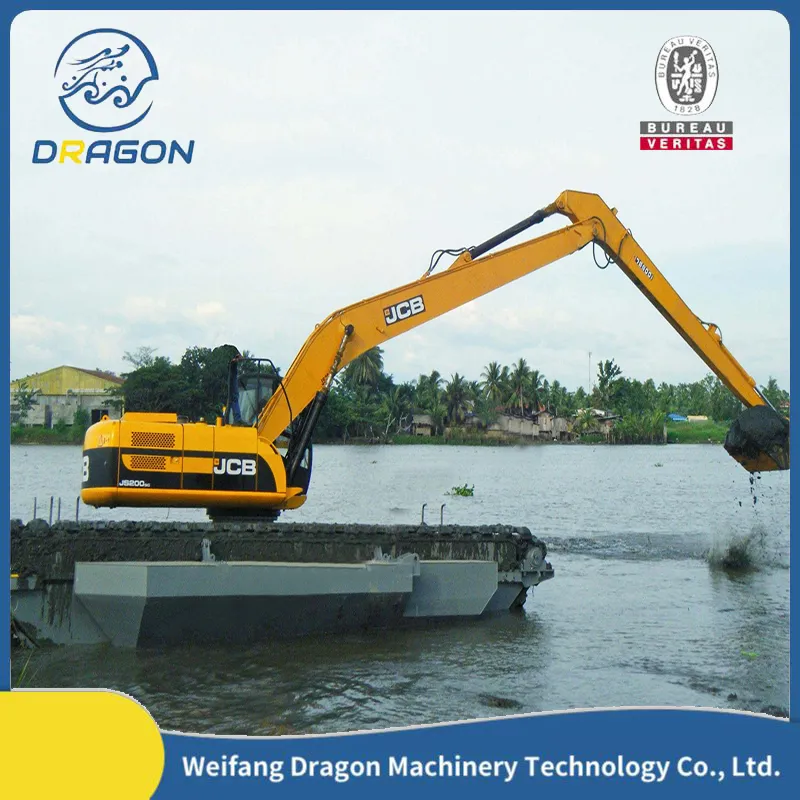

The amphibious excavator is a multifunctional machine suitable for working in swamps, shallow water, and land areas. It is widely used for dredging work in rivers and lakes, as well as resources and environmental protection in wetlands and coastal areas.

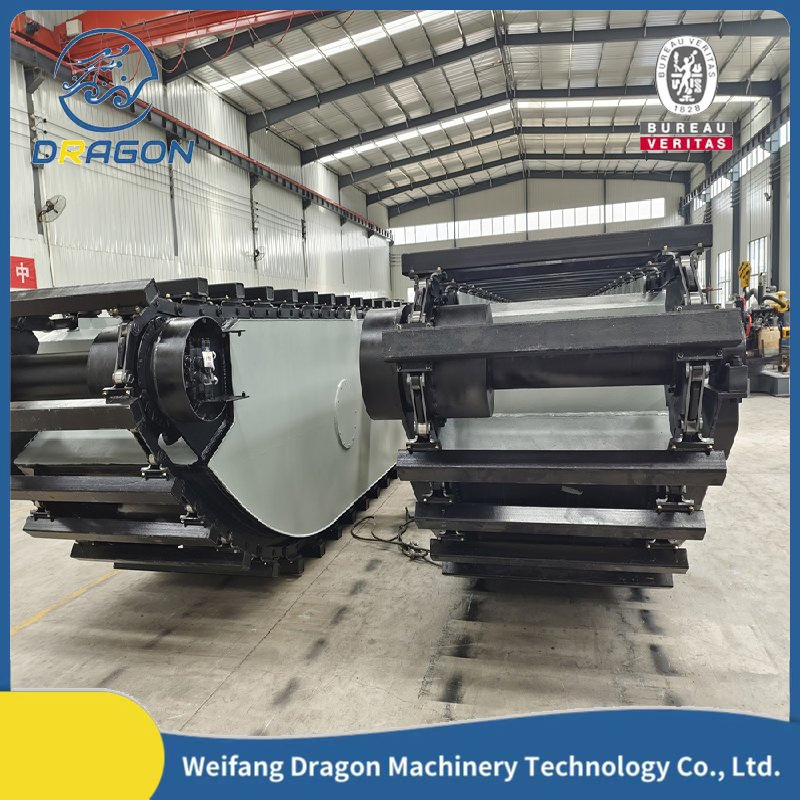

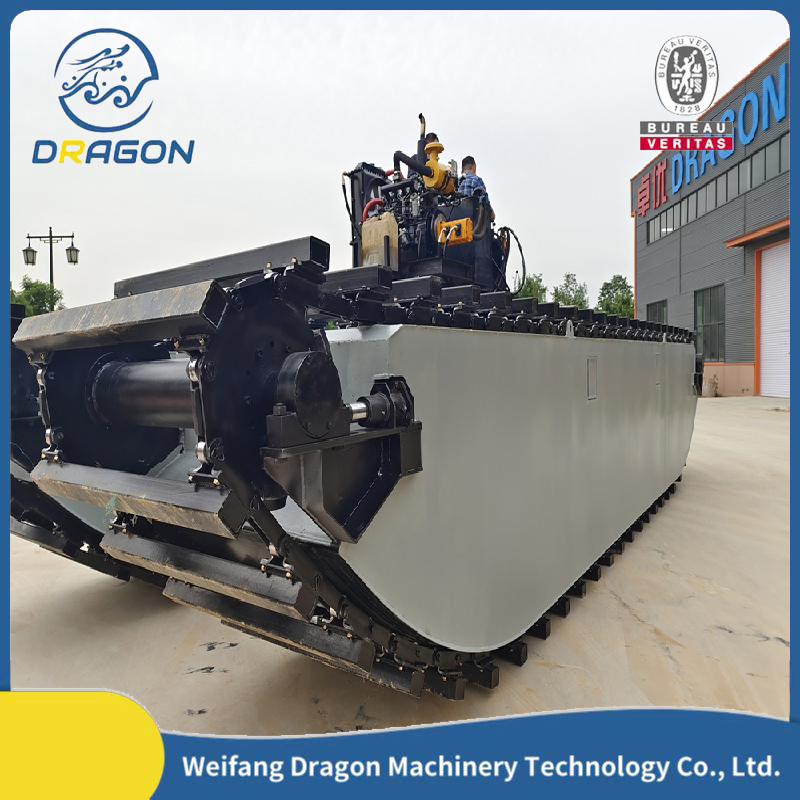

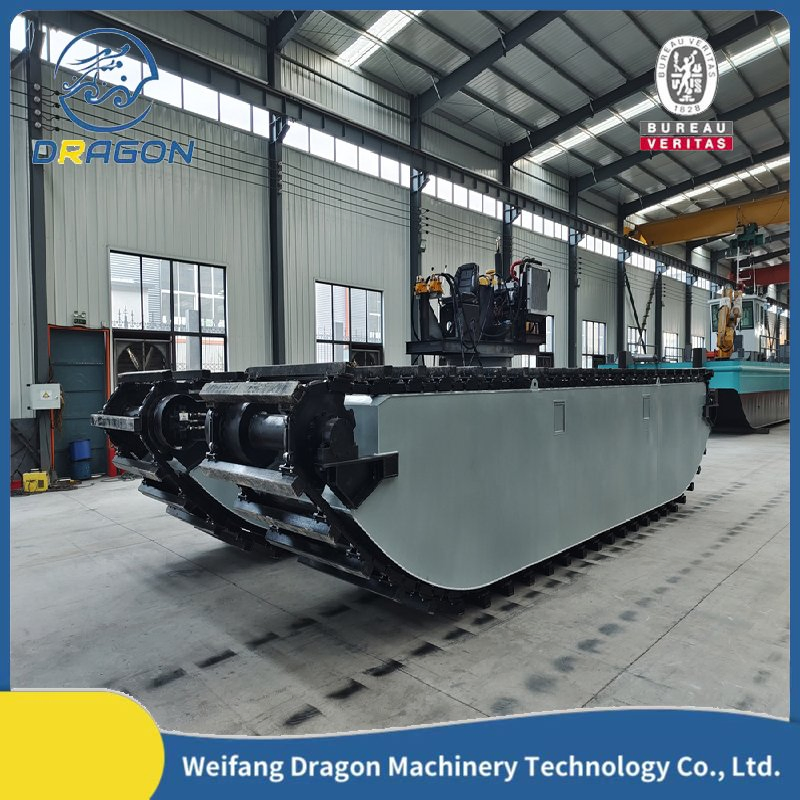

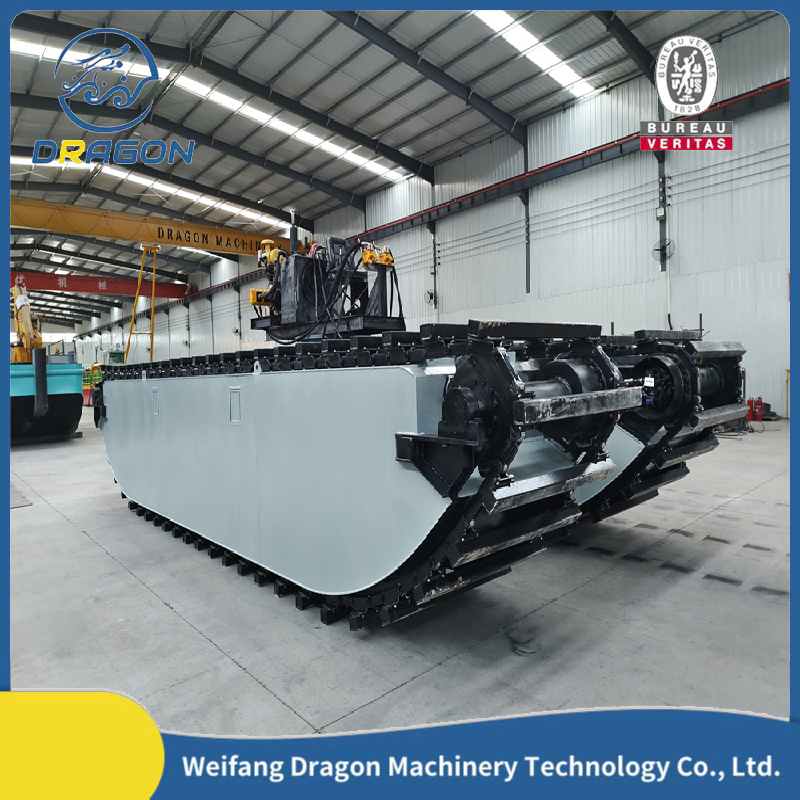

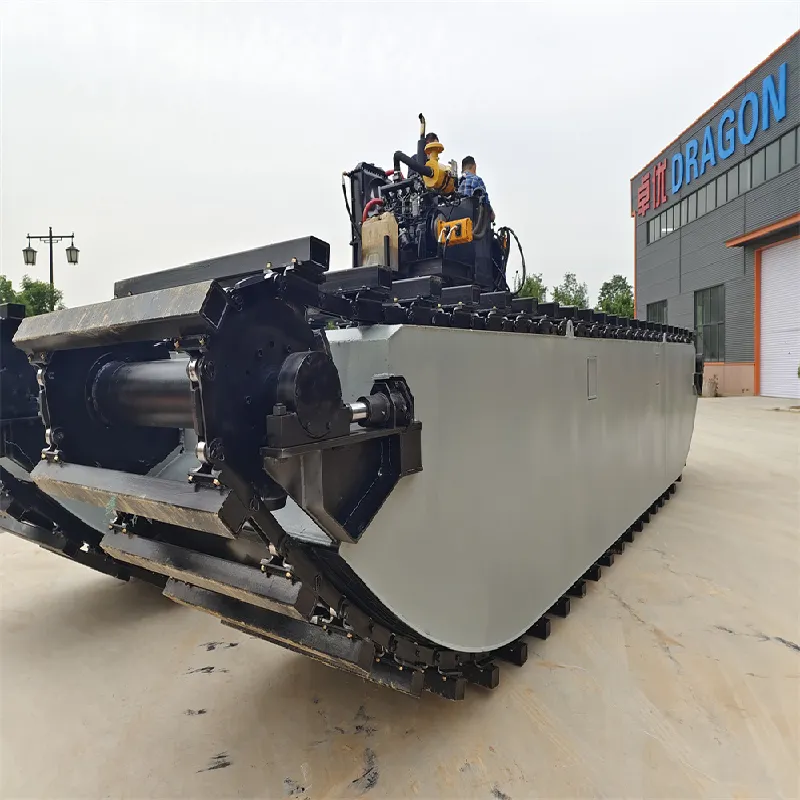

The track shoe and floating pontoon are strengthened specially to enable the amphibious excavator to work in harsh environments.
There is a replaceable joint unit between the excavator and floating pontoon which allows it to be equipped with different brands of excavators.
To increase the stability of the amphibious excavator, two spuds can be installed on the floating pontoons.
The amphibious excavator can work with different attachments which enlarges the working range.
| Model | DGAME15 | DGAME20 | DGAME26 | DGAME30 |
|---|---|---|---|---|
| Weight | 15000 kg | 20000 kg | 26000 kg | 30000 kg |
| Bucket Capacity | 0.25 m³ | 0.4 m³ | 0.9 m³ | 0.9 m³ |
| Installed Power | 56.5 kw | 89.3 kw | 114 kw | 114 kw |
| Walking Speed | 3.8 km/h | 3.1 km/h | 3.2 km/h | 3.1 km/h |
| Rotating Speed | 11 rpm | 11 rpm | 11 rpm | 11 rpm |
| Grade Ability | 30° | 30° | 30° | 30° |
| Max Digging Depth | 5870 mm | 7360 mm | 5700 mm | 7360 mm |
| Max Digging Radius | 8990 mm | 10810 mm | 9920 mm | 10810 mm |
| Pontoon Dimension | 6640 x 1300 x 1420 mm | 7170 x 1490 x 1700 mm | 8080 x 1490 x 1700 mm | 8290x 1800 x 1650 mm |
During manufacturing, our quality control department maintains high-frequency quality checks on every detail.

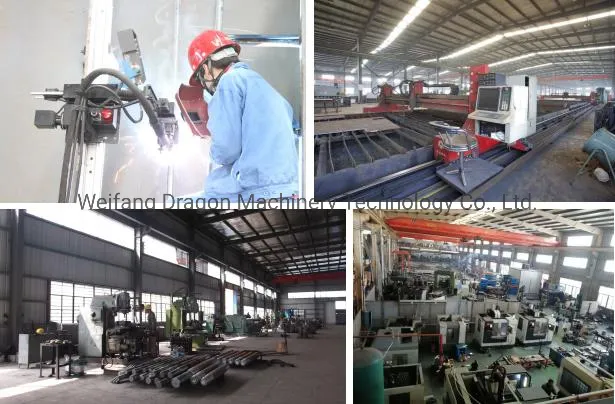

Manufacturing Ability: Our facility is equipped with all necessary manufacturing tools, including CNC cutting machines, welding robots, digital controlled lathes, machining centers, milling machines, grinding machines, punching machines, and surface handling lines. We complete all kinds of machining work, plate welding, finishing, and painting in-house.
Customers rely on our commitment through dedicated and comprehensive life-cycle support services. These help to maximize equipment availability and return on investment while reducing the total cost of ownership.
We supply high-quality and up-to-date training services for site operators to ensure crews operate the dredger efficiently. Logistical support includes immediate supply of spare parts and repair of components through a global network of qualified technicians.
