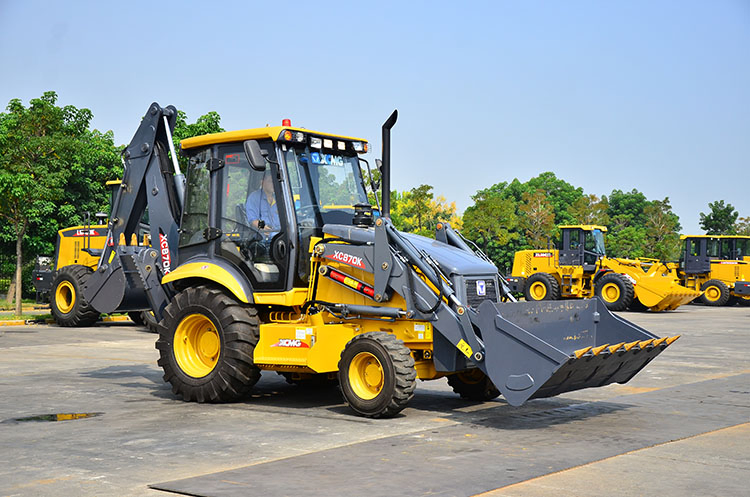

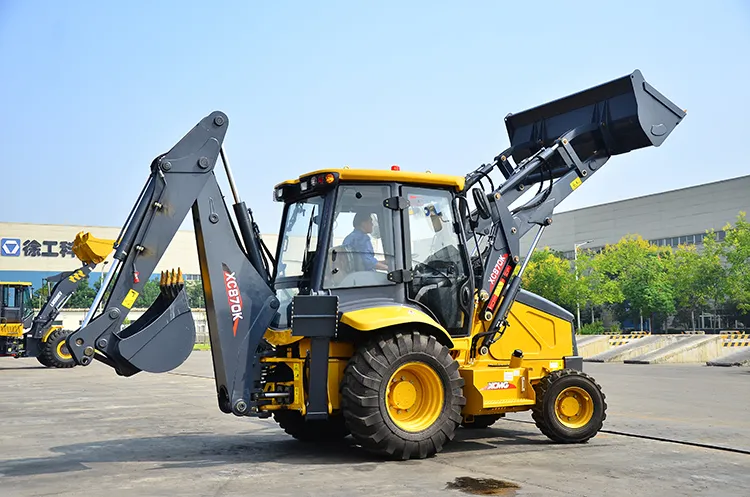

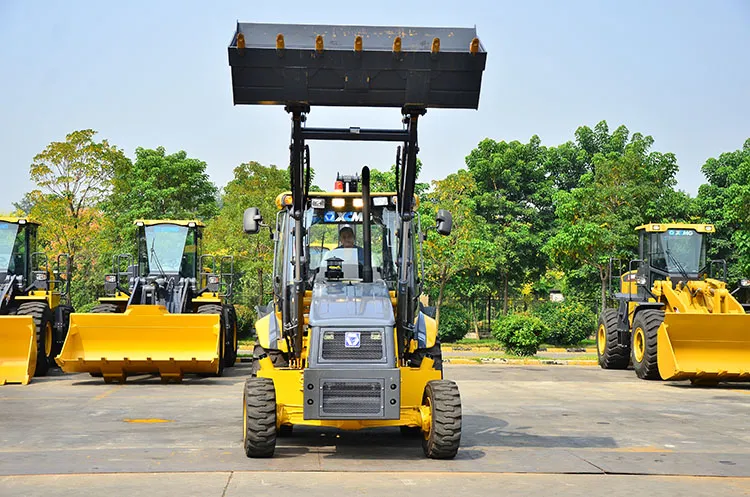

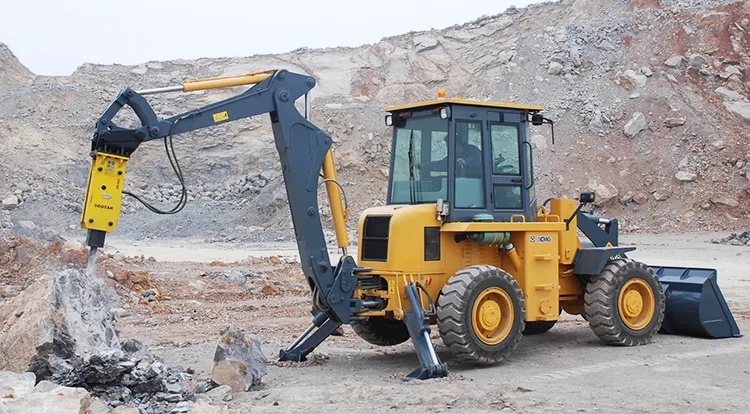

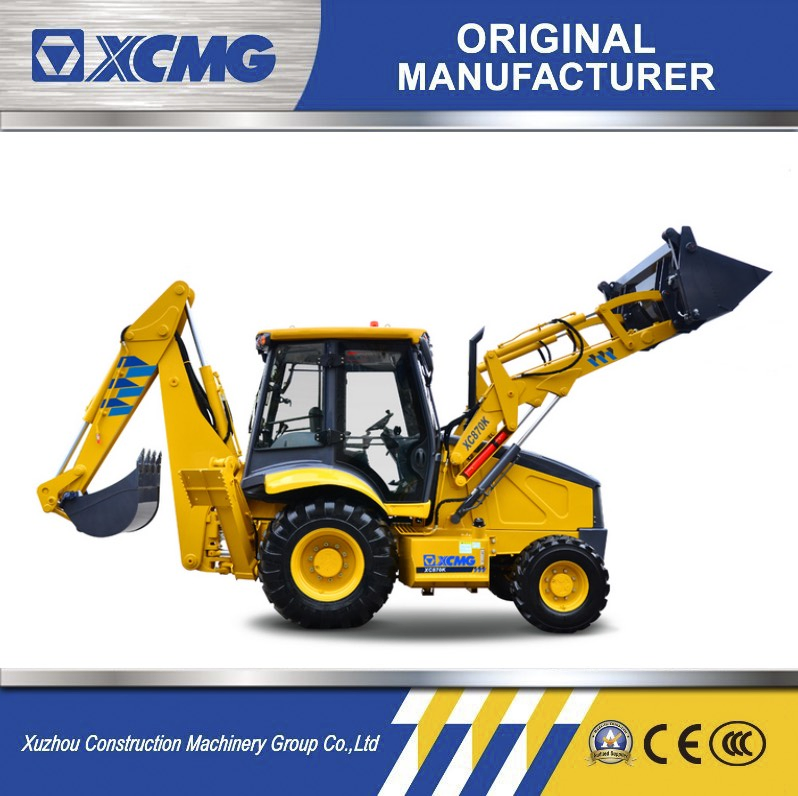

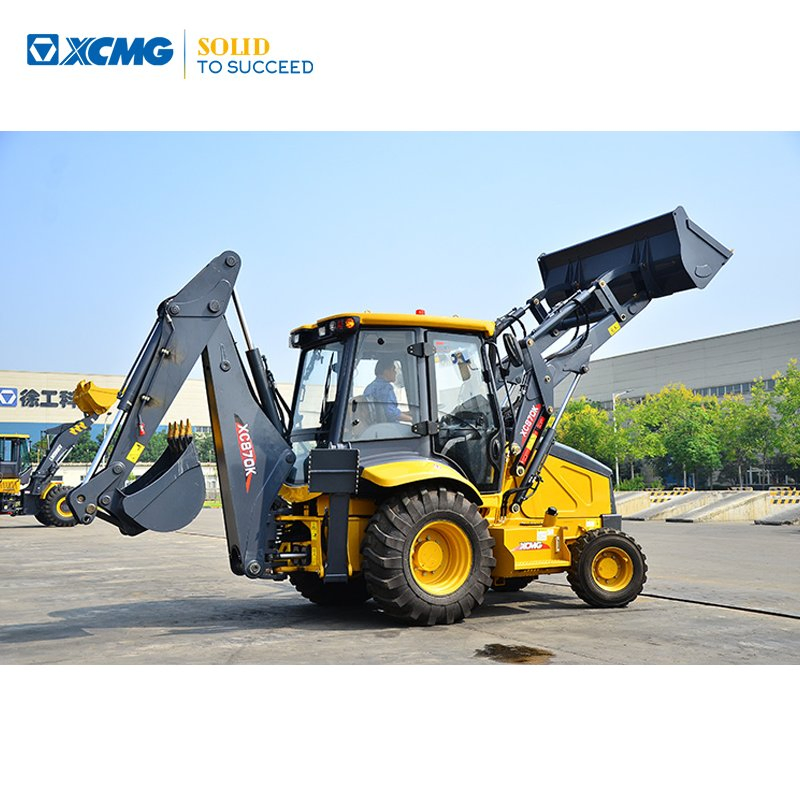

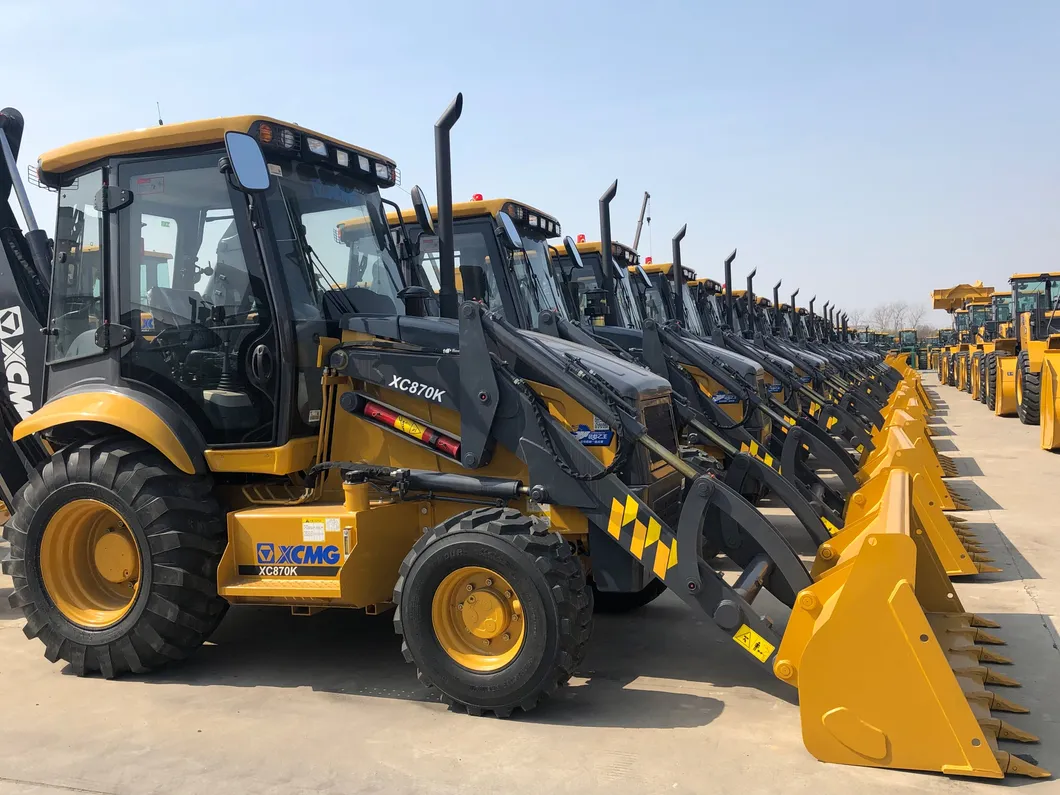

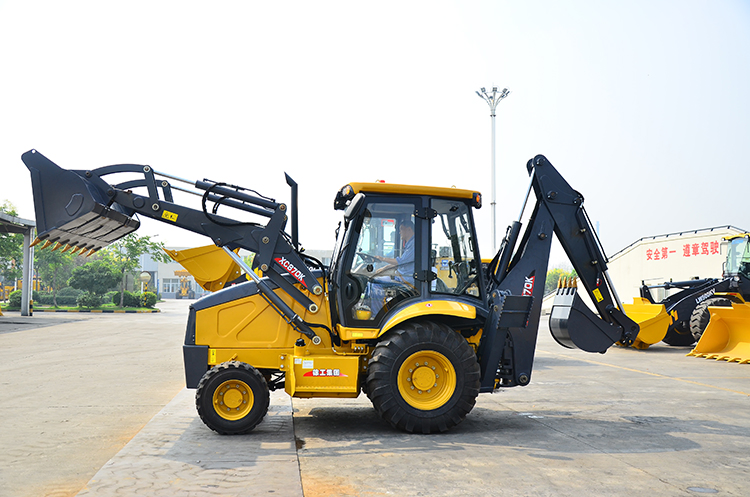

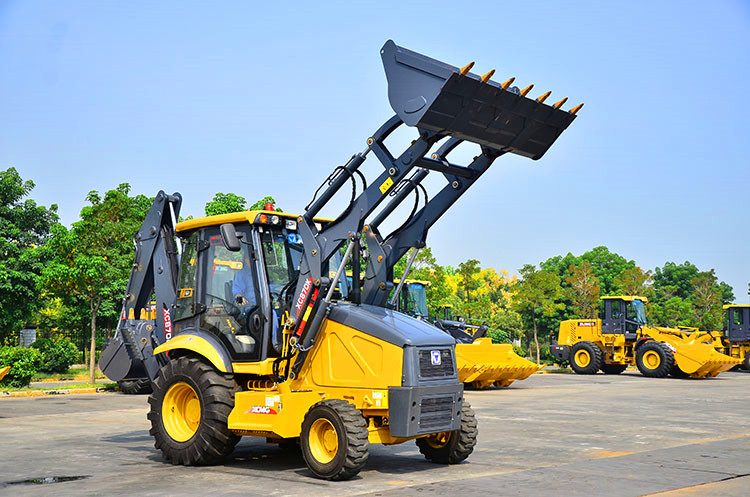

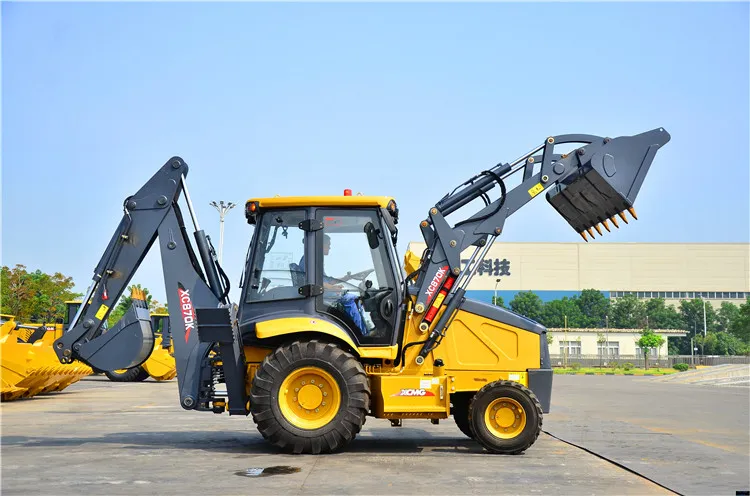

Construction Machinery Mini Wheel Loader Backhoe Machine XC870K
1. The overall layout and axle load distribution are optimized for superior traveling stability. With a maximum speed of 40km/h, it ensures rapid site transitions.
2. Advanced hydraulic system distribution technology provides high energy-saving performance and operational efficiency.
3. Industry-leading breakout force on the loading end, exceeding comparable models by 15%~20%.
4. Features advanced structural hinge points at the digging end and the industry's largest bucket rotation angle for exceptional soil holding capacity.
| Description | Unit | XC870K Value |
|---|---|---|
| Chassis type | - | Integrated |
| Drive style | - | 4 drive / 2 drive |
| Outline dimensions (L×W×H) | mm | 7440×2350×3450 |
| Total weight | kg | 7600 |
| Max. travel speed | km/h | ≥40 |
| Engine Power | kW | 82 |
| Loading Bucket capacity | m³ | 1 |
| Rated load | kg | 2500 |
| Max. breakout force | kN | 66 |
| Digging Bucket capacity | m³ | 0.3 |
| Max. digging depth | mm | 4425 |
| Max. digging force | kN | 63 |
