Hydraulic Fluid Systems Omsw 250

Customization:	Available
Certification:	CE
Pressure:	Medium Pressure

Send Inquiry

Product Description

Technical Specifications

Model NO.

omsw 250

Work Temperature

High Temperature

Voltage

220V

Installation

Horizontal

Material

Alloy Steel

Warranty

18 Months

Delivery

10-15 Working Days

Origin

China

HS Code

8412291000

Capacity

500,000 Sets Per Year

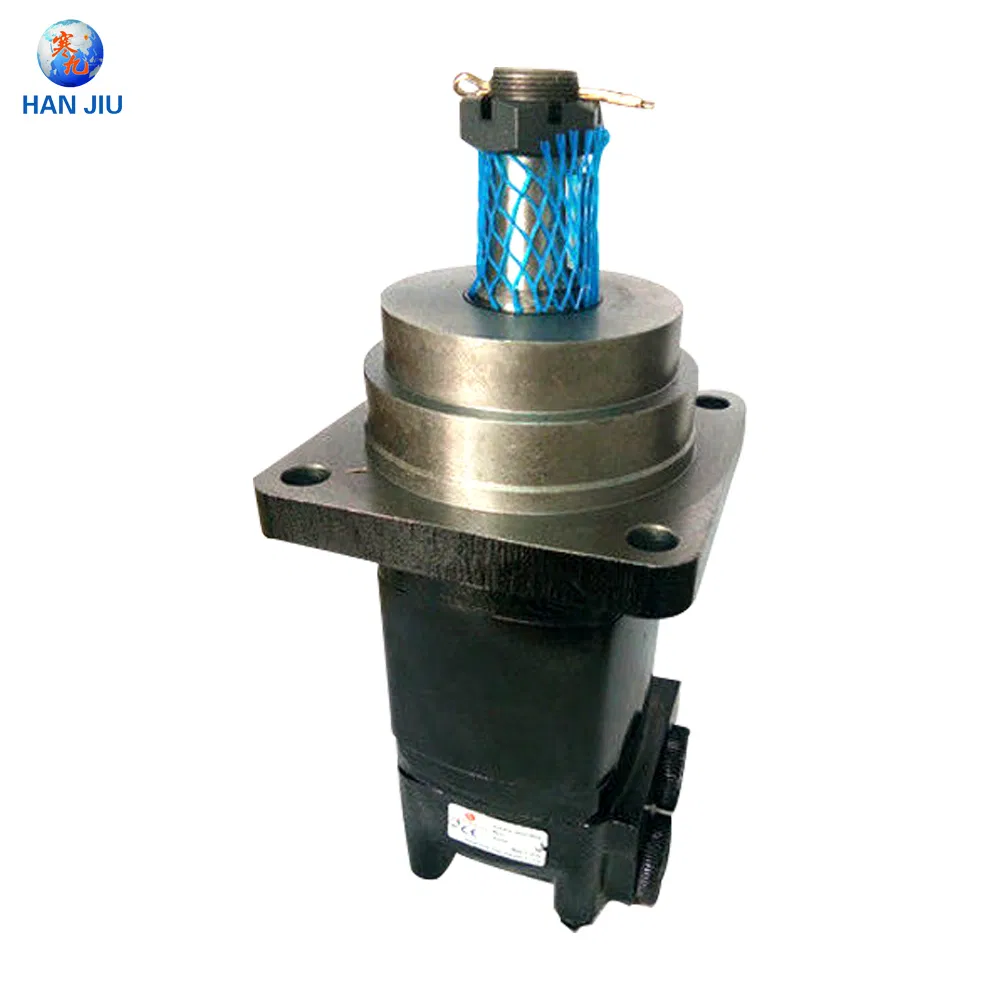

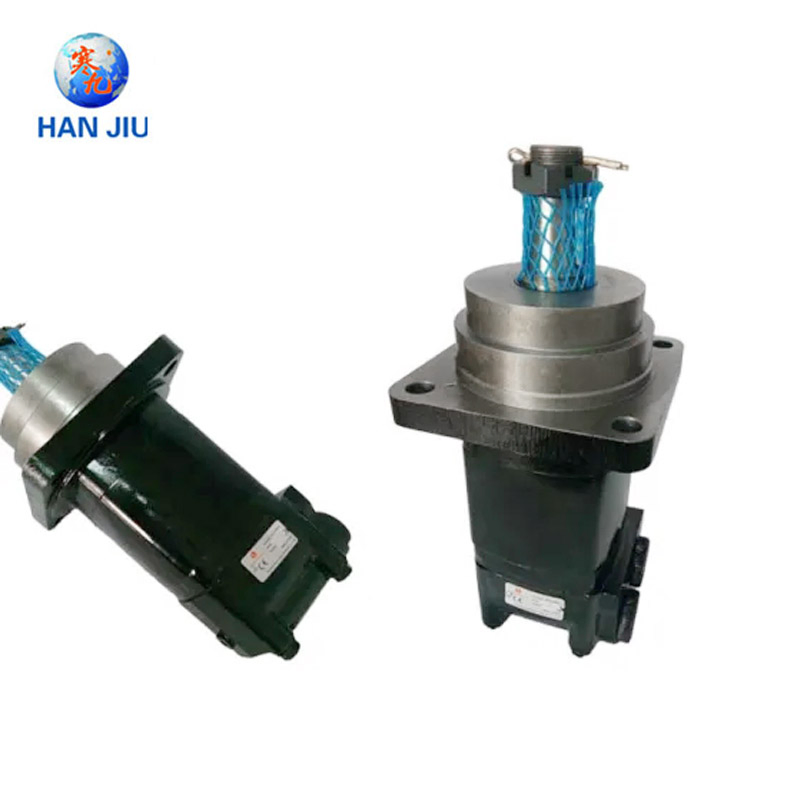

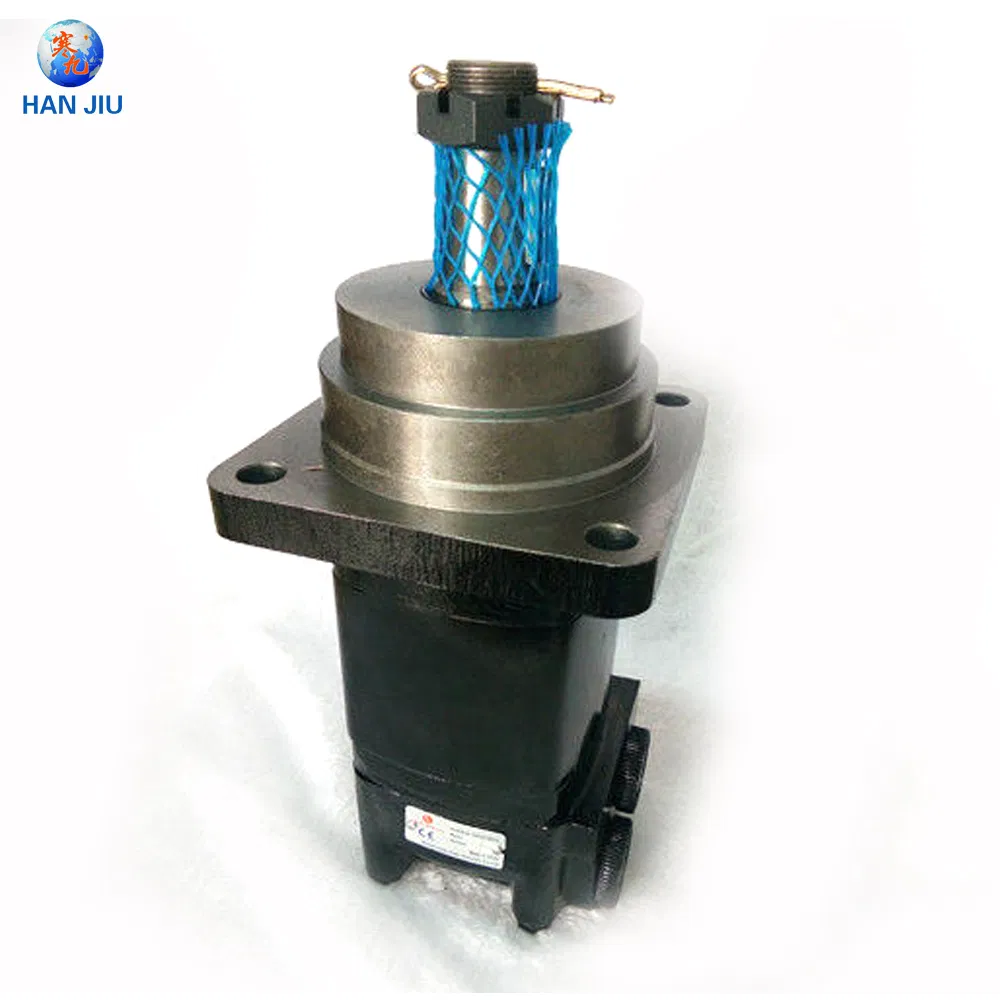

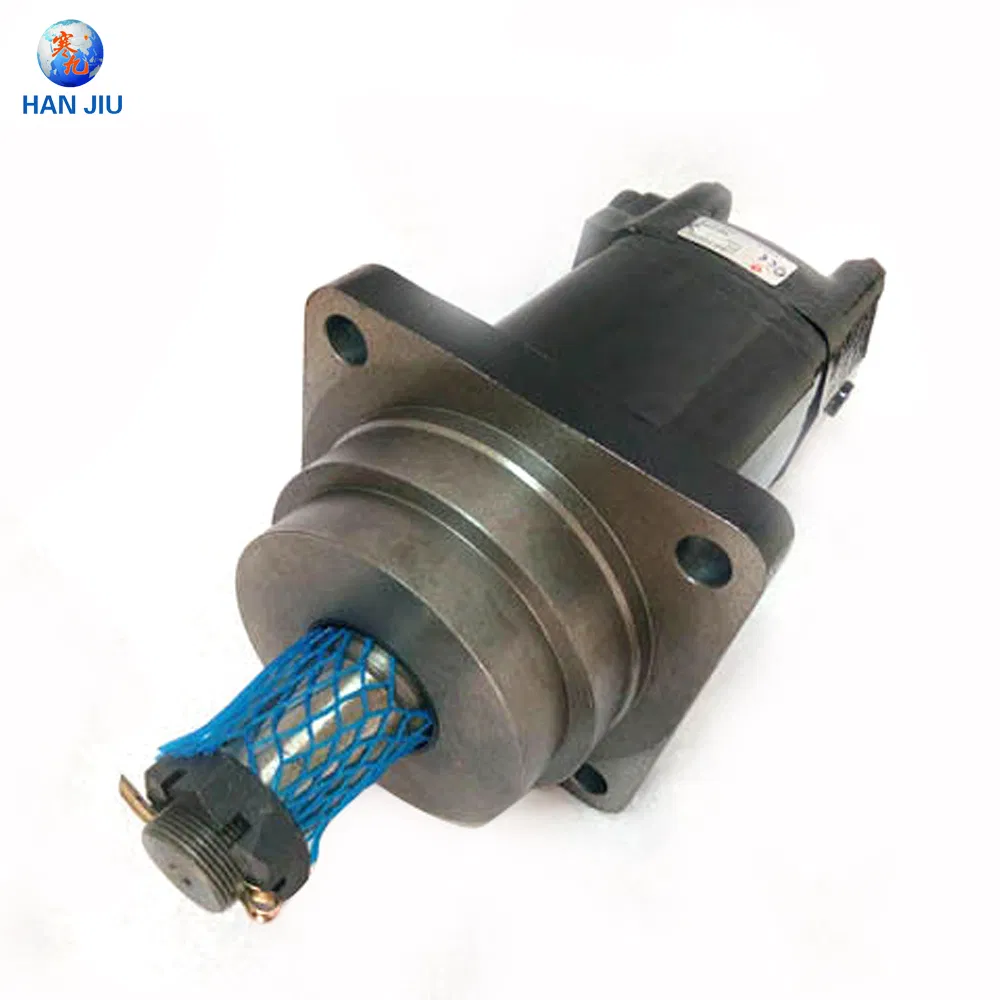

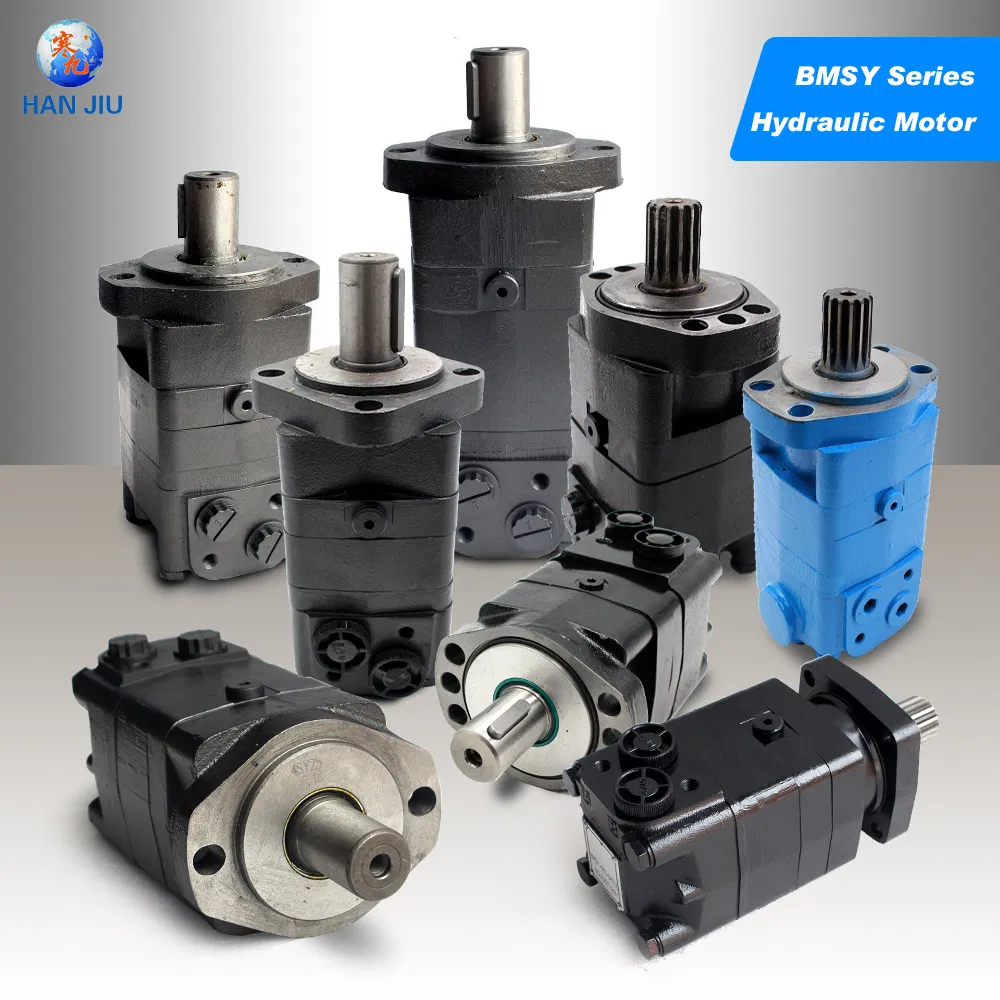

Hydraulic Fluid Systems omsw 250

OMS motor series - Hydraulic Wheel Motor Straight Cone Shaft

Product Compatibility & Standards

Equivalent to Eaton Char lynn 2k series
Matches OMS series standards
Compatible with M+S MS series
High capability for OEM part matching and service

Output volume: 315 cc/rev

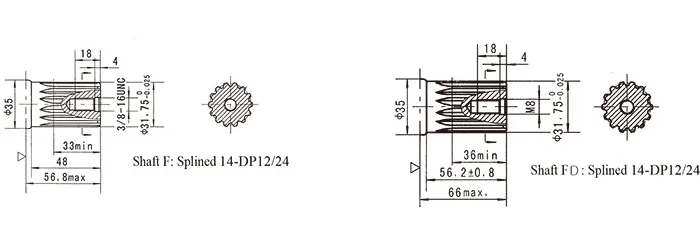

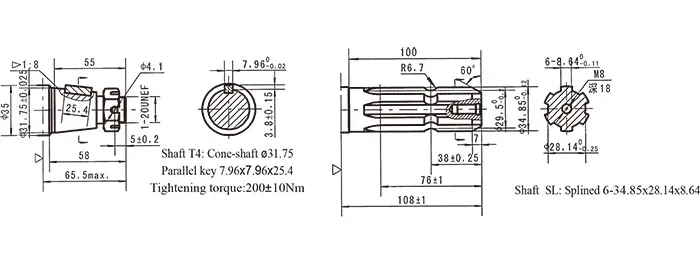

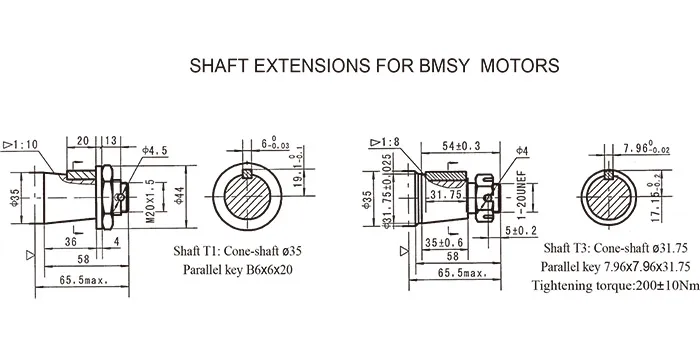

Shaft: Cone shaft 35 mm

Max R.P.M: 280

Max Torque: 1080 Nm

Max Power: 18.9 kW

Main Connection: G 1/2"

Leakage Connection: G 1/4"

Main Product Ranges

Hydraulic Orbital Motors: OMP, OMR, OMS, OMH, OMT, OMV series (Compatible with international standard OSPC, OSPB models).
Orbital Steering Units: 101S, 101, 102S, 060 series.
Hydraulic Gear Pumps: CBT, CBG-F3, GPC4, G5 series. High-quality replacements for industrial standard pumps.
Hydraulic Monoblock Valves: P40, P80, and related series.

Frequently Asked Questions

1. What is the max torque and power for the OMSW 250 motor? The OMSW 250 hydraulic motor provides a maximum torque of 1080 Nm and a maximum power output of 18.9 kW.

2. Can this motor replace Eaton or Danfoss models? Yes, this series is designed to be compatible with Eaton Char-Lynn 2k series, Danfoss OMS series, and M+S MS series.

3. What are the installation requirements? The motor is designed for horizontal installation and utilizes a 35mm cone shaft.

4. What is the warranty period for this hydraulic motor? All units come with an 18-month warranty from the date of purchase.

5. How long is the typical delivery time? Standard delivery takes approximately 10-15 working days depending on the order volume.

6. What materials are used in its construction? The motor is constructed using high-grade Alloy Steel to ensure durability in high-temperature environments.
