Product Description

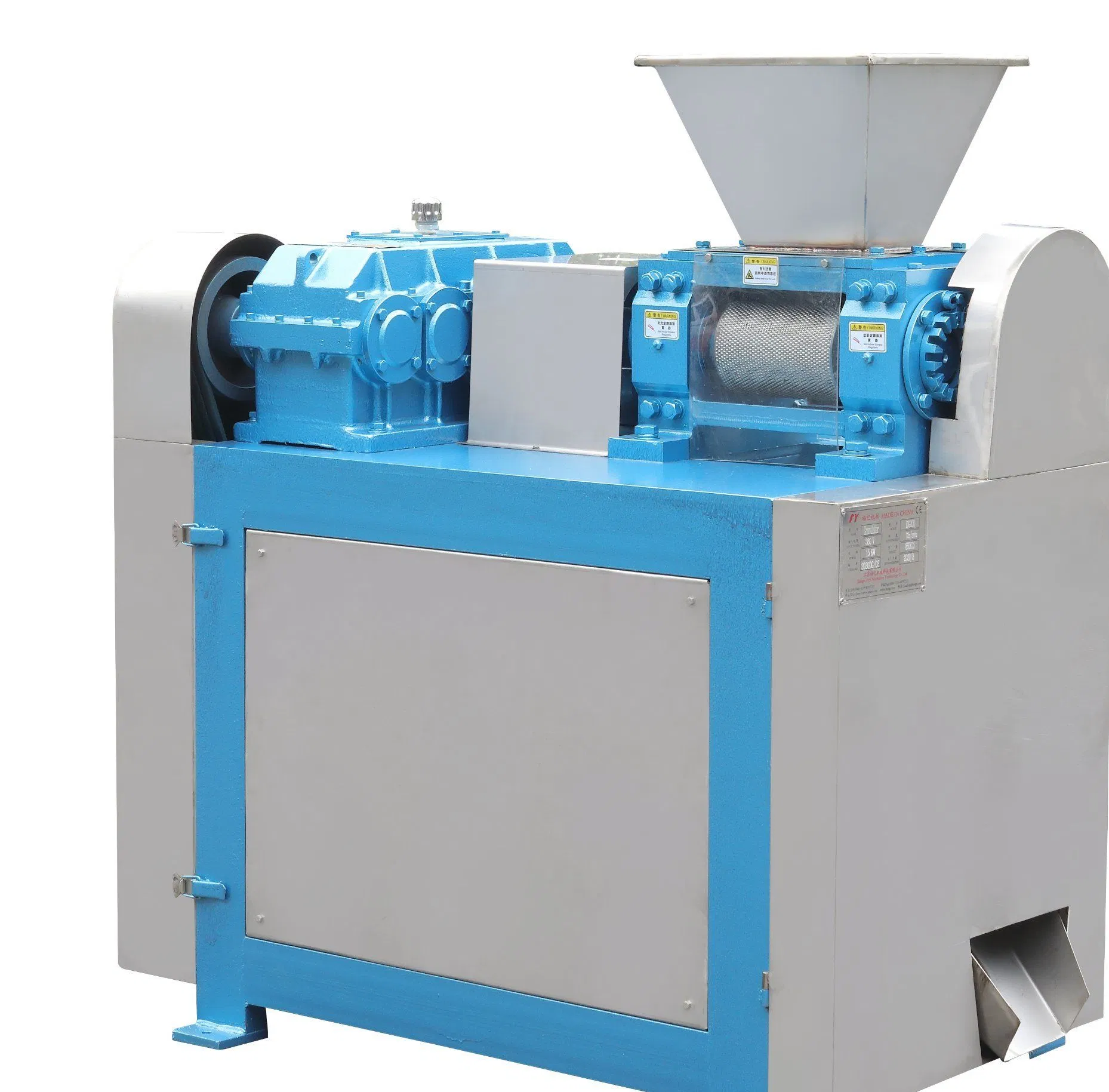

Good Quality Quartz Compaction Granulating Machine With Low Cost
Providing professional solutions for fertilizer granulation with over 10 years of experience. We offer a wide range of machine sizes for high-pressure granulating, covering nearly all client requirements. Whether for low or high production needs, multiple units can be configured. The granulation process is highly efficient with a water content between 2-5%.
i
Basic Specifications
Model NO.
DG200/DG300
Type
Granulator
Object
Fertilizer
Material
Alloy
Certification
CE, ISO 9001
Power
15kw / 30kw
Method
Double roller press
Roller Material
CrMO Alloy steel
Capacity
1-2t/h per unit
Granulating Rate
95%
Raw Materials
Diamond, Graphite, Fertilizers
Moisture
2% (wet)
Compaction Granulating Machine

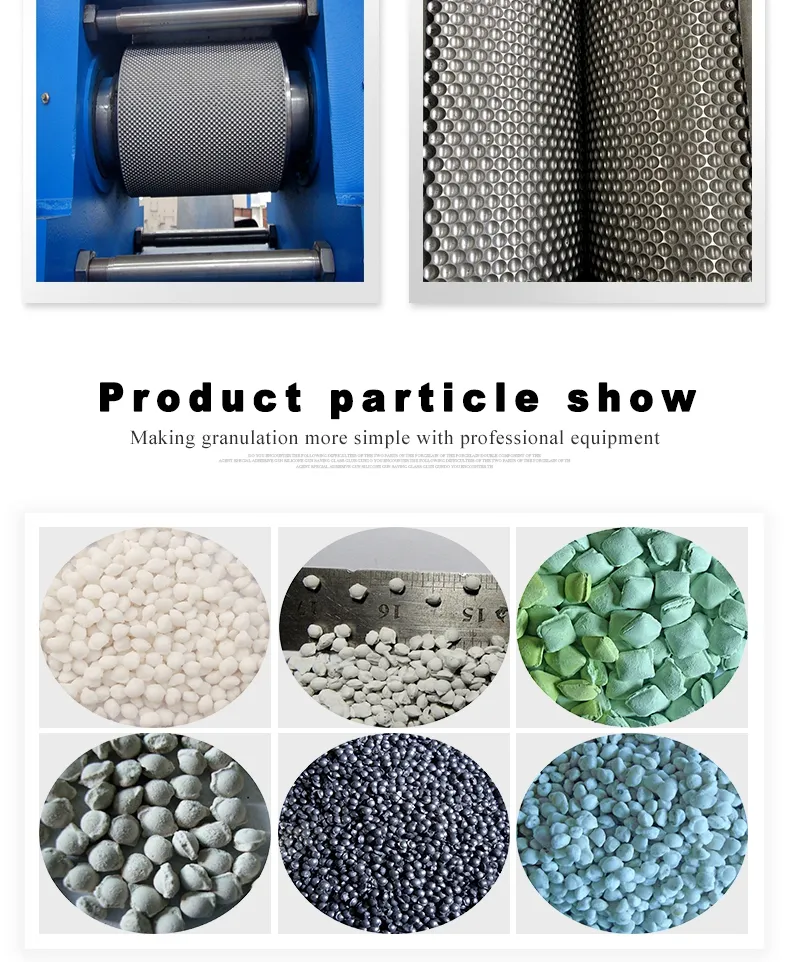

Granulator Parameters
⚙
Technical Parameters
Model DG-200 DG-300
Motor Power 15KW 30KW
Production Capacity Oblate: 900-1300 kg/h
Irregular: 300-700 kg/h		 Oblate: 1600-2100 kg/h
Irregular: 900-1600 kg/h
Reducer Adopt hard tooth surface dedicated reducer
Press Roll Forged with alloy steel, heat treatment in special process, surface can be plated with hard chromium.
Rate of Finished Product Oblate shape 60-92%, irregular shape 30-60%
Granular Diameter 3.8, 4.2, 4.8, 5.5, 6.0, 6.5, 8, 10mm
Working Medium Ammonium carbonate, urea, ammonium phosphate, potassium chloride, potassium sulfate, humic acid, etc.
★
Process Layout & Equipment

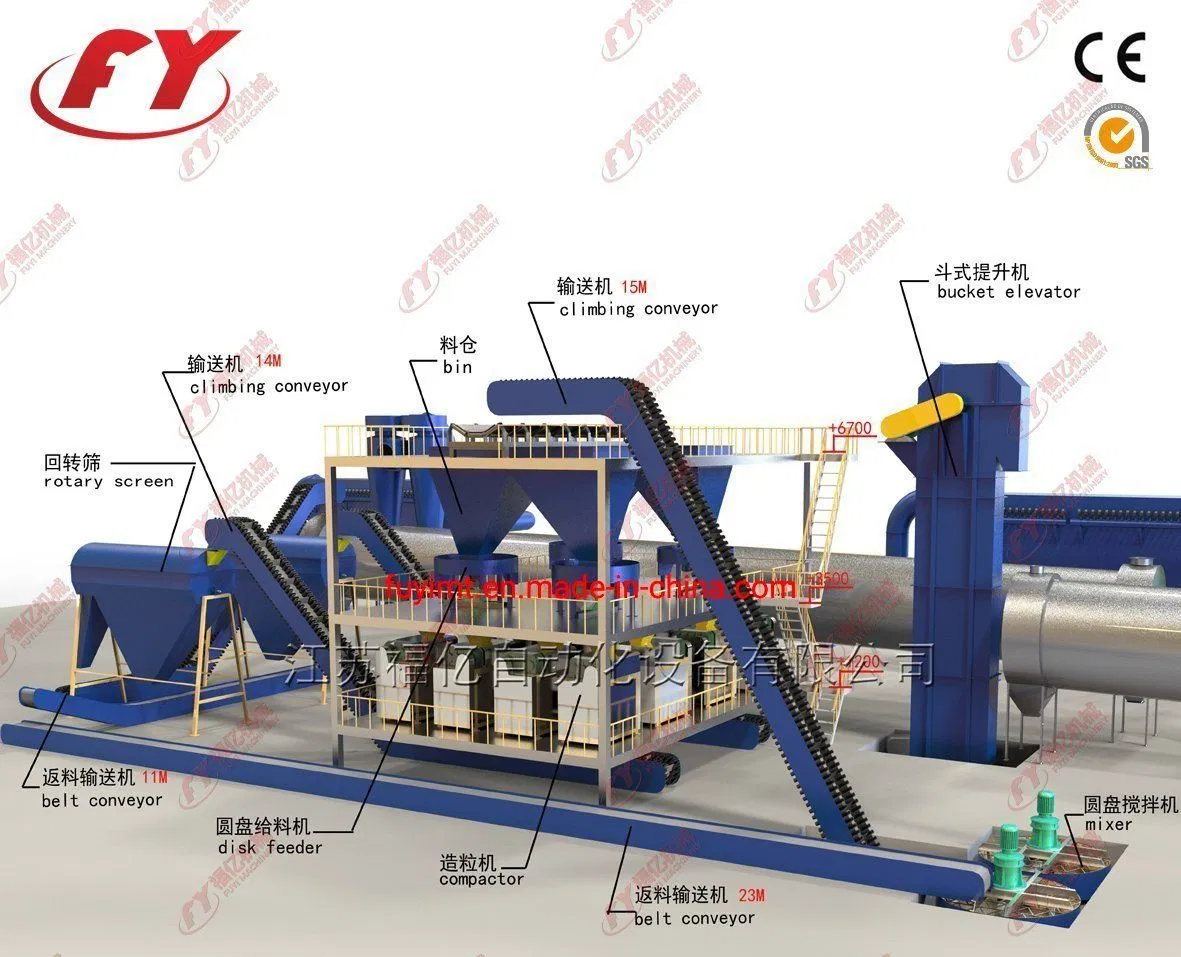

Custom diagrams are designed for each client based on factory size and equipment placement preferences. Our goal is to make the process simple, economic, and effective. We provide whole supporting equipment including mixers, feeding machines, crushers, screening machines, and cooling systems.

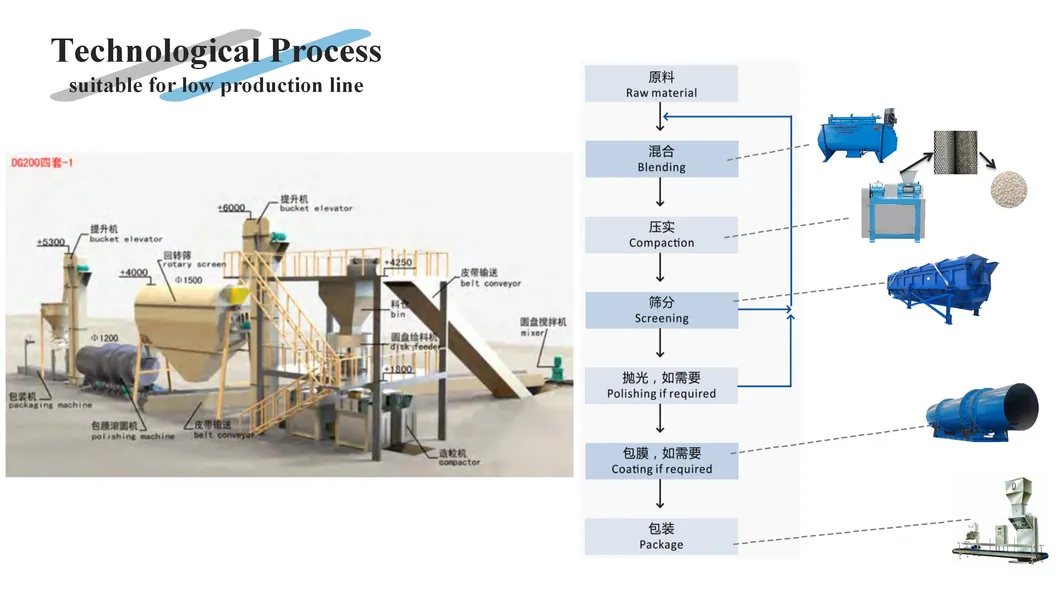

Process Layout 1

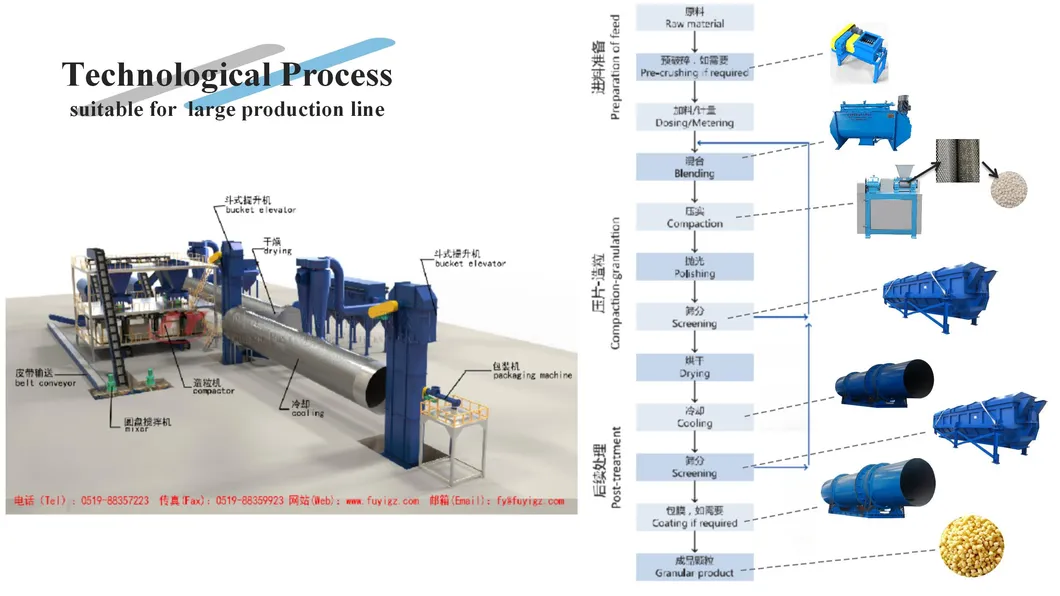

Process Layout 2

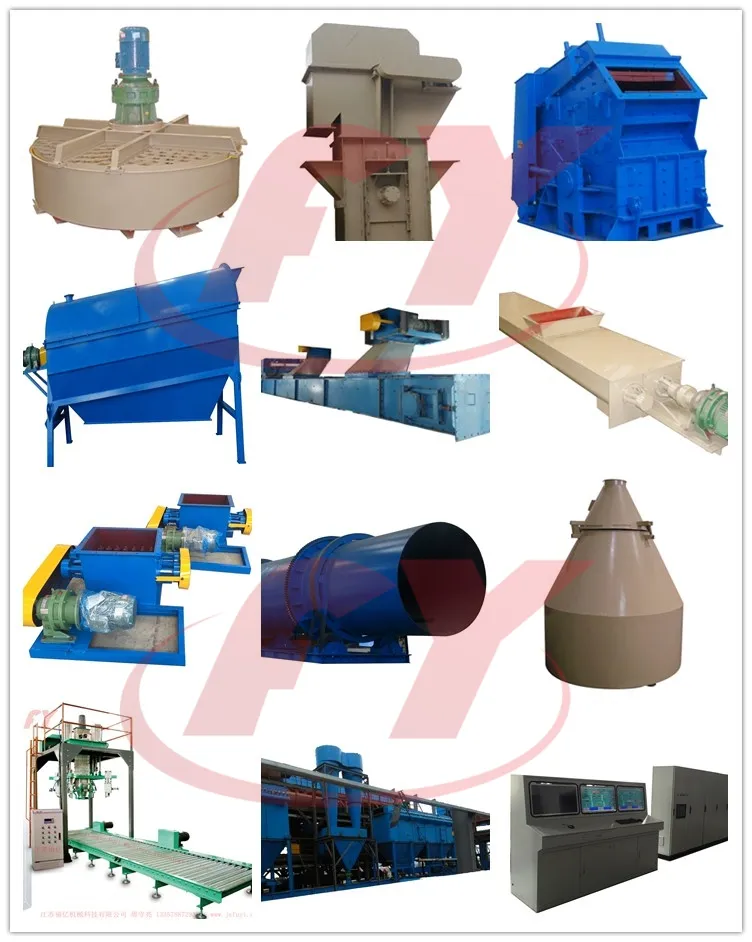

Supporting Equipment

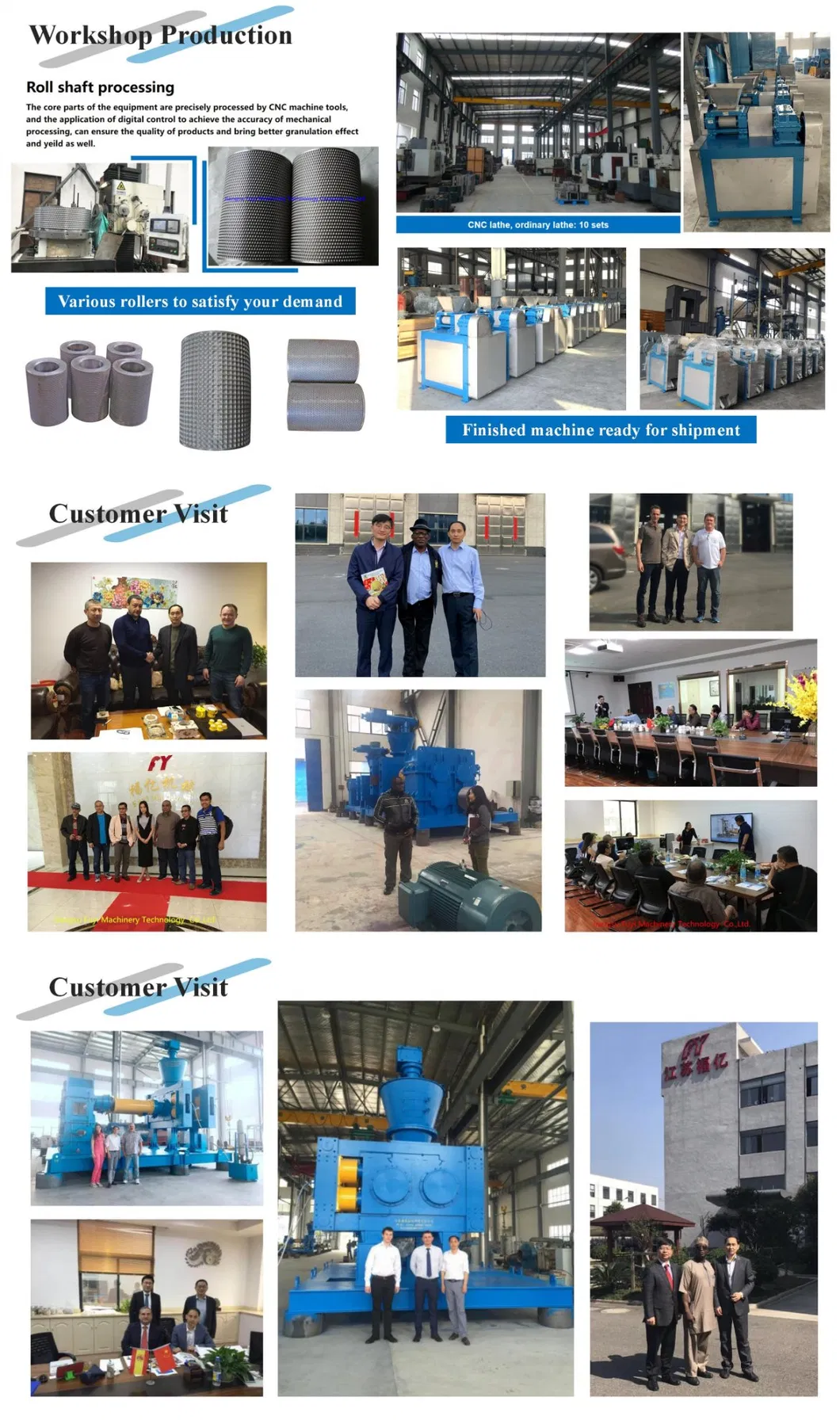

Machine Detail 1

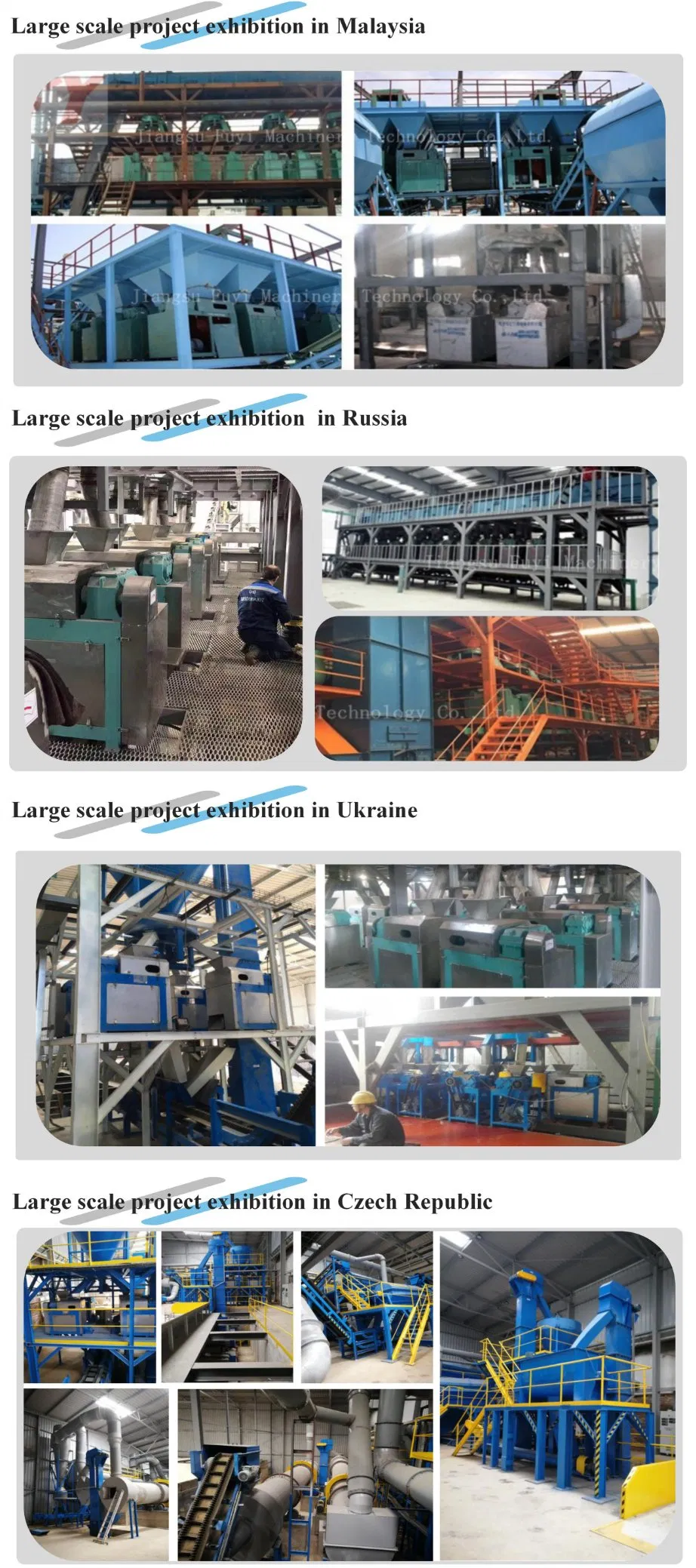

Machine Detail 2
✔
Professional Services
Services cover material tests, process layout, engineering, and supply of complete granulating plants or key equipments. Comprehensive guidance for installation, commissioning, and training is provided. Extensive experience and top-quality facilities guarantee a smooth workflow from start to finish.

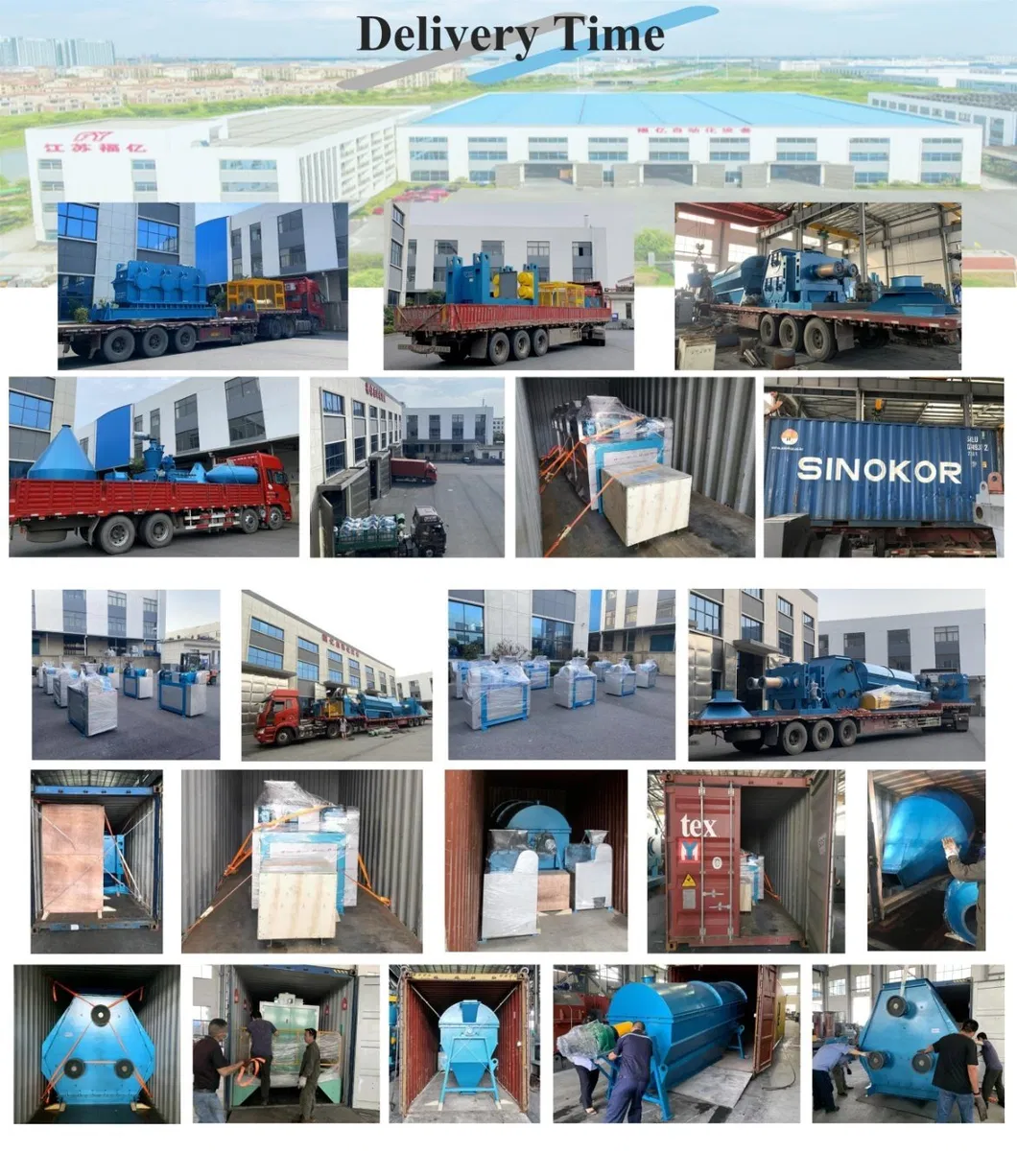

Service 1

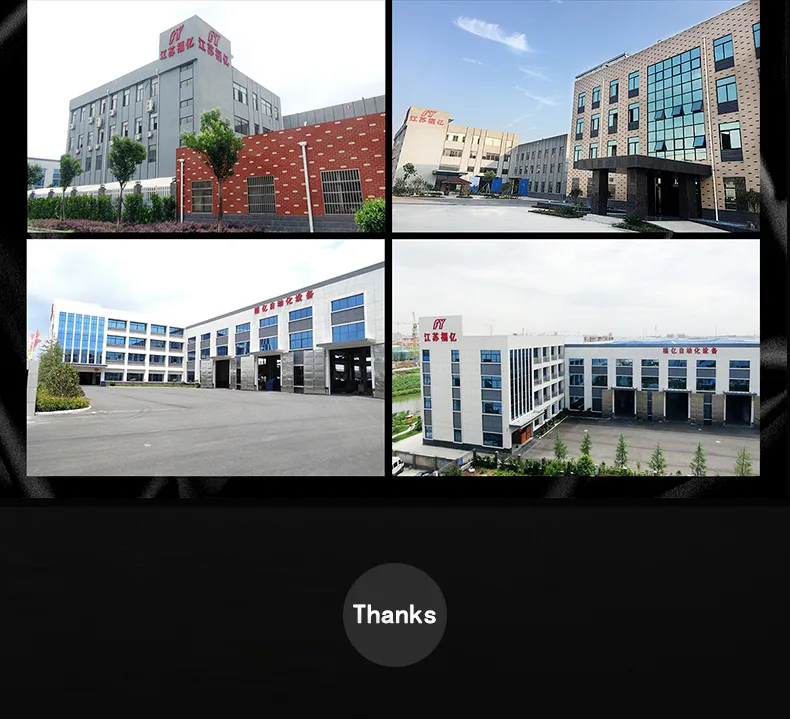

Service 2
Frequently Asked Questions
What raw materials are suitable for this granulator?
The machine is ideal for processing fertilizers like ammonium sulfate, urea, potassium chloride, and organic matters, as well as minerals like diamond and graphite.
What is the required moisture content for the materials?
For inorganic materials, the moisture content should be between 2-5%. For organic materials, a range of 6-12% is acceptable.
What granule shapes can the machine produce?
The granulator can produce various shapes including oblate, irregular, strip, square, and slice shapes depending on the roller configuration.

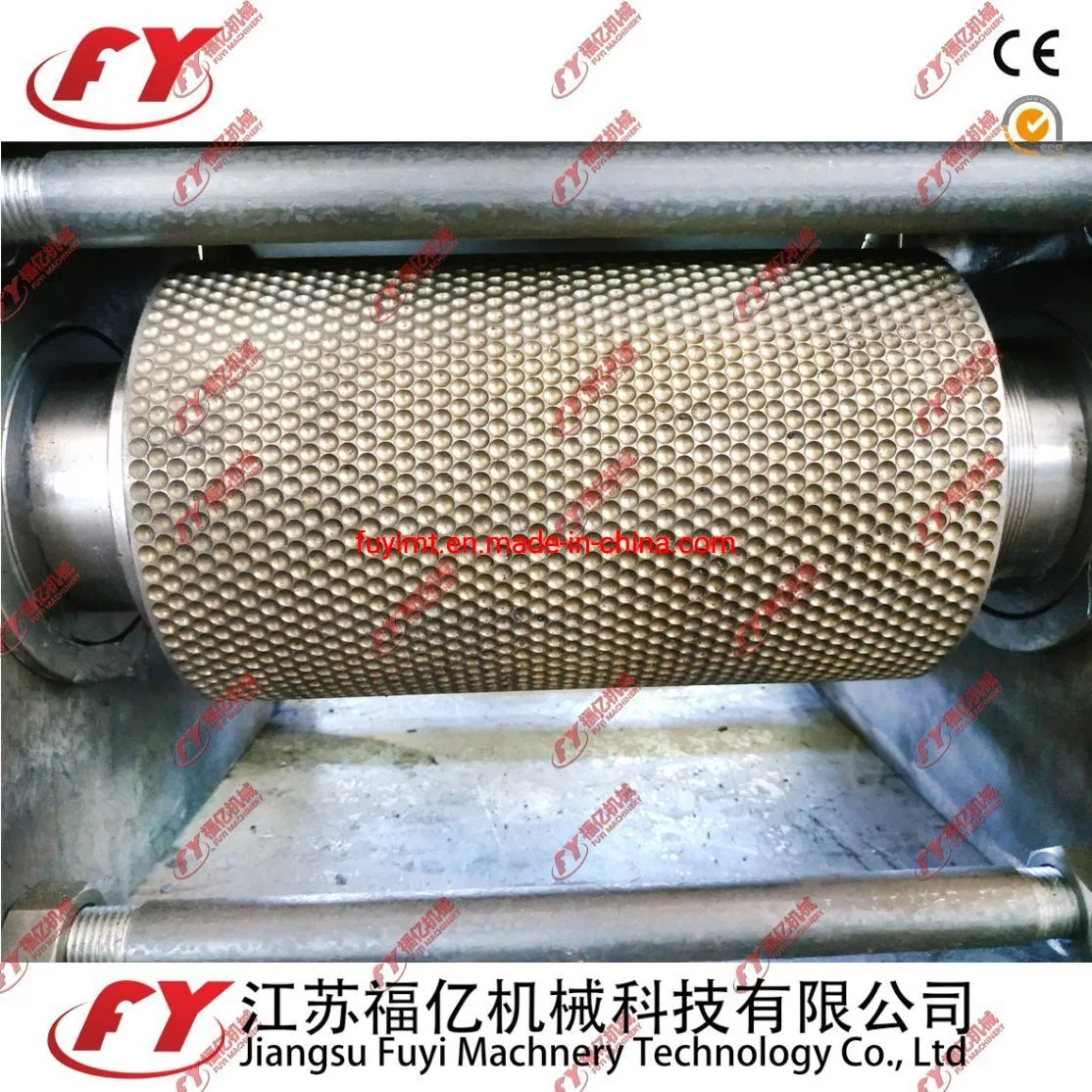

How durable are the pressing rollers?
The rollers are forged with CrMO alloy steel and undergo special heat treatment. They can also be plated with hard chromium for superior rustproof and wear-resistant performance.
Can you provide a complete production line?
Yes, we provide the full supporting equipment including mixers, conveyors, crushers, screening machines, drying/cooling units, and control cabinets.
What is the granulating rate of the machine?
The machine achieves a high granulating rate of approximately 95% for most compatible materials.
