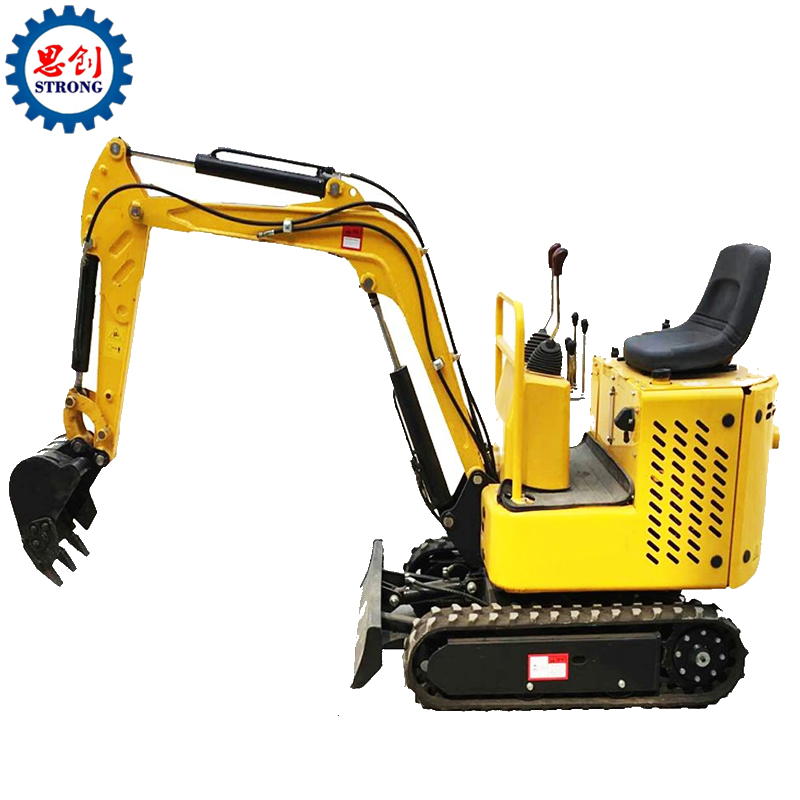

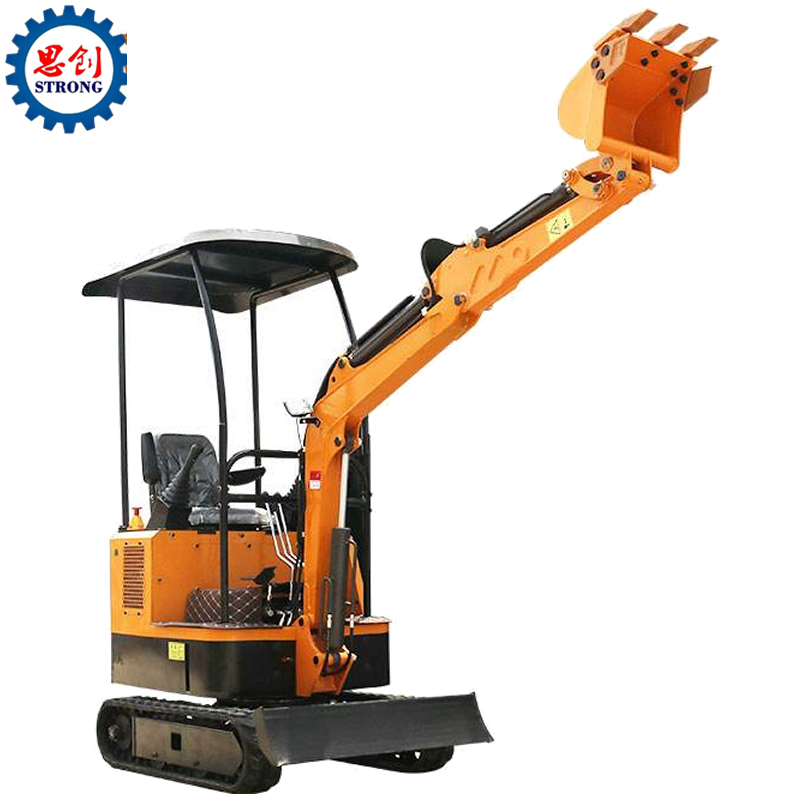

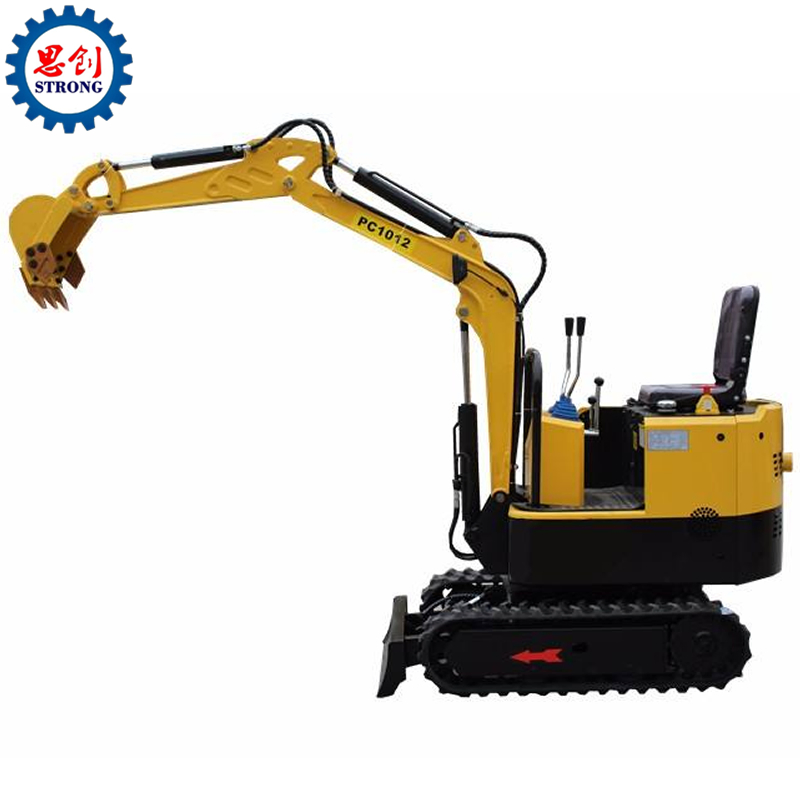

Mintrix Excavator
1 / 5

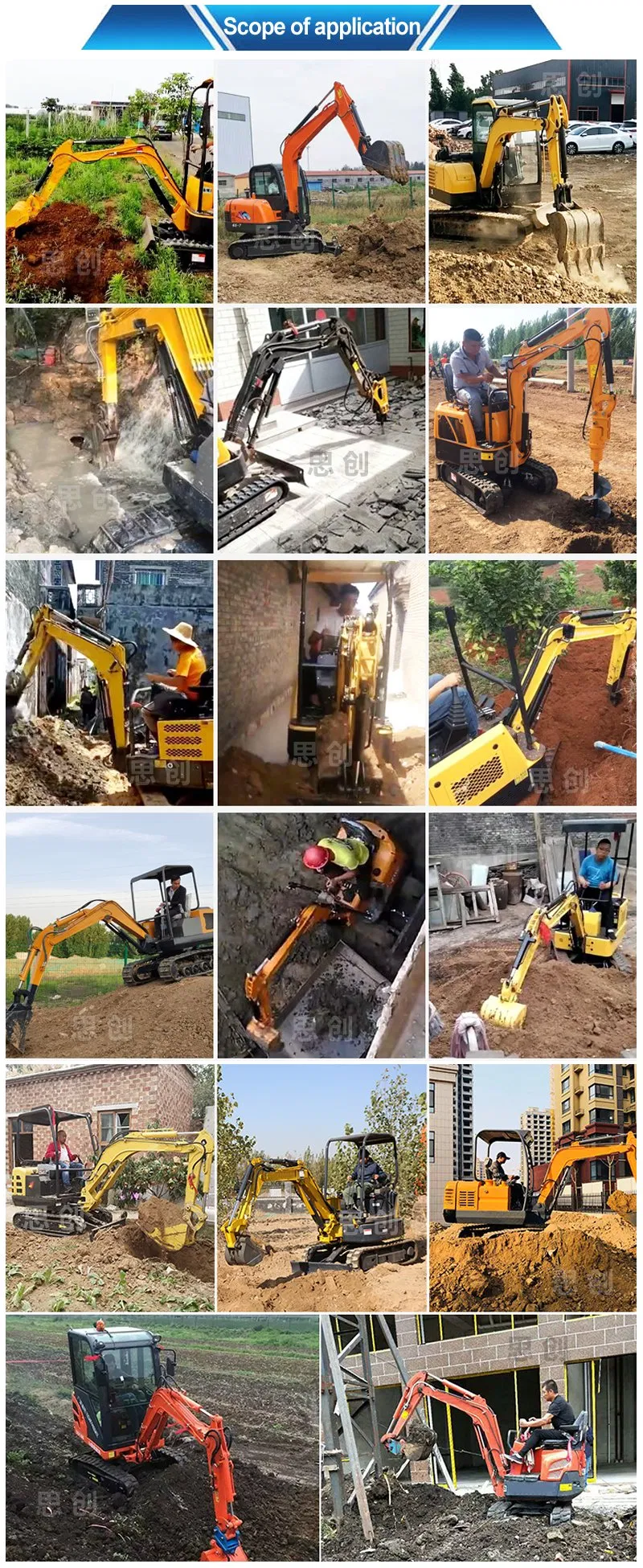

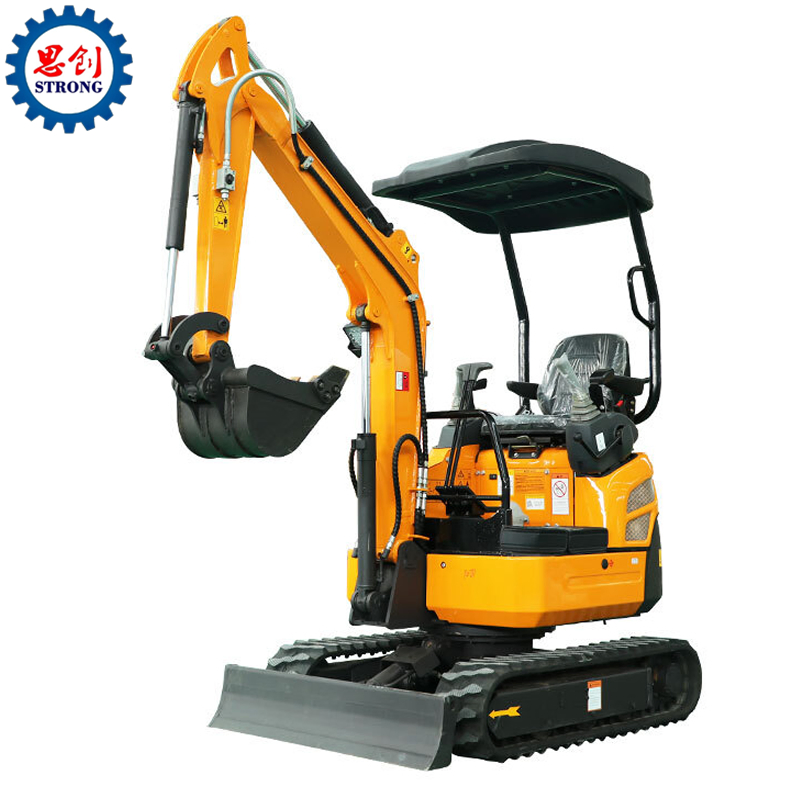

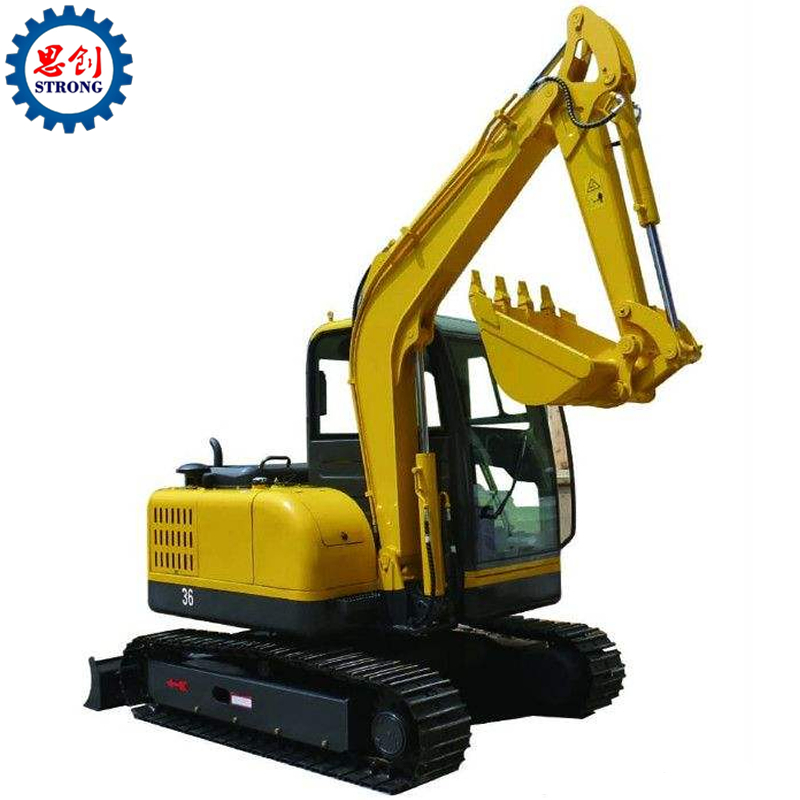

The mini excavator is mainly applicable to underground works such as digging wasteland, excavating ditches, and laying underground pipelines. It excels in greenhouse demolition, ditch digging, and small-scale orchard construction. These machines are highly valued for their low cost, light weight, and convenient maintenance. Their compactness, flexibility, and efficiency make them ideal for urban public facilities and house maintenance where larger excavators cannot operate.
A key feature is the specialized swing arm and stick design. The swing arm is hinged with the fuselage, allowing a large range of motion to avoid obstacles without moving the machine's body frequently. Rubber tracks help minimize landscape and road damage in narrow construction zones.

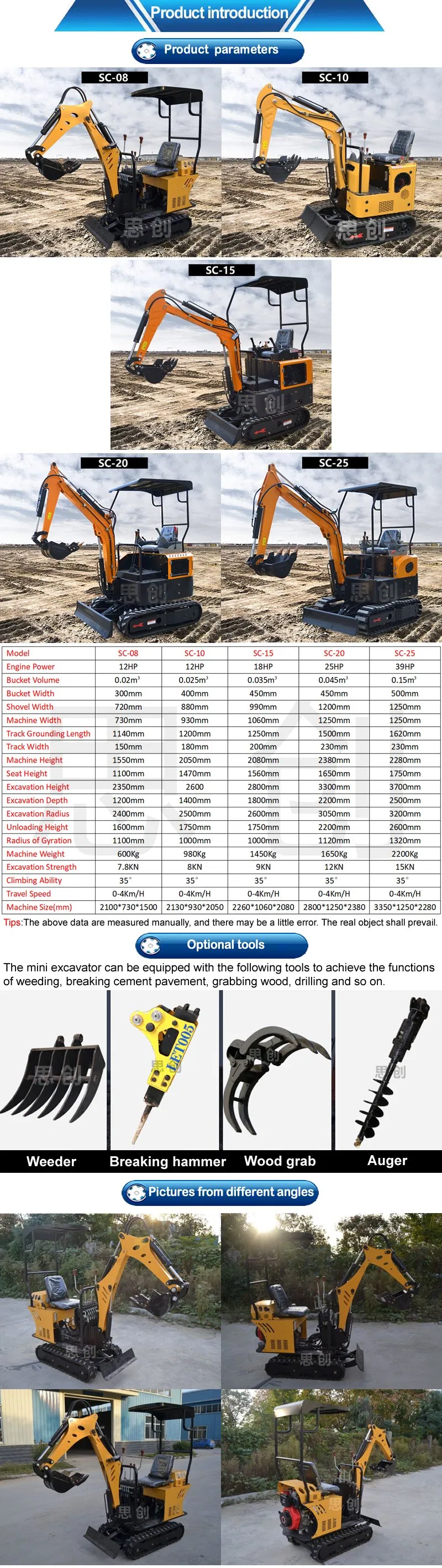

| Model | SC-08 | SC-10 | SC-15 | SC-20 | SC-25 |
| Engine Power | 12HP | 12HP | 18HP | 25HP | 39HP |
| Bucket Volume | 0.02m³ | 0.025m³ | 0.035m³ | 0.045m³ | 0.15m³ |
| Bucket Width | 300mm | 400mm | 450mm | 450mm | 500mm |
| Shovel Width | 720mm | 880mm | 990mm | 1200mm | 1250mm |
| Machine Width | 730mm | 930mm | 1060mm | 1250mm | 1250mm |
| Machine Height | 1550mm | 2050mm | 2080mm | 2380mm | 2280mm |
| Excavation Depth | 1200mm | 1400mm | 1800mm | 2200mm | 2500mm |
| Excavation Radius | 2400mm | 2500mm | 2600mm | 3050mm | 3200mm |
| Machine Weight | 600Kg | 980Kg | 1450Kg | 1650Kg | 2200Kg |
