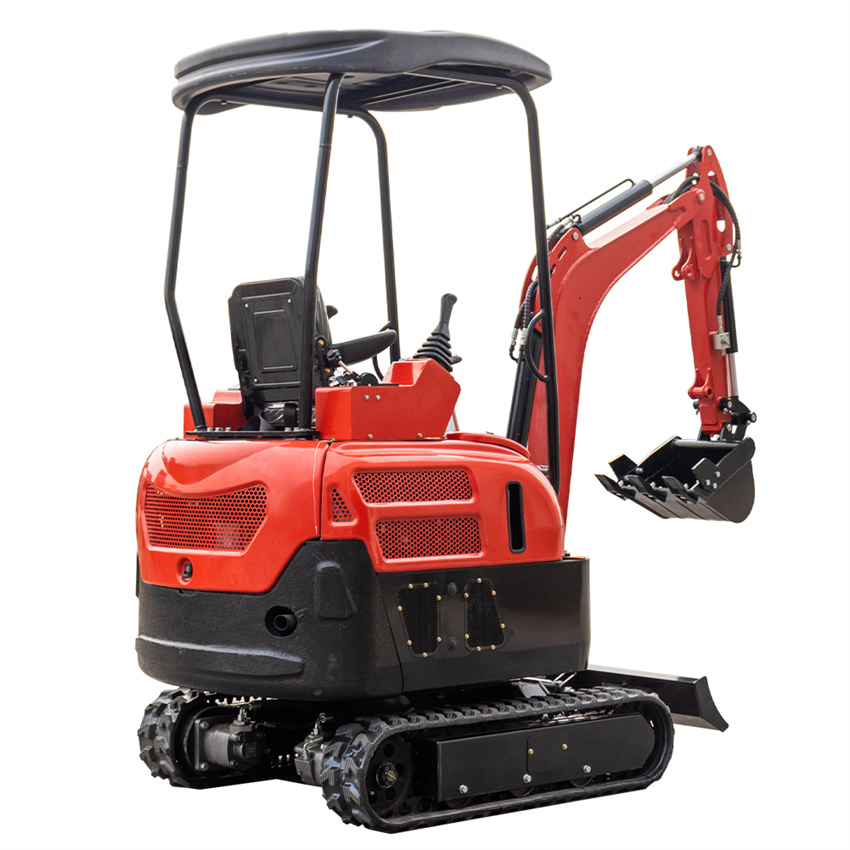

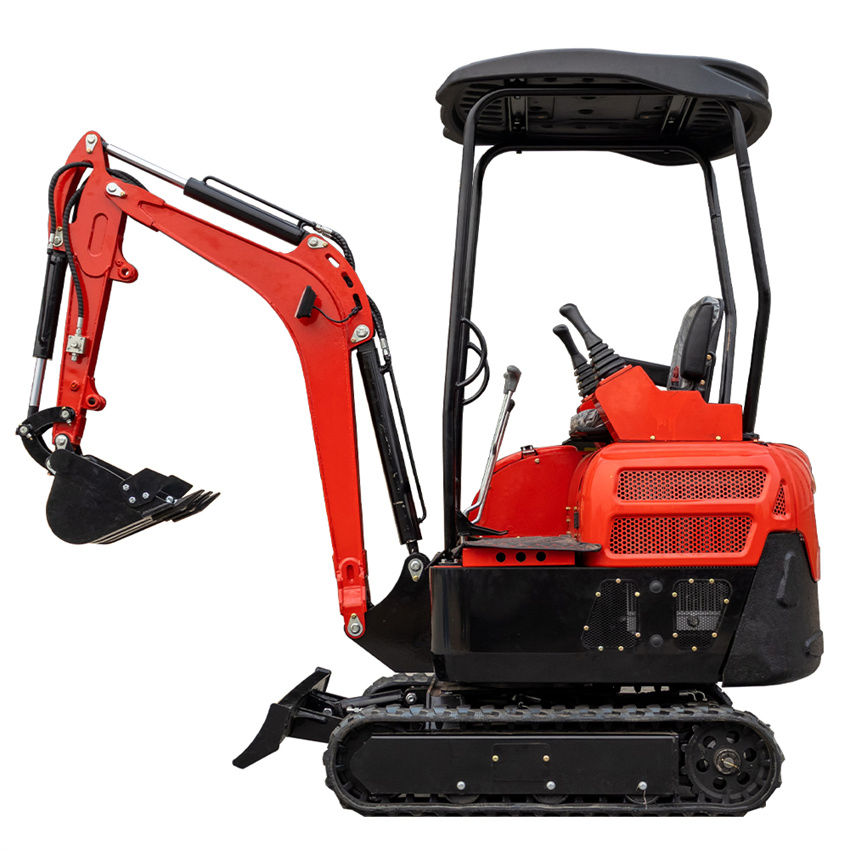

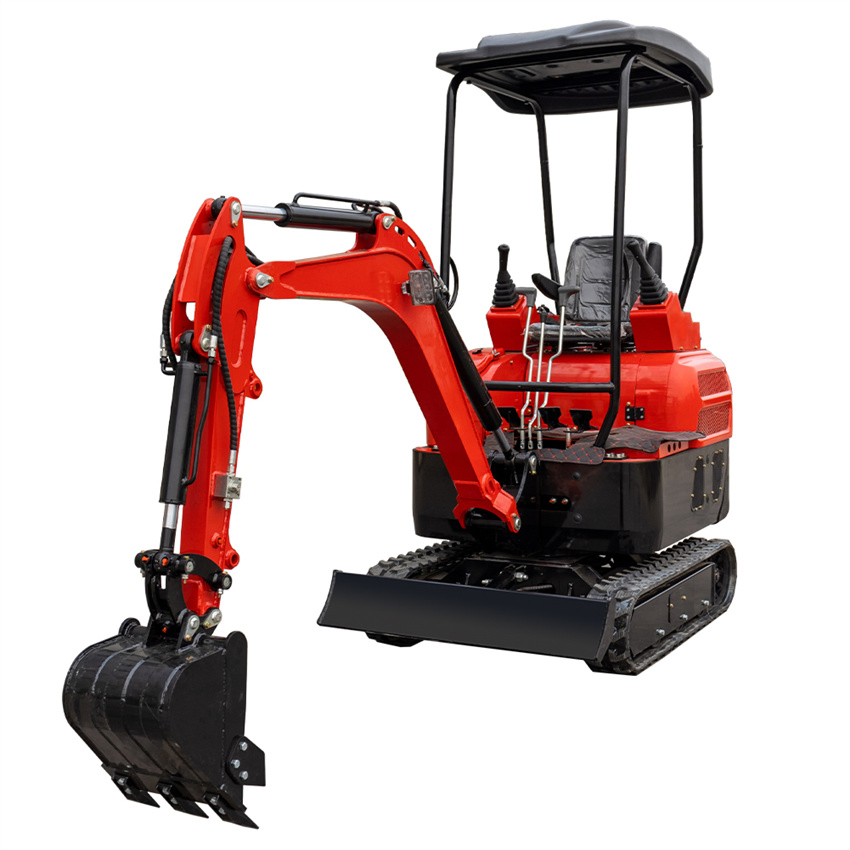

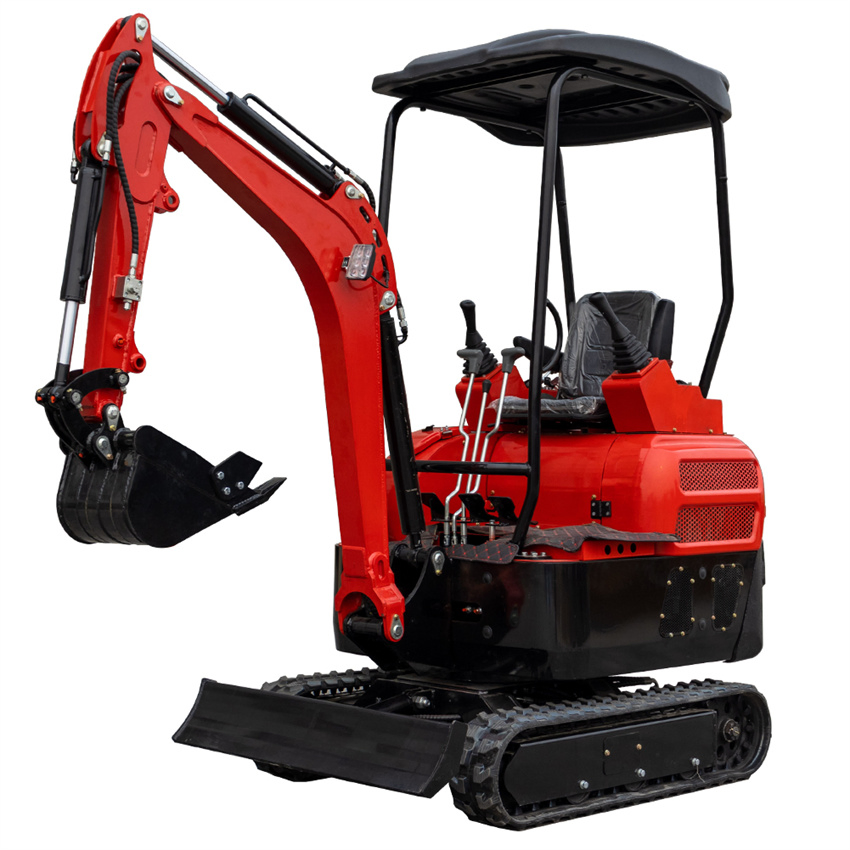

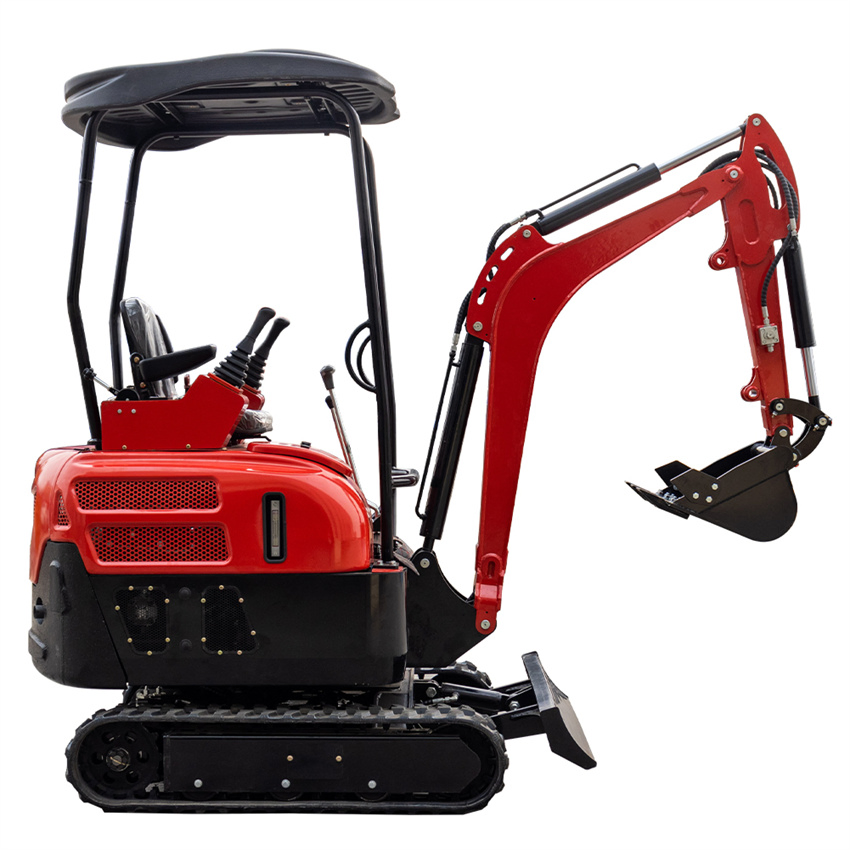

New 2.0 Ton Mini Crawler Excavator Earth-Moving Machinery for Sale with Cab

1 / 5

New 2.0 Ton Mini Crawler Excavator Earth-Moving Machinery for Sale with Cab

After-sales Service:	1year
Warranty:	1year
Type:	Crawler Excavator

Send Inquiry

Product Description

📊 Basic Information

Model NO.

HT20

Usage

Special, Marine, Mining, GM Excavator

Bucket

Backhoe

Transmission

Hydraulic

Drive Type

Internal Combustion

Bucket Capacity

0.06m³

Size

Small-Scale

Certification

CE, ISO9001: 2000

Engine Brand

Kubota

Max Digging Depth

2400mm

Transport Package

Wooden Packaging

Origin

China

📦 Packaging & Delivery

Package Size

260.00cm * 130.00cm * 150.00cm

Gross Weight

2000.000kg

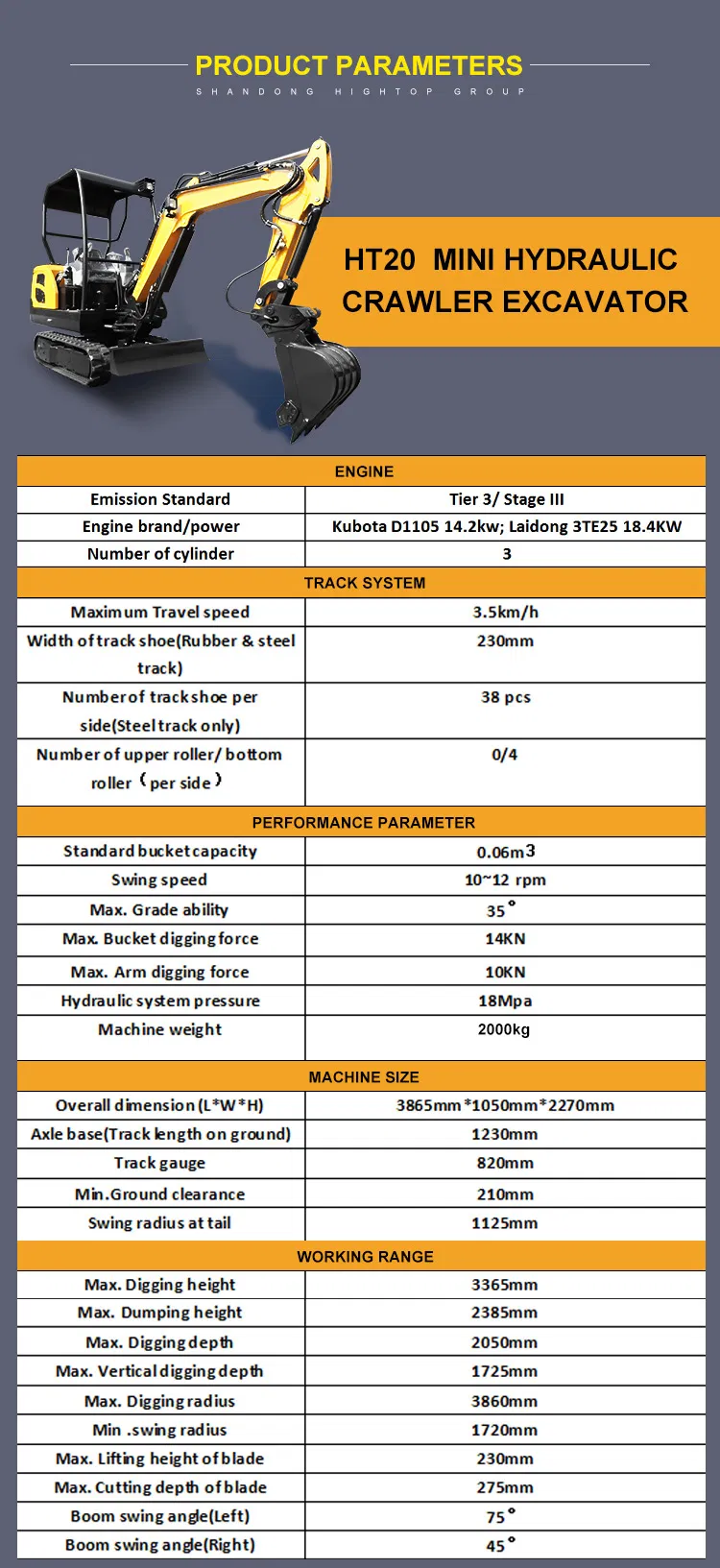

⚙️ Product Description

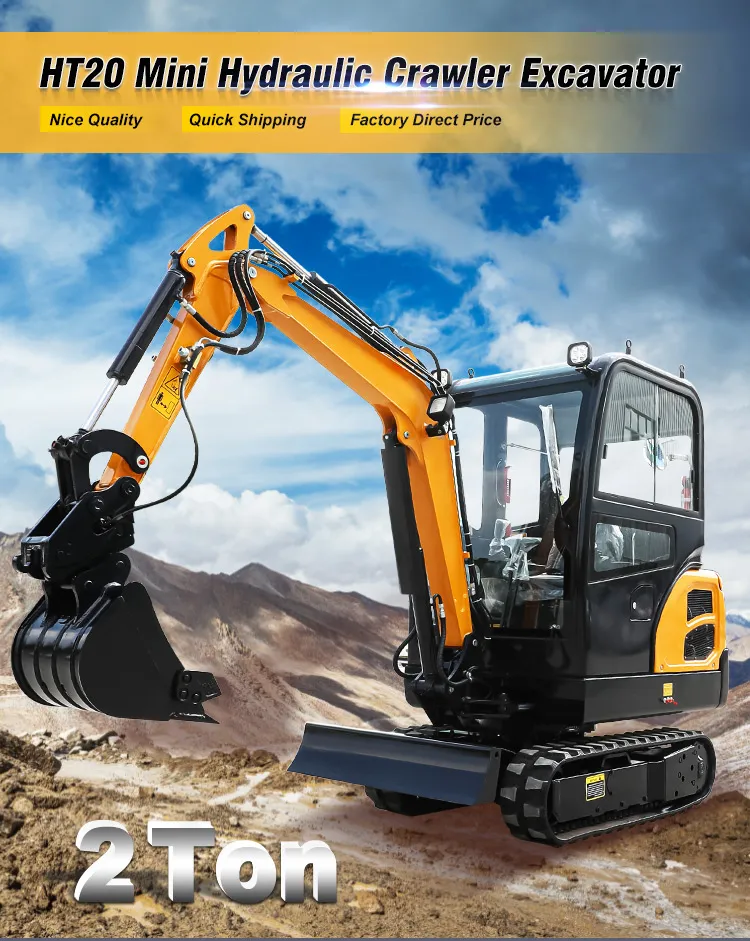

HT20 Mini Excavator

📐 Machine Size

Overall dimension: 3865mm*1050mm*2270mm
Axle base: 1230mm | Track gauge: 820mm
Min ground clearance: 210mm | Swing radius at tail: 1125mm

🛤️ Track System

Max travel speed: 3.5km/h | Width of track shoe: 230mm
Number of track shoe per side: 38pcs | Bottom rollers: 4

⚡ Performance Parameters

Standard bucket capacity: 0.06m³ | Swing speed: 10-12rpm
Max bucket digging force: 14KN | Max arm digging force: 10KN
Hydraulic system pressure: 18Mpa | Machine weight: 1800kg

🚀 Engine Details

Emission standard: Euro5/EPA
Engine brand / power: Kubota D1105 (14.2kw) / Laidong 3TE25 (18.4kw)
Number of cylinders: 3

🏗️ Working Range

Max digging height: 3365mm | Max dumping height: 2385mm
Max digging depth: 2050mm | Max vertical digging depth: 1725mm
Max digging radius: 3860mm | Min swing radius: 1720mm
Max lifting height of blade: 230mm | Max cutting depth of blade: 275mm

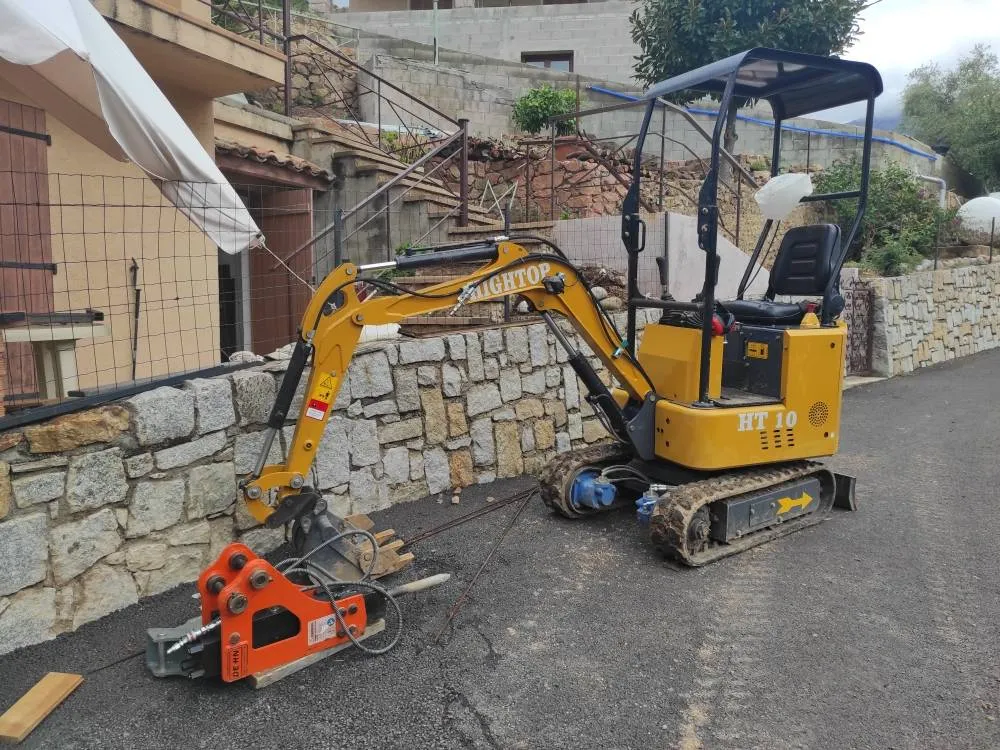

🖼️ Product Gallery

❓ Frequently Asked Questions

Q1: What engine options are available for the HT20 mini excavator? A: The HT20 is equipped with high-performance engines including the Kubota D1105 (14.2kw) or the Laidong 3TE25 (18.4kw), both meeting Euro5/EPA emission standards.

Q2: What is the maximum digging capability of this model? A: The HT20 features a maximum digging depth of 2400mm and a maximum digging height of 3700mm, making it highly versatile for various excavation tasks.

Q3: Is the HT20 suitable for work in confined or narrow spaces? A: Yes, with a width of only 1050mm and a minimum swing radius of 1610mm, it is specifically designed for small-scale projects and tight operational environments.

Q4: What are the primary certifications for this machinery? A: This machine is fully certified with CE and ISO9001: 2000, ensuring it meets international quality and safety standards.

Q5: What type of packaging is used for international shipping? A: The HT20 mini excavator is shipped using secure wooden packaging to ensure the machine arrives in new condition.

Q6: What is the standard bucket capacity for the HT20? A: The standard backhoe bucket capacity is 0.06m³, optimized for efficiency in small-to-medium earth-moving tasks.
